HIKVISION DS-KH6310-W Quick Start Manual

Video intercom indoor station (6/8-series)/
Hide thumbs Also See for DS-KH6310-W:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Video Intercom Indoor Station
Quick Start Guide
UD02902B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-KH6310-W and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-KH6310-W

Summary of Contents for HIKVISION DS-KH6310-W

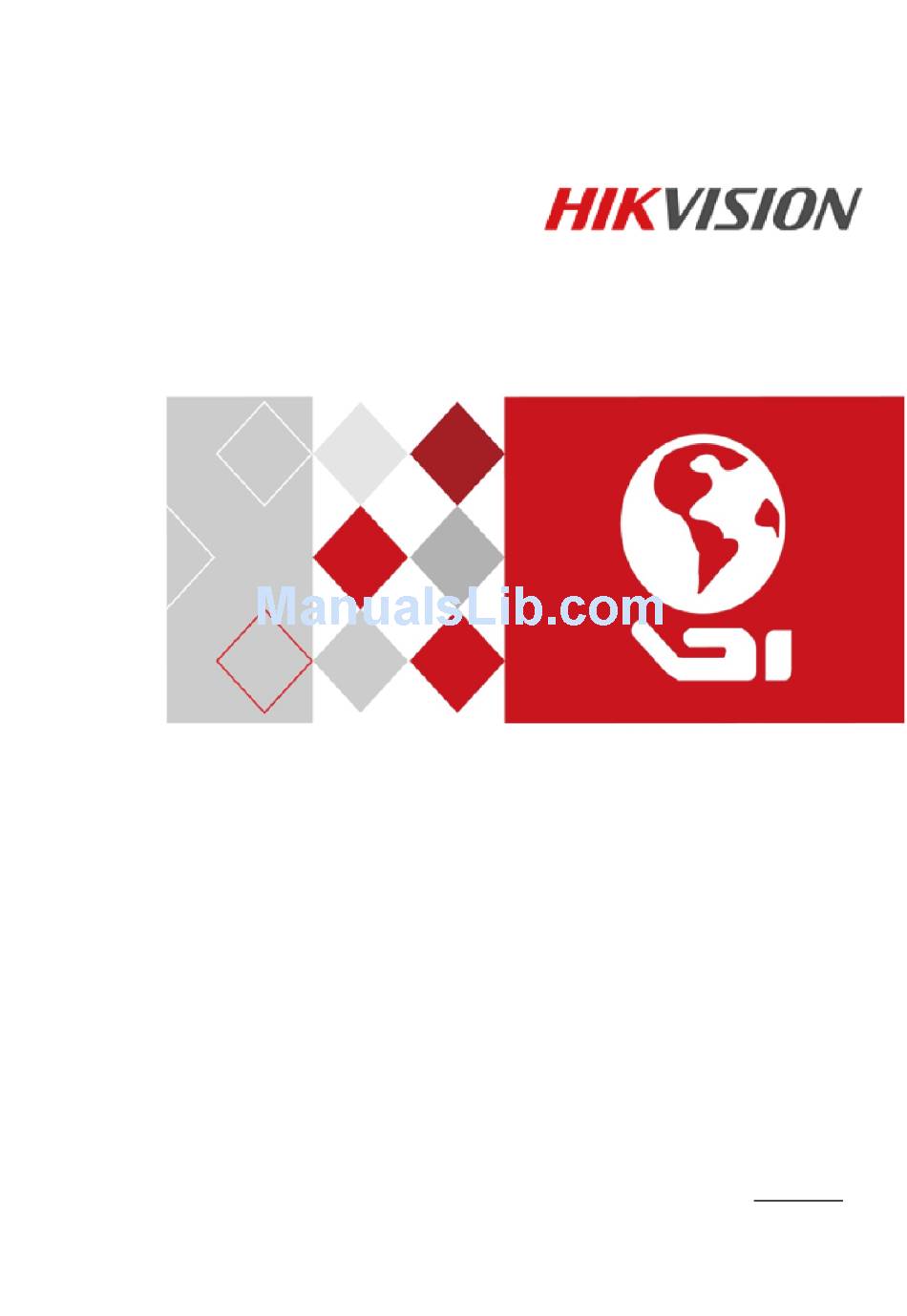

  • Page 1 Video Intercom Indoor Station Quick Start Guide UD02902B...
  • Page 2 Trademarks and other Hikvision marks are the property of Hikvision and are registered trademarks or the subject of applications for the same by Hikvision and/or its affiliates. Other trademarks mentioned in this manual are the properties of their respective owners. No right of license is given to use such trademarks without express permission.
  • Page 3 Video Intercom Indoor Station·Quick Start Guide TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES...

  • Page 4: Regulatory Information

    Video Intercom Indoor Station·Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Video Intercom Indoor Station·Quick Start Guide The precaution measure is divided into Warnings and Cautions: Warnings: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage. Warnings Follow Cautions Follow these these safeguards to precautions to prevent...
  • Page 6 Video Intercom Indoor Station·Quick Start Guide Please use the provided glove when open up the device cover, avoid direct contact with the device cover, because the acidic sweat of the fingers may erode the surface coating of the device cover. Please use a soft and dry cloth when clean inside and outside surfaces of the device cover, do not use alkaline detergents.

  • Page 7: Table Of Contents

    1.3 Appearance of DS-KH6310-WL/DS-KH6210-L ............3 2 Terminals and Interfaces ................... 5 2.1 Terminals and Interfaces of DS-KH8301-WTS/ DS-KH8301-WT/DS-KH8300-T ..5 2.2 Terminals and Interfaces of DS-KH6310-W/ DS-KH6310 .......... 6 2.3 Terminals and Interfaces of DS-KH6310-WL/ DS-KH6210-L ........7 3 Installation and Wiring ....................8 3.1 Indoor Station Installation ..................
  • Page 8 Video Intercom Indoor Station·Quick Start Guide Appendix ........................33 Installation Notice ....................... 33 Wiring Cables ......................33...

  • Page 9: Appearance

    Video Intercom Indoor Station·Quick Start Guide 1 Appearance 1.1 Appearance of DS-KH8301-WTS/DS-KH8301-WT/ DS-KH8300-T Table 1-1 Components Description Description Built-in Camera (Only DS-KH8301-WT supports) Power Supply Indicator Information Indicator Alarm Indicator SOS Touch Key Unlock Touch Key Live View Touch Key Management Center Touch Key Figure 1-1 Front Panel LCD Display Screen...

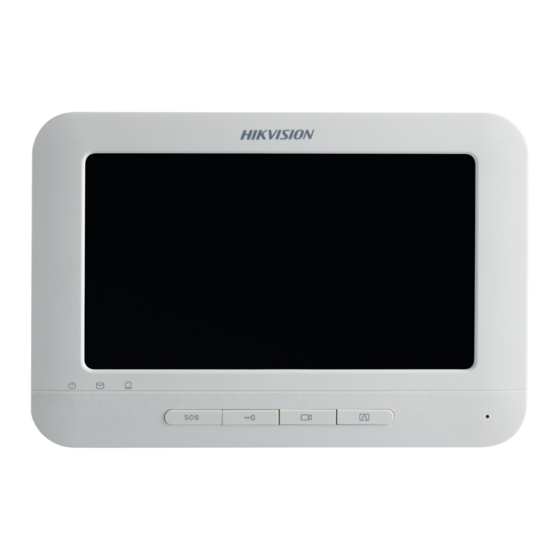

  • Page 10: Appearance Of Ds-Kh6310-W/Ds-Kh6310

    Video Intercom Indoor Station·Quick Start Guide 1.2 Appearance of DS-KH6310-W/DS-KH6310 Table 1-3 Components Description Description Power Supply Indicator Information Indicator Alarm Indicator SOS Key Unlock Key Live View Key Management Center Key LCD Display Screen Figure 1-3 Front Panel Microphone...

  • Page 11: Appearance Of Ds-Kh6310-Wl/Ds-Kh6210-L

    Video Intercom Indoor Station·Quick Start Guide 1.3 Appearance of DS-KH6310-WL/DS-KH6210-L Table 1-5 Components Description Description Power Supply Indicator Information Indicator Alarm Indicator SOS Key Unlock Key Live View Key Management Center Key LCD Display Screen Figure 1-5 Front Panel Microphone Table 1-6 Components Description Description Power Supply...
  • Page 12 Video Intercom Indoor Station·Quick Start Guide Keys Hold Down Press SOS Key Return Key Direction Keys▲and◄/Unlock Key Live View Key Alarm Direction Keys▼and► Management Center Key Confirm Key...

  • Page 13: Terminals And Interfaces

    Video Intercom Indoor Station·Quick Start Guide 2 Terminals and Interfaces 2.1 Terminals and Interfaces of DS-KH8301-WTS/ DS-KH8301-WT/DS-KH8300-T Figure 2-1 Terminals of DS-KH8301-WTS/DS-KH8301-WT/DS-KH8300-T Table 2-1 Descriptions of Terminals and Interfaces Name Interface Description RS485B+ RS485B- Communication RS-485 Communication Interfaces RS485A+ Port RS485A- Grounding Grounding...

  • Page 14: Terminals And Interfaces Of Ds-Kh6310-W/ Ds-Kh6310

    JIN3 Zone Detector Input Terminal 3 JIN2 Zone Detector Input Terminal 2 JIN1 Zone Detector Input Terminal 1 2.2 Terminals and Interfaces of DS-KH6310-W/ DS-KH6310 Figure 2-2 terminals of DS-KH6310-W/DS-KH6310 Table 2-2 Descriptions of Terminals and Interfaces Name Interface Description...

  • Page 15: Terminals And Interfaces Of Ds-Kh6310-Wl/ Ds-Kh6210-L

    Video Intercom Indoor Station·Quick Start Guide 2.3 Terminals and Interfaces of DS-KH6310-WL/ DS-KH6210-L Figure 2-3 Terminals of DS-KH6310-WL/DS-KH6210-L Table 2-3 Terminals Description Name Interface Description AIN1 Zone Detector Input Terminal 1 Terminals AIN2 Zone Detector Input Terminal 2 Grounding...

  • Page 16: Installation And Wiring

    Video Intercom Indoor Station·Quick Start Guide 3 Installation and Wiring Before you start:  Make sure the device in the package is in good condition and all the assembly parts are included.  The power supply the indoor station supports is 12 VDC. Please make sure your power supply matches your indoor station.
  • Page 17 Video Intercom Indoor Station·Quick Start Guide Steps: 1. Chisel a hole in the wall. The size of the hole should be 76 mm (width) × 76 mm (length) × 50 mm (depth). 2. Insert the junction box to the hole chiseled on the wall. 3.

  • Page 18: Indoor Station Wiring

    Video Intercom Indoor Station·Quick Start Guide 3.2 Indoor Station Wiring 3.2.1 Wiring of DS-KH8301-WTS/ DS-KH8301-WT/DS-KH8300-T Figure 3-4 Wiring of DS-KH8301-WTS/DS-KH8301-WT/DS-KH8300-T Indoor Station...

  • Page 19: Wiring Of Ds-Kh6310-W/Ds-Kh6310

    Video Intercom Indoor Station·Quick Start Guide 3.2.2 Wiring of DS-KH6310-W/DS-KH6310 Figure 3-5 Wiring of DS-KH6310-W/DS-KH6310 Indoor Station...

  • Page 20: Wiring Of Ds-Kh6310-Wl/Ds-Kh6210-L

    Video Intercom Indoor Station·Quick Start Guide 3.2.3 Wiring of DS-KH6310-WL/DS-KH6210-L Figure 3-6 Wiring of DS-KH6310-WL/DS-KH6210-L Indoor Station...
  • Page 21 Video Intercom Indoor Station·Quick Start Guide Descriptions of Indoor Station interfaces are shown in the following table. Interface Description ALARM IN Connect alarm device, with one end of the device connecting to JINx and the other end connecting to GND (x indicates number between 1~8).

  • Page 22: Before You Start

    Video Intercom Indoor Station·Quick Start Guide 4 Before You Start For the first time use of the device, you are required to activate the device and set the device password. You can activate the device on the UI, via internet with Batch Configuration Tool, or with iVMS-4200 client software.

  • Page 23: Local Operation

    Video Intercom Indoor Station·Quick Start Guide 5 Local Operation  Here the local operation of indoor stations with touch screen is taken as example.  The DS-KH6210-L should be operated with physical keys. The SOS key works as a return key; the Unlock key works as direction keys ▲and◄ to turn up and left; the Live View key works as direction keys ▼and►...

  • Page 24: User Interface Description

    Video Intercom Indoor Station·Quick Start Guide  You must create a password to activate the device for your first time usage and when it is not activated.  Only when the device is activated, can you operate it locally and remotely. ...

  • Page 25: User Interface Of Indoor Extension

    Video Intercom Indoor Station·Quick Start Guide  Slide left and right to realize the switch between two interface pages (except for DS-KH6210-L).  Here the user interface of DS-KH8301-WT is taken as as example.  Only DS-KH8301-WTS/DS-KH8301-WT/DS-KH8300-T indoor stations support TF card. ...

  • Page 26: Status Of Indoor Station

    Video Intercom Indoor Station·Quick Start Guide  Only DS-KH8301-WTS/DS-KH8301-WT/DS-KH8300-T indoor extensions support TF card.  Here the user interface of DS-KH8301-WT indoor extension is taken as example. 5.2.3 Status of Indoor Station Table 5-1 Description of Status Icons Icon Definition Description The communication between indoor station, door station and master station is normal.

  • Page 27: Status Of Indoor Extension

    Video Intercom Indoor Station·Quick Start Guide Icon Definition Description TF card is inserted in the indoor station. Only DS-KH8301-WTS/DS-KH8301-WT/ Exception occurs DS-KH8300-T Models support the TF card with the TF card. function. No TF card is inserted in the indoor station. 5.2.4 Status of Indoor Extension Table 5-2 Description of Status Icons Icon...

  • Page 28: Configuration Settings

    Video Intercom Indoor Station·Quick Start Guide Icon Definition Description No TF card is inserted in the station station. 5.3 Configuration Settings Purpose: On the configuration settings interface, you can set and view the local information, configure the network, manage devices, synchronize the device time, and restore the default settings.
  • Page 29 Video Intercom Indoor Station·Quick Start Guide Figure 5-6 Local Information Settings (Indoor Station) Figure 5-7 Local Information Settings (Indoor Extension) 3. Press the drop-down list to select a video standard: PAL, or NTSC. 4. Set the maximum live view duration of the device. ...

  • Page 30: Setting Network

    Video Intercom Indoor Station·Quick Start Guide  Only DS-KH8301-WT, DS-KH8301-WTS and DS-KH8501-WT require setting the video standard, and the system will reboot after selecting video standard.  The maximum live view duration varies from 10 seconds to 60 seconds. 5.3.3 Setting Network Purpose: Network connection is mandatory for the use of the indoor station.

  • Page 31: Adding Device

    Video Intercom Indoor Station·Quick Start Guide 5. Press the tab to save the settings.  Enable DHCP function to obtain an IP address automatically.  Enable Same LAN function if indoor stations and indoor extensions are in the same local area network with other video intercom devices in a community, or the indoor extensions will not work normally.
  • Page 32 Video Intercom Indoor Station·Quick Start Guide Figure 5-10 Main Door Station Adding Interface (Indoor Station) 4. Select the main door station type: D Series, or V Series. 5. Enter the IP address of the main door station, and press the tab to save the settings.
  • Page 33 Video Intercom Indoor Station·Quick Start Guide Figure 5-11 Device Selecting Interface (Indoor Station) 4. Press the IP Camera tab to pop up the IP camera adding dialogue box. Figure 5-12 IP Camera Adding Interface 5. Enter the device name, IP address, Port No., user name, and password. 6.

  • Page 34: Calling Resident

    Video Intercom Indoor Station·Quick Start Guide Adding Device (Indoor Extension) Indoor extension can only connect to the indoor station. Steps: 1. Get to the configuration interface: Settings > Configuration, and enter the admin password (configuration password). 2. Press the Device tab to enter the device management interface. 3.
  • Page 35 Video Intercom Indoor Station·Quick Start Guide  Indoor extension does not support this function. On the call resident interface of DS-KH6210-L, there is no Contact List, Call Elevator, or  Call Center tab. Figure 5-14 Call Resident Interface...

  • Page 36: Remote Operation (Batch Configuration Tool)

    Video Intercom Indoor Station·Quick Start Guide 6 Remote Operation (Batch Configuration Tool) 6.1 Activating Device Remotely Purpose: You are required to activate the device first by setting a strong password for it before you can use the device. Activation via Batch Configuration Tool, and Activation via iVMS-4200 are supported. Here take activation via Batch Configuration Tool as example to introduce the device activation.

  • Page 37: Editing Network Parameters

    Video Intercom Indoor Station·Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.

  • Page 38: Adding Device

    Video Intercom Indoor Station·Quick Start Guide Figure 6-4 Editing Network Parameters  The default port No. is 8000.  After editing the network parameters of device, you should add the devices to the device list again. 6.3 Adding Device For batch configuration tool and iVMS-4200 software, you should add device to the software so as to configure the device remotely.

  • Page 39: Adding By Ip Address

    Video Intercom Indoor Station·Quick Start Guide 2. Click the button to pop up the login dialog box. Figure 6-6 Login Dialog Box 3. Enter the user name and password. 4. Click the OK button to save the settings.  Only devices successfully logged in will be added to the device list for configuration. ...
  • Page 40 Video Intercom Indoor Station·Quick Start Guide Figure 6-8 Adding by IP Address 4. Click the OK button to add the device to the device list.  You cannot add the device(s) to the device list if the user name and password are not identical.

  • Page 41: Appendix

    Video Intercom Indoor Station·Quick Start Guide Appendix Installation Notice While installing the indoor station, please make sure that the distance between any two devices is far as possible to avoid the howling and echo. The distance between two devices is recommended to be more than 10 meters. Here the devices refer to indoor station, outdoor station and master station.
  • Page 42 Video Intercom Indoor Station·Quick Start Guide...

This manual is also suitable for:

Ds-kh6310Ds-kh6210-lDs-kh8301-wtsDs-kh8301-wtDs-kh8300-tDs-kh6310-wl
