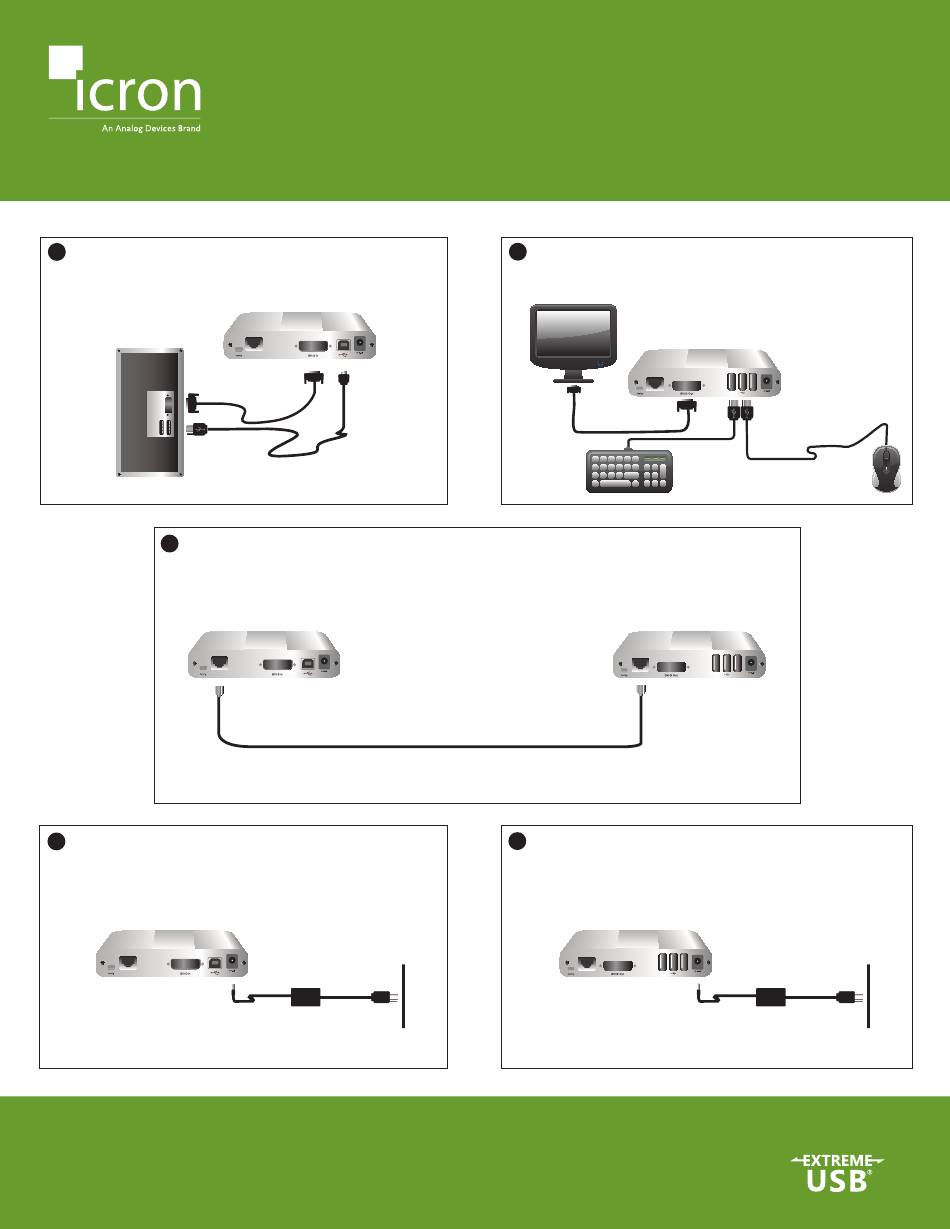

Using the included high quality DVI and USB cables,
1
connect the Local Extender (LEX) to a computer.
Computer
Directly connect the LEX to the REX with a solid core CAT 5e/6/7 cable (not included). Solid core
3
CAT 6a/7 STP is recommended for best performance (refer to detailed cable information on the
back of this page).
Link
Power the LEX with the included 5V AC adapter.
4
Link
For additional details about configuring and operating your EL5353,
refer to the complete online user guide at: www.icron.com/5353
For technical support visit: www.icron.com/support
EL5353
DVI and USB 2.0 100m CAT 5e/6/7 KVM Extender System
Quick Start Guide
LEX (rear view)
Link
5V DC
5V DC
CAT 5e/6/7 Cable
Max. distance is 100m (330ft) between LEX and REX
5V DC
DVI + USB 2.0 Extender
Connect the Remote Extender (REX) to a monitor with a
2
high quality DVI cable (not included). Connect your USB
devices (e.g. keyboard and mouse) to the REX.
REX (rear view)
Link
Link
Power the REX with the included 5V AC adapter.
5
Link
5V DC
5V DC
5V DC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the icron EL5353 and is the answer not in the manual?

Questions and answers

Summary of Contents for Analog Devices icron EL5353

  • Page 1 EL5353 DVI + USB 2.0 Extender DVI and USB 2.0 100m CAT 5e/6/7 KVM Extender System Quick Start Guide Using the included high quality DVI and USB cables, Connect the Remote Extender (REX) to a monitor with a connect the Local Extender (LEX) to a computer. high quality DVI cable (not included).
  • Page 2 CE Statement We, Icron Technologies Corporation, an Analog Devices brand, declare under our sole responsibility that the EL5353 extender system, to which this declaration relates, is in conformity with European Standards EN 55032, EN 55035, EN 61000, EN 62368-1 and RoHS Directive 2011/65/EU + 2015/863/EU.
