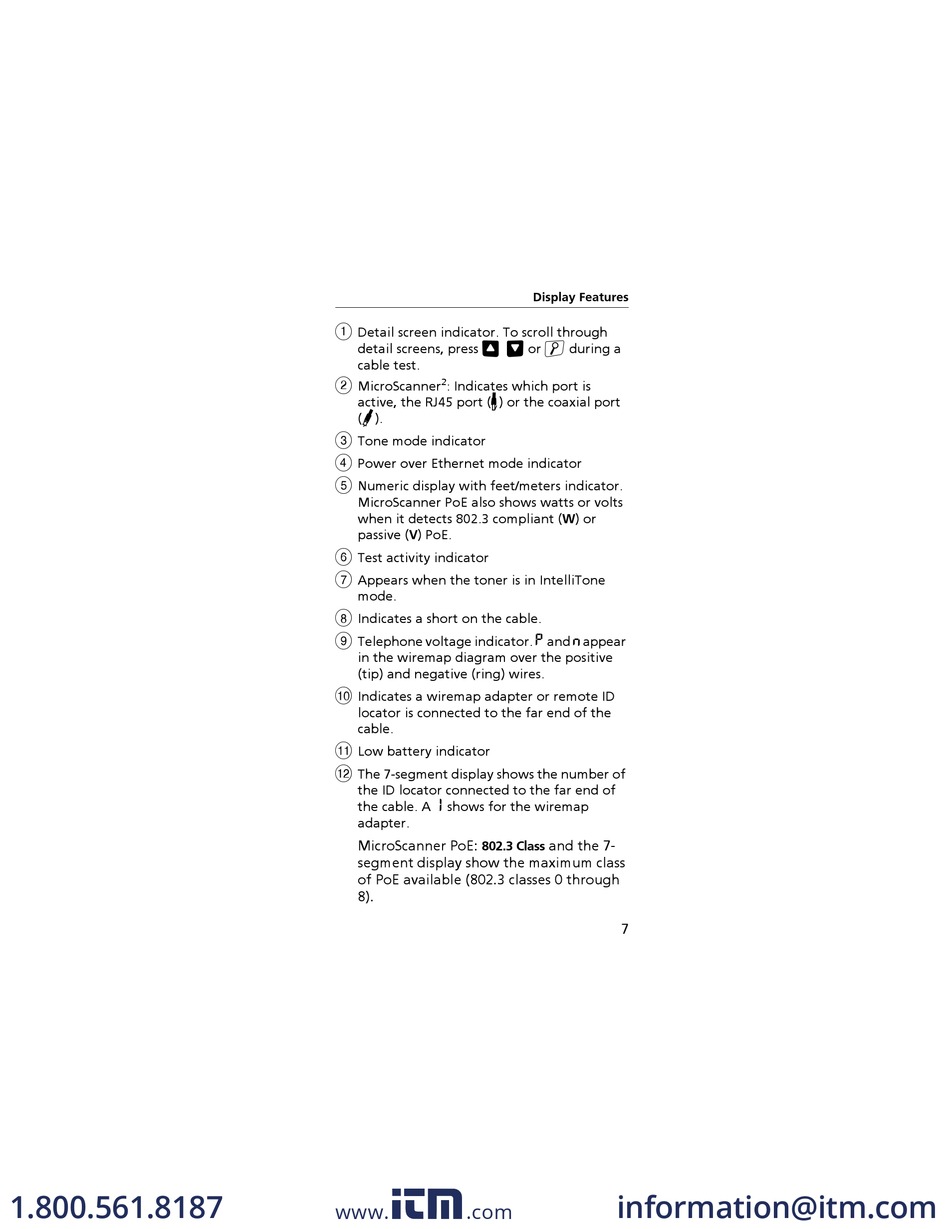

Fluke MS2-100-IE Getting Started Manual page 7

1.800.561.8187

Detail screen indicator. To scroll through

detail screens, press
cable test.
 2
MicroScanner : Indicates which port is

active, the RJ45 port ( ) or the coaxial port

( ).

Tone mode indicator

Power over Ethernet mode indicator

Numeric display with feet/meters indicator.
MicroScanner PoE also shows watts or volts
when it detects 802.3 compliant (W) or
passive (V) PoE.

Test activity indicator

Appears when the toner is in IntelliTone
mode.

Indicates a short on the cable.

Telephone voltage indicator.
in the wiremap diagram over the positive
(tip) and negative (ring) wires.

Indicates a wiremap adapter or remote ID
locator is connected to the far end of the
cable.

Low battery indicator

The 7-segment display shows the number of
the ID locator connected to the far end of

the cable. A shows for the wiremap
adapter.
MicroScanner PoE:
802.3 Class
segment display show the maximum class
of PoE available (802.3 classes 0 through
8).
www. .com
Display Features

or during a
 and  appear
and the 7-
7
