Technaxx
* User Manual

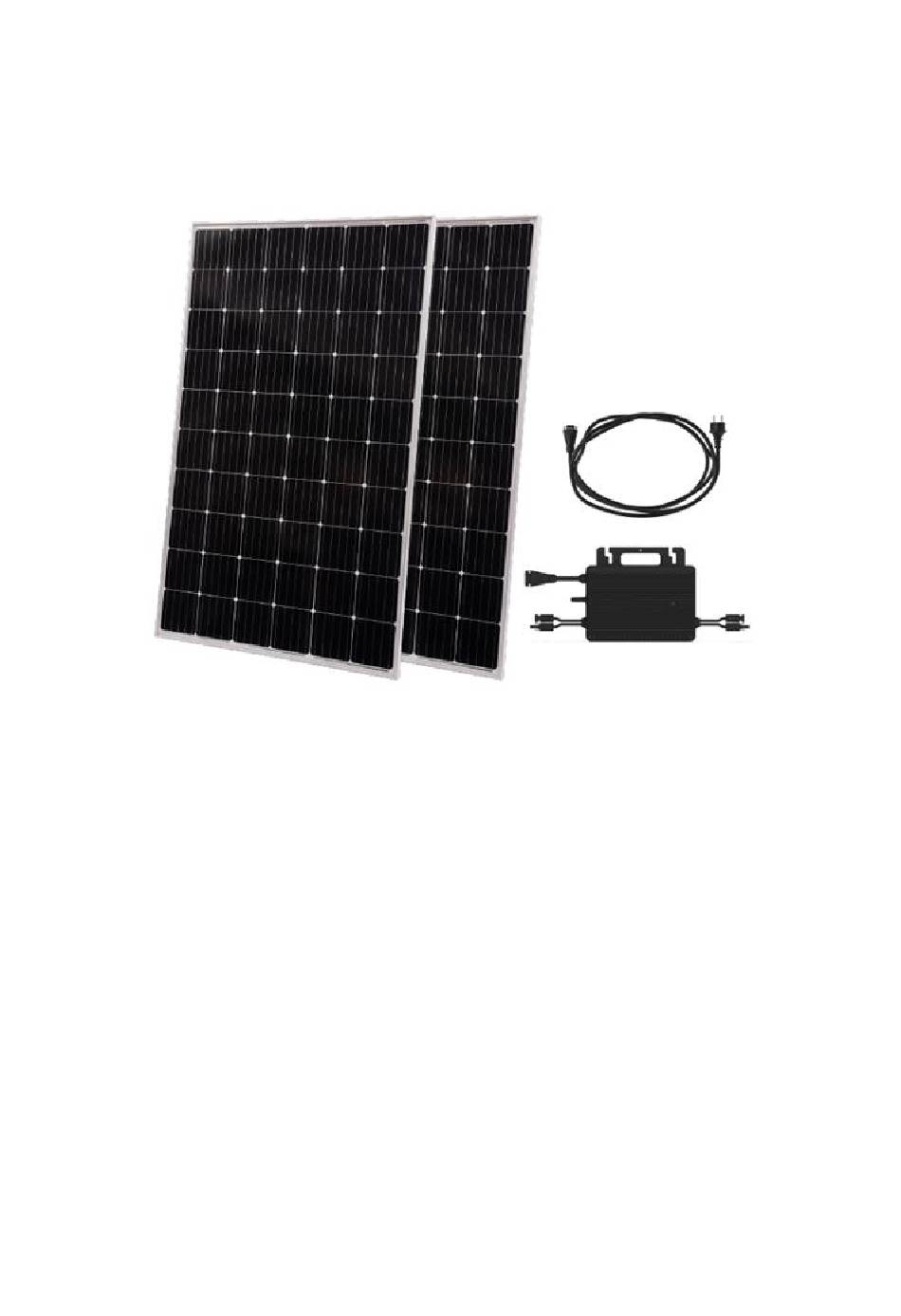

Solar Balcony Power Plant 600W WiFi TX-265
Before using the appliance for the first time, please read the instructions for use and
safety information carefully.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capacities, or by persons lacking in experience or
knowledge, unless they are supervised or instructed on the use of this device by a
person responsible for their safety. Children should be supervised to ensure they do
not play with this device.
Keep this user manual for future reference or product sharing carefully. Do the same
with the original accessories for this product. In case of warranty, please contact the
dealer or the store where you bought this product.
Enjoy your product. * Share your experience and opinion on one of the well-
known internet portals.
1
Model: TX-265; Article No. 5104; 10/2023
Advertisement
Table of Contents
Related Manuals for Technaxx TX-265
Summary of Contents for Technaxx TX-265
- Page 1 ® Technaxx * User Manual Solar Balcony Power Plant 600W WiFi TX-265 Before using the appliance for the first time, please read the instructions for use and safety information carefully. This appliance is not intended for use by persons (including children) with reduced...
-
Page 2: Table Of Contents
Connect solar panels Care and maintenance ..... 19 connection) ........10 Declaration of Conformity ....19 Connecting the micro inverter to the Disposal ........... 19 AC grid (AC connection) ....10 Mounting .......... 11 Model: TX-265; Article No. 5104; 10/2023... -
Page 3: Important Notes At The Start
Read the user manual Warning Caution, risk of electric shock. Caution, hot surface Specifications subject to change without notice - please make sure you are using the latest manual available on the manufacturer's website. Model: TX-265; Article No. 5104; 10/2023... -
Page 4: Note
⚫ Make sure that the device is well secured during operation and cannot be tripped over by cables. ⚫ Never use the device after a malfunction, e.g. if the device has been dropped into water or damaged in any other way. Model: TX-265; Article No. 5104; 10/2023... -
Page 5: Intended Use
The micro inverter is not intended for mobile use. Modifications to the micro inverter are generally prohibited. For changes in the environment, you must always consult a qualified electrician. Assembly, installation and electrical connection. Model: TX-265; Article No. 5104; 10/2023... -
Page 6: Caution Measures During Installation
Disclaimer ⚫ In no event shall Technaxx Deutschland be liable/responsible for any direct, indirect punitive, incidental, special consequential danger, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of their products. -
Page 7: Features
⚫ Suitable for feeding electricity into the 230V household grid ⚫ Maximum feed-in power of the inverter 800W ⚫ Ideal for covering the base load during the day in your home ⚫ MPP tracking for optimal power feeding ⚫ VDE compliant Model: TX-265; Article No. 5104; 10/2023... -
Page 8: Product Details
1x connection cable 5m 600W 1x user manual Product overview PV Micro Inverter 800W HMS-800W-2T AC connection to power socket (BC05) 4 Antenna (WiFi) Mounting hole DC connection solar panel (MC4) Ground connection Indicator LED Model: TX-265; Article No. 5104; 10/2023... -
Page 9: Preparation
Then connect the DC terminals. When disconnecting, disconnect the AC first by opening the branch circuit breaker but keeping the protective grounding conductor in the branch circuit breaker connected to the micro inverter. Then disconnect the DC inputs. CAUTION! Model: TX-265; Article No. 5104; 10/2023... -
Page 10: Connect The Solar Panels (Dc Connection)
To mount a Wieland connector, the pre- assembled BC05 IP68 connector system must be removed. Note: Other plug connections / systems may be possible, provided they are suitable Model: TX-265; Article No. 5104; 10/2023... -
Page 11: Mounting
⚫ One concrete slab should weigh 9kg. ⚫ Check whether the statics of the installation site are suitable for the photovoltaic system. Technaxx Germany does not assume any liability for the suitability of your Model: TX-265; Article No. 5104; 10/2023... -
Page 12: Facade
Note: When AC power is applied but the micro inverter is not started, approximately 0.2W of power can be measured for each micro inverter using a power meter. This power is reactive power, not consumption from the utility grid. Model: TX-265; Article No. 5104; 10/2023... -
Page 13: Wifi Configuration
Note: It takes up to 30 minutes until the first values are shown in the APP. If you need further assistance, read the detailed TX-247 manual on our homepage: https://www.technaxx.de/products/ and search for 'TX-247'. Webpage Model: TX-265; Article No. 5104; 10/2023... -
Page 14: Webpage
LED remains flashing red after 3minutes, this indicates an error with solar panel voltage that is too low (below 22V) or a missing AC voltage. The micro inverter can only start feeding (again) after the cause of the error has been Model: TX-265; Article No. 5104; 10/2023... -
Page 15: Troubleshooting
(mains switch open) and the solar panels covered, or insulated. Do not use rags or corrosive products for cleaning that could corrode parts of the equipment or cause electrostatic charges. Model: TX-265; Article No. 5104; 10/2023... -
Page 16: Technical Specifications
≤3% Efficiency, safety and protection CEC weighted efficiency 96.70% MPPT rated efficiency 99.80% Nightly power consumption (mW) <50 Mechanical data Ambient temperature range (°C) -40~+65 Storage temperature range (°C) -40~+85 Dimensions (WxHxD) mm 261×180×35,1 Model: TX-265; Article No. 5104; 10/2023... -
Page 17: Appendix
Iz = In + Ig Iz Permissible current carrying capacity of the line In Rated current of the protective device (circuit breaker) Ig rated current of the power generation system Model: TX-265; Article No. 5104; 10/2023... -
Page 18: Load Capacity Of Copper Lines
DIN VDE 0298-4. Example before fuse replacement Example after fuse replacement Circuit breaker electrical consumer Mini solar system 600W * max. permissible line load is 16.5A Model: TX-265; Article No. 5104; 10/2023... -
Page 19: Determination Of The Line Reserve
Do not use abrasive cleaners to clean the device. Declaration of Conformity The EU Declaration of Conformity can be requested at the following address: www.technaxx.de/ (in the lower bar "Declaration of Conformity"). Disposal Disposal of the packaging. Sort packaging materials by type upon disposal. - Page 20 For this reason, electrical devices are marked with the symbol shown here. Made in China Distributed by: Technaxx Deutschland GmbH & Co. KG Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany Solar Balcony Power Plant 600W WiFi TX-265 Model: TX-265; Article No. 5104; 10/2023...
