* User Manual

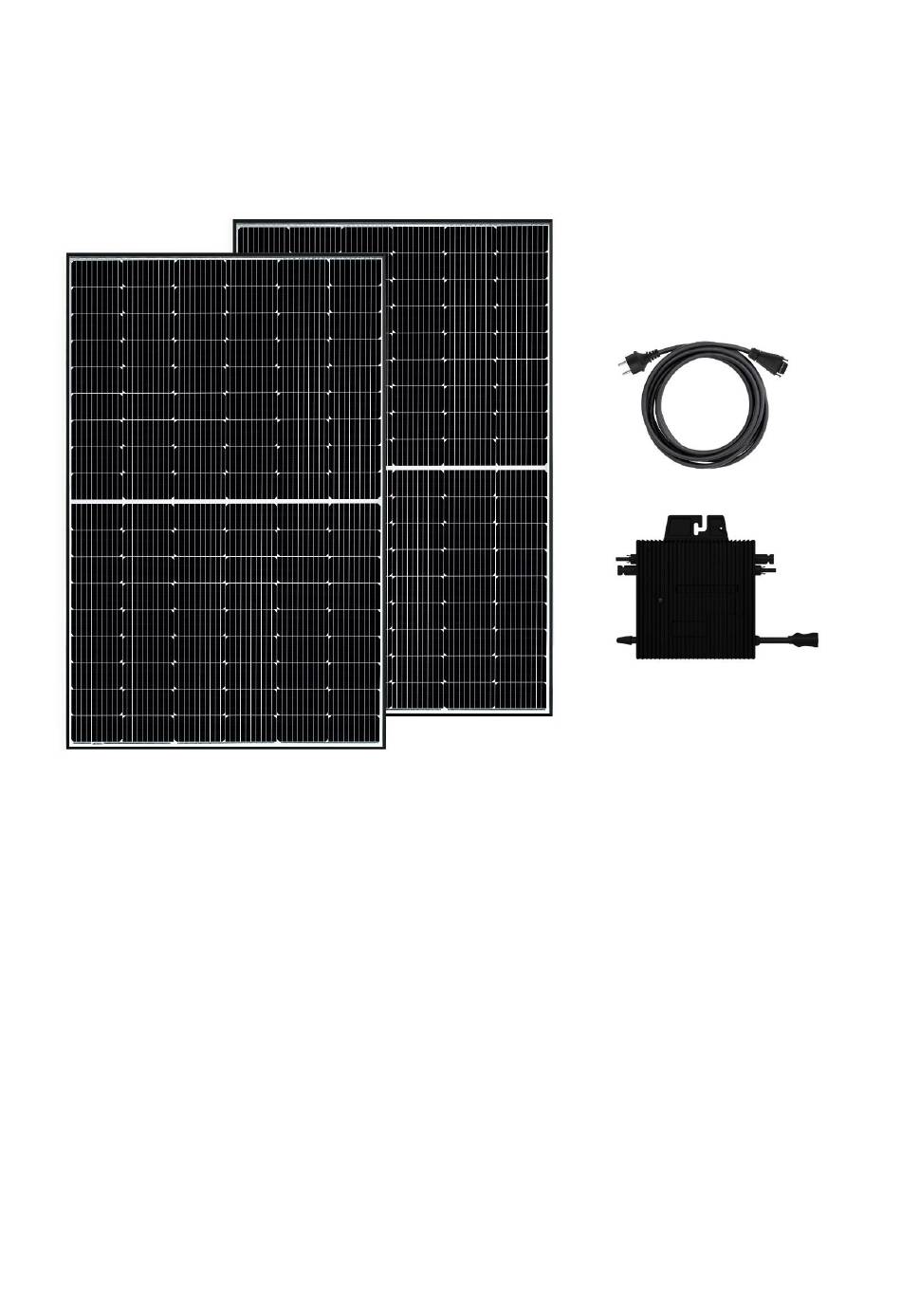

Solar Balcony Power Plant 800W WiFi TX-312
Before using the appliance for the first time, please read the instructions for use and
safety information carefully.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capacities, or by persons lacking in experience or
knowledge, unless they are supervised or instructed on the use of this device by a
person responsible for their safety. Children should be supervised to ensure they do
not play with this device.
Keep this user manual for future reference or product sharing carefully. Do the same
with the original accessories for this product. In case of warranty, please contact the
dealer or the store where you bought this product.
Enjoy your product. * Share your experience and opinion on one of the well-
known internet portals.
Specifications subject to change without notice - please make sure you are using the
latest manual available on the manufacturer's website.
1
Model: TX-312; Article No. 5230; 10/2024
Advertisement
Related Manuals for Technaxx TX-312
Summary of Contents for Technaxx TX-312
- Page 1 ® Technaxx * User Manual Solar Balcony Power Plant 800W WiFi TX-312 Before using the appliance for the first time, please read the instructions for use and safety information carefully. This appliance is not intended for use by persons (including children) with reduced...
- Page 2 Support ..........18 Connect the solar modules (DC Care and maintenance ..... 18 connection) ........9 Declaration of Conformity ....18 Connecting the micro inverter to the Disposal ........... 18 AC grid (AC connection) ....9 Model: TX-312; Article No. 5230; 10/2024...
- Page 3 Therefore, contact a specialist electrical company if your installation exceeds 800W! Explanation of the pictograms used Read the user manual. Warning Caution, risk of electric shock. Caution, hot surface Model: TX-312; Article No. 5230; 10/2024...
- Page 4 ⚫ Never use the device after a malfunction, e.g. if the device has been dropped into water or damaged in any other way. ⚫ The manufacturer assumes no responsibility in the event of incorrect use resulting Model: TX-312; Article No. 5230; 10/2024...
- Page 5 The micro inverter is not intended for mobile use. Modifications to the micro inverter are generally prohibited. For changes in the environment, you must always consult a qualified electrician. Assembly, installation and electrical connection. Model: TX-312; Article No. 5230; 10/2024...
- Page 6 Disclaimer ⚫ In no event shall Technaxx Deutschland be liable/responsible for any direct, indirect punitive, incidental, special consequential danger, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of their products.
- Page 7 1x user manual Product overview PV Micro Inverter BYM800 1 AC connection to power socket (BC05C) 4 Antenna (WiFi) 2 Mounting hole 5 DC connection solar module (MC4) 3 Ground connection 6 Indicator LED Model: TX-312; Article No. 5230; 10/2024...
- Page 8 Then disconnect the DC inputs. CAUTION! Do not, under any circumstances, connect the DC input if the AC connection is not connected. Model: TX-312; Article No. 5230; 10/2024...
- Page 9 To mount a Wieland connector, the pre- assembled BC05 IP68 connector system must be removed. Note: Other plug connections / systems may be possible, provided they are suitable for outdoor use and the current levels involved. Model: TX-312; Article No. 5230; 10/2024...
- Page 10 ⚫ In case of installation on a flat roof, the top edge of the building should be lower than 15m and the photovoltaic system should be at least 1.25m away from the neighbor's roof surface. The maximum slope of the ground may be 5°. Model: TX-312; Article No. 5230; 10/2024...
- Page 11 ⚫ One concrete slab should weigh 9kg. ⚫ Check whether the statics of the installation site are suitable for the photovoltaic system. Technaxx Germany does not assume any liability for the suitability of your installation site. Facade ⚫ For the mounting you need your own dowels and screws. Since every wall is different.
- Page 12 6. Click “Setting” page 7. Click “Switch Cloud Mode” 8. Click “Confirm” to sign in your account Enter your account and password and click “Sign in”. (If you don’t have an account, Sign up first) Model: TX-312; Article No. 5230; 10/2024...
- Page 13 Status after the switch-on process • When MI starts power output, green light flashes cycle by cycle. A cycle is 8s. • During normal operation, the green indicator flashes every second with 0.5s ON and 0.5s OFF. Model: TX-312; Article No. 5230; 10/2024...
- Page 14 Do not use rags or corrosive products for cleaning that could corrode parts of the equipment or cause electrostatic charges. Avoid temporary repairs. All repairs should be made only with original spare parts. Model: TX-312; Article No. 5230; 10/2024...
- Page 15 Ambient temperature range (°C) -40~+70 Storage temperature range (°C) -40~+85 Dimensions (WxHxD) mm 268.5×215×40 Weight (kg) Protection class outdoor (IP67) Cooling Natural circulating air - no fans AC output cable length (cm) Characteristics Communication Built-in Wi-Fi Model: TX-312; Article No. 5230; 10/2024...
- Page 16 Iz = In + Ig Iz Permissible current carrying capacity of the line In Rated current of the protective device (circuit breaker) Ig rated current of the power generation system Model: TX-312; Article No. 5230; 10/2024...
- Page 17 DIN VDE 0298-4. Example before fuse replacement Example after fuse replacement Circuit breaker electrical consumer Mini solar system 800W * max. permissible line load is 16.5A Model: TX-312; Article No. 5230; 10/2024...
- Page 18 Do not use abrasive cleaners to clean the device. Declaration of Conformity The EU Declaration of Conformity can be requested at the following address: www.technaxx.de/ (in the lower bar "Declaration of Conformity"). Disposal Disposal of the packaging. Sort packaging materials by type upon disposal.
- Page 19 For this reason, electrical devices are marked with the symbol shown here. Made in China Distributed by: Technaxx Deutschland GmbH & Co. KG Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany Solar Balcony Power Plant 800W WiFi TX-312 Model: TX-312; Article No. 5230; 10/2024...
