Technaxx
* User Manual

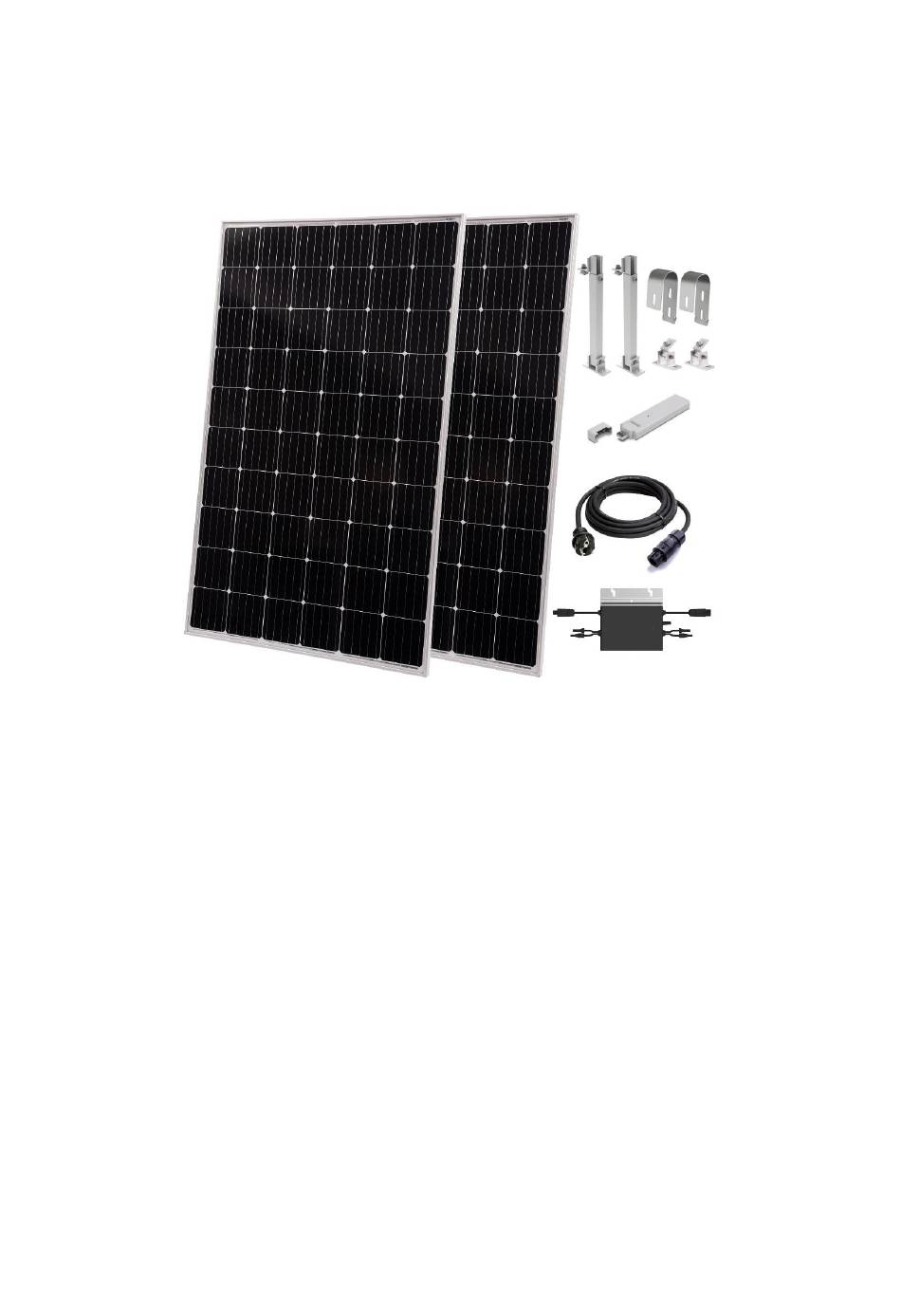

Solar Balcony Power Plant 600W WiFi TX-248
Before using the appliance for the first time, please read the instructions for use and
safety information carefully.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capacities, or by persons lacking in experience or
knowledge, unless they are supervised or instructed on the use of this device by a
person responsible for their safety. Children should be supervised to ensure they do
not play with this device.
Keep this user manual for future reference or product sharing carefully. Do the same
with the original accessories for this product. In case of warranty, please contact the
dealer or the store where you bought this product.
Enjoy your product. * Share your experience and opinion on one of the well-
known internet portals.
1
Model: TX-248; Article No. 5074; 06/2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Technaxx TX-248
Summary of Contents for Technaxx TX-248
- Page 1 ® Technaxx * User Manual Solar Balcony Power Plant 600W WiFi TX-248 Before using the appliance for the first time, please read the instructions for use and safety information carefully. This appliance is not intended for use by persons (including children) with reduced...
-
Page 2: Table Of Contents
Support ..........20 Connect solar panels Care and maintenance ..... 20 connection) ........10 Declaration of Conformity ....20 Connecting the micro inverter to the Disposal ........... 20 AC grid (AC connection) ....10 Model: TX-248; Article No. 5074; 06/2023... -
Page 3: Important Notes At The Start
Read the user manual Warning Caution, risk of electric shock. Caution, hot surface Specifications subject to change without notice - please make sure you are using the latest manual available on the manufacturer's website. Model: TX-248; Article No. 5074; 06/2023... -
Page 4: Note
⚫ Make sure that the device is well secured during operation and cannot be tripped over by cables. ⚫ Never use the device after a malfunction, e.g. if the device has been dropped into water or damaged in any other way. Model: TX-248; Article No. 5074; 06/2023... -
Page 5: Intended Use
The micro inverter is not intended for mobile use. Modifications to the micro inverter are generally prohibited. For changes in the environment, you must always consult a qualified electrician. Assembly, installation and electrical connection. Model: TX-248; Article No. 5074; 06/2023... -
Page 6: Caution Measures During Installation
Disclaimer ⚫ In no event shall Technaxx Deutschland be liable/responsible for any direct, indirect punitive, incidental, special consequential danger, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of their products. -
Page 7: Features
⚫ Suitable for feeding electricity into the 230V household grid ⚫ Maximum feed-in power of the inverter 600W ⚫ Ideal for covering the base load during the day in your home ⚫ MPP tracking for optimal power feeding ⚫ VDE compliant Model: TX-248; Article No. 5074; 06/2023... -
Page 8: Product Details
PV Micro Inverter 600W TX-204 Betteri socket (input 230V AC) Betteri plug (output 230V AC) Mounting holes Input solar panel (MC4 connector) Ground connection Indicator LED WiFi Stick TX-247 USB Connector Reset Button Status Indicator Model: TX-248; Article No. 5074; 06/2023... -
Page 9: Preparation
Then disconnect the DC inputs. CAUTION! Do not, under any circumstances, connect the DC input if the AC connection is not connected. CAUTION! Install disconnect devices on the AC side of the micro inverter. Model: TX-248; Article No. 5074; 06/2023... -
Page 10: Connect The Solar Panels (Dc Connection)
(preferably 1.5mm² or 4mm²). Fasten the connection cables to the mounting rail using UV-stable cable ties in such Model: TX-248; Article No. 5074; 06/2023... -
Page 11: Mounting
⚫ Suitable is a bracket for mounting on bitumen, concrete, in the garden on the lawn or terrace. ⚫ The weighting is calculated according to the terrain IV (urban area), where at least 15% of the area is covered with buildings, the average height of which exceeds 15m, Model: TX-248; Article No. 5074; 06/2023... -
Page 12: Facade
The maximum slope of the ground may be 5°. ⚫ One concrete slab should weigh 9kg. ⚫ Check whether the statics of the installation site are suitable for the photovoltaic system. Technaxx Germany does not assume any liability for the suitability of your installation site. Facade ⚫... -
Page 13: Wifi-Stick Installation (Dtu Tx-247)
S-Miles Cloud (Hoymiles Monitoring Platform) at https://world.hoymiles.com. Therefor use your login which you created via S-Miles Installer App registration. • Enter account = Login account, username created by app. • Enter password = Password created for app login. Model: TX-248; Article No. 5074; 06/2023... -
Page 14: Led Status
(below 22V) or a missing AC voltage. The micro inverter can only start feeding (again) after the cause of the error has been eliminated. The reason for this error could be a faulty solar panel connection / AC Model: TX-248; Article No. 5074; 06/2023... -
Page 15: Troubleshooting
(mains switch open) and the solar panels covered, or insulated. Do not use rags or corrosive products for cleaning that could corrode parts of the equipment or cause electrostatic charges. Model: TX-248; Article No. 5074; 06/2023... -
Page 16: Technical Specifications
0.8 leading..0.8 delayed Output current harmonic distortion ≤3% Maximum number of devices in series Efficiency, safety and protection Peak efficiency 96.70% CEC weighted efficiency 96.50% MPPT rated efficiency 99.80% Nightly power consumption (mW) <50 Mechanical data Model: TX-248; Article No. 5074; 06/2023... -
Page 17: Wifi Stick Tx-247
1.0 W (typical), 5 W (maximum) Mechanical Data Ambient temperature range (°C) -20 to 55 Dimensions (W × H × D mm) 143 × 33 × 12.5 Weight (kg) Installation option Direct plug-in (USB port) Model: TX-248; Article No. 5074; 06/2023... -
Page 18: Appendix
Iz = In + Ig Iz Permissible current carrying capacity of the line In Rated current of the protective device (circuit breaker) Ig rated current of the power generation system Model: TX-248; Article No. 5074; 06/2023... -
Page 19: Load Capacity Of Copper Lines
DIN VDE 0298-4. Example before fuse replacement Example after fuse replacement Circuit breaker electrical consumer Mini solar system 600W * max. permissible line load is 16.5A Model: TX-248; Article No. 5074; 06/2023... -
Page 20: Determination Of The Line Reserve
Do not use abrasive cleaners to clean the device. Declaration of Conformity The EU Declaration of Conformity can be requested at the following address: www.technaxx.de/ (in the lower bar "Declaration of Conformity"). Disposal Disposal of the packaging. Sort packaging materials by type upon disposal. - Page 21 For this reason, electrical devices are marked with the symbol shown here. Made in China Distributed by: Technaxx Deutschland GmbH & Co. KG Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany Solar Balcony Power Plant 600W WiFi TX-248 Model: TX-248; Article No. 5074; 06/2023...
