Technaxx
* User Manual
Solar panel bracket set TX-245
Solar panel bracket 2 sets TX-246
Before using the appliance for the first time, please read the instructions for use and
safety information carefully.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capacities, or by persons lacking in experience or
knowledge, unless they are supervised or instructed on the use of this device by a
person responsible for their safety. Children should be supervised to ensure they do
not play with this device.
Keep this user manual for future reference or product sharing carefully. Do the same
with the original accessories for this product. In case of warranty, please contact the
dealer or the store where you bought this product.
Enjoy your product. * Share your experience and opinion on one of the well-
known internet portals.
Specifications are subject to change without notice - please be sure to use the latest
manual available on the manufacturer's website.
1
Model: TX-245,TX-246 Article No. 5071,5072, 04/2023
Advertisement
Table of Contents
Related Manuals for Technaxx TX-245
Summary of Contents for Technaxx TX-245
- Page 1 Enjoy your product. * Share your experience and opinion on one of the well- known internet portals. Specifications are subject to change without notice - please be sure to use the latest manual available on the manufacturer's website. Model: TX-245,TX-246 Article No. 5071,5072, 04/2023...
-
Page 2: Table Of Contents
⚫ Handle the product with care. It can be damaged by shocks, impacts or falling from even a low height. ⚫ Mounting the bracket on a vehicle roof is prohibited for safety and structural reasons. Model: TX-245,TX-246 Article No. 5071,5072, 04/2023... -
Page 3: Optical Conspicuities / Scratches In The Materials
Disclaimer ⚫ In no event shall Technaxx Deutschland be liable/responsible for any direct, indirect punitive, incidental, special consequential danger, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of their products. -
Page 4: Scope Of Delivery
Additionally needed: Additionally needed: • Solar module • Solar module Optional accessory for: Optional accessory for: • TX-212 • TX-220 • TX-213 • TX-228 • One solar panel • TX-241 • Two solar panels Model: TX-245,TX-246 Article No. 5071,5072, 04/2023... - Page 5 Holder front back leg Mount front back leg Front: Back: Railing hook with rubber Hex nut M8 E Square counter plate M8 Cylinder head screw M8x20 Cylinder head screw M8x25 Cylinder head screw M8x50 Model: TX-245,TX-246 Article No. 5071,5072, 04/2023...
-
Page 6: Product Overview
Product overview * Solar module not included 1 Holder for front and back leg 4 Mount for front and back leg 2 Back leg 5 Hook 3 Front leg 6 Stainless steel washer Model: TX-245,TX-246 Article No. 5071,5072, 04/2023... -

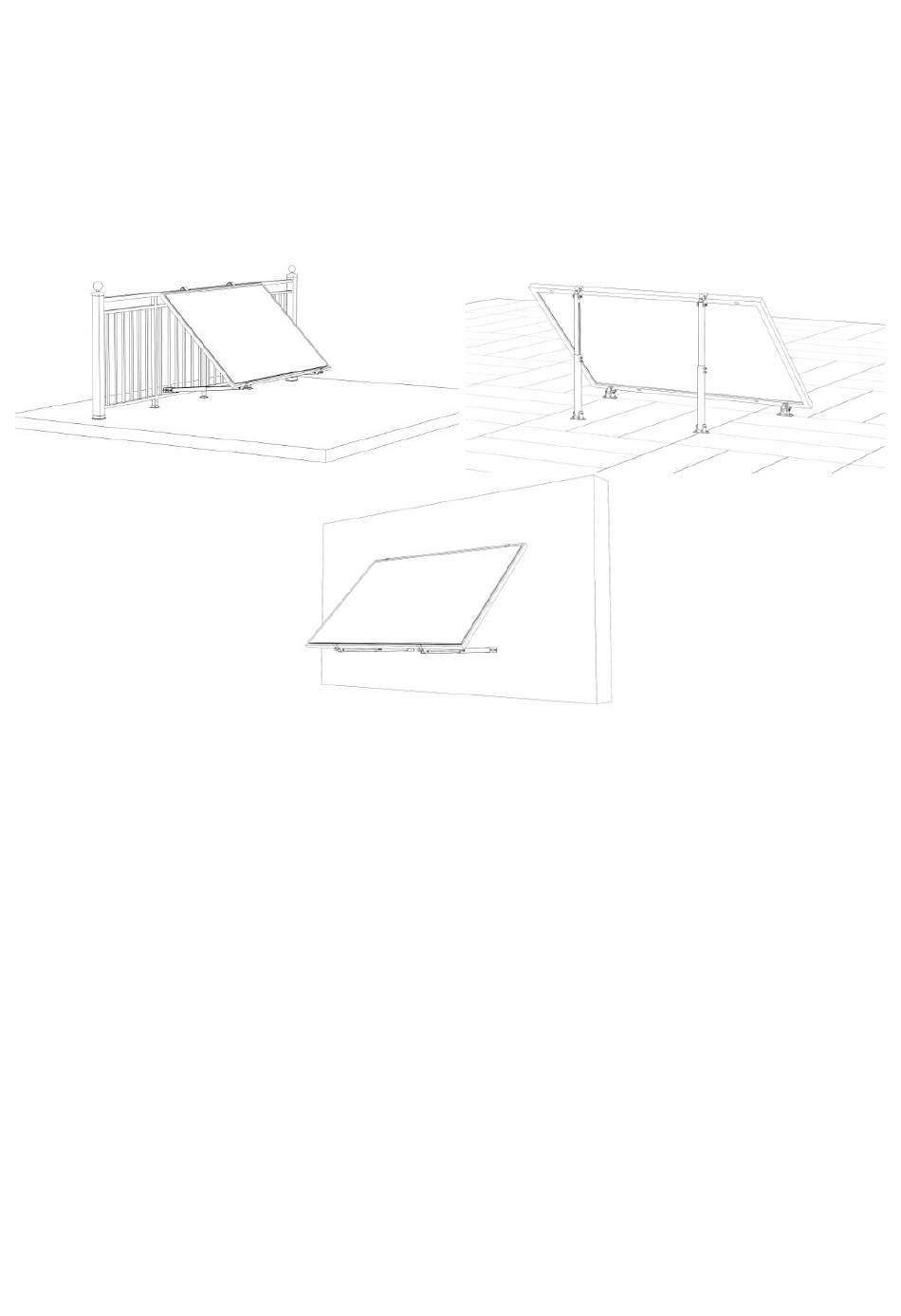

Page 7: Balcony Railing Installation
Use the M8x20 (G) and a hex nut (E) to secure the clamp hinge to the panel. This secures the holder (C1) to the panel (picture 3). - Repeat the steps on the second Holder (C1). Picture 1 Picture 2 Picture 3 Model: TX-245,TX-246 Article No. 5071,5072, 04/2023... - Page 8 - Take the square counter plate (F) and a M8x20 (G) to secure the telescope part of the back leg (picture 8-10). - Repeat above steps for the other back leg (B). Picture 6 Picture 7 Picture 8 Picture 9 Picture 10 Model: TX-245,TX-246 Article No. 5071,5072, 04/2023...
- Page 9 - Use the M8x50 (I) and a hex nut (E) to tighten the connection (picture 13). - Enlarge the back leg to the fitting size with your balcony (picture 14). - Repeat above steps for the other connection. Picture 12 Picture 13 Picture 14 Model: TX-245,TX-246 Article No. 5071,5072, 04/2023...
- Page 10 - Use the M8x90 (K) and a hex nut (E) to fix the hook to the railing (picture 16-17). - Repeat above step for the other hook (D). - Set the best angle for your location, we suggest 30-45°. Picture 16 Picture 17 Model: TX-245,TX-246 Article No. 5071,5072, 04/2023...
-
Page 11: Installation On The Ground
Be careful not to damage the glass front. Note: For the assembly is a 13mm wrench and a 6mm hex wrench needed. Further a drilling machine is needed. Model: TX-245,TX-246 Article No. 5071,5072, 04/2023... - Page 12 - Take the square counter plate (F) and a M8x20 (G) to secure the telescope part of the back leg (picture 6-8). - Repeat above steps for the other back leg (B). Picture 4 Picture 5 Picture 6 Picture 7 Picture 8 Model: TX-245,TX-246 Article No. 5071,5072, 04/2023...
- Page 13 - Align the holes of the holder(C1) and the back leg (B) (picture 12). - Use the M8x50 (I) and a hex nut (E) to tighten the connection (picture 13). - Repeat above steps for the other connection. Picture 11 Picture 12 Picture 13 Model: TX-245,TX-246 Article No. 5071,5072, 04/2023...
- Page 14 Firm and stable fastening is mandatory. - Tighten the screws to the mount (C2) (picture 17). - Set the best angle for your location, we suggest 30-45°. Picture 16 Picture 17 Model: TX-245,TX-246 Article No. 5071,5072, 04/2023...
-
Page 15: Installation On The Wall
Be careful not to damage the glass front. Note: For the assembly is a 13mm wrench and a 6mm hex wrench needed. Further a drilling machine is needed. Model: TX-245,TX-246 Article No. 5071,5072, 04/2023... - Page 16 - Take the square counter plate (F) and a M8x20 (G) to secure the telescope part of the back leg (picture 6-8). - Repeat above steps for the other back leg (B). Picture 4 Picture 5 Picture 6 Picture 7 Picture 8 Model: TX-245,TX-246 Article No. 5071,5072, 04/2023...
- Page 17 - Align the holes of the mount (C2) and the back leg (B) (picture 14). - Use the M8x60 (J) and a hex nut (E) to tighten the connection (picture 15). - Repeat above steps for the other connection. Picture 14 Picture 15 Model: TX-245,TX-246 Article No. 5071,5072, 04/2023...
- Page 18 Firm and stable fastening is mandatory. - Tighten the screws to the mount (C2) (picture 17). - Set the best angle for your location, we suggest 30-45°. Picture 16 Picture 17 Step 7: Finish (picture 18) Picture 18 Model: TX-245,TX-246 Article No. 5071,5072, 04/2023...
-
Page 19: Angle Adjustment
Up to 45° (depending on panel) Dimensions Inner rail (mm) 30x30 Outer rail (mm) 35x35 Length adjustable (mm) approx. 445 - 760 Hooks (LxWxD) (mm) 145 x 45 x 60 Material thickness (mm) Weight 12kg Model: TX-245,TX-246 Article No. 5071,5072, 04/2023... -
Page 20: Support
Dispose of cardboard and paperboard in the waste paper. Foils should be submitted for recyclables collection. Distributed by: Technaxx Deutschland GmbH & Co. KG Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany Solar panel bracket set TX-245 Solar Panel Bracket 2 Set TX-246 Model: TX-245,TX-246 Article No. 5071,5072, 04/2023...
