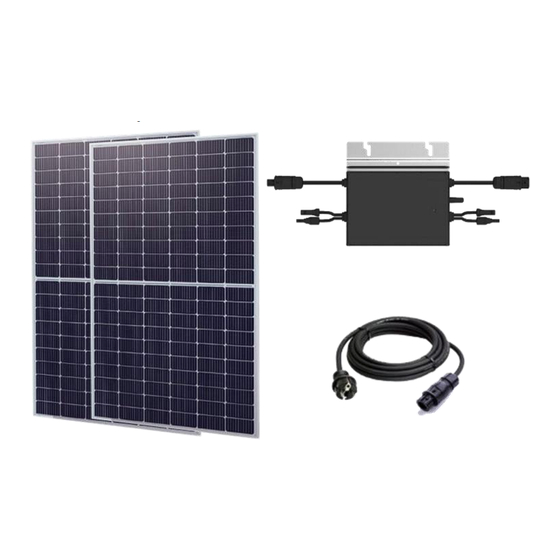

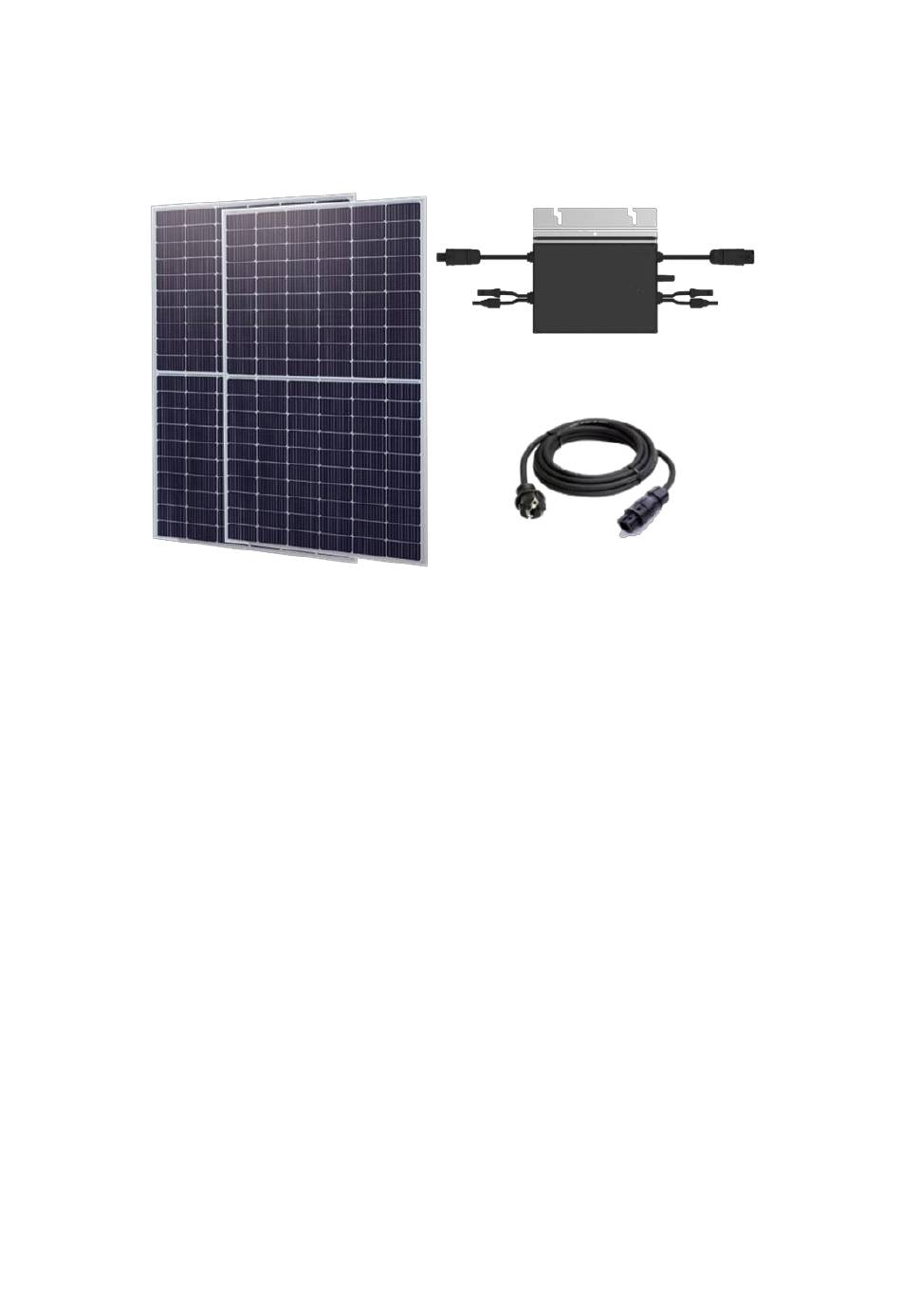

® Technaxx * User Manual Solar Balcony Power Plant 800W TX-241 Before using the appliance for the first time, please read the instructions for use and safety information carefully. This appliance is not intended for use by persons (including children) with reduced...
Determination of the line reserve .. 17 photovoltaic system ......8 Support ..........17 Connecting the micro inverter .... 8 Care and maintenance ..... 17 Connect solar panels Declaration of Conformity ....17 connection) ........9 Disposal ........... 17 Model: TX-241; Article No. 5064; 02/2023...
Therefore, contact a specialist electrical company if your installation exceeds 800W! Explanation of the pictograms used Read the user manual. Warning Caution, risk of electric shock. Caution, hot surface Model: TX-241; Article No. 5064; 02/2023...
⚫ Make sure that the device is well secured during operation and cannot be tripped over by cables. ⚫ Never use the device after a malfunction, e.g. if the device has been dropped into water or damaged in any other way. Model: TX-241; Article No. 5064; 02/2023...
The micro inverter is not intended for mobile use. Modifications to the micro inverter are generally prohibited. For changes in the environment, you must always consult a qualified electrician. Assembly, installation and electrical connection. Model: TX-241; Article No. 5064; 02/2023...
Disclaimer ⚫ In no event shall Technaxx Deutschland be liable/responsible for any direct, indirect punitive, incidental, special consequential danger, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of their products.
Then disconnect the DC inputs. CAUTION! Do not, under any circumstances, connect the DC input if the AC connection is not connected. CAUTION! Install disconnect devices on the AC side of the micro inverter. Model: TX-241; Article No. 5064; 02/2023...
(preferably 1.5mm² or 4mm²). Fasten the connection cables to the mounting rail using UV-stable cable ties in such Model: TX-241; Article No. 5064; 02/2023...
⚫ Suitable is a bracket for mounting on bitumen, concrete, in the garden on the lawn or terrace. ⚫ The weighting is calculated according to the terrain IV (urban area), where at least 15% of the area is covered with buildings, the average height of which exceeds 15m, Model: TX-241; Article No. 5064; 02/2023...
The maximum slope of the ground may be 5°. ⚫ One concrete slab should weigh 9kg. ⚫ Check whether the statics of the installation site are suitable for the photovoltaic system. Technaxx Germany does not assume any liability for the suitability of your installation site. Facade ⚫...
AC voltage range of 180-275V. 5. Restart the micro inverter by disconnecting and reconnecting the DC power / solar panels. A normal start-up process should be indicated by a green LED (see LED status). Model: TX-241; Article No. 5064; 02/2023...
Page 13
Avoid temporary repairs. All repairs should be made only with original spare parts. Each micro inverter should be protected by a circuit breaker, but central disconnect protection is not required unless specified by national standards, or by the responsible network operator. Model: TX-241; Article No. 5064; 02/2023...
96.50% MPPT rated efficiency 99.80% Nightly power consumption (mW) <50 Mechanical data Ambient temperature range (°C) -40~+65 Storage temperature range (°C) -40~+85 Dimensions (WxHxD) mm 250×170×28 Weight (kg) 3.00 Protection class NEMA outdoor (IP67) Model: TX-241; Article No. 5064; 02/2023...
Iz = In + Ig Iz Permissible current carrying capacity of the line In Rated current of the protective device (circuit breaker) Ig rated current of the power generation system Model: TX-241; Article No. 5064; 02/2023...
DIN VDE 0298-4. Example before fuse replacement Example after fuse replacement Circuit breaker electrical consumer Mini solar system 800W * max. permissible line load is 16.5A Model: TX-241; Article No. 5064; 02/2023...
Do not use abrasive cleaners to clean the device. Declaration of Conformity The EU Declaration of Conformity can be requested at the following address: www.technaxx.de/ (in the lower bar "Declaration of Conformity"). Disposal Disposal of the packaging. Sort packaging materials by type upon disposal.
Page 18
For this reason, electrical devices are marked with the symbol shown here. Made in China Distributed by: Technaxx Deutschland GmbH & Co. KG Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany Solar Balcony Power Plant 800W TX-241 Model: TX-241; Article No. 5064; 02/2023...
