* User Manual
Solar Balcony Power Plant 300W TX-212
Solar Balcony Power Plant 600W TX-220 / TX-228
Before using the appliance for the first time, please read the instructions for use and
safety information carefully.

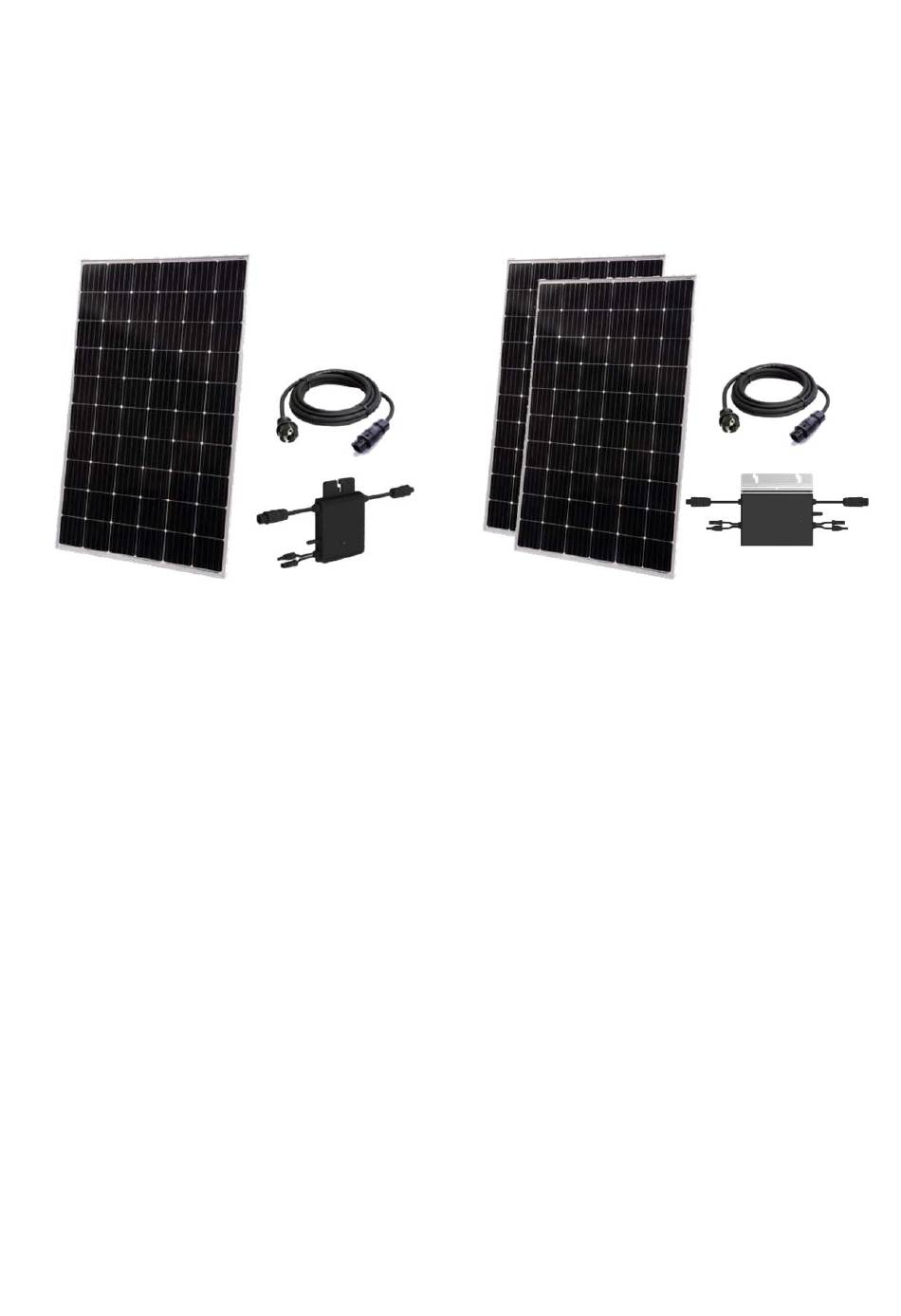

TX-212
TX-220 / TX-228
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capacities, or by persons lacking in experience or
knowledge, unless they are supervised or instructed on the use of this device by a
person responsible for their safety. Children should be supervised to ensure they do
not play with this device.
Keep this user manual for future reference or product sharing carefully. Do the same
with the original accessories for this product. In case of warranty, please contact the
dealer or the store where you bought this product.
Enjoy your product. * Share your experience and opinion on one of the well-
known internet portals.
1
Model: TX-203,TX-204,TX-228; Article No. 5021,5023,5040; 10/2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Technaxx TX-212
Summary of Contents for Technaxx TX-212
- Page 1 ® Technaxx * User Manual Solar Balcony Power Plant 300W TX-212 Solar Balcony Power Plant 600W TX-220 / TX-228 Before using the appliance for the first time, please read the instructions for use and safety information carefully. TX-212 TX-220 / TX-228...
-
Page 2: Table Of Contents
Table of Contents Important notes at the start ....3 Balcony ......... 11 Explanation of the pictograms used 3 Flat roof (bitumen roof) ....11 Note ..........4 Facade .......... 12 Safety instructions ......4 Connect solar panels connection) ........12 Intended use ........ -
Page 3: Important Notes At The Start
Important notes at the start ATTENTION! According to the German Federal Network Agency, installations exceeding 600W may only be carried out by electrical contractors. In addition, a corresponding report must be made to the network operator! Therefore, contact a specialist electrical company if your installation exceeds 600W! Explanation of the pictograms used Read the user manual. -
Page 4: Note
Note ⚫ In principle, the installation should only be carried out by qualified personnel. For installations of more than 600 W, the installation must be carried out by a specialist electrical company! Please also observe the requirements of your network operator and local legal regulations.⚫... - Page 5 ⚫ Make sure that the device is well secured during operation and cannot be tripped over by cables. ⚫ Never use the device after a malfunction, e.g. if the device has been dropped into water or damaged in any other way. ⚫...
-
Page 6: Intended Use
Caution, hot surface! ⚫ The surface of the micro inverter can become very hot. Touching the surface can cause burns. ⚫ Mount the micro inverter in such a way that accidental contact is not possible. ⚫ Do not touch hot surfaces. When working on the micro inverter, wait until the surface has cooled down sufficiently. -
Page 7: Disclaimer
Disclaimer ⚫ In no event shall Technaxx Deutschland be liable/responsible for any direct, indirect punitive, incidental, special consequential danger, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of their products. -
Page 8: Product Details
Product details Package content: Product variants: 1x PV microinverter 1x Betteri socket adapter - TX-212: 300 Watt 1x (2x) solar module for 1x AC input end cap - TX-220, TX-228: 600 300W (600W) 1x connection cable Watt 1x user manual... -
Page 9: Preparation
Preparation Requirements for the operation of a photovoltaic system ⚫ Permission from the owner or owners' association if you are not the owner yourself ⚫ Wieland socket (recommendation), permanent connection or Schuko socket ⚫ RCD in the fuse box (standard nowadays) ⚫... - Page 10 CAUTION! Before installing and using the micro inverter, carefully read all operating instructions and safety instructions (micro inverter, solar panel, etc.). Make sure that you have understood everything. Consult a suitable specialist if you are unsure. CAUTION! There is a risk of electric shock when installing this device. CAUTION! Do not touch live parts, including the connected solar panels, when the system is connected to the electrical mains.
-
Page 11: Mounting
⚫The solar module is only suitable for installation up to a height of 4m (upper edge of the module), provided that there is also no public traffic below the module. *The balcony bracket is available as an accessory: - Balcony bracket TX-227 for TX-212 - Balcony bracket TX-230 for TX-220 & TX-228 Flat roof (bitumen roof) ⚫... -
Page 12: Facade
Technaxx Germany does not assume any liability for the suitability of your installation site. Facade ⚫ For the mounting you need your own dowels and screws. Since every wall is different. ⚫ Up to a height (upper edge of the module) of 4m the glass-foil module can be used, as long as you cannot step directly under the module. -
Page 13: First Commissioning
section adapted to the amperage (preferably 1.5mm² or 4mm²). Fasten the connection cables to the mounting rail using UV-stable cable ties in such a way that the cables are protected from rain and sun and, in particular, the plug connections cannot lie in a puddle of water. To connect the micro inverter and the connection cable, the pre-assembled AC plug-in system in combination with an AC cable and assembled Betteri IP68 connection socket or the AC string input/output can be used, depending on the delivery variant. -
Page 14: Led Status
LED status The LED of each micro inverter provides information about the current status. All micro inverters draw their supply voltage from the DC connector/solar panels. Status during power up The green LED will flash fast a few times. Then switch-on process usually takes up to 2 minutes. -
Page 15: Technical Specifications
1.35 times (based on the AC output power of the micro inverter). For the technical specifications of the solar module, please refer to the enclosed data sheet. Inverter Modell TX-212 TX-220/228 DC-input Recommended panel power (W) 240-380 (per panel) - Page 16 Max. number of panels Panel connection MPPT voltage range (V) 29-48 Starting voltage (V) Operating voltage range (V) 16-60 Max. input voltage (V) Max. input current (A) 11.5 2x 11.5 Max. input short-circuit current (A) 2x15 AC-output Rated output power (VA) Rated output current (A) 1.36 at 220V 2.73 at 220V...
-
Page 17: Appendix
Appendix Determining the line reserve The PI Photovoltaic Institute Berlin in cooperation with the German Society for Solar Energy (DGS), the University of Applied Sciences (HTW) Berlin have worked out in a study that it is possible to feed in up to 2.6 amps (approx. 630 W, equivalent to 2 solar modules) with plug-in solar devices in every household with circuit breakers without any safety concerns, without having to make any changes to the house electrics. -
Page 18: Load Capacity Of Copper Lines
Load capacity of copper lines Load capacity of copper cables and lines for fixed installation in buildings 1.5mm nominal cross-section; at ambient temperature 25°C, with 2 loaded cores*. On thermally In electrical Installation method insulated installation On walls In the air walls pipes Current carrying capacity Iz of... -
Page 19: Determination Of The Line Reserve
Do not use abrasive cleaners to clean the device. Declaration of Conformity The EU Declaration of Conformity can be requested at the following address: www.technaxx.de/ (in the lower bar "Declaration of Conformity"). Disposal Disposal of the packaging. Sort packaging materials by type upon disposal. - Page 20 For this reason, electrical devices are marked with the symbol shown here. Made in China Distributed by: Technaxx Deutschland GmbH & Co. KG Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany Solar Balcony Power Plant 300W TX-212 Solar Balcony Power Plant 600W TX-220 / TX-228 Model: TX-203,TX-204,TX-228; Article No. 5021,5023,5040; 10/2022...
