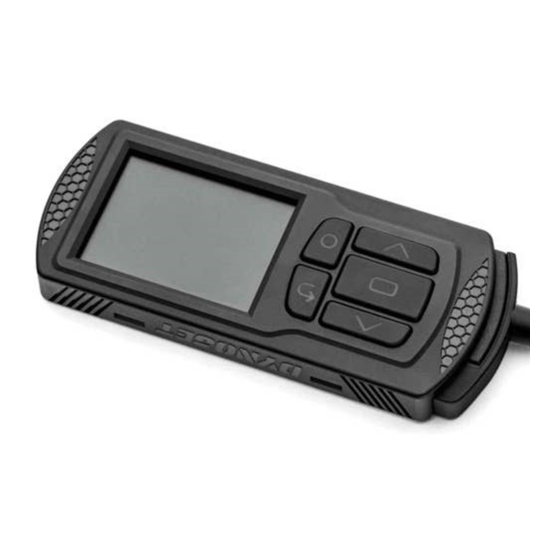

POWER VISION
Installation Guide for: PV3-22-12, PV3-22-14
Model Coverage:
2018-2022 Yamaha Wolverine X2
2019-2022 Yamaha Wolverine X4
2022 Yamaha Wolverine RMax
PARTS LIST
1
POWER VISION
1
REFLASH HARNESS
1
USB CABLE
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
2
VELCRO
2
DYNOJET DECAL
98200134.08
Advertisement
Table of Contents
Related Manuals for Dynojet POWER VISION PV3-22-12
Summary of Contents for Dynojet POWER VISION PV3-22-12
- Page 1 POWER VISION Installation Guide for: PV3-22-12, PV3-22-14 Model Coverage: 2018-2022 Yamaha Wolverine X2 2019-2022 Yamaha Wolverine X4 2022 Yamaha Wolverine RMax PARTS LIST POWER VISION VELCRO REFLASH HARNESS DYNOJET DECAL USB CABLE PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION 98200134.08...
- Page 2 INTRODUCTION Thank you for purchasing the Power Vision from Dynojet RETURN Research. At Dynojet, our mission is to make every ride the ultimate ride. The Power Vision allows you to tune SCROLL your stock ECU to achieve optimal performance from ENTER your vehicle.
-
Page 3: Getting Started
Secure the Power Vision to the vehicle using the supplied Velcro. Make sure the Power Vision will not interfere with the operation and steering of the vehicle. Visit www.dynojet.com for an array of mounting solutions for your Power Vision. Note: The Power Vision does not need to be mounted to the vehicle, however, the Power Vision provides a window into your vehicle. - Page 4 PV3 will only display fi les which directly fi t your vehicle. Note: The Dynojet tune fi le (.djt) is a tune fi le which is different (better than stock performance or the necessary fi le when bolting on an exhaust, for example); the stock fi le (.stk) is the direct duplicate of what the OEM shipped.
-
Page 5: Logging Data
RESTORING THE ECU This menu allows you to restore the ECU. Use Restore ECU if VEHICLE TOOLS the device does not complete the fl ash or if your vehicle will DIAGNOSTICS not start. DELETE DATA LOGS Select Vehicle Tools>Restore ECU. RESTORE ECU CONFIGURING GAUGES Make your Power Vision device yours;... -
Page 6: Viewing The Device Information
This will turn on diagnostic logging. Logging will continue until DIAGNOSTIC ENABLE the device is restarted. If requested by Dynojet Tech Support, connect your Power Vision to a computer and email the diagnostic fi le to PV3tech@dynojet.com. Diagnostic log fi les are placed in the log fi... -
Page 7: Usb Mode
Click Update to load the current fi rmware. If the Update button is grayed out, your Power Vision already has the latest fi rmware. Click Restore to reload all original Dynojet tune and stock fi les. Click Get Tunes to open the Dynojet Tune Finder. Follow the instructions to Upload your PV_Info.txt fi...
