Attach PowerBoard to PSU

The PowerBoard is designed to fit the Asus ROG Loki 750W or 1000W PSUs. Align the connectors
with the PSU and plug it in firmly. Check to make sure that all connectors are plugged in 100% of
the way or it can cause damage to the PowerBoard, PSU and other components.
Install PowerBoard & PSU

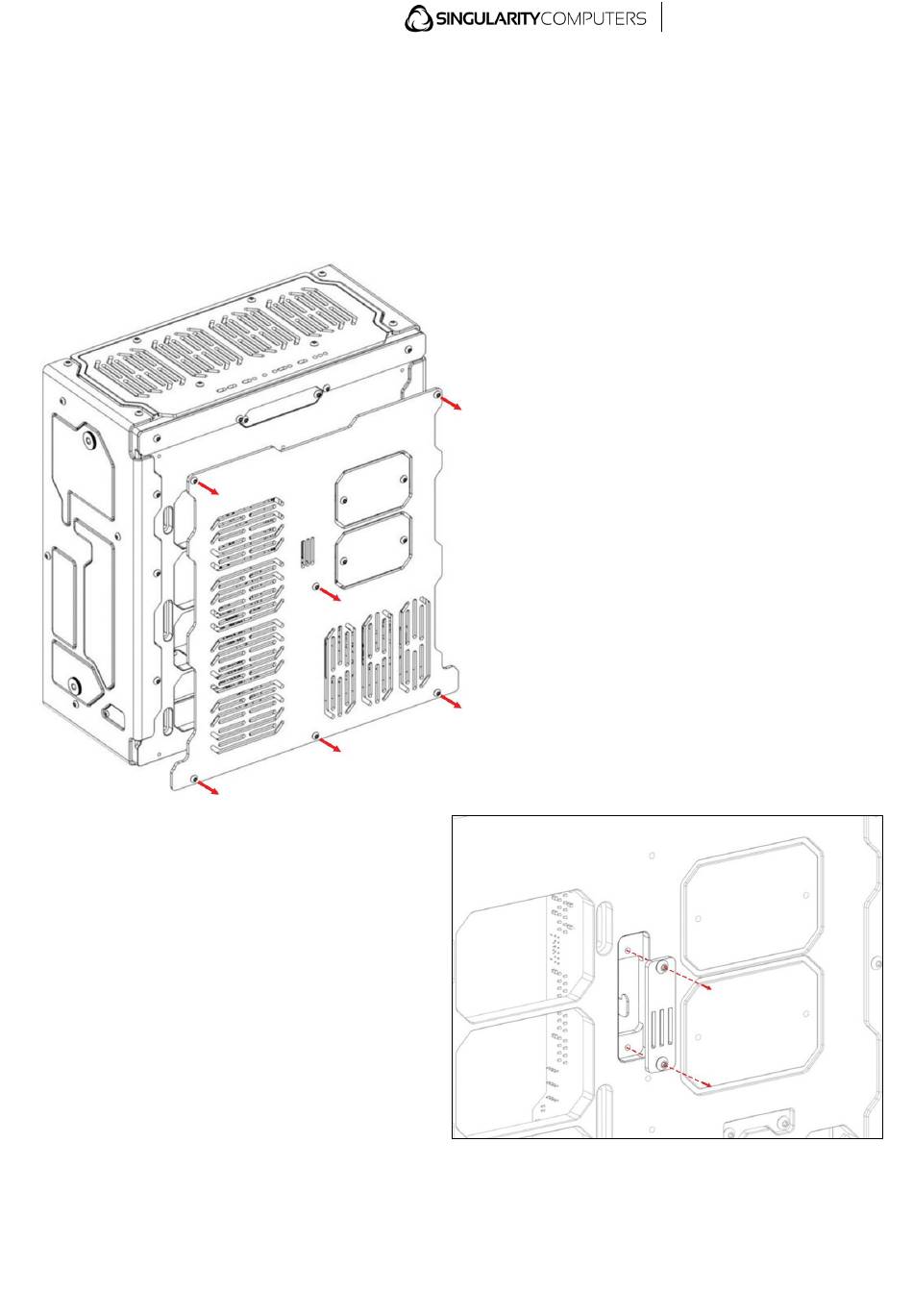

Remove PowerBoard Attachment Panel by
undoing the fasteners marked in the diagram
on the right.
V0.1
Install the PowerBoard and PSU into the case
together. The PowerBoard has a hooked
section which attaches to the rear wall of the
case. Before you attach this you need to
remove the Rear Cover Panel and PowerBoard
Attachment Panel. Remove the Rear Cover
Panel by undoing the fasteners marked in the
diagram on the left.
