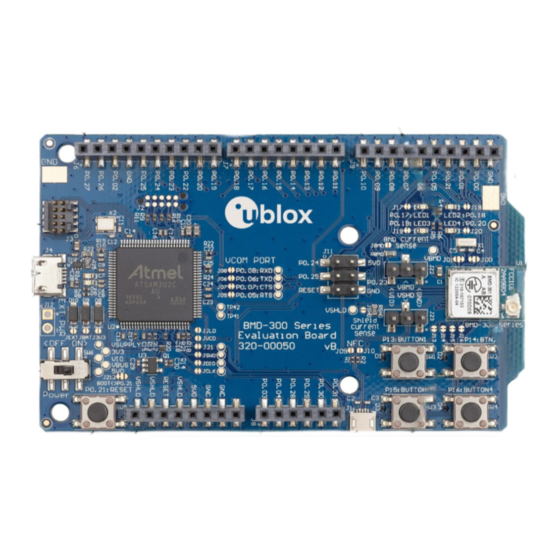

Quick start BMD-3xx evaluation
For BMD-300, BMD-301, BMD-330, BMD-350, BMD-360
Target debug
interface
J-Link debug
USB connector
Power switch
Reset button
UBX-19042094 - R01
J6
J5
J7
J9
NFC
antenna
J8
connector
LEDs 1-4
BMD-301 only:
U.FL antenna
connector
BMD-3xx
module
4 user buttons
Copyright © 2019, u-blox AG
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ublox BMD-3 Series
Summary of Contents for Ublox BMD-3 Series
- Page 1 Quick start BMD-3xx evaluation For BMD-300, BMD-301, BMD-330, BMD-350, BMD-360 LEDs 1-4 BMD-301 only: U.FL antenna connector Target debug interface J-Link debug USB connector Power switch BMD-3xx antenna module Reset button 4 user buttons connector UBX-19042094 - R01 Copyright © 2019, u-blox AG...
- Page 2 Getting started Useful links 1. Download and install the SEGGER • BMD-3xx-EVAL user guide: J-Link software. www.u-blox.com/docs/UBX-19033349 2. Download and install the SEGGER • Nordic Semiconductor doc library: Embedded Studio. infocenter.nordicsemi.com 3. Download the Nordic nRF5 SDK, • SEGGER Embedded Studio and J-link: version v15 or newer.
