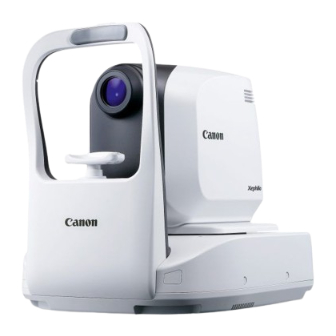

Page 1 Optical Coherence Tomography OCT-A1 OCT-HS100 Ophthalmic Software Platform RX RX Capture for OCT RX Viewer RX Server Version 4.6 Operation Manual Make sure you read this manual before using the instrument. Keep this manual in a safe place so that you can use it in the future.
Page 2 OCT. In addition, no compensation is available for lost image data, regardless of the cause of the loss of the image data. • Canon takes no responsibility for injuries or property damage that may occur if safety precautions are not followed or the instrument is used for something other than its intended purpose.
Page 3: Conventions Used In This Manual
This manual uses the following style to indicate reference destination: Example: (see page 15) Where to Find Explanations The explanations for each product are in the following sections. Chapter in this manual OCT-A1 RX Capture RX Viewer RX Server OCT-HS100...
Page 4: Table Of Contents
Contents Conventions Used in This Manual ..........3 1 Introduction ..................9 Overview ..................10 Indications for Use ................11 Contraindication ................11 Checking Items Included with the OCT ........12 Software Operating Environment ..........13 System Configuration ..............17 Operation Examples ..............18 2 Safety .....................
Page 5 Contents 5 Patient Management ..............73 Registering the Patient Information of New Patients ....74 Searching for a Patient ..............75 Editing Patient Information ............77 Deleting Patient Information ............78 Selecting Study Orders from the Worklist ........79 Changing the Patient List View ............ 80 Sorting Items ................
Page 6 Contents [Single] Tab Screen ..............115 [Both Eyes] Tab Screen ............. 117 [Comparison] Tab Screen ............118 [Progression] Tab Screen ............119 [Combined] Tab Screen .............120 NFL+GCL+IPL Analysis/GCL+IPL Analysis .........121 [Both Eyes] Tab Screen .............121 [Progression] Tab Screen ............123 [Combined] Tab Screen .............125 Optic Disc Analysis..............128 [Both Eyes] Tab Screen .............128 [Progression] Tab Screen ............131...
Page 7 Contents Editing Disc and Cup ..............170 Analyzing an Anterior Segment Tomogram Image ....172 Editing Analysis Results for an Anterior Segment Tomogram Image ..................174 Deleting Analysis Results for an Anterior Segment Tomogram Image ..............175 Enlarging the OCTA Image ............176 Menu of the OCTA Image Screen..........176 Analyzing an OCTA Image ............178 Editing Analysis Results for an OCTA Image ......
Page 8 Contents Adding a User ................231 Changing the User Information ..........232 Using the User Information Registered in the Domain..... 233 Storage Management ..............236 Adding a Drive ................236 Changing the Current Drive ............236 Changing the Priority of Drive ..........236 Deleting a Drive ................
Page 9: Introduction
1 Introduction...
Page 10: Overview
1 Introduction Overview Optical Coherence Tomography (OCT) The Canon Optical Coherence Tomography (referred to as “OCT” in this manual) takes digital photographic images of retinal form and tomogram images of patient’s eyes non- invasively with full automatic alignment. Full automatic operations can decrease examination time and automatic tracking enables the OCT to take images with high reproducibility.
Page 11: Indications For Use
It is intended for use as an aid in the diagnosis and management of posterior segment diseases. Important • The Canon OCT is not intended to be used as the sole diagnostic instrument for disease. A qualified doctor is responsible for the definitive diagnosis referring to other analysis results with other instruments.
Page 12: Checking Items Included With The Oct
Describes the handling precautions and operating instructions. DVD-ROM — Opthalmic Software Platform Software: RX Capture for OCT, RX Viewer, RX Server DICOM Conformance Statement CANON SOFTWARE LICENSE AGREEMENT Optional Products Chin rest paper—500 sheets Anterior Segment Adaptor ASA-1 External eye fixation lamp unit EL-1...
Page 13: Software Operating Environment
1 Introduction Software Operating Environment Each software runs under the following operating environment. For details on the system, contact your sales representative or local Canon dealer. RX Capture for OCT-A1 Hardware or software Specifications Core i7 3.3 GHz or higher (6 or more cores)
Page 14 1 Introduction RX Capture for OCT-HS100 Hardware or software Specifications Core i7 3.3 GHz or higher (6 or more cores) 6 GB or more 32 GB or more (when OCTA mode is installed) 32 GB or more (when the progression for OCTA examination is enabled) 64 GB or more (when OCTA 2 is installed) NVIDIA video card supporting DirectX 11 (graphics cards with a...
Page 15 1 Introduction RX Viewer Hardware or software Specifications Core i3 2.4 GHz or higher 4 GB or more 8 GB or more (when OCTA 2 is installed) 16 GB or more (when displaying the OCTA Large square examination) 32 GB or more (when the progression for OCTA examination is enabled) Full HD and 24/32-bit color compatible •...
Page 16 1 Introduction RX Server Hardware or software Specifications Core i3 2.4 GHz or higher 4 GB or more 8 GB or more (when OCTA 2 is installed) 16 GB or more (when displaying the OCTA Large square examination) 32 GB or more (when the progression for OCTA examination is enabled) Full HD and 24/32-bit color compatible •...
Page 17: System Configuration
1 Introduction System Configuration The standard system configuration is shown below. Monitor Video Computer AC cord Mouse AC LINE Keyboard AC cord AC cord AC LINE AC cord Isolation transformer Isolation Printer transformer...
Page 18: Operation Examples
1 Introduction Operation Examples Using the RX Capture for OCT Only This is an example to install only the RX Capture for OCT and operate it. In the RX Capture for OCT, perform all examination-related operations, such as entering patient information, capturing tomogram images, viewing reports, and setting for output.
Page 19 1 Introduction Using the RX Capture for OCT and the RX Viewer (Optional Product) This is an example to install the RX Capture for OCT and up to two licenses of RX Viewer on computers in separate rooms and operate them. In the RX Capture for OCT, enter the patient information and capture the tomogram image.
Page 20 1 Introduction Using the RX Server (Optional Product) This is an example to install the RX Server, the RX Capture for OCT and the RX Viewer on computers in separate rooms and operate them. The RX Server is used as a database. In the RX Capture for OCT, enter the patient information and capture the tomogram image.
Page 21: Safety
2 Safety...
Page 22: Regulatory Information
2 Safety Regulatory Information Device Classification Type of protection against electric Class 1 equipment shock Degree of protection against Type B applied parts electric shock (chin rest and forehead rest) Degree of protection against IPX0 ingress of water Degree of safety of application Not suitable in the presence of a flammable anesthetic mixture with air or with...
Page 23: Safety Precautions
Be sure to hold the plug. Prohibited Handle the power cord carefully. If the cord is damaged, contact your sales representative or local Canon dealer for a replacement. A damaged cord could result in fire or electric shock. Do not use a multiple power strip and an extension cable.
Page 24 Immediately turn off the power of the OCT, unplug the power plug and turn off the power of all connected devices. Then, contact your sales representative or local Canon dealer. Do not place anything on top of the device.
Page 25 2 Safety Turn off the power before cleaning. For safety reasons, before cleaning the OCT, be sure to turn off the power of all the devices and unplug the power cord from the AC outlet. Otherwise, fire or electric shock could result. Turn off the power before inspection.
Page 26 IEC 60950-1 can be also used. However, be sure to use an isolation transformer. For details on the patient environment, see “Patient Environment” (see page 264). Otherwise, electric shock may occur. For details, please contact your sales representative or local Canon dealer.
Page 27 2 Safety Keep the forehead rest and chin rest clean. To prevent the risk of infection, wipe the forehead rest with disinfectant ethanol for each patient. Similarly, to prevent the risk of infection, replace the chin rest paper for each patient. For details on how to disinfect, consult a specialist.
Page 28 For safety reasons, before using the OCT, be sure to perform the daily inspection. Have a periodically inspection performed for the OCT at least once a year by a Canon designated representative to maintain its performance and reliability. Do not turn off the OCT or the computer during image capture, data transfer or backup.
Page 29 If you add, change or update the OS, driver, or other software after installing the software, the software may not function properly. Contact your sales representative or local Canon dealer beforehand. Do not change the [Windows Update] settings.
Page 30: Laser Safety
2 Safety Laser Safety This product complies with 21 CFR Chapter 1 Subchapter J as a Class 1 laser product under the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968.
Page 31: Notes On Use
2 Safety Notes on Use Before Use • Inspect the OCT daily. Make sure that no foreign matter is present that can affect image readings or diagnoses. • Any dirt or scratches on the objective lens appear as black spots which may affect the image quality.
Page 32 • Ask your sales representative or local Canon dealer to install it. • Use a USB cable that is attached to the supplied ferrite core. Ask your sales representative or local Canon dealer to attach the ferrite core. Also, use a USB cable that is 2 meters long or less.
Page 33 WEEE scheme or your household waste disposal service. For more information regarding return and recycling of WEEE products, please visit www.canon-europe.com/weee.
Page 34 2 Safety Software Ask your sales representative or local Canon dealer to install and update the software and drivers. For instructions on operating the computer and Windows software, refer to the respective operation manuals. The software can be used only by users with [Users] or [Administrators] privileges.
Page 35: Product Labels
2 Safety Product Labels The labels and the marks attached to the OCT are shown below. Follow the information on the label to use the OCT appropriately. Label...
Page 36 2 Safety The following table describes the marks and indications on the OCT. USA and Canada Alternating current Type B applied part Certification mark that indicates the product has met ANSI standard and Canada national standard in the USA and Canada issued by TÜV Rheinland.
Page 37: Part Names
3 Part Names...
Page 38: Patient's Side
3 Part Names Patient’s Side Forehead rest Connector for the external eye Objective lens cap fixation lamp (with cap) Objective lens The external eye fixation lamp is sold separately. Face rest Measurement unit Chin rest Base Indentation for lifting...
Page 39: Examiner's Side
3 Part Names Examiner’s Side POWER lamp USB connector Power switch AC power connector Vent hole Synchronous cable terminal Data cable terminal Indentation for lifting Height adjustment mark...
Page 40: Screen Configuration
3 Part Names Screen Configuration Menu Bar [Patient] tab Launcher buttons [OCT Capture] tab* Minimize button [RC Capture] tab** [Log out] button [Report] tab Operation manual button Output display* Logged in user’s name Settings button * The [OCT Capture] tab and output display are only shown for RX Capture for OCT. ** The [RC Capture] tab settings are enabled by using the RX Capture for Retinal Camera (optional product) in RX Capture for OCT.
Page 41: [Oct Capture] Screen
3 Part Names [OCT Capture] Screen Standby Screen/Live View Screen Scan mode Recent examination list Examination set [Start] button/[Stop] button Adjustment mode button [Capture] button Right and left eyes button Fixation lamp button [Z Adjustment] button Patient information [Chin Rest] button OCT live image Anterior segment image C-Gate slider...
Page 42: [Report] Screen
3 Part Names Confirmation Screen SLO image OCT image Projection image [Report] Screen Patient information Disease name Right/left eye indicator Comments area Examination sort tab Print button NG image check box Output button Examination list Analysis result View mode tab...
Page 43: Oct Image Screen
3 Part Names OCT Image Screen OCT image Distance Tool Output button Distance Tool display Print button Brightness / Contrast adjustment Boundary display OCT image display format Boundary editing / Disc and Cup Projection image or SLO image editing OCTA Image Screen OCTA image Density Analysis selection B-scan line display...
Page 44: En Face Image Screen
3 Part Names En Face Image Screen En Face image Distance/Area Tool B-scan line display Distance/Area Tool display Output button En Face image display content Print button B-scan tomogram image Registration Screen (Difference Map) Selected examination Overlay slider Examination for comparison Projection image (after alignment) Projection image (before alignment) Difference map...
Page 45: Registration Screen (Retinal Image)
3 Part Names Registration Screen (Retinal Image) Retinal image Overlay slider SLO image Settings Screen Setting items Settings...
Page 46 3 Part Names...
Page 47: Basic Operation
4 Basic Operation This chapter describes "examination sets" and "scan modes," the basic knowledge required for operating the OCT. It also describes the basic procedures from turning on to turning off RX Capture for OCT, RX Viewer, and RX Server. The basic procedures for “Selecting an Examination Set”...
Page 48: Flow Of Operation
4 Basic Operation Flow of Operation These are the basic procedures for doing OCT capture. The procedure to capture OCTA images (optional product) is the same as the one described in this chapter. Preparing the OCT (see page 54) Entering Patient Information (see page 55) Follow-up examination Preparing for Patients (see page 57) Performing a Follow-up Examination (see page 66)
Page 49: Examination Sets And Scan Modes
4 Basic Operation Examination Sets and Scan Modes To capture images using optical coherence tomography (OCT), first select an examination set. Multiple scan modes (combinations of scan direction, area, and other conditions for capturing images) are registered in examination sets. You can select an examination set to capture images according to certain diseases and the anatomy being examined.
Page 50: Types Of Scan Modes
4 Basic Operation Types of Scan Modes 12 scan modes are available. • [Macula 3D] In this mode, a 3D scan is done on the region centering on the macula. The scanning area is 10 x 10 mm, and the primary scanning direction is horizontal. Primary scanning direction Secondary scanning...
Page 51 4 Basic Operation • [Wide 3D] In this mode, a 3D scan is performed on the region centering on the macula and the optic disc. The scanning area is 13 x 10 mm, and the primary scanning direction is vertical. Secondary scanning direction Primary scanning...
Page 52 4 Basic Operation • [Radial] In this mode, a radial scan is performed on the region centering on the macula or optic disc along 12 lines. • [Anterior 3D] In this mode, a 3D scan is performed on the anterior segment. The scanning area is 6 x 6 mm, and the primary scanning direction is horizontal.
Page 53 4 Basic Operation • [OCTA] (optional product) In this mode, a 3D scan is performed on the region centering on the macula or optic disc. The scanning area can be 3 x 3 mm, 4 x 4 mm, 5 x 5 mm, 6 x 6 mm, or 8 x 8 mm.
Page 54: Preparing To Capture Images
4 Basic Operation Preparing to Capture Images Preparing the OCT Remove the dust cover and the objective lens cap. Insert the power plug all the way into an AC outlet. Turn on the power to the OCT. The OCT does an initialization sequence (internal check and positioning of the measurement unit).
Page 55: Entering Patient Information
4 Basic Operation Information To operate the software using the user information already registered in the domain, select the directory service server from the domain list box on the login screen. The domain list box appears on the login screen when LDAP authentication is enabled on the [LDAP Settings] screen.
Page 56 4 Basic Operation Important When you select a patient, users who select the patient with other computers later can view the information in read-only mode. If you do not need to select the patient, click [Clear]. The patient is deselected. Enter other patient information.
Page 57: Preparing For Patients
4 Basic Operation Preparing for Patients To prevent the risk of infection, wipe the forehead rest with disinfectant ethanol for each patient. CAUTION For details on how to disinfect, consult a specialist. The forehead rest may be corroded if a disinfectant other than those above is used. Disinfect the forehead rest and replace the chin rest paper.
Page 58: Selecting An Examination Set
4 Basic Operation Selecting an Examination Set This section describes operations that are needed to be done in the standby screen. The following includes an example of the process to follow when the right eye, automatic adjustment mode and the [Macula Disease] examination set are selected. Do not place your hands or fingers near the measurement unit or between it and the base.
Page 59 4 Basic Operation Information If part of the pupil appears in the anterior segment image, the anterior segment is automatically aligned when the screen is switched to the live view screen. Click [Start]. Or, right-click on any part of the screen. The measurement unit moves, and the focus of the SLO image, the focus of the OCT image and the vertical position of the OCT image are adjusted automatically.
Page 60: Capturing Images
4 Basic Operation The screen switches to the live view screen after adjustment is finished. The button display changes to [Stop] on the live view screen. Click [Stop] to return to the standby screen. Capturing Images Make sure that the image quality indicator has changed its color to green.
Page 61 4 Basic Operation Information Showing the Central Guideline When [Display a guide line on the center of OCT Preview] is selected on the [Capture Settings] screen, the guideline appears on the center of the OCT live image. Adjust the tilt of the tomogram image. Move the cursor onto the OCT live image to show the tilt adjustment buttons.
Page 62: Checking The Captured Image
4 Basic Operation Information Canceling Capture If you want to cancel capturing, click [Cancel], and then select whether to save the data that has been captured. Checking the Captured Image The SLO image, OCT image and projection image appear in the confirmation screen. Click [OK] or [NG].
Page 63: Viewing Reports
4 Basic Operation Viewing Reports Viewing Reports The following describes an example of how to view reports in the [Single] mode. See "7 Report" (see page 111) for details on how to view reports in other modes. After the capturing is completed, click the [Report] tab. The [Report] screen appears.
Page 64: Outputting And Printing Reports
4 Basic Operation Outputting and Printing Reports The displayed report can be saved as an image file or printed. Click [Output]. The [Select Output Destination] screen appears. Select the output destination, and then click [OK]. The image file is saved to a pre-specified folder. Information See "Saving Reports as Image Files"...
Page 65: Recapturing
4 Basic Operation Recapturing You can select a particular examination from the scan list in the report screen and then redo captures in the same mode. From the examination list, select and right-click an examination you want to recapture, and from the menu select [Retry Capture]. The [OCT Capture] screen appears.
Page 66: Performing A Follow-Up Examination
4 Basic Operation Performing a Follow-up Examination A follow-up examination is done using the same conditions for capturing images as those in a previous examination. A follow-up examination is automatically done when an examination is repeated. Select a patient. Select an examination. Select the date of an examination for which you want to do a follow-up and then select an examination done on that day.
Page 67 4 Basic Operation Click the [OCT Capture] tab. The [OCT Capture] screen appears. [Follow-up] is selected as the examination set in which all scan modes that were executed in the previous examination are registered. From here on, repeat the procedure from step 4 of "Selecting an Examination Set". Clicking [OK] in the confirmation screen after capturing an image switches to the next registered scan mode.
Page 68: Shutting Down The Rx Capture For Oct
4 Basic Operation Shutting Down the RX Capture for OCT Click [Log out]. The login screen appears. Important On the day when automatic backup is performed, exit lastly the software installed on the computer to be used for backup. Click [Shutdown]. The computer turns off automatically after the RX Capture for OCT shuts down.
Page 69: Starting Rx Viewer
4 Basic Operation Starting RX Viewer Double-click on the desktop. RX Viewer is started, and the login screen appears. Enter the user ID and password, and then click [Log In]. The [Patient] screen appears. Information To operate this software using the user information already registered in the domain, select the directory service server from the domain list box on the login screen.
Page 70: Shutting Down Rx Viewer
4 Basic Operation Shutting Down RX Viewer Click [Log out]. The login screen appears. Important On the day when automatic backup is performed, exit lastly the software installed on the computer to be used for backup. Click [Exit]. RX Viewer exits.
Page 71: Starting Rx Server
4 Basic Operation Starting RX Server Double-click on the desktop. RX Server is started, and the login screen appears. Enter the user ID and password, and then click [Log In]. The [Patient] screen appears. Information To operate this software using the user information already registered in the domain, select the directory service server from the domain list box on the login screen.
Page 72: Shutting Down Rx Server
Click [Exit]. RX Server exits. Seeing the Operation Manual Clicking the operation manual button on the menu bar displays the operation manual. Information Contact your sales representative or local Canon dealer if the operation manual does not appear.
Page 73: Patient Management
5 Patient Management In the [Patient] screen, you can manage patient information that is registered to the patient list or import existing patient information. The software supports incremental searching (automatic filtered searching).
Page 74: Registering The Patient Information Of New Patients
5 Patient Management Registering the Patient Information of New Patients Register the patient information of new patients to the patient list. Enter the patient ID. Make sure that the patient is not in the existing patient list. Enter patient information other than the patient ID. Important To perform a comparison and an analysis with the normative database, be sure to enter a birth date and an ethnic group.
Page 75: Searching For A Patient
Searching for Patients by Magnetic Card or Bar Code Reader Communications parameters and data must be set for the magnetic card or bar code reader to be used. For details, please contact your sales representative or local Canon dealer. Searching by Patient ID Enter a patient ID.
Page 76 5 Patient Management Information When part of a patient ID is entered, patients whose patient ID includes the entered text string appear. To specify a patient, enter text in other entry fields to narrow down the search conditions. Information An incremental search is performed as text is entered so patient IDs that contain the entered text will appear in the patient list.
Page 77: Editing Patient Information
5 Patient Management Editing Patient Information This section describes how to edit patient information that is registered in the patient list. To use this function, you need [Administrator] or [Super User] privilege. Select and right-click a patient, and select [Edit] from the menu. The [Edit Patient Information] screen appears.
Page 78: Deleting Patient Information
5 Patient Management Deleting Patient Information Patient information can be deleted from the patient list. If patient information is deleted, all examination results for that patient are also deleted. To use this function, you need [Administrator] or [Super User] privilege. Information Multiple items can be selected by Shift-clicking or Ctrl-clicking.
Page 79: Selecting Study Orders From The Worklist
5 Patient Management Selecting Study Orders from the Worklist The worklist is retrieved from HIS/RIS. Set the maximum number of items that can be retrieved at one time in the [MWL Settings] screen (see page 226). Also, HIS/RIS can be notified when an examination is implemented. Click the [Work List] tab.
Page 80: Changing The Patient List View
5 Patient Management Information A follow-up examination cannot be performed from the worklist. Changing the Patient List View Patients can be sorted and specified items can be set as hidden. Column header Sorting Items Click the column header of the respective item. Patients are sorted on the basis of the clicked item.
Page 81: Outputting Examination Results
5 Patient Management Outputting Examination Results Examination results (i.e. OCT images and reports) can be saved as image files from the [Patient] screen. Output settings must be made in advance to save data to DICOM, the local disk, or an external hard disk drive. For details on settings for outputting data, see "Output Settings"...
Page 82: Outputting Selected Examination Results
5 Patient Management Outputting Selected Examination Results The OCT images and reports of selected examinations can be output. Select and right-click an examination, and select [Output] from the menu. The [Select Output Destination] screen appears. Select the output destination, and then click [OK]. Information Printing an Examination Select and right-click an examination, and select [Print] from the menu.
Page 83: Deleting An Examination On [Patient] Screen
5 Patient Management Deleting an Examination on [Patient] Screen Select and right-click an examination, and select [Delete] from the menu. Once an examination is deleted, it cannot be restored. To use this function, you need [Administrator] or [Super User] privilege. Importing Existing Patient Information Existing patient information can be imported as CSV (Comma Separated Value) format files.
Page 84 5 Patient Management Information Content set on the [Input restrictions] tab of the [Input Settings] screen cannot be applied to the patient information that is imported. Click [CSV]. Select the CSV file, and then click [Open]. The [Import patient data from file (CSV)] screen appears, and importing of the CSV file starts.
Page 85: Exporting Examination Data
5 Patient Management Exporting Examination Data You can export data of an examination or all the examinations of a patient. Information Multiple items can be selected by Shift-clicking or Ctrl-clicking. Exporting All the Examination Data of Selected Patient Select and right-click a patient, and select [Export] from the menu. Select the save destination, and then click [Save].
Page 86: Exporting Selected Examination Data
5 Patient Management Exporting Selected Examination Data Select and right-click an examination, and select [Export] from the menu. Select the save destination, and then click [Save]. When the save is completed, click [OK].
Page 87: Importing Examination Data
5 Patient Management Importing Examination Data Exported examination data with the extension “exd” can be imported. On the [Patient] screen, click [Import]. Select the examination data with the extension “exd”, and then click [Open]. The [Import patient data from file] screen appears, and a file import starts. When the import is completed, the [Close] button becomes active.
Page 88: Transferring Examination Data
5 Patient Management Transferring Examination Data You can transfer examination data to another patient list. To use this function, you need [Administrator] or [Super User] privilege. Select and right-click an examination, and select [Move to Other Patient] from the menu. The [Choose destination patient] screen appears.
Page 89 Click [Yes]. A message appears confirming the completion of the transfer. When the transfer is completed, click [OK]. Important Contact your sales representative or local Canon dealer if you are no longer sure of the output destination for the examination data.
Page 90: Editing An Accession Number
5 Patient Management Editing an Accession Number You can edit an accession number for examination information. To use this function, you need [Administrator] or [Super User] privilege. Select and right-click an examination, and select [Edit] from the menu. The [Edit examination’s information] screen appears. Enter an accession number, and click [OK].
Page 91 In the screening mode, a message confirming the edit appears. Check the content of the message. To complete editing, click [OK] to close the message. Important Contact your sales representative or local Canon dealer if you are no longer sure of the edited accession number.
Page 92: Saving Examination Data In Xml Format
5 Patient Management Saving Examination Data in XML Format You can save examination data in XML format. The examinations that can be saved are only those captured in the [Macula 3D], [Glaucoma 3D], [Disc 3D], and [Anterior Radial] modes. Select and right-click an examination, and select [Save as XML] from the menu.
Page 93: Capturing Images
6 Capturing Images The [OCT Capture] screen has three screens: a standby screen, live view screen and captured image confirmation screen. In the standby screen, select the mode and perform other preparations. In the live view screen, adjust the focus or C-Gate while viewing the live SLO image and the live OCT images.
Page 94: Changing The Adjustment Mode
6 Capturing Images Changing the Adjustment Mode Click the desired adjustment mode button. The button is highlighted. In the automatic adjustment mode, the alignment of the anterior segment, focus adjustment of the SLO and OCT image, and C-Gate adjustment of the OCT image are automatically performed.
Page 95: Manual Alignment
6 Capturing Images Manual Alignment In the manual adjustment mode, align the anterior segment manually. Align the pupil and the alignment circle to be concentric, and adjust the focus of the anterior segment image. • Pupil vertical position adjustment: click the anterior segment image. •...
Page 96: Eye Fixation Lamp
6 Capturing Images Eye Fixation Lamp Changing the Size of the Internal Eye Fixation Lamp Click the internal eye fixation lamp button. The button is highlighted. Two sizes of internal eye fixation lamp can be selected: "1 x 1 mm" and "6 x 6 mm". Moving the Internal Eye Fixation Lamp Drag the internal eye fixation lamp mark in the SLO live image.
Page 97: Oct Scanning Area
6 Capturing Images OCT Scanning Area Displaying the Scanning Area Move the cursor to inside the B-scan lines. The inside of the square in yellow is the OCT image capture area. Scanning area mark Moving the Scanning Area Move the cursor to inside the scanning area mark and drag the scanning area. Resizing the Scanning Area Move the cursor over the periphery of the scanning area mark and drag the periphery.
Page 98: Adjusting The Focus
6 Capturing Images Adjusting the Focus Adjust the focus to make the image sharper. Operate the focus slider. Either click , or drag the orange dot. Focus slider Automatic focus button Important Checking the Result of Focus Adjustment Adjust the focus so that the OCT live image is at the sharpest position. Information Using the Mouse Wheel You can do the same operation as the focus slider by placing the cursor on the SLO...
Page 99: Adjusting The C-Gate Of The Oct Live Images
6 Capturing Images Adjusting the C-Gate of the OCT Live Images Adjust the vertical position of the OCT live image so that the region to capture is visible. Operate the C-Gate slider. Either click , or drag the orange dot. C-Gate slider Automatic C-Gate button...
Page 100: Confirmation Screen
6 Capturing Images Confirmation Screen Checking the Captured Image Check the following images and confirm if they are acceptable. • SLO image • Projection image (OCTA image) • Slide show of OCT image To stop the slide show, click [Stop]. While stopped, the button changes to [Play]. Click [Play] to start showing images again automatically.
Page 101: Adjusting The Brightness And Contrast Of Captured Images
6 Capturing Images Adjusting the Brightness and Contrast of Captured Images Move the cursor over the OCT image and drag the cursor up, down, right, or left. • Dragging up and down: Adjusts the brightness. • Dragging right and left: Adjusts the contrast. B: Brightness C: Contrast Information...
Page 102: Capturing Octa Examination Images Repeatedly
6 Capturing Images Capturing OCTA Examination Images Repeatedly To perform repeat capturing in the [OCTA] scan mode, click [Repeat]. Information To perform repeat capturing in the [OCTA] scan mode, the OCTA Capture license (optional product) and the OCTA 2 license (optional product) are required. The [Repeat] button appears when the OCTA 2 license is enabled.
Page 103: Changing The Assessment Of Captured Images
6 Capturing Images Changing the Assessment of Captured Images The assessment made in the confirmation screen can be changed in the [OCT Capture] screen. Double-click the examination displayed in the [Recent Examination]. The confirmation screen appears. Click [OK] or [NG]. The standby screen reappears.
Page 104: Anterior Segment Tomography
6 Capturing Images Anterior Segment Tomography If the Anterior Segment Adaptor (optional product) is installed on the OCT, the OCT images of the anterior segment, including the cornea and chamber angle, can be captured. If a user who has an electronic medical implant experiences an aberration during instrument use, he/she should keep a safe distance from the auxiliary lens.
Page 105: Preparing Anterior Segment Tomography
6 Capturing Images Preparing Anterior Segment Tomography Select the [Anterior] examination set. The measurement unit moves to the furthest position from the patient side. The message screen appears. Attach the Anterior Segment Adaptor. Refer to the Anterior Segment Adaptor operation manual. [Start] appears when the auxiliary lens is attached correctly.
Page 106: Performing Anterior Segment Tomography
6 Capturing Images Performing Anterior Segment Tomography Information Use the external eye fixation lamp (optional product) when capturing the chamber angle. Click [Start]. The live images are shown on [XY Adjustment] and [SLO Preview]. Click the anterior segment image, and perform the alignment. The clicked point moves to the center position.
Page 107: Performing Octa Mosaic Capturing (Optional Product)
6 Capturing Images Performing OCTA Mosaic Capturing (Optional Product) You can create a mosaic image by capturing several OCTA images and combining them. To use this function, the OCTA Capture license (optional product) and the OCTA 2 license (optional product) are required. On the [Examination Settings] screen in [Initial Settings], register an examination set for mosaic capturing beforehand.
Page 108: Changing Image Capture Settings
6 Capturing Images Changing Image Capture Settings Change image capture-related settings. Click The settings screen appears. Click [Capture Settings]. Select items from the list box for each setting. • [Default Adjustment Mode] Set the default adjustment mode. The adjustment mode selected in this item is the initially selected mode for new examinations.
Page 109: Image Capture Shortcut Keys
6 Capturing Images • [OCT Preview] Set whether to display the guideline on the OCT live image on the [OCT Capture] screen. When this box is selected, the guideline appears in the center of the OCT live image. • [Shortcuts] Change the key assignment for shortcut keys available in the [OCT Capture] screen.
Page 110: Requesting The Deselection Of A Patient
6 Capturing Images Requesting the Deselection of a Patient When two or more users select the same patient, and when a user who selects the patient later captures images of the patient’s eye, he/she can request the user who selected the patient first to deselect the patient. Select a patient in the patient list, and click the [OCT Capture] tab.
Page 111: Report
7 Report This chapter describes reports which show the analysis results of examinations.
Page 112: Types Of Analysis
7 Report Types of Analysis Macula Thickness Analysis This shows the tomogram image of the macula and analysis results of retinal thickness. The primary scanning direction is horizontal, and priority is given to resolution in the horizontal direction. The compatible scan mode is [Macula 3D]. NFL+GCL+IPL Analysis / GCL+IPL Analysis This shows the tomogram image from the macula up to the optic disc, and analysis results of retinal thickness.
Page 113: Type Of View Mode
7 Report Anterior Segment Analysis This shows the tomogram image of the anterior segment and analysis results of corneal thickness. The compatible scan mode is [Anterior Radial]. The abbreviations and names of the layers and boundaries shown in analysis are as follows.
Page 114: Macula Thickness Analysis
7 Report [Combined] Tab Screen This screen shows the analysis results comparing examinations of both eyes in the [Macula 3D], [Glaucoma 3D] or [Disc 3D] mode, accompanied with retinal images. Information • See “[Report Settings] Tab” (see page 203) to enable the [Combined] tab. •...
Page 115: [Single] Tab Screen
7 Report [Single] Tab Screen 1. SLO image You can select the image to overlay from the list box. • [Full Retinal Thickness]: Retinal thickness map • [Projection Image]: Projection image • [SLO Image]: Image overlay disabled 2. ETDRS grid This corresponds to the grid overlaid on the SLO image: the retinal thickness of each sector appears.
Page 116 7 Report • [Total Area Average Thickness]: Average retinal thickness inside the maximum circle ( 6 mm) on the ETDRS grid • [Total Volume]: Retinal volume inside the maximum circle ( 6 mm) on the ETDRS grid * The area to calculate average retinal thickness and retinal volume has been modified from the scanning area (10 x 10 mm) to the inside of the ETDRS grid since the version 3.0.
Page 117: [Both Eyes] Tab Screen
7 Report [Both Eyes] Tab Screen 1. SLO image Same as [Single] tab screen. 2. ETDRS grid Same as [Single] tab screen. 3. Full Retinal Measurement table The items are the same as on the [Single] tab screen. This table shows the values for the right and left eyes.
Page 118: [Comparison] Tab Screen
7 Report [Comparison] Tab Screen 1. SLO image Same as [Single] tab screen. The values of the retinal thickness are shown on the ETDRS grid. 2. Full Retinal Measurement table The items are the same as on the [Single] tab screen. This table shows the values for each examination.
Page 119: [Progression] Tab Screen
7 Report [Progression] Tab Screen 1. SLO image The map to overlay on the SLO image can be selected from the list box. Values corresponding to the map are shown on the ETDRS grid. • [Full Retinal Thickness]: Shows the retinal thickness map for five examinations. •...
Page 120: [Combined] Tab Screen
7 Report [Combined] Tab Screen 1. SLO image Same as [Single] tab screen. 2. Retinal image 3. NDB comparison map/Thickness map of layers Same as [Both Eyes] tab screen. 4. ETDRS grid Same as [Single] tab screen. 5. OCT image (horizontal scan)
Page 121: Nfl+Gcl+Ipl Analysis/Gcl+Ipl Analysis
7 Report NFL+GCL+IPL Analysis/GCL+IPL Analysis The NFL+GCL+IPL and GCL+IPL thicknesses are analyzed on the basis of the captured OCT image of the posterior part of the retina including the macula and optic disc in the [Glaucoma 3D] mode. The analysis results are shown, for example, as a map relating to the NFL+GCL+IPL or GCL+IPL thickness and NFL+GCL+IPL or GCL+IPL grid indicating the superior and inferior regions or symmetry of the right and left eyes.
Page 122 7 Report Information [NFL+GCL+IPL Difference (S - I)] Background Color The superior and inferior regions are divided at the line joining the macula and the center of the optic disc: the symmetry between the two regions is shown. The background color is shown for the superior region if the "superior region - inferior region"...
Page 123: [Progression] Tab Screen
7 Report [Progression] Tab Screen 1. SLO image The map to overlay on the SLO image can be selected from the list box. Values corresponding to the map are shown on the NFL+GCL+IPL grid. • [NFL+GCL+IPL Thickness]: Shows the NFL+GCL+IPL thickness map for five examinations.
Page 124 7 Report The regression line is shown on the graph. Clicking any point changes the inclination of the line before and after the clicked point. 5. NFL+GCL+IPL Measurement table This table shows the overall average value of the NFL+GCL+IPL grid and the average values of the superior and inferior regions for the NFL+GCL+IPL thickness.
Page 125: [Combined] Tab Screen
7 Report [Combined] Tab Screen Three report layouts are available: [Layout 1], [Layout 2], and [Layout 3]. To change the report layout, select another layout from the list box. [Layout 1] 1. SLO image/NFL+GCL+IPL grid Same as [Both Eyes] tab screen. 2.
Page 126 7 Report 7. RNFL grid Same as [Both Eyes] tab screen in “Optic Disc Analysis”. See “[Both Eyes] Tab Screen” (see page 128). 8. Optic disc OCT image Same as [Both Eyes] tab screen in “Optic Disc Analysis”. See “[Both Eyes] Tab Screen” (see page 128).
Page 127 7 Report [Layout 3] 1. Retinal image 2. OCT image (vertical scan) 3. TSNIT parameters Same as [Both Eyes] tab screen in “Optic Disc Analysis”. The rightmost column is the difference between the right and left eyes.
Page 128: Optic Disc Analysis
7 Report Optic Disc Analysis The measurement result of the optic disc and TSNIT region is analyzed on the basis of the captured OCT image of the optic disc in the [Disc 3D] mode. The results of RNFL analysis are shown, for example, as a map relating to the RNFL thickness, RNFL profile indicating the thickness of locations through which a measurement circle (diameter 3.45 mm centering on the optic disc) passes, and RNFL grid indicating the thickness of the region inside the measurement circle.
Page 129 7 Report 4. Optic disc OCT image This is an OCT image of the optic disc corresponding to the radial lines. 5. RNFL Significance map This color map shows singular points by comparing RNFL thickness with the normative database. Disc (color: gray), Cup (color: light gray) and measurement circle (color: yellow) are shown.
Page 130 7 Report The regions indicated in the following figure are Cup, Disc and Rim. These values are used to analyze ONH parameters. Disc RPE end point 8. TSNIT parameters This table summarizes the measurement values relating to the RNFL thickness at the TSNIT region for the right and left eyes.
Page 131: [Progression] Tab Screen
7 Report [Progression] Tab Screen 1. RNFL map You can select the map that is shown from the list box. Disc (color: gray), Cup (color: light gray) and measurement circle (color: yellow) are shown. • [RNFL Thickness]: Shows the RNFL thickness map for five examinations. •...
Page 132: Wide 3D Scan Analysis
7 Report The regression line is shown on the graph. Clicking any point changes the inclination of the line before and after the clicked point. 5. ONH parameters The items are the same as on the [Both Eyes] tab screen. This table shows the values for each examination.
Page 133 7 Report 2. Optic disc SLO image 3. Retinal thickness map / ETDRS grid Same as [Single] tab screen in “Macula Thickness Analysis”. See [Single] tab screen (see page 115). 4. RNFL thickness map Same as [Both Eyes] tab screen in “Optic Disc Analysis”. See [Both Eyes] tab screen (see page 128).
Page 134: [Macula] Tab Screen
7 Report [Macula] Tab Screen 1. SLO image 2. OCT image (horizontal scan) 3. Retinal thickness map/ETDRS grid Same as [Single] tab screen in “Macula Thickness Analysis”. See [Single] tab screen (see page 115). 4. NDB comparison map Same as [Single] tab screen in “Macula Thickness Analysis”. See [Single] tab screen (see page 115).
Page 135: 2D Tomogram Analysis
7 Report 10. RNFL Significance map/ RNFL Deviation map Same as [Both Eyes] tab screen in “Optic Disc Analysis”. See [Both Eyes] tab screen (see page 128). 11. RNFL grid Same as [Both Eyes] tab screen in “Optic Disc Analysis”. See [Both Eyes] tab screen (see page 128).
Page 136: [Both Eyes] Tab Screen
7 Report 2. Boundary list box This is for selecting the two boundaries to show on the OCT images. 3. [Show Lines] check box When this box is checked, the boundary, thickness (unit: µm) and measurement line are shown on the OCT image and thickness profile. 4.
Page 137: [Comparison] Tab Screen
7 Report [Comparison] Tab Screen The following describes the elements that are different from those of the [Single] tab screen. The other elements are the same as those of the [Single] tab screen. 1. Background color list box Background color displayed in the thickness profile can be selected from the list box. •...
Page 138: General Tomogram Analysis
7 Report General Tomogram Analysis The thickness map of the specified layer and the thickness profile of the OCT images captured in the [Macula 3D], [Glaucoma 3D], [Disc 3D], [Wide 3D] and [Custom 3D] modes are shown. These analyses results can be shown in the [General] tab screen. For details on the color patterns of NDB, see “Macula Thickness Analysis/2D Tomogram Analysis/General Tomogram Analysis/Wide 3D Scan Analysis”...
Page 139 7 Report When a C-scan image is shown, the C-scan line (color: green) is shown on the OCT image. The C-scan image corresponding to the position of the C-scan line is shown. C-scan line Information Mouse Wheel Operation The C-scan line moves by moving the cursor to the C-scan image and turning the mouse wheel.
Page 140: Octa Image Analysis (Optional Product)
7 Report OCTA Image Analysis (Optional Product) The OCTA image analysis shows the analysis results for the OCTA images captured in [OCTA] mode on the [Single] and [Progression] tab screens. Information To show the map and grid for the area density and skeleton density, the OCTA Analysis license (optional product) is required.
Page 141 7 Report Important Intelligent denoise is a function for reducing noise by using Deep Learning. This function doesn’t change the own program because it doesn’t have an incremental training. This function generates the same result if the input is consistent. Information An Intelligent denoise license (optional product) and a video card that meets the operating environment are required to use the Intelligent denoise function.
Page 142 7 Report 11. OCTA image 2 The OCTA image set in the [OCTA Image Definitions] screen can be selected from the list box. Information You can perform the following operations from the menu displayed by right-clicking the OCTA image. • [Density Map]: Select whether to show or hide the density map (optional product). •...
Page 143: [Progression] Tab Screen
7 Report Information The examinations that have all the same information for the capture date, right/left eye, scan mode, scan pattern and scan size are displayed. You can select up to nine examinations. Select any examinations, and then click [OK]. When averaging is complete, the [Report] screen reappears.
Page 144: 3D Analysis
7 Report 3D Analysis The data of the OCT images captured in the [Macula 3D], [Glaucoma 3D], [Disc 3D], [Wide 3D], [Custom 3D], [Anterior 3D], and [OCTA] modes is shown as a 3D image. Four types of view formats are available for 3D tomogram images: [Volume], [Solid], [Cross- Section], and [Angiography].
Page 145 7 Report 4. Brightness adjustment slider ([Volume], [Cross-Section] view only) The brightness of 3D tomogram images can be adjusted. Click [Reset] to return to its initial state. 5. Contrast adjustment slider ([Volume], [Cross-Section] view only) The contrast of 3D tomogram images can be adjusted. Click [Reset] to return to its initial state.
Page 146: [Solid] View
7 Report [Solid] View Shows the SLO image and a non-transparent image of color-coded layers of the retina. The vitreous and choroid are not shown. The [Anterior 3D] mode is not supported. 1. Layer shift slider ([Solid] view only) The layers are separated by operating this slider.
Page 147: [Cross-Section] View
7 Report [Cross-Section] View Shows the SLO image, layers of the retina, and choroid as non-transparent images. The vitreous is not shown. Three 3D tomogram image colors can be selected: [Gray Scale], [Invert] and [False Color]. [Angiography] View Shows the SLO image and a non-transparent image for each layer of the retina. Two 3D OCTA image colors can be selected: [Gray Scale] and [False Color].
Page 148: How To Operate The 3D View Screen
7 Report How to Operate the 3D View Screen The following describes an example of how to operate the 3D view screen in the [Cross- Section] view. 3D Tomogram Image • Rotating: Drag the 3D tomogram image in any direction. •...
Page 149: Anterior Segment Analysis
7 Report Anterior Segment Analysis The corneal thickness analysis is performed on the basis of the OCT images of the anterior segment captured in [Anterior Radial] mode. The analysis results are shown, for example, on maps of corneal thickness, corneal grids, and tables.
Page 150: [Both Eyes] Tab Screen
7 Report [Both Eyes] Tab Screen 1. SLO image/Corneal thickness Same as [Single] tab screen. 2. Corneal epithelium thickness The values of the corneal epithelium thickness are shown on the grid. 3. OCT image Same as [Single] tab screen. 4. Corneal thickness (μm) The items are the same as on the [Single] tab screen.
Page 151: [Comparison] Tab Screen
7 Report [Comparison] Tab Screen 1. SLO image/Corneal thickness Same as [Single] tab screen. 2. SLO image/Corneal epithelium thickness Same as [Single] tab screen. 3. Corneal thickness (μm) The items are the same as on the [Single] tab screen. This table shows the values for each examination.
Page 152: [Progression] Tab Screen
7 Report [Progression] Tab Screen 1. SLO image/Corneal thickness The map to overlay on the SLO image can be selected from the list box. Values corresponding to the map are shown on the corneal grid. • [Corneal Thickness]: Shows the corneal thickness map for five examinations. •...
Page 153: Normative Database
7 Report • [Maximum - Minimum]: Difference between the maximum and minimum corneal thicknesses • [SN-IT]: Difference between SN sector and IT sector within the corneal grid ( 2 to 5 mm) • [S-I]: Difference between S sector and I sector within the corneal grid ( 2 to 5 mm) •...
Page 154 7 Report • Green: 5 to 95% The measurement value indicates the range from the 5th to 95th percentile from the thinnest value in NDB. Significance map is not color-coded. • Yellow: 1 to 5% The measurement value indicates the range from the 1st to 5th percentile from the thinnest value in NDB.
Page 155: Basic Report Operations
7 Report Basic Report Operations The following example describes the [Report] screen operation for an examination done in the [Macula 3D] mode. Showing the [Report] Screen Enter the patient ID. Select an examination, and then click the [Report] tab. The [Report] screen appears. The view mode that appears first differs according to the setting of the scan mode.
Page 156: Deleting An Examination On The [Report] Screen
7 Report Information Entering Disease Names and Comments Disease names and comments can also be entered in the [Report] screen. Entry of disease names or comments is for patients and not for individual examinations. The entered disease name and comment are also reflected in the patient list. Deleting an Examination on the [Report] Screen Select and right-click an examination on the examination list, and select [Delete] from the menu.
Page 157: Saving Oct Images As Image Files
7 Report Saving OCT Images as Image Files All OCT images acquired by a single image capture operation can be saved as image files. Click [Output]. Or, right-click the examination list, and select [Output] from the menu. The [Select Output Destination] screen appears. Select output destination, and then click [OK].
Page 158: Printing A Report
7 Report Printing a Report The analysis report area of the [Report] screen can be printed. The view mode and list box items are printed as shown. Also, the institution name which you inputted on the [System Settings] screen at [Initial Settings] (see page 198) and the login user’s name are printed.
Page 159: Changing The Examination List View
7 Report Changing the Examination List View Examinations in the examination list are shown in order of date or scan mode. They are switched by clicking the [By Date] tab or the [By Mode] tab. Clicking the date panel or scan mode panel stores the examination or shows it expanded.
Page 160 7 Report Changing the Color Right-click the OCT image, and select an item from the menu. • [Gray Scale]: Shows in gray scale (default). • [Invert]: Shows in inverted gray scale. • [False Color]: Shows in color. Changing the View of Boundaries Right-click the OCT image, and select the item from the menu.
Page 161: Changing The Examination To Be Compared
7 Report Changing the Examination to be Compared You can select the examination to be compared in the [Both Eyes], [Comparison], [Progression] and [Combined] modes. Changing the Examination to be Compared Individually The following describes the procedure for changing the examination to be compared in the [Both Eyes], [Comparison] or [Combined] mode.
Page 162 7 Report Changing the Examination to be Compared Progressively The following describes the procedure for changing the examination to be compared in the [Progression] mode. Click [Select]. The [Select examination] screen appears. Select the examination, and then click [OK]. The [Report] screen reappears. The selected examination appears. Information The examination to be compared is automatically specified by clicking [Latest examinations] or [Equal Interval].
Page 163: Moving The Grid
7 Report Moving the Grid The position of the grid can be moved by dragging it. To return the grid to its original position, right click the SLO image, and select [Reset ETDRS Grid Position] from the menu. Information The grid can be shown or hidden by selecting [ETDRS Grid] from the menu. Selecting the OCT Image to Show The OCT image at the position of the OCT image selection line is shown by dragging the line.
Page 164: Changing The Map Transparency
7 Report Changing the Map Transparency The transparency of the map that is shown in color can be changed by moving the cursor to the map and turning the mouse wheel. Measuring the Distance Between Boundaries Right-click the OCT image, and select [Measurement Line] from the menu. The measurement line appears.
Page 165: Enlarging The Oct Image
7 Report Enlarging the OCT Image Menu of the OCT Image Screen The enlarged OCT image can be shown by double-clicking the OCT image. In this screen, you can save the enlarged OCT image, output and print the screen, edit boundaries, analyze the distance between two points, adjust the brightness and contrast of the OCT images, and change the color and ratio of the OCT image.
Page 166 7 Report This changes the color of the OCT image. • [Gray Scale]: Shows in gray scale. • [Invert]: Shows in inverted gray scale. • [False Color]: Shows in color. This changes the ratio of the OCT image. • [High Resolution]: Shows the image enlarged in the vertical direction.
Page 167: Editing Boundaries
7 Report Editing Boundaries Automatically recognized boundaries can be edited. Click [Layer]. The [Edit Layer] screen appears. Select the boundary. Points are shown on the selected boundary. For the OCT image of the anterior segment, the boundaries you can select vary according to the scan mode.
Page 168: Analyzing A Retinal Tomogram Image
7 Report Click [OK]. The [Edit Layer] screen closes. Analyzing a Retinal Tomogram Image On OCT images of the retina, you can analyze the distance between two points. Click [Tools]. The [Edit Tools] screen appears. Click the start and end points. The length is shown.
Page 169: Deleting Analysis Results For A Retinal Tomogram Image
7 Report Deleting Analysis Results for a Retinal Tomogram Image Deleting All the Analysis Results on an Image Click [Tools]. The [Edit Tools] screen appears. Click [Clear All]. All the analysis results are deleted. Click [OK]. The [Edit Tools] screen closes. Deleting Specified Analysis Results Click [Tools].
Page 170: Editing Disc And Cup
7 Report Editing Disc and Cup In optic disc analysis, the Disc and Cup are automatically detected and shown on the screen. The values of the ONH or TSNIT parameters are automatically calculated on the basis of the detected regions. Click [Disc &...
Page 171 7 Report Edit Cup. To edit Cup, bring the cursor to the Cup line, and drag up or down. Cup is shown so that it is 150 µm away from Disc. Determine the position of Cup while referring to the scale at the bottom left of the OCT image.
Page 172: Analyzing An Anterior Segment Tomogram Image
7 Report Analyzing an Anterior Segment Tomogram Image On OCT images of the anterior segment captured in [Anterior Cross] mode, you can analyze the distance between two points, angles, and AOD (Angle Opening Distance)/ TISA (Trabecular Iris Space Area). Analyzing a Distance Click [Tools].
Page 173 7 Report Analyzing AOD/TISA Click [Tools]. The [Edit Tools] screen appears. Select [AOD/TISA]. Click points in order from 1 to 5. The analysis result is shown. Click [OK]. The [Edit Tools] screen closes and the analysis result is saved.
Page 174: Editing Analysis Results For An Anterior Segment Tomogram Image
7 Report Editing Analysis Results for an Anterior Segment Tomogram Image Editing Distances and Angles Click [Tools]. The [Edit Tools] screen appears. Select [Distance] or [Angle]. Edit analysis results. Point the mouse cursor to an end of an analysis line and drag it after the cursor is changed to a cross.
Page 175: Deleting Analysis Results For An Anterior Segment Tomogram Image
7 Report Deleting Analysis Results for an Anterior Segment Tomogram Image Deleting All the Analysis Results on an Image Click [Tools]. The [Edit Tools] screen appears. Click [Clear All]. All the analysis results are deleted. Click [OK]. The [Edit Tools] screen closes. Deleting Specified Analysis Results Click [Tools].
Page 176: Enlarging The Octa Image
7 Report Enlarging the OCTA Image Menu of the OCTA Image Screen The enlarged OCTA image can be shown by double-clicking the OCTA image. In this screen, you can save the enlarged OCTA image, output and print the screen, analyze the distance, area, and density, show the map and grid for the area density or skeleton density, adjust the brightness and contrast, and change the boundaries of the OCTA image.
Page 177 7 Report This selects the density to be analyzed from [Area Density] or [Skeleton Density]. The transparency of the En Face image can be changed by operating the overlay slider. This selects a method for projecting the OCTA image. • [AIP]: Average Intensity Projection •...
Page 178: Analyzing An Octa Image
7 Report Analyzing an OCTA Image You can analyze the distance between two points and the area and density in the specified region. Information To analyze the density, it is recommended that the examination meet the following conditions. • The examination’s images are averaged ([Averaged OCTA]) or Denoise is an enabled examination.
Page 179 7 Report Click at least three points around the analyzing region and double- click to end drawing. A closed curve is drawn. Click [OK]. The [Edit Tools] screen closes and the analysis results are saved. Analyzing an Area (Automatic Selection) Click [Tools].
Page 180: Editing Analysis Results For An Octa Image
7 Report Analyzing a Density This function analyzes area density and skeleton density. Area density creates a binary image from an OCTA image and indicates the percentage of white pixels in the selected region by percent (%). Skeleton density transforms the lines of a binary image, created from an OCTA image, into thin lines and indicates the value obtained by dividing the sum of the length of the thin lines in the selected region by the area by “mm ”.
Page 181: Deleting Analysis Results For An Octa Image
7 Report Click [OK]. The [Edit Tools] screen closes. Deleting Analysis Results for an OCTA Image Click [Tools]. The [Edit Tools] screen appears. Select the item you want to delete. Select the analysis item you want to delete from [Distance], [Area], [Area (Auto Select)], or [Density].
Page 182: Enlarging The En Face Image
7 Report Enlarging the En Face Image Menu of the En Face Image Screen The enlarged En Face image can be shown by double-clicking the En Face image. In this screen, you can save the enlarged En Face image, output and print the screen, analyze the distance and area, and change the boundaries of the En Face image.
Page 183: Analyzing An En Face Image
7 Report Information Mouse Wheel Operation When you move the cursor to the B-scan tomogram image and turn the mouse wheel, the B-scan line position of the En Face image changes and the tomogram image appears. Saving En Face Images Right-click the En Face image, and select [Save As] from the menu.
Page 184: Editing Analysis Results For An En Face Image
7 Report Analyzing an Area Click [Tools]. The [Edit Tools] screen appears. Select [Area]. Click at least three points around the analyzing region and double- click to end drawing. A closed curve is drawn. Click [OK]. The [Edit Tools] screen closes and the analysis results are saved. Editing Analysis Results for an En Face Image Editing Analysis Results for Distances Click [Tools], and select [Distance].
Page 185: Deleting Analysis Results For An En Face Image
7 Report Editing Analysis Results for Areas Click [Tools], and select [Area]. The [Edit Tools] screen appears. Edit the analysis results for the area. • Moving nodes: Point the mouse cursor to a node and drag it to the desired position. •...
Page 186: Editing Difference Maps
7 Report Editing Difference Maps The difference map shows the difference in thickness between two overlaid images. Double-click the difference map. The registration screen appears. Enter the match point. Determine the match point on the two projection images, and then click that point. Two to five points can be entered.
Page 187 7 Report Click [Preview]. The positioned image is shown on the right side. Information • The transparency of each image can be adjusted by operating the overlay slider. • To reset positioning of the image, click [Reset]. Click [OK]. The registration screen closes.
Page 188: Importing Retinal Images
7 Report Importing Retinal Images Retinal images captured by a retinal camera can be imported and shown instead of SLO images. Image files with the "bmp" or "jpg" extension can be imported. When a retinal image is imported, an enlarged SLO image is shown. View modes in which retinal images can be shown are as follows.
Page 189 7 Report Click [OK]. The registration screen closes, and the analysis result screen reappears. The retinal image is shown in the SLO image region. Information Switching Between the SLO Image and Retinal Image Right-click on the retinal image, and select [SLO Image] or [Retinal Camera Image] from the menu.
Page 190: Advanced Report Operations
7 Report Advanced Report Operations Creating Mosaic Images (Optional Product) You can create a mosaic image by combining several OCTA images. To use this function, Mosaic Software (optional product), the OCTA Capture license (optional product) and the OCTA 2 license (optional product) are required. The mosaic image function is a function of RX Capture for OCT.
Page 191 7 Report Select any examinations, and then click [OK]. The processing screen for creating the mosaic image appears. To stop the process, click [Cancel]. When the process is complete, the [Report] screen reappears. The created image is added to the [Other Device] column on the examination list. The scan mode for the created image is [Mosaic OCTA].
Page 192: Importing Other Images
7 Report Importing Other Images You can import image files captured with other devices. The color and grayscale images can be imported. “[IMPORT]” is shown for the retinal camera mode of imported images. Importing Image Files Select and right-click an image on the examination list and select [Import Image...] from the menu.
Page 193: Viewing Images In The Screening Mode
7 Report Click [OK]. The [Report] screen reappears and the image is added to the [Other Device] column on the examination list. Information You can also import images on the [Patient] screen. On the [Patient] screen, right- click a patient on the patient list and select [Importing Image...] from the menu. Information The displayed date indicates when the image was imported.
Page 194 7 Report Viewing Images The images of the patient selected on the [Screening List] can be viewed in the selected view mode. Click [Previous] or [Next] to display the previous or next image.
Page 195: Settings
8 Settings This chapter describes the methods of setting various functions. After another user logs out, modify the settings.
Page 196: Setting Procedure
8 Settings Setting Procedure On the login screen, input the User ID and Password of the Administrator with which the privileges have been set to the Administrator, and click [Initial Settings]. The [Initial Settings] screen appears. Click the item for which you want to perform settings. The screen to set the selected item opens.
Page 197 8 Settings Perform settings, and then click [OK]. The [Initial Settings] screen reappears. Click [Close]. The login screen appears.
Page 198: System Settings
The default values for each software are as shown below. Be sure to input the values. • RX Capture for OCT-HS100 : Canon OCT-HS100 • RX Capture for OCT-A1 : Canon OCT-A1 • RX Viewer : Canon RX Viewer • RX Server : Canon RX Server •...
Page 199 8 Settings • [Connection check] Check the connection. • [Company Name] Input the company name. [Company Name] cannot be input in RX Viewer. • [Company Logo] Register the company logo. Registerable file formats are BMP, JPEG, and PNG files. [Company Logo] cannot be input in RX Viewer. •...
Page 200: [Cache Settings] Tab
8 Settings [Cache Settings] Tab Set the items for file cache. • [File Cache] Select it to use the file cache. • [Cache Folder] Click [Browse] and then select the destination for the cache file. • [Cache Size] Input the cache file size (1 to 999 GB). •...
Page 201: [Auto Export Settings] Tab
Input the auto export folder size (1 to 999 GB). • [Expiration Time] Input the expiration date (1 to 999 days) for the auto export file. Important In order to change the settings of this function, please contact your sales representative or local Canon dealer.
Page 202: [Launcher Settings] Tab
8 Settings [Launcher Settings] Tab You can register up to three other applications to the menu bar. Click [Add]. The [Add launch application] screen appears. Enter a launcher name to register an application. 1) Enter a launcher name to [Button label]. Be sure to enter a name. 2) Click [Browse] to select an application you want to register.
Page 203: [Report Settings] Tab
8 Settings [Report Settings] Tab The contents of items displayed on the [Combined] tab screen can be changed for each scan mode. Click a scan mode. Set each item. • [Support Combined Report] Select it to use the [Combined] tab screen. •...
Page 204: [Screening Settings] Tab
8 Settings [Screening Settings] Tab • [Support Screening Mode] Select it to display captured images in the order in which they were captured. • [Support Combined Report] Select it to display the [Combined] tab screen. • [Default Combined Report Layout] Select [Auto select] or [Specified].
Page 205: Anonymization Settings
8 Settings Anonymization Settings On the [Anonymization Settings] screen, make settings for the anonymization of personal information when outputting data. You can set the anonymization function and the items to be anonymized. Anonymization Patterns Set the items to be anonymized and the methods for anonymization. •...
Page 206: Anonymization Target
8 Settings • [Birth Date] Select it to anonymize the birth date. You can select the method for anonymization from the list box. [Replaced with blank]: Select it to output data with the [Birth Date] information blank. [Replaced with YYYY/MM/01]: Replace the number of the day in the birth date with “01”.
Page 207: Gui Settings
8 Settings GUI Settings This section uses screens from RX Capture for OCT as examples in explanations. On the [GUI Settings] screen, set the screen display. • [Birth Date/Age for Capture Screen] Choose between [Birth Date] and [Age] for the patient information on the capture screen.
Page 208: Examination Settings
8 Settings Examination Settings [Examination Settings] can be set in RX Capture for OCT. On the [Examination Settings] screen, you can create and edit an examination set. Up to 10 examination sets can be registered. Up to 5 scan modes can be registered in a single examination set.
Page 209 8 Settings Input the name of the examination set, and register the scan mode. 1) Input the name of the examination set in [Name]. 2) Select the scan mode from the list box, and then click [Add]. The selected scan mode name appears. To register another scan mode, repeat the same operation.
Page 210: Editing An Examination Set
8 Settings Editing An Examination Set Use this screen to edit an examination set, add and delete a scan mode, change the order of scan modes to be executed, and change the settings of a scan mode. Select an examination set, and then click [Edit]. The [Examination Set Settings] screen appears.
Page 211 Wide] are additional functionalities and require the optional OCTA 2 license. Using larger scan patterns than [Small Square] may cause more artifacts on the captured image due to the extended duration of the capturing process. For details, consult your sales representative or local Canon dealer.
Page 212: Changing The Contents Displayed On A Report
8 Settings Changing the Contents Displayed on a Report The contents displayed on a [Report] screen can be changed by each scan mode. On the [Examination Set Settings] screen, click [Change]. The [Report screen default display items] screen appears. Change each content item to be displayed. Click [OK].
Page 213: Changing Octa Image Definitions
8 Settings Changing OCTA Image Definitions On the [OCTA Image Definitions] screen, you can create and edit an OCTA image definition displayed on a [Report] screen. Up to 10 kinds of definitions can be registered. Seven kinds of definitions have been registered in the OCT by default. These definitions can be edited and deleted, but they cannot be returned to their default once they are edited or deleted.
Page 214 8 Settings 4) Select [Projection Method]. Select a method for projecting the OCTA image. • [AIP]: Average Intensity Projection • [MIP]: Maximum Intensity Projection 5) Select [Projection Artifact Removal] as needed. Click [OK]. The [Examination Settings] screen reappears. The OCTA image definition is added. Editing an OCTA Image Definition Select an OCTA image definition and set each item.
Page 215: Input Settings
8 Settings Input Settings On the [Input Settings] screen, perform the settings to input patient information. [Input Restrictions] Tab [Input Restrictions] tab can be set in RX Capture for OCT. • [Length] Specify the number of characters to be entered. Input a value from 1 to 64 for Patient ID, and from 1 to 16 for Accession No.
Page 216: [Csv Import Settings] Tab
8 Settings [CSV Import Settings] Tab • [Column No.] Input the column numbers of the items described in the CSV files. The column number starts from 1. • [Ethnic Group Identifiers] Input the ethnic group identifiers used in the CSV files. •...
Page 217: [Others] Tab
8 Settings [Others] Tab • [Default ethnic group] Select an ethnic group. When you do not set the [Ethnic Group] setting on the [Patient] screen, the setting on [Default ethnic group] is applied. On the [Report] screen, it is shown distinctively as follows whether ethnic group is set. [Ethnic Group] is set: [Asian] [Ethnic Group] is not set: [(Asian)]...
Page 218: Output Settings
8 Settings Output Settings On the [Output Settings] screen, perform the settings to output the examination data. Up to 10 output destinations can be registered. When the output destination is registered, a list appears on the [Output Settings] screen. The icon displayed on the left of the output destination indicates what is output as the examination data.
Page 219 8 Settings Information One tomogram image of the OCT image is output as one file. For example, when capturing in [Macula 3D] mode, the number of B-scan is 128. Therefore, 128 files are output. To Output Reports File name: AAA_BBB_CCC_DDD_EEE_FFF.xxx FFF: View mode name Example: 123456_20120101_153030_Macula3D_R_Single.jpg To Output Captured Images...
Page 220: Outputting Examination Data To The Dicom Storage Server
8 Settings Outputting Examination Data to the DICOM Storage Server This section describes the settings to output images or reports to the DICOM storage server. Click [Add]. The [Output settings set] screen appears. Set each item. • [Set Name] Input the name of the output destination. Be sure to input the value. •...
Page 221 Click [OK]. The [Output Settings] screen reappears. Information If the number of images you transmit exceeds the upper limit of the DICOM standard, the images may be reduced automatically. For details, please contact your sales representative or local Canon dealer.
Page 222: Outputting Examination Data To The Specified Folder
8 Settings Outputting Examination Data to the Specified Folder This section describes the settings to output images or reports to the specified folder. Click [Add]. The [Output settings set] screen appears. Set each item. • [Set Name] Input the name of output destination. Be sure to input the value. •...
Page 223 8 Settings • [Folder Creation] Select whether to create a folder when examination data is output. • [File Name Type] Select the file name type for when examination data is output. • [Show Success Message] Select it to show a message confirming output completion after outputting the data. •...
Page 224: Changing The Settings Of The Output Destination
8 Settings [RC Settings] Tab • [SOP class] Select the SOP class for the model to be configured when [DICOM (Network)] or [DICOM (files)] is selected. • [Image Resize] Select it to change the image size, when [JPEG (files)] or [BMP (files)] is selected. •...
Page 225: Print Settings
8 Settings Information To delete an output destination Select an output destination, and then click [Delete]. To change the display order of the output destinations Select an output destination, and then click Print Settings On the [Print Settings] screen, set how to print the RC capture report. •...
Page 226: Worklist Settings
8 Settings Worklist Settings [MWL Settings] can be set in RX Capture for OCT. On the [MWL Settings] screen, perform the settings for using a worklist. • [Communication Enabled] Select it to use a worklist. • [Host Name] Enter the host name or the IP address (IPv4). Be sure to input the value. •...
Page 227: Configuring [Search Condition
8 Settings Configuring [Search Condition...] The following describes the method of configuring [Search Condition...]. Click [Search Condition...]. The [MWL Search Condition] screen appears. Select items as needed and enter dates and names. Click [OK]. The [Worklist Settings] screen reappears. Information For details on acceptable characters of each item, see “Acceptable Characters”...
Page 228: Mpps Settings
8 Settings MPPS Settings On the [MPPS Settings] screen, perform the settings for using MPPS. • [Communication Enabled] Select it to use MPPS. • [Host Name] Enter the host name or the IP address (IPv4). Be sure to input the value. •...
Page 229: Rc Capture Settings
8 Settings RC Capture Settings You can select the software to import images and configure its settings. [RC settings] Tab • [Use RC Capture Screen] Select it to use the [RC Capture] screen to import images. Information When [Use RC Capture Screen] is selected, the [RC Capture] tab appears on the menu bar.
Page 230: [Import Settings] Tab
8 Settings [Import settings] Tab • [Use Rics] Select it to use the Rics to import images. On [*Folder], be sure to select a save destination specified in the DICOM output settings in the Rics. Information When [Use Rics] is selected, the [Rics file] button appears on the [Patient] screen. •...
Page 231: User Management
8 Settings User Management On the [User Management] screen, add new users who will operate the software, as well as change user information. Also, through LDAP authentication, you can operate the software using the user information already registered in the domain. [User Management] can be set when you select [Local] on [Database].
Page 232: Changing The User Information
8 Settings 2) Select a privilege level. • [Administrator]: The user that has privilege over all functions, including initial settings • [Super User]: The user that has privilege over all functions, except initial settings • [Standard User]: The user with the [Super User] privilege with the exception of deleting patient information, examinations, and images, transferring examination data, and editing patient information and examinations Information...
Page 233: Using The User Information Registered In The Domain
8 Settings Change the user information. Click [OK]. The [User Management] screen reappears. Information To change a password Click after you log in. Clicking [Password Settings] allows you to change a password (see page 243). Using the User Information Registered in the Domain Click [LDAP Settings].
Page 234 8 Settings Enable LDAP authentication. 1) Select [Communication Enabled]. 2) Enter a server name or IP address for the directory service in [Server]. Add a user. 1) Click [Add]. The [Access Account:] screen appears.
Page 235 8 Settings 2) Enter the ID and password to access the directory service, and then click [OK]. The [Add LDAP Account] screen appears. 3) Set the user information to operate the software. • [ID] Enter the ID registered in the directory service. •...
Page 236: Storage Management
8 Settings Storage Management On the [Storage Management] screen, perform the settings of the hard disk drive (HDD) to be used by the database. When two or more drives are displayed in the list, the drive displayed at the top of the list has the highest priority. The drive whose [Current] is selected is the current drive.
Page 237: Backup And Restoration
8 Settings Backup and Restoration • To protect the patient information and examination data, perform a backup on a regular basis. CAUTION • Never turn off the power of the computer, and the external memory devices during the backup. Important Set a different drive from the one for the system or an external memory device for backup.
Page 238: Automatic Backup Settings
8 Settings Automatic Backup Settings Select the day of the week when the automatic backup is performed, and select the type of backup from the list box. • [Full Backup]: Performs backup of all data. • [Incremental Backup]: Backs up only the data that is modified from previous backup. Select a time when the automatic backup is performed from the list box.
Page 239: Manual Backup
8 Settings Manual Backup Click [Full Backup] or [Incremental Backup]. Backup starts. Click [Cancel] to cancel the backup. Displaying the Backup Log When the [Backup Logs] tab is clicked, the list of the backup log appears. Information To delete a backup log Select a backup log, and then click [Delete].
Page 240: Restoring Data
8 Settings Restoring Data By restoring data, the state of data can be returned up to the stage of the selected backup log. Important By restoring data, the data that is newer than the selected backup log is deleted. Before restoring data, check the date of the backup log and the contents of data. Select a backup log, and then click [Restore].
Page 241: Archive Settings
8 Settings Archive Settings You can perform the archive settings. • [Archive Destination] Enter a path for the archive destination to [Archive Destination] or click [Browse] to select an archive destination. • [Archive patient data which last examination date is older than XX months.] Data which are older than the number of months you enter are transferred.
Page 242: License Management
You can manage the license in [Product License] and the licenses in [Option License] (optional product). License keys should be issued and registered. For details, consult your sales representative or local Canon dealer. License Activation This section describes how to activate the license key (option license).
Page 243: Changing The Password
8 Settings Changing the Password This section describes the procedure to change the password for the log-in user. Click on the menu bar. The settings screen appears. Click [Password Settings]. Input the old password, and then input the new password twice. Click [OK].
Page 244: Creating Disease List
8 Settings Creating Disease List Creating the disease list makes it easy to input the disease name on the [Patient] or [Report] screen. The procedure to create the disease list is described below. Click on the menu bar. The settings screen appears. Click [Disease Settings].
Page 245: Maintenance
9 Maintenance This section describes the maintenance instructions for the OCT: daily inspection, cleaning, disinfecting, refilling chin rest paper.
Page 246: Daily Inspections
Perform the following inspections before using the OCT to ensure that it is used safely and correctly. If a problem is found during the inspection and you are unable to correct the problem, please contact your sales representative or local Canon dealer. Checks Before Turning On the Power Check the following items before turning on the power.
Page 247: Cleaning And Disinfecting
Doing so could damage the surface of the lens or leave streaks. For information about lens cleaning paper, lens cleaner, and blowers, contact your sales representative or local Canon dealer. If the objective lens is dirty, clean it according to the procedure below. Check for any dirt.
Page 248 9 Maintenance Forehead Rest / Chin Rest These parts may be corroded if a disinfectant other than disinfectant CAUTION ethanol is used. Clean the intended parts with a sanitized gauze or a similar material that is moistened with disinfectant. Exterior Surface •...
Page 249: Refilling Chin Rest Paper
Attach the chin rest paper to the chin rest. Important Insert the holding pins straight into the holes. Information Chin rest paper is a consumable product (optional product). To purchase chin rest paper, contact your sales representative or local Canon dealer.
Page 250: Moving The Product
Move the OCT by at least two people. When transporting the OCT, use the original packaging to protect it from vibration and shock. CAUTION Vibration and shock may cause failure of or damage to the OCT. For details, please contact your sales representative or local Canon dealer.
Page 251: 10 Troubleshooting
10 Troubleshooting...
Page 252 If the same message appears again, turn on the computer and the OCT again. If the same message appears again, turn off the computer and the OCT, and contact your sales representative or local Canon dealer. Be ready to provide the contents of the message. Message...
Page 253 10 Troubleshooting Message Remedy After checking the followings, try to log in again. • The number of logged-in users is under the limit. Unable to log in to the server • Database is not being modified or backup is not being performed. After checking the followings, try to log in again.
Page 254 10 Troubleshooting...
Page 255: Appendix
Appendix...
Page 256: Specifications
Appendix Specifications OCT Image Mode Optical spectrum OCT Resolution Depth (Z direction): 3 μm (in-house data) Width (X-Y direction): 20 µm Scanning speed 70,000 A-scan per second Angle of view 34 degrees (H) × 34 degrees (V) (10 × 10 mm) Light source SLD 855 nm SLO Image...
Page 257 Appendix • [Cross] Horizontal: 1024 A-scan (H) × 1 B-scan Vertical: 1024 A-scan (V) × 1 B-scan Scanning area: Horizontal: 3 to 13 mm (adjustable range) Vertical: 3 to 10 mm (adjustable range) Number of averaging: 1, 5, 10, 20, 50 sheets Number of averaging (*): 1, 5, 10, 20, 50, 100, 150, 200 sheets •...
Page 258 Appendix • [OCTA] [Small Square] 232 A-scan (H) × 232 B-scan Scanning area: 3 × 3 mm, 4 × 4 mm, 5 × 5 mm, 6 × 6 8 × 8 mm Number of averaging: 2, 3 sheets Number of averaging (*): 2, 3, 4, 6, 10 sheets [Medium Square] (*) 464 A-scan (H) ×...
Page 259 Appendix Fixation lamp Internal eye fixation lamp Mode: point light scanning Color: orange (590 nm) Size: 1 × 1 mm or 6 × 6 mm External eye fixation lamp: LED (optional product) Anterior segment lamp LED (970 nm) Diopter compensation - 18 to + 15 D * 1 D = 1 m Working distance...
Page 260: Initial Setting Items Of The Scan Mode
Appendix Initial Setting Items of the Scan Mode Distance of Scan Size Scanning Fixation Number of C-Gate B-Scan View Mode (mm) Direction Position Averaging Orientation (mm) Macula Disease Macula 3D 10 × 10 0.079 Macula Vitreous * Single * Multi Cross 10 ×...
Page 261: Acceptable Characters
Appendix Acceptable Characters Entering User Information Maximum number Items Description of character User ID Alphanumeric Password Alphanumeric Up to 60 characters can be input to each item User Name of the patient name. A space is entered between the items. “=”, “\”, and “^” cannot be entered. Entering Patient Information Maximum number Items...
Page 262 Appendix Items Tag value of specific character set Korean \ISO 2022 IR 149 Japanese <katakana> ISO_IR 13 Japanese <katakana (code extension)> \ISO 2022 IR 13 Japanese <kanji> \ISO 2022 IR 87 Japanese <katakana + kanji> ISO 2022 IR 13\ISO 2022 IR 87 Japanese <katakana (code extension) + \ISO 2022 IR 13\ISO 2022 IR 87 kanji>...
Page 263: File Size Of Oct Images
Appendix File Size of OCT Images The file size of OCT images captured by performing a 3D scan is larger than that captured by performing a cross scan. The table below shows the sizes of the image captured on one examination. The values on the table should be used only as a guide.
Page 264: Patient Environment
Appendix Patient Environment The patient environment where the patient/examiner may contact the equipment (including the connected devices) or where the patient/examiner may contact the person who touches the equipment (including the connected devices) is illustrated below. Radius 1.5 m 2.5 m 1.5 m 1.5 m...
Page 265: Working Principle
Appendix Working Principle The retinal tomogram is obtained by using the optical interference. Near-infrared light, which is emitted by the super luminescence diode (SLD), is separated by the beam splitter. One separated light is guided to the reference mirror and is reflected by it. Then, the light returns to the beam splitter.
Page 266: Emc (Electromagnetic Compatibility)
Not supplied 4. The use of accessories, transducers and cables other than those specified, with the exception of transducers and cables sold by Canon sales representative or local Canon dealer as replacement parts for internal components, may result in increased emissions or decreased immunity of the OCT.
Page 267 Appendix Guidance and Manufacturer’s Declaration for Electromagnetic Emission The OCT is intended for use in the electromagnetic environment specified below. The customer or the user of the OCT should assure that it is used in such an environment. Emission Test Compliance Electromagnetic Environment –...
Page 268 Appendix Guidance and Manufacturer’s Declaration for Electromagnetic Immunity The OCT is intended for use in the electromagnetic environment specified below. The customer or the user of the OCT should assure that it is used in such an environment. Due to electromagnetic disturbances, it may be necessary for the customer or the user of the OCT to take the measurement again or to restart the equipment, the software or the computer.
Page 269 Appendix IEC 60601 Electromagnetic Environment Immunity Test Compliance Level Test Level – Guidance Portable and mobile RF communications equipment should be used no closer to any part of the OCT, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter Recommended...
Page 270 Appendix Field strengths from fixed transmitters, such as base stations for radio (cellular/ cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
Page 271: Warranty And Repair Service
About Repairs If a problem cannot be solved even after taking the measures indicated in “10 Troubleshooting” (see page 251), contact your sales representative or local Canon dealer for repairs. When requesting repair, please provide the following information:...
Page 276 CANON MEDICAL SYSTEMS EUROPE B.V. Zilverstraat 1, 2718 RP Zoetermeer, The Netherlands Telephone: (31)-79-368-9222 Distributed by: CANON SINGAPORE PTE. LTD. Medical Equipment Products Division 1 Fusionopolis Place, #15-10 Galaxis, Singapore 138522 Telephone: (65)-6799-8888 CANON AUSTRALIA PTY. LTD. Canon Specialised Imaging Division Building A, The Park Estate, 5 Talavera Road, Macquarie Park, N.S.W.
