DSPPA DSP1501 Quick Start Manual

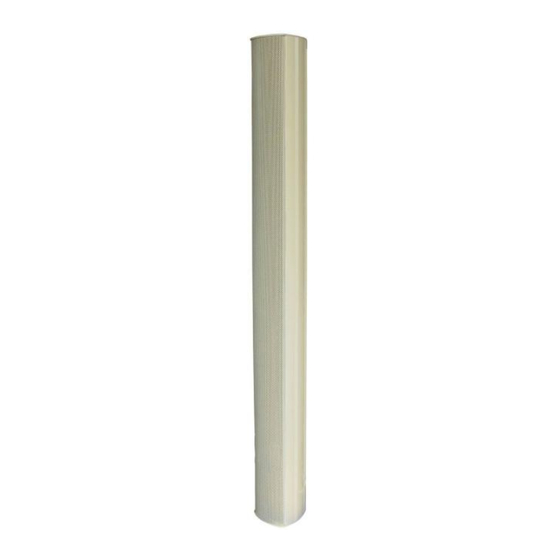

DSP1501
100W Phased Array Column Speaker

Description

DSP1501 Phased Array Column Speaker adopts electronic and digital processing technology (DSP) to
adjust the main beam radiation direction. Unlike the conventional one, DSP1501 phased array column
speaker provides flexible adjustment of column directivity (vertical radiation angle) on a web-based
operation page; The built-in digital equalizer can improve sound quality effectively. As it is defined by good
sound quality, high performance, easy operation and installation, it is widely used in a variety of sound
reinforcement occasions.

Features

 Directional adjustment in 3 directions.
 Active column with built-in digital power amplifier.
 Compatible with 3 common line signal inputs and 1 fixed voltage amplifier power signal input (70V
±10V).
 Built-in volume, balanced processing adjustment.
 Wire/wireless beam sense of direction modulation control via a Web controller.

Specifications

Model DSP1501
Line Input Sensitivity (Optional) 300 (-10dB) / 500 (-06dB) / 1000 (00dB) mV
Constant Voltage Input Sensitivity 70 (±10) (-10dB) V
Max. SPL (1m) 105±2dB
Number of Speaker Units 10 PCS
Speaker Unit Size 4 Inch
Amplifier Rated Output Power ≥10 W
export@dsppa.com / www.dsppatech.com
The specifications will be subject to change without prior notice.
