1

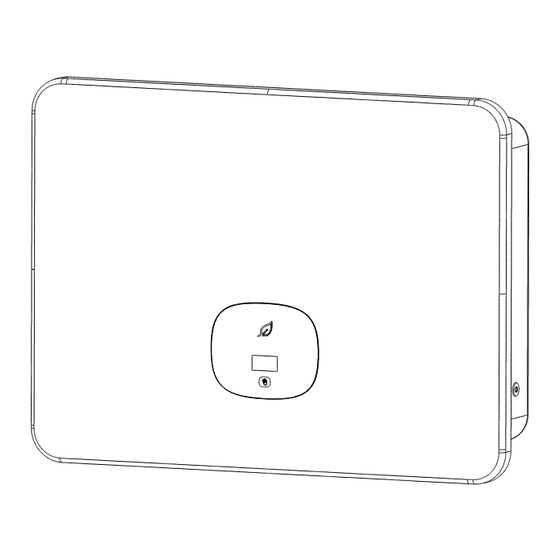

Overview
.
1
(1)Front panel
(2)Touch button
(6)Mounting plate
(7)Heat sink
(11)USB port
(12)Vent valve
Note:
1. For MID 11-20KTL3-XH inverters, the PV3 terminal is replaced by a M12 waterproof cap.
2. This document serves as a guide for quick installation only. For details, please refer to the User Manual.
3. Growatt shall not be liable for any damages caused by improper installation.
2
.
Installation
System overview
2.2
Wall-mounted installation
Note:
1.When drilling holes in the wall, avoid the water pipes and power cables.
MID 11-30KTL3-XH/MID 8-15KTL3-XH L Quick Guide
2
2
3
4
5 6
(3)LCD screen
(8)DC switch
(13)COM port
2.1 Installation requirements
≥500mm
7
8
(4)LED indicator
(9)PV terminal
(14)AC terminal
≥500mm
9
10
11
12
13
14
(5)Case feet
(10)Battery terminal
218
579
100
260
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Growatt MID 11-30KTL3-XH
Summary of Contents for Growatt MID 11-30KTL3-XH
- Page 1 1. For MID 11-20KTL3-XH inverters, the PV3 terminal is replaced by a M12 waterproof cap. 2. This document serves as a guide for quick installation only. For details, please refer to the User Manual. 3. Growatt shall not be liable for any damages caused by improper installation. Installation System overview 2.1 Installation requirements...
- Page 2 Installing the communication module Install Remove Inverter side ▲Up Inverter side Inverter side Inverter side Electrical connection Please prepare the cables before the electrical connection. Cable Type Recommended specification Note: Aingle multi-core PE cable 6mm²-10mm² 1.Please make sure that all switches are off. yellow-green cable For safety reason, no work should be done on Two or three multicolored...
- Page 3 3.3.2 Connecting the PV/BAT terminals Note: 1.Before installing the PV terminal,please double-check that the PV input voltage and current do not exceed the MPPT limits. 2.Ensure the correct polarity when connecting the positive and negative PV terminals to the inverter. 3.Ensure that you hear a "click"...
- Page 4 Export Limit Rate for the 5kW Password Export Limit Rate inverter would be 80%. XXX.X% Service and contact Shenzhen Growatt New Energy Co., Ltd 4-13/F, Building A, Sino-German (Europe) Industrial Park, Hangcheng Ave, Bao’an District, Shenzhen, China +86 755 2747 1942 service@ginverter.com www.ginverter.com...
