3 seat lounge sofa, lounge chair(x2) and 170 x50cm casual table

Advertisement

Quick Links

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE

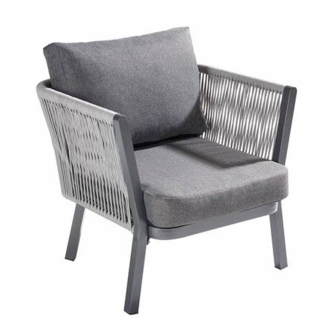

Dubai 3 Seat Lounge Sofa, Lounge Chair(x2) and 170 x50cm Casual Table
ATTENTION:
1.
Please read these instructions carefully before assembly
2.
Aluminium is soft metal and over tightening may strip thread or break the part
3.
DO NOT use power tools
4.
Please allow 30 minutes for assembly.
5.
Although assembly only requires 1 person it is advised that a second person be present to help turn the table over and into position when
fully assembled
LOUNGE CHAIR ASSEMBLY STEPS:
1. Turn the chair (A) upside down on a soft clean surface
2. LOOSELY attach Seating panel (B) to the chair (A) with 4 bolts (F), 2 bolts (G) and 6 big flat washers (H) using Allen key (I)
3. LOOSELY attach legs (C) to Sofa (A) with 6 bolts (G) and 6 big flat washers (H) using Allen key (I) DO NOT TIGHTEN THE BOLTS
AT THIS STAGE
4. Tighten all bolts using Allen key (I) one by one being careful not to over tighten any as this will cause the thread to become damaged
5. Turn Sofa over and place in desired position.
6. Place all cushions (D&E) on the sofa seat
For more information regarding maintenance of your furniture please visit
http://www.hartmanuk.co.uk/after_care_videos.html

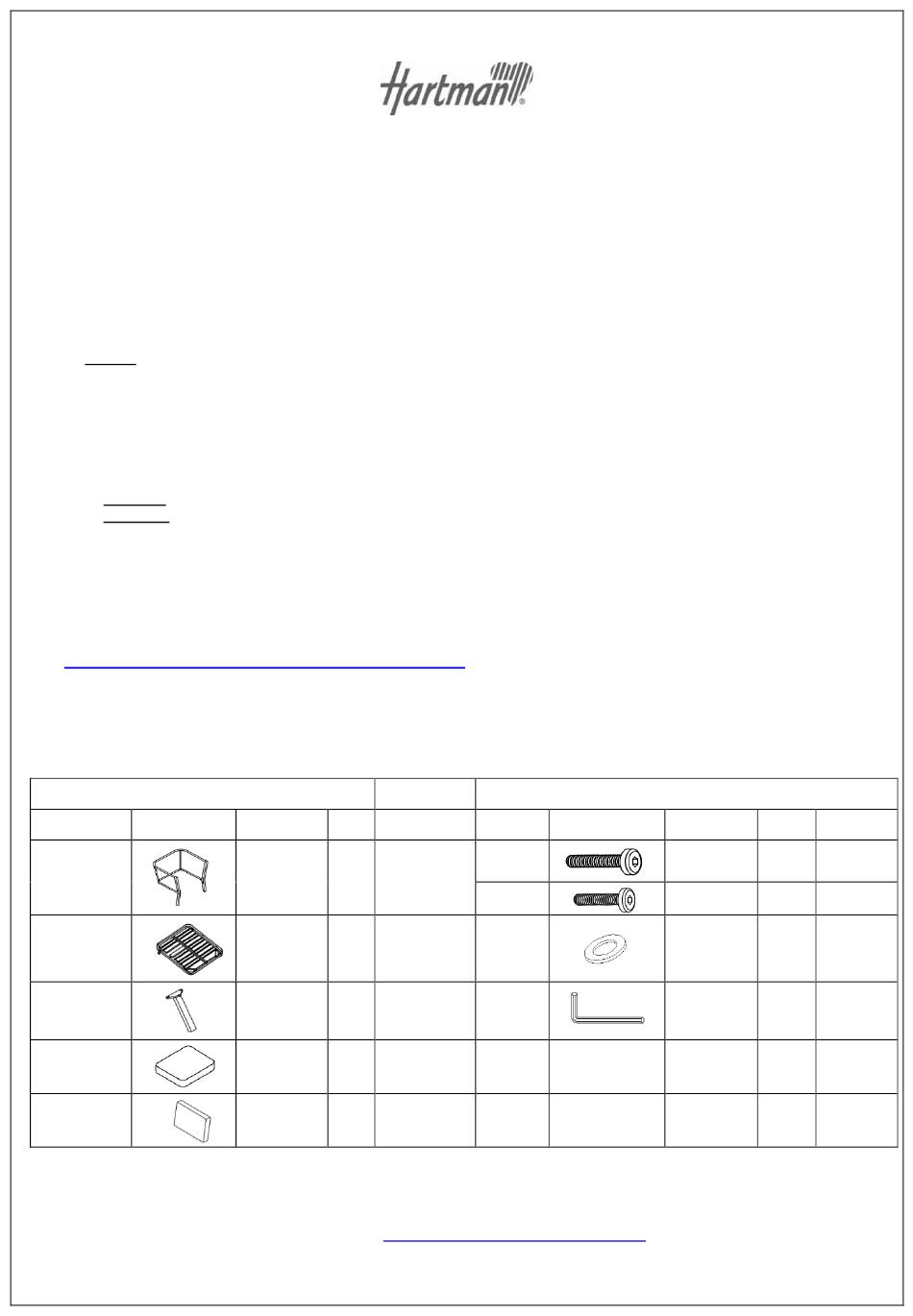

Component's
Parts List
Parts Picture
A
B
C
D
E
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
( 69119012 )
Q'ty
Description
Part no
chair
1
69020012A
Seating
1
69020012B
panel
Leg
2
69020012C
69020012D
Seat
1
cushion
Back
1
69020012E
cushion
http://faq.hartmanuk.co.uk/spares/
Fixings
Parts list
Parts Picture
F
G
H
I
Q'ty
Description
Part no.
M6*35 bolts
4
1111162
2002173
M6*25 bolts
8
Big Flat
12
1061162
washers
Allen Key
1
2002191
