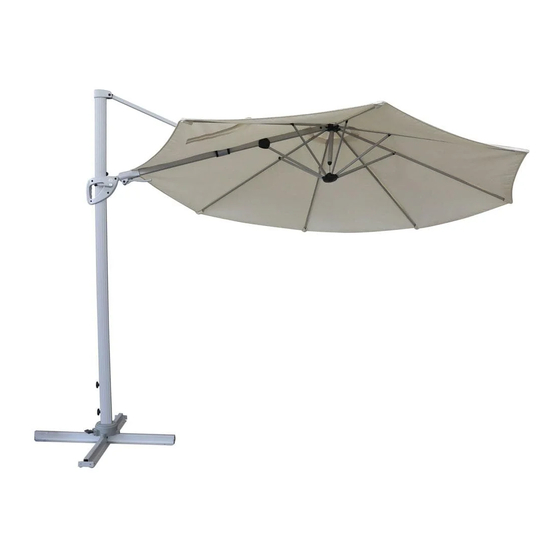

Hartman PACIFIC Assembly Instructions

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.
ATTENTION:
1. Please read these instructions carefully before assembly
2. Please allow 30 minutes for assembly.
3. Assembly will require 2 people
Care for the canopy:
• Simply clean the umbrella canopy with a soft brush and mild detergent.
• Do not machine wash or machine dry.
• Do not iron.
• Air-dry the canopy thoroughly in an open position before storing for extended periods of time.
IMPORTANT! Always close/put down the parasol when not in use. Do not use or assemble the parasol in heavy winds, rain, thunderstorms or if it's
snowing. In these weather conditions, we recommend to fold down or disassemble the parasol. Disassemble by following the setup steps in this
manual.
IMPORTANT! The parasol must be secured in place using a parasol base. Make sure the ground is level and firm.
IMPORTANT! If the crank gets too hard to turn, check if the rope has come off the pulley. If you continue to turn the crank, the rope or crank
handle could break.
IMPORTANT! Placing the parasol over or near a swimming pool can cause premature fading of the canopy.
WARNING:
To prevent damage to parasol, facing the canopy against the wind.
Do not assemble the parasol on sandy, muddy or loose soil.
Keep children and pets away while setting up the parasol.
Children must be supervised around the parasol.
This parasol is for outdoor use only.
Do not light any fires under or near the parasol!
This parasol is primarily intended to be used as a sunshade and not as wind protection.
For more information regarding maintenance of your furniture please visit
http://www.hartmanuk.co.uk/after_care_videos.html

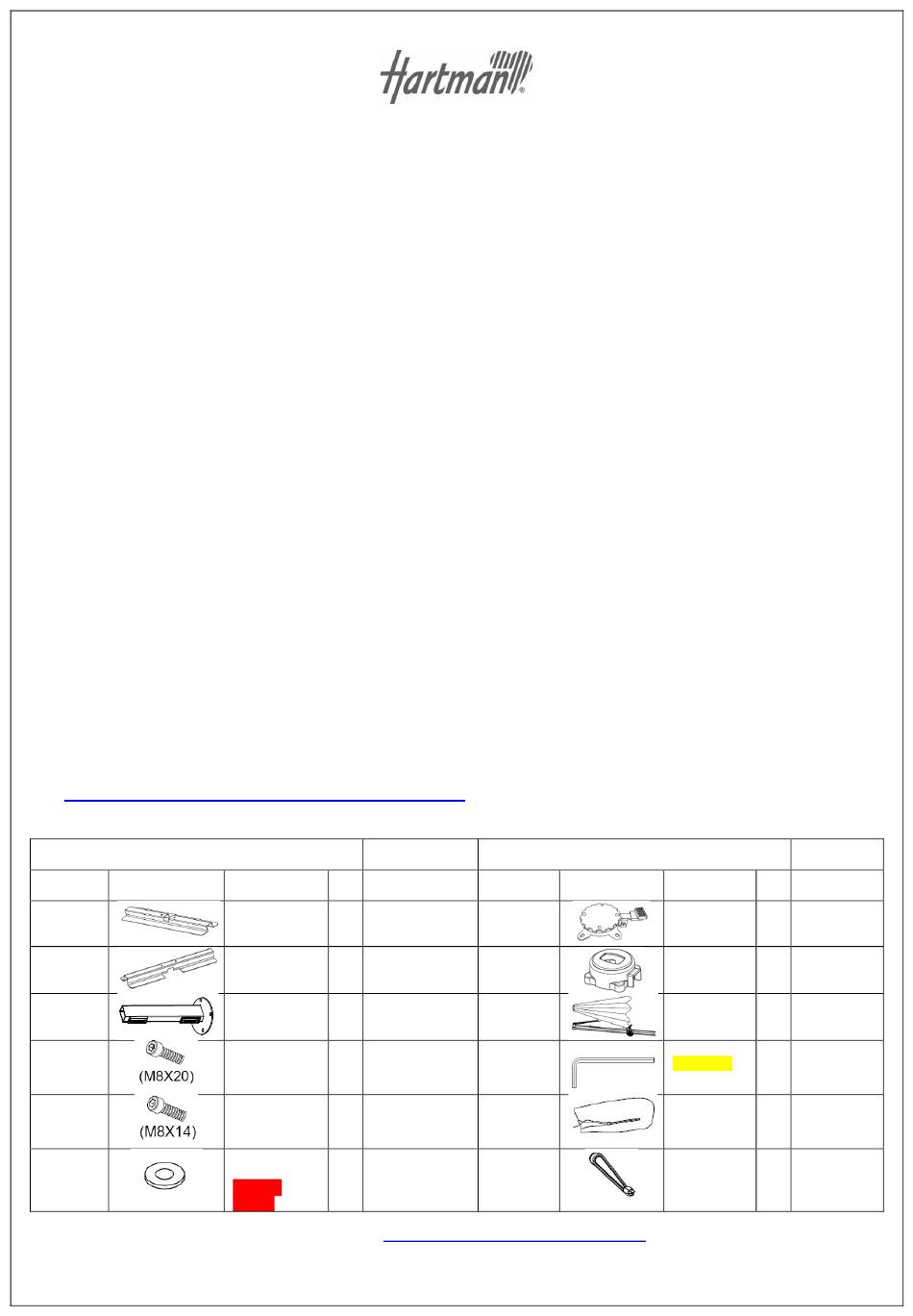

Component's
Parts List Parts Picture
A
B
C
1
E
F
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.
Q'
Component
Description ty no.
13302164A
Cross Base A 1 13302154A
13302164B
Cross Base B 1 13302154B
13302164C
Support Pole 1 13302154C
2002198
Bolts 5
2100031
Bolts 4
1061162
Washers 9
(φ16/φ
8.2*1.2)
http://faq.hartmanuk.co.uk/spares/
Component's
Parts List Parts Picture
G
H
I
J
K
L
Q'
Component
Description ty no.
2100032
Rotation 1
Base
2100033
Rotation 1
Base Cap
13302164D
Parasol 1 13302154D
2100029
Allen Key 1
13302164E
Cover 1 13302154E
2100024
Crank 1
Handle
