Hartman Vienna Assembly Instructions

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE

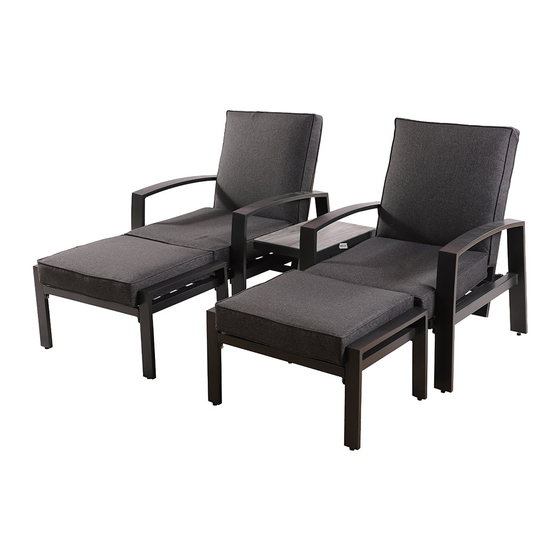

Vienna Reclining Companion Set / Somerton Reclining Companion Set

ATTENTION:

1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly.
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the table over and into position when
fully assembled

LOUNGE CHAIR ASSEMBLY STEPS:

1. Place part A, B and C on a soft clean surface and ready for assembly.
2. LOOSELY attach Left armrest (B) and Right armrest (C) to the seating panel (A) with bolts (F), bolts (G) as illustrated on the diagram
and small flat washers(H) using Allen key(N) DO NOT TIGHTEN THE BOLTS AT THIS STAGE
3. LOOSELY attach front crossing bar (D) to assembled legs with bolts (F) and small flat washers (H) using Allen key (N) DO NOT
TIGHTEN THE BOLTS AT THIS STAGE
4. LOOSELY attach backrest (E) to assembled seating part with bolts (I), locknut (K) and big flat washers (L) using spanner (M)
5. Fix both ends of the gas spring to the seating part and backrest with bolts (J) ), locknut (K) and big flat washers (L) using spanner (M)
6. Tighten all bolts using spanner (M) and Allen key (N) one by one being careful not to over tighten any as this will cause the thread to
become damaged
7. Turn assembled sofa over and place in desired position, then put all cushions on the seat.
For more information regarding maintenance of your furniture please visit
http://www.hartmanuk.co.uk/after_care_videos.html

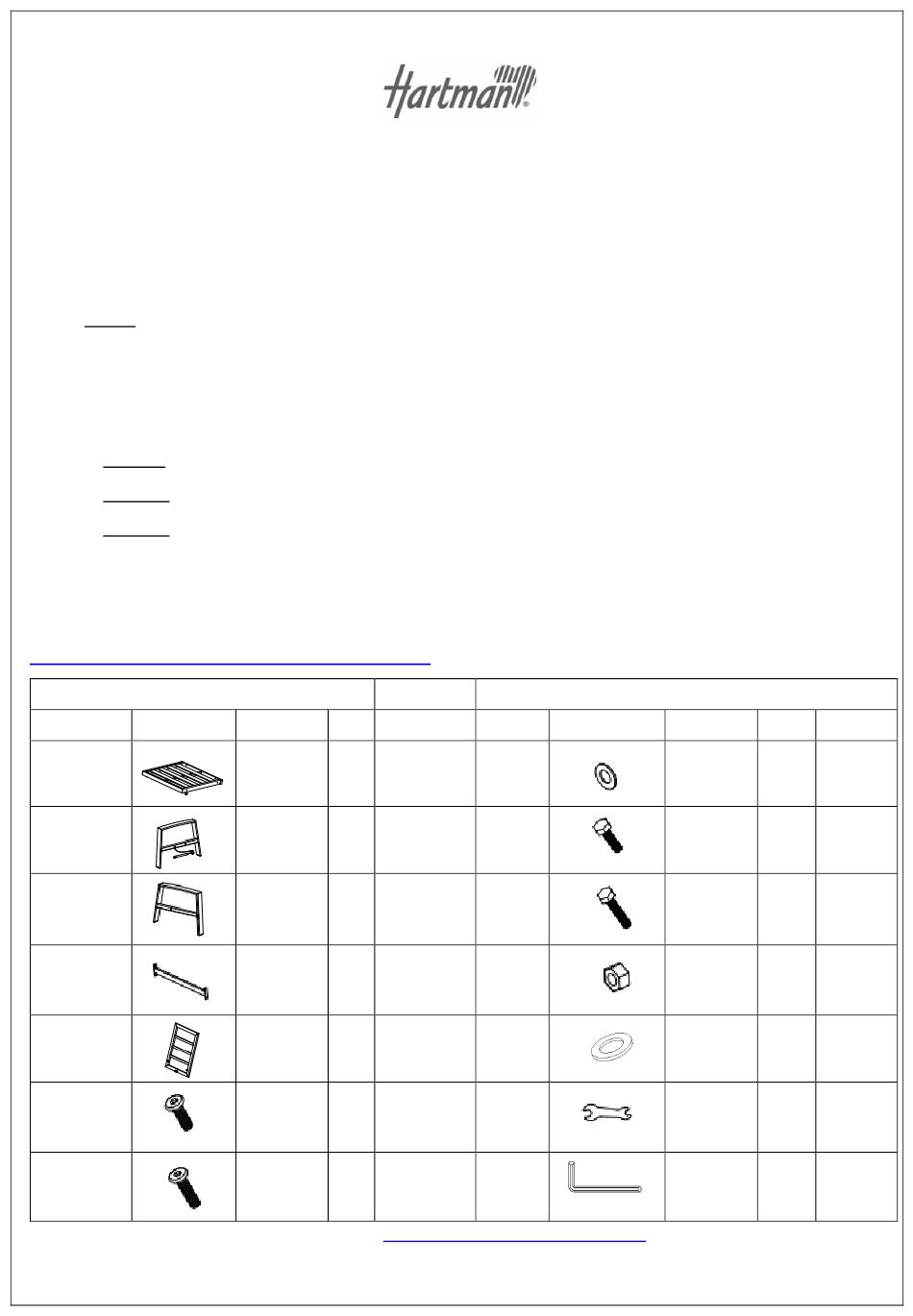

Component's

Parts List

Parts Picture

A
B
C
D
E
F
G
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
(69471002 / 69612129)

Description

Q'ty

Part no

Seating 1 69471002A
Panel 69612129A
LH armrest 1 69471002B
69612129B
RH armrest 1 69471002C
69612129C
Front 1 69471002D
crossing 69612129D
bar
Backrest 1 69471002E
69612129E
M6*20 bolts 6 1017162
M6*35 bolts 4 2002172
http://faq.hartmanuk.co.uk/spares/
Fixings
Parts list Parts Picture
H
I
J
K
L
M
N
Description Q'ty Part no.
Small Flat 10 1221162
washers
M8*30 bolts 2 2100062
M8*50 bolts 2 2100063
Locknut 4 2002178
Big Flat 8 1061162
washers
Spanner 2 1020162
Allen key 1 2002191
