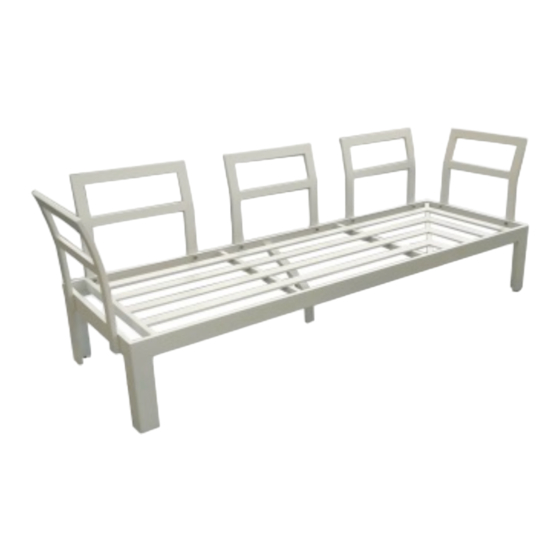

Apollo 3 seat corner sofa

Advertisement

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.

ATTENTION:

1.
Please read these instructions carefully before assembly
2.
Aluminium is soft metal and over tightening may strip thread or break the part
3.
DO NOT use power tools however you will require an allen key to assemble product.
4.
Please allow 30 minutes for assembly.
5.
Although assembly only requires 1 person it is advised that a second person be present to help turn the chair over and into position when
fully assembled.

ASSEMBLY STEPS:

1.
Unpack the parts and put them on the soft clean surface.
2.
Using the Alu Plate (G), attach the backs (B) to the seat (A), with bolts (C) flat washers (D), lock washers (E), affix loosely with Allen Key
(K) DO NOT TIGHTEN THE BOLTS AT THIS STAGE
3.
Tighten all the bolts using the Allen key (K) one by one being careful not to over tighten any as this will cause the thread to become
damaged.
4. Place PVC Covers (F), on all visible bolts
For more information regarding maintenance of your furniture and to register your
warranty, please visit www.hartmanuk.com

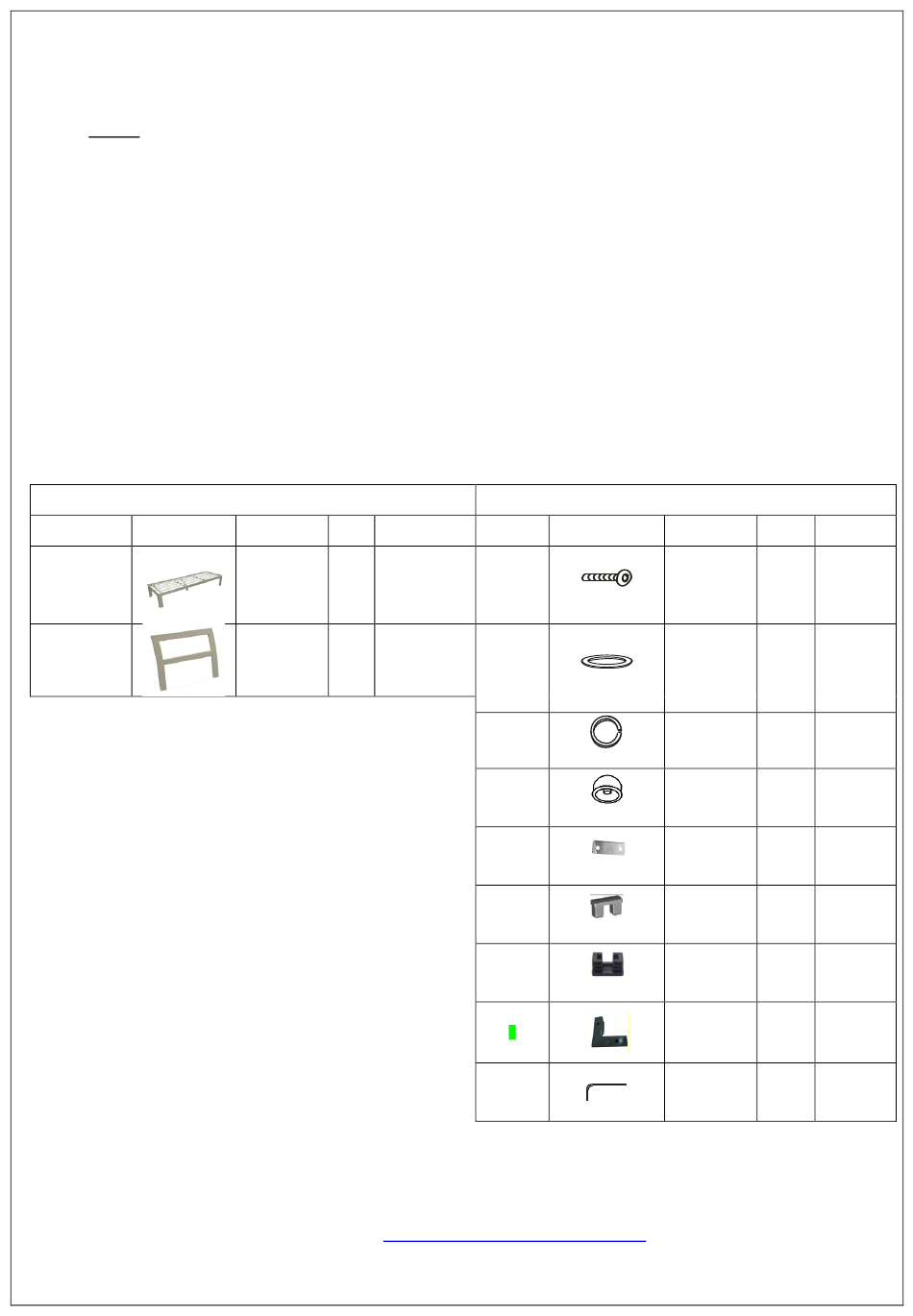

Parts List

Parts Picture
A
B
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.
Component's
Description
QTY
Seat
1
Back
5
http://faq.hartmanuk.co.uk/spares/
Part no
Parts list
63418006A
63418008A
C
63418007A
63418006B
63418008B
D
63417007B
E
F
G
H
I
J
K
Fixings
Parts Picture
Description
Bolt
(M6*35)
Flat Washer
( M6 )
Lock
Washer
( M6 )
PVC Cover
( M6 )
Alu Plate
(25*4.0*65)
Cap for
backrest
(45.5*18.5)
tube
Feet
cap
( 38*20 )
Screw In
Feet
Allen Key
QTY
Part no.
1052162
20
20
1001162
20
1002162
2100072
20
2100068
2002195
10
2100066
2100073
8
2100067
2002169
1
2100068
1005162
8
2100069
1
1010162
