Hartman Dubai 69019012 Assembly Instructions Manual

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE

ATTENTION:

1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly.
5.
Although assembly only requires 1 person it is advised that a second person be present to help turn the seating over and into position
when fully assembled

RIGHT HAND SOFA ASSEMBLY STEPS:

1. Turn the sofa (A) upside down on a soft clean surface
2. LOOSELY attach Seating panel (B) to the Sofa (A) with bolts (H), bolts (I) and big flat washers (J) using Allen key (K)
3. LOOSELY attach rear legs (C) to Sofa (A) with bolts (I) and big flat washers (J) using Allen key (K) DO NOT TIGHTEN THE BOLTS AT
THIS STAGE
4. LOOSELY attach middle leg (D) to seating panel (B) with bolts (I) and big flat washers (J) using Allen key (K)
5. Tighten all bolts using Allen key (K) one by one being careful not to over tighten any as this will cause the thread to become damaged
6. Turn Sofa over and place in desired position.
7. Place all cushions (E, F & G) on the sofa seat
For more information regarding maintenance of your furniture please visit
Component's

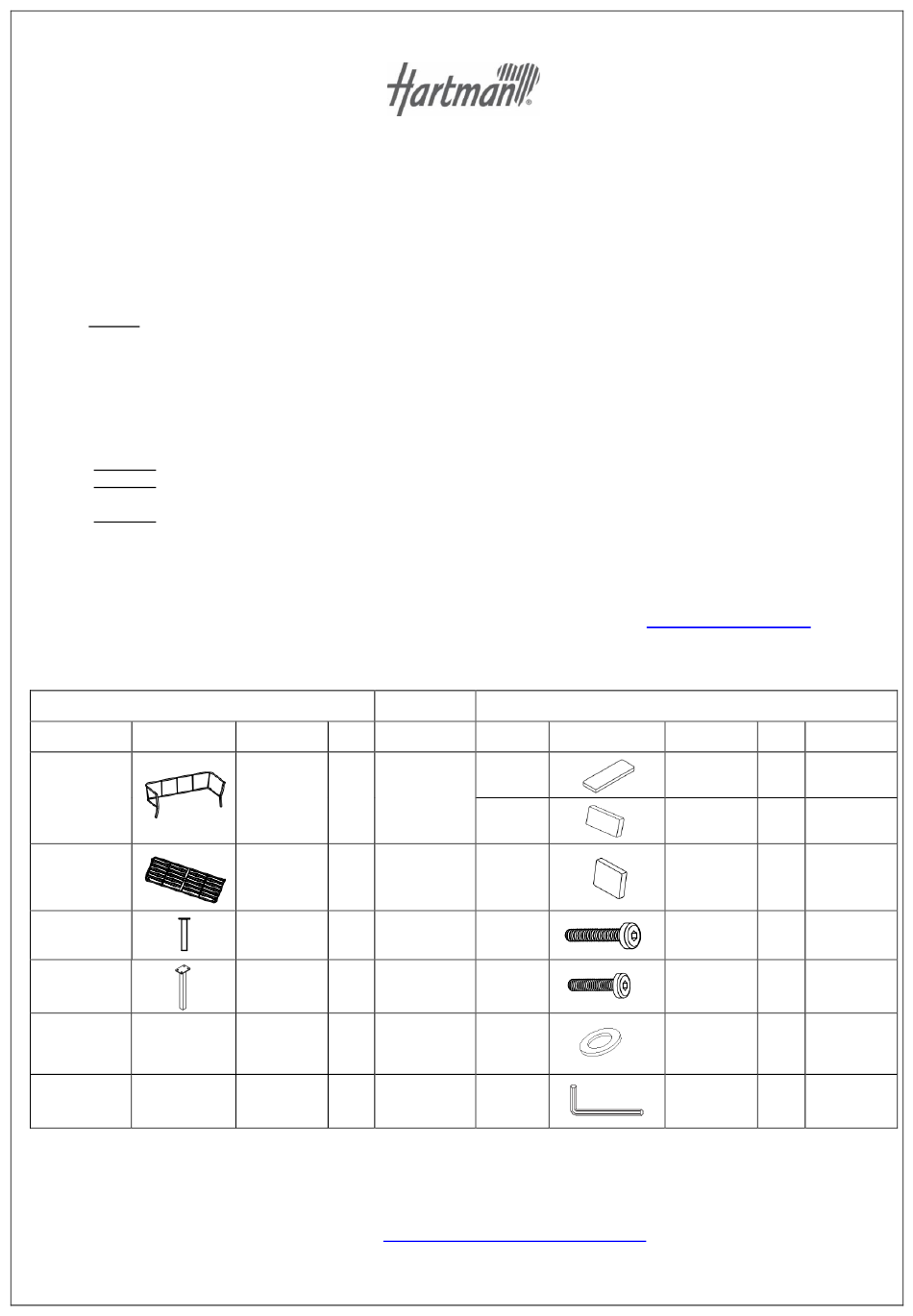

Parts List Parts Picture
A
B
C
D
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS

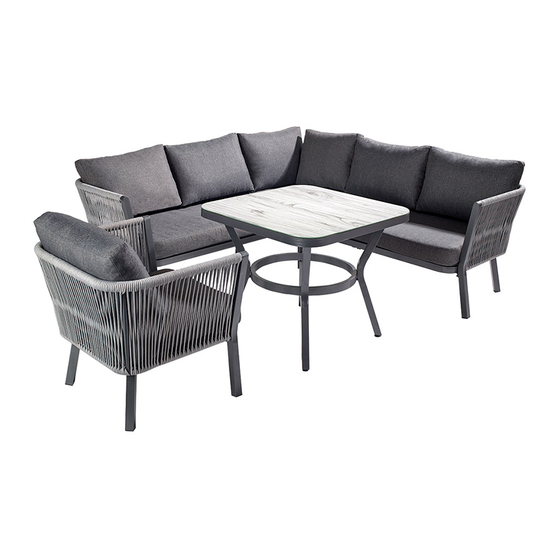

Dubai/Sanza Rope Square Casual Dining Set Corner Sofa Unit
( 69019012 / 69019023)
Description Q'ty Part no
Sofa 1 69019012A
69019023A
Seating 1 69019012B
panel 69019023B
Rear legs 2 69019012C
69019023C
69019012D
Middle leg 1 69019023D
http://faq.hartmanuk.co.uk/spares/
www.hartmanuk.com
Fixings
Parts list Parts Picture
E
F
G
H
I
J
K
Description Q'ty Part no.
Seat 1 69019012E
cushion 69019023E
Back 3 69019012F
cushion 69019023F
Side 1 69019012G
cushion 69019023G
M6*35 bolts 8 1111162
1231162
M6*25 bolts 13
1061162
Big Flat
washers 21
2002191
Allen Key 1
