Assembly Instructions
(13109001 – DOVE) (13108001 – DARK GREY) (13105001 – SAGE)
PLEASE RETAIN THIS DOCUMENT ALONG WITH YOUR PROOF OF
Congratulations on your recent purchase of your beautiful Hartman product. We hope it brings you
bountiful special moments with friends and family for many years to come. Please follow these simple
steps to build your Hartman product.
TOP TIPS:
•
Please read these instructions carefully before assembly
•
Although assembly only requires 1 person it is advised that a second person be present to help place into
position when fully assembled.
•
Simply clean the umbrella canopy with a soft brush and mild detergent.
•
Do not machine wash or machine dry.
•
Do not iron.
•
Air-dry the canopy thoroughly in an open position before storing for extended periods of time.
IMPORTANT INFORMATION
•
IMPORTANT! Always close/put down the parasol when not in use. The parasol's intended use is for a
sun shade only. Do not use or assemble the parasol in heavy winds, rain, thunderstorms or if it's
snowing. In these weather conditions, we recommend to fold down or disassemble the parasol.
Disassemble by following the setup steps in this manual.
•
IMPORTANT! The parasol must be secured in place using a parasol base. Make sure the ground is
level and firm.
•
IMPORTANT! If the crank gets too hard to turn, check if the rope has come off the pulley. If you
continue to turn the crank, the rope or crank handle could break.
•
IMPORTANT! Placing the parasol over or near a swimming pool can cause premature fading of the
canopy.
•
WARNING: To prevent damage to parasol, facing the canopy against the wind.
i. Do not assemble the parasol on sandy, muddy or loose soil.
ii. Keep children and pets away while setting up the parasol.
iii. Children must be supervised around the parasol.
iv. This parasol is for outdoor use only.
v. Do not light any fires under or near the parasol!
vi. This parasol is primarily intended to be used as a sunshade and not as wind protection.

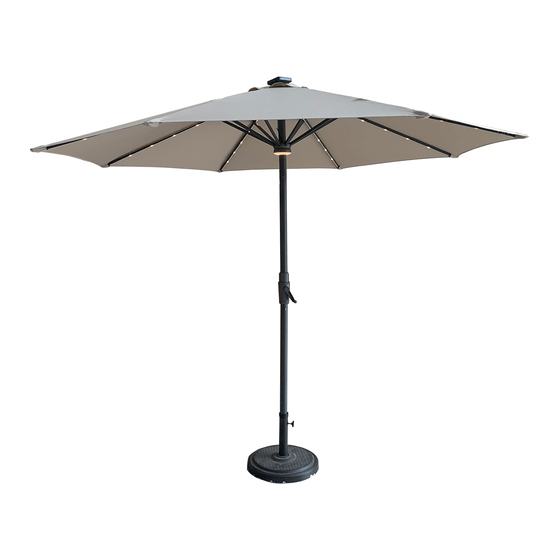

ELITE 3M ROUND PARASOL
PURCHASE FOR FUTURE REFERENCE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hartman ELITE 13109001
Summary of Contents for Hartman ELITE 13109001
- Page 1 PLEASE RETAIN THIS DOCUMENT ALONG WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE Congratulations on your recent purchase of your beautiful Hartman product. We hope it brings you bountiful special moments with friends and family for many years to come. Please follow these simple steps to build your Hartman product.
- Page 2 For replacement or lost spare parts please go to http://faq.hartmanuk.co.uk/spares/ Should you have any queries about your furniture your first point of contact should be the retailer from whom you purchased your product. PARTS LIST Component’s Parts List Parts Picture Description Q’ty Component no.
- Page 3 Step 1 Step 2 Remove the foam blocks for protection at the top of the Press the spring-button of the part (A) while inserting parasol. Then turn the solar panel counter clockwise. the part (B) pole until it locks in place (the spring- Find the plug at the top of the parasol.
- Page 4 Step 5 Step 6 Tilt the parasol to the desired angle by turning the collar in To operate the lights, turn the switches (located on the end of one rib) to the ON (‘I’) position. a clockwise direction, opposite direction to erect the Ensure both switches are set to the OFF (‘O’) position parasol.
