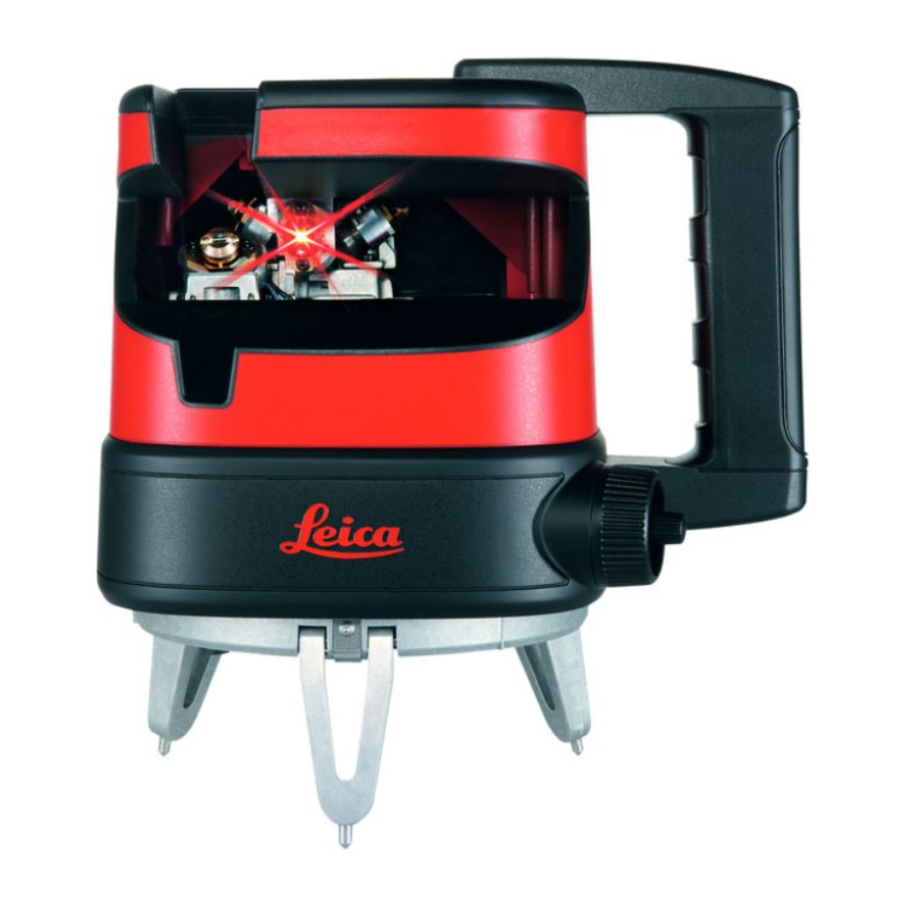

Leica Lino ML90, ML180 - Multi-Line Laser Manual

Start up

Before starting up the instrument for the first time, please read through the entire User Manual paying special attention to the section "Safety instructions".

Inserting / replacing batteries

1. Lino ML90/180: Turn the release screw on the battery compartment a 1/4 turn (clock wise) with the help of a coin or a flat head screw driver to unlock the battery compartment.
2. Open the battery compartment cover and insert the batteries, observing the correct polarity.

The battery symbol lights up when the battery voltage is too low. Replace the batteries as soon as possible.

• Insert the batteries observing the correct polarity
• Use alkaline batteries or rechargeable batteries only.
• Remove the batteries if the instrument is not to be used for a long period of time (to prevent corrosion).

Charging the rechargeable battery pack / first-time use

• In case that your Lino ML is equipped with a rechargeable battery pack you can recharge the battery pack with the supplied Lino ML charger (Art Nr. 784967) by connecting the charger to the jack on the battery door.
• The battery must be charged prior to first use because it is delivered with as low an energy content as possible.
• A full charging cycle takes 8 hours and the charging will automaticly stop after a full cycle. Each time the charger is connected to the unit a charging cycle will be initiated. See also battery status indications on the interface in section "Interface".
• The permissible temperature range for charging is between 0°C and +40°C/+32°F and +104°F. For optimal charging we recommend charging the batteries at a low ambient temperature of +10°C to +20°C/+50°F to +68°F if possible.
• It is normal for the battery to become warm during charging.

1. LED off: not connected
2. LED lights continuously: charging for 8h
3. LED blinks: connected but not charging, online operation possible
4. Jack for battery charger

Using a battery charger not recommended by Leica Geosystems can destroy the batteries. This can cause fire or explosions.
Precautions: Only use chargers recommended by Leica Geosystems to charge the batteries.

Interface

Keypad and control elements

1. LASER key
2. Horizontal MODE key
3. Vertical MODE key

Display

4. LED 1 system indicator:
   • off: system off
   • permanent green: system on
5. LED 2 level indication:
   • off: levelled
   • permanent red: out of level
6. LED 3 battery indication:
   • off: battery full
   • blinking: approx. 2 hours of use
   • permanent red: unit switched off due to battery too low

Special display notices:
Falling below or exceeding the permissible temperature range: The laser switches off and all LEDs flash.

Operation

Switching on/off

• ON: Briefly press the LASER key .
• OFF: Briefly press the LASER key .

Laser functions
Pressing the MODE key and activates the following laser functions:

Key press	ML90 vertical	ML180 vertical	horizontal
	(key )	(key )	(key )
default	laser A+B on	laser A+B+C on	laser D on
1x	laser B on	laser A+B on	laser D off
2x	all vertical lasers off	all vertical lasers off	repeat default
3x	repeat default	repeat default

The plumb beam will be on upon start up of the unit and will automaticly turn off after 180 sec. To switch the plumb beam back on short press any mode key and .

Self-levelling and Lock functions
The instrument automatically levels itself within the specified leveling range (Refer to section "Technical data").
Leveling process is indicated by the LEDs. See Interface desciption.

Using the Laser with a receiver
To be able to detect the laser lines over long distances (> 15 m) or in unfavourable lighting condi- tions, a laser receiver can be used. Laser lines can be detected by a receiver that is able to detect pulsed laser lines. The lines of the Lino ML are permanently pulsed and are compatible with the range of recom- mended Leica laser receivers.
See section "Working with receivers".

Applications

Manual fine adjustment of vertical lines
The Lino ML90 and ML180 lasers feature the possi- bility to manually turn the unit 360° around its center axis and the possibility to fine adjust the unit by ± 4° turning around the plumb axis. On the ML180 the fine adjustment can be set to its 0° position by pressing both mode keys and at the same time for more than 2 seconds.
By turning the adjustment knob the laser beams can be aligned manually.
Additionally to the manual fine adjustment possibility described above, the Lino ML180 has the possibility to automatically align itself to the position of the Leica XCR Catch remote/receiver. For a detailed description of all functions, please, refer to the section "Working with receivers".

Working with receivers

Leica RVL100
The Leica RVL100 is a robust and easy to use laser receiver and can be used with all Leica Lino line lasers.

Keypad

1. ON/OFF key: switch the receiver on/off
2. Beeper key: change the sound level of the beeper
3. Sensitivity key: switch sensitivity (±1mm/±3mm)

Display status symbols

Leica XCR Catch
The Leica XCR Catch is a combined laser receiver and remote control for the Leica Lino ML180.

Keypad

1. ON/OFF key
2. Beeper key
3. Sensitivity key
4. Auto alignment key
5. Direction key down
6. Direction key up

Leica XCR Catch alignment features
Manual alignment

1. Set up the laser unit at the initial position.
2. Switch off the horizontal laserbeam with key .
3. Pre-align the laser (V line) within ± 4° of the desired final alignment position.
4. Remotely align the laser with the direction keys .

While driving the laser unit the receiver of the Leica XCR Catch can be used simultaneously.

Automatic alignment (single mode)
In single alignment mode the Leica XCR Catch will automatically align the Leica Lino ML180 laser once and will then deactivate the alignment feature.

1. Set up the laser unit at the initial position.
2. Pre-align the laser (V line) within ± 4° of the desired final alignment position.
3. Select the sensitivity to be used during alignment. Adjustment features for beeper and sensitivity are deactivated during the automatic alignment process.
4. Press auto alignment key for 2 sec. Horizontal laserline will be shut off during automatic alignment.
5. Predefine a scan direction by pressing the direction keys accordingly within the first 3 sec.
   If no direction is predefined the unit will start looking for the receiver in a predefined sequence (middle - left - right).
   To deactivate the auto alignment process press the alignment key again for 2 sec.
6. The auto alignment process will move the laser unit until it is precisely aligned with the Leica XCR Catch receiver.
7. When the receiver detects the exact position it will sound a beep for 2 sec. and will display the lighted green LED and the middle position. The auto alignment process will be terminated when middle position has been found.
   The receiver will deactivate the auto alignment if no laser signal is found or the signal is permanently lost within a time frame of 45 sec. The receiver will display all 5 LEDs blinking and will sound 3 short beeps. To reinitiate the receiver press any key.

Automatic alignment (continuous mode)
In continuous alignment mode the Leica XCR Catch will automatically align the Leica Lino ML180 laser and will then monitor and readjustment the alignment continuously.

1. Repeat steps 1-3 from section "Automatic alignment (single mode)".
2. Press auto alignment key and sensitivity key together for 2 sec. Horizontal laserline will be shut off during automatic alignment.
3. Predefine a scan direction by pressing the direction keys accordingly within the first 3 sec.
   If no direction is predefined the unit will start looking for the receiver in a predefined sequence (middle - left - right).
   To deactivate the auto alignment process press the alignment key again for 2 sec.
4. The auto alignment process will move the laser unit until it is precisely aligned with the Leica XCR Catch receiver.
5. When the receiver detects the exact position it will beep for 2 sec. and will display the lighted green LED and the middle position.
6. The Leica XCR Catch makes the laser follow the movements of the Leica XCR Catch and will continuously keep monitoring and readjusting the alignment after the middle position has been found. To stop this continuous process press the alignment key for 2 sec.
   The receiver will automatically deactivate the auto alignment in case no laser signal is found or in case the signal is permanently lost after more than 45 sec. The receiver will display all 5 LEDs blinking and will sound 3 short beeps. To reinitiate the receiver press any key.

Checking the accuracy of the horizontal line
Set up the instrument on an even and flat surface. Allow the instrument to level. Position the instrument approx. 5 m away from the wall. Direct the instrument at the wall and switch on the horizontal and front vertical Laser line and mark the intersection point of laser crosshairs on the wall. Swivel the instrument to the right and then to the left. Observe the vertical deviation of the horizontal line from the marking. If the difference does not exceed 3 mm, then the Leica Lino is within tolerance.

Checking the accuracy of the vertical line
Set up the instrument on an even and flat surface. Allow the instrument to level. As reference, use a plumb-bob and attach it as close as possible to an approx. 3 m high wall. Position the instrument at a distance of approx. 1.5 m from the wall at an elevation of approx. 1.5 m. Direct the instrument at the wall and switch on the laser. Activate one of the vertical laser lines. Rotate the instrument and align it with the bottom of the plumb line. Now read off the maximum deviation of the laser line from the top of the plumb line. If the difference does not exceed 2 mm, then the Leica Lino is within tolerance.

Technical data

Leica Lino ML90 and ML180

* depending on lighting conditions
All rights reserved for changes (on drawings, descriptions and technical data).

Leica RVL100 and XCR Catch

NiMH battery pack (part no. 784966)

NiMH charger/adapter (part no. 784967)

Care and transport

Transport
Transport in the field
When transporting the equipment in the field, always make sure that you

• either carry the product in its original transportcontainer,
• or carry the tripod with its legs splayed across your shoulder, keeping the attached product upright.

Transport in a road vehicle
Never carry the product loose in a road vehicle, as it can be affected by shock and vibration. Always carry the product in its transport container and secure it.

Shipping
When transporting the product by rail, air or sea, always use the complete original Leica Geosystems packaging, transport container and cardboard box, or its equivalent, to protect against shock and vibration.

Shipping, transport of batteries
When transporting or shipping batteries, the person in charge of the product must ensure that the applicable national and international rules and regulations are observed. Before transportation or shipping, contact your local passenger or freight transport company.

Storage
Product
Respect the temperature limits when storing the equipment, particularly in summer if the equipment is inside a vehicle. Refer to "Technical Data" for information about temperature limits.

NiMH Batteries

• Refer to "Technical Data" for information about storage temperature range.
• A storage temperature range of 0°C to +20°C / 32°F to 68°F in a dry environment is recommended to minimize self-discharging of the battery.
• At the recommended storage temperature range, batteries containing a 10% to 50% charge can be stored up to one year. After this storage period the batteries must be recharged.
• Remove batteries from the product and the charger before storing.
• After storage recharge batteries before using.
• Protect batteries from damp and wetness. Wet or damp batteries must be dried before storing or use.

Alkaline Batteries
If the equipment is to be stored for a long time, remove the alkaline batteries from the product in order to avoid the danger of leakage.

Cleaning and Drying
Product and Accessories

• Blow dust off optical parts.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol.
• Do not use other liquids; these may attack the polymer components.

Damp Products

• Dry the product, the transport container, the foam inserts and the accessories at a temperature not greater than 40°C / 104°F and clean them.
• Do not repack until everything is completely dry.

Cables and Plugs

• Keep plugs clean and dry.
• Blow away any dirt lodged in the plugs of the connecting cables.

Safety instructions

The person responsible for the instrument must ensure that all users understand these directions and adhere to them.

Symbols used
The symbols used have the following meanings

Indicates a potentially hazardous situation or an unintended use which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation or an unintended use which, if not avoided, may result in minor injury and/or appreciable material, financial and environmental damage.
Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner.

Permitted use

• Projection of horizontal and vertical laser lines and laser dots

Prohibited use

• Using the product without instruction
• Using outside the stated limits
• Deactivation of safety systems and removal of explanatory and hazard labels
• Opening of the equipment by using tools (screwdrivers, etc.), as far as not specifically permitted for certain cases
• Carrying out modification or conversion of the product
• Deliberate dazzling of third parties; also in the dark
• Inadequate safeguards at the surveying site.

Limits of use
Refer to section "Technical data".
The Leica Lino is designed for use in areas permanently habitable by humans. Do not use the product in explosion hazardous areas or in aggressive environments.

Areas of responsibility
Responsibilities of the manufacturer of the original equipment Leica Geosystems AG, CH-9435 Heerbrugg (for short Leica Geosystems): Leica Geosystems is responsible for supplying the product, including the User Manual in a completely safe condition.

Electromagnetic Compatibility (EMC)

The Leica Lino conforms to the most stringent requirements of the relevant standards and regulations. Yet, the possibility of it causing interference in other devices cannot be totally excluded.

FCC Statement, Applicable in U.S.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Leica Geosystems for compliance could void the user's authority to operate the equipment.

Laser classification
The Leica Lino produces visible laser beams, which are emitted from the instrument:

It is a Class 2 laser product in accordance with:

• IEC60825-1: 2007 "Radiation safety of laser products"

Laser Class 2 products:
Do not stare into the laser beam or direct it towards other people unnecessarily. Eye protection is normally afforded by aversion responses including the blink reflex.

Looking directly into the beam with optical aids (e.g. binoculars, telescopes) can be hazardous.

Looking into the laser beam may be hazardous to the eyes.

Labeling
