- Page 1 Leica LINO L2P5 / L2P5G...
-
Page 2: Table Of Contents
Overview Technical data Instrument Set-up Operations How to use the smart adapters Message Codes Accuracy Check Care Warranty Safety instructions Leica Lino L2P5/L2P5G... -
Page 3: Overview

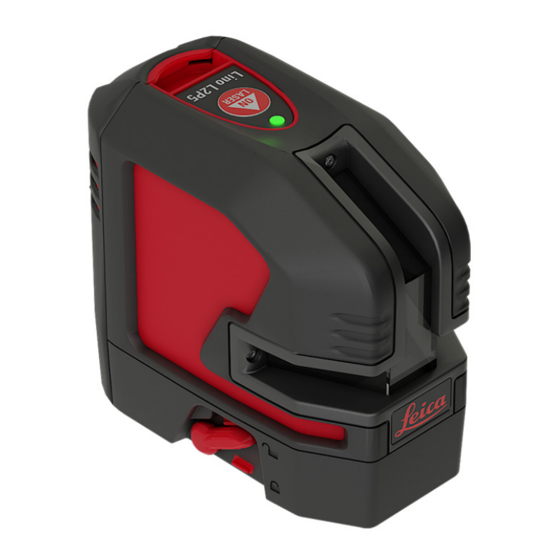

Overview Overview The Leica Lino L2P5/L2P5G is a self-levelling There are 2 different types available: 1 Window of vertical line and plumb multifunctional laser. It combines the advantage up point of a cross-line laser and a point laser in one tool. -
Page 4: Technical Data
-25…+70 °C (-13…+158 °F) Laser line width at 5m distance < 2 mm (<0.08 in) Tripod thread 1/4’’ (+ 5/8’’ with adapter) Pulse power for receiver Yes, auto * depending on lighting conditions ** @20 °C / 68 °F Leica Lino L2P5/L2P5G... -
Page 5: Instrument Set-Up
Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner. Leica Lino L2P5/L2P5G... - Page 6 Any damage caused by misuse is not covered by warranty. Use only Leica-approved chargers, bat- We recommend the Leica RGR200 laser teries and cables. Unapproved chargers or receiver.
- Page 7 OFF: charging finished / no charging Number 3 or higher: Insert the battery-pack by pressing it down and then tilting it towards the housing as shown until it snaps in. blinks green: charging battery lights green: charging finished / no charging Leica Lino L2P5/L2P5G...
- Page 8 To ensure a reliable use, we recommend using high quality Alkaline batteries. Insert Alkaline batteries Insert the battery-pack by pressing it down and then tilting it towards the housing as shown until it snaps in. Insert Alkaline batteries in the battery-pack. Leica Lino L2P5/L2P5G...
-
Page 9: Operations
30 min operation press and hold the On button at start for 5 sec. The status LED blinks 3 times in green colour. To deactivate it again repeat the described steps until the status LED blinks 3 times in red colour. Leica Lino L2P5/L2P5G... - Page 10 Operations Functions Check if self-levelling is required and cor- respondingly activated. (See Levelling lock for details) Horizontal line and dots on Vertical line and dots on Vertical lines and dots / horizontal lines and dots Leica Lino L2P5/L2P5G...
-
Page 11: How To Use The Smart Adapters
Turn the device 360° around the plumb point to Turn the adjustment knob of UAL130 to fine adjust the vertical line. adjust the horizonal line to the desired reference level. Snap the device on the Twist 360 adapter. Leica Lino L2P5/L2P5G... - Page 12 How to use the smart adapters Different fixing applications Leica Lino L2P5/L2P5G...
-
Page 13: Message Codes
Alkaline batteries blinks every 5 sec lights red Levelling lock is activated but Charge Li-Ion battery or change instrument has low power Alkaline batteries blinks every 5 sec blinks green Levelling lock is activated for working without self-levelling Leica Lino L2P5/L2P5G... -
Page 14: Accuracy Check
(B1). Should your instrument be outside of the specified tolerance, please contact a local dealer or an authorised Leica Geosystems distributor. Leica Lino L2P5/L2P5G... - Page 15 If the difference does not exceed 3 mm, then the Checking the accuracy of the lower plumb instrument is within tolerance. point: Should your instrument be outside of the specified tolerance, please contact a local dealer or an authorised Leica Geosystems distributor. Leica Lino L2P5/L2P5G...
- Page 16 Should your instrument be outside of the beam to the right wall with c1. specified tolerance, please contact a local dealer or an authorised Leica Geosystems Should your instrument be outside of the distributor. specified tolerance, please contact a local dealer or an authorised Leica Geosystems distributor.
- Page 17 Accuracy Check Should your instrument be outside of the specified tolerance, please contact a local dealer or an authorised Leica Geosystems distributor. Leica Lino L2P5/L2P5G...
-
Page 18: Care
To clean the magnetic surface you could use compressed air or modelling clay. If the equipment get wet always dry it (max. 70°C/158°F) before repacking it into the case. Leica Lino L2P5/L2P5G... -
Page 19: Warranty
Warranty Warranty International Limited Warranty The Leica Lino comes with a two year warranty from Leica Geosystems AG. To receive an addi- tional year warranty, the product must be registered on our website at http://myworld.leica- geosystems.com within eight weeks of the pur- chase date. -
Page 20: Safety Instructions
1. To understand the safety instructions on the product and the instructions in the User Manual. 2. To be familiar with local safety reg- ulations relating to accident prevention. 3. Always prevent access to the product by unauthorised personnel. Leica Lino L2P5/L2P5G... - Page 21 (e.g. when measuring on roads, con- struction sites, etc.) WARNING Changes or modifications not expressively approved by Leica Geosystems/manufacturer for compliance could void the user´s authority to operate the equipment. WARNING Laser/adapters should not be used in the vicinity of pacemaker because of integrated magnets which can affect the function of the pacemaker.
- Page 22 When transporting or shipping bat- teries, the person in charge of the product must ensure that the applicable national and inter- national rules are observed. Before trans- portation or shipping, contact your local passenger or freight transport company. Leica Lino L2P5/L2P5G...
- Page 23 4. Consult the dealer or an experienced radio/TV technician for help This instrument complies with part 15 of the FCC rules. Operation is subjected to the following two conditions: Leica Lino L2P5/L2P5G...
- Page 24 It is a Class 2 laser product in accordance with: <1 mW IEC60825-1 : 2014 „Radiation safety of laser products“ Pulse duration 70 µs, cw (red) / 50 - 70 µs (green) Pulse repetition frequency 10 kHz Leica Lino L2P5/L2P5G...
- Page 25 Safety instructions Labelling Subject to change (drawings, descriptions and technical data) without prior notice. Leica Lino L2P5/L2P5G...
