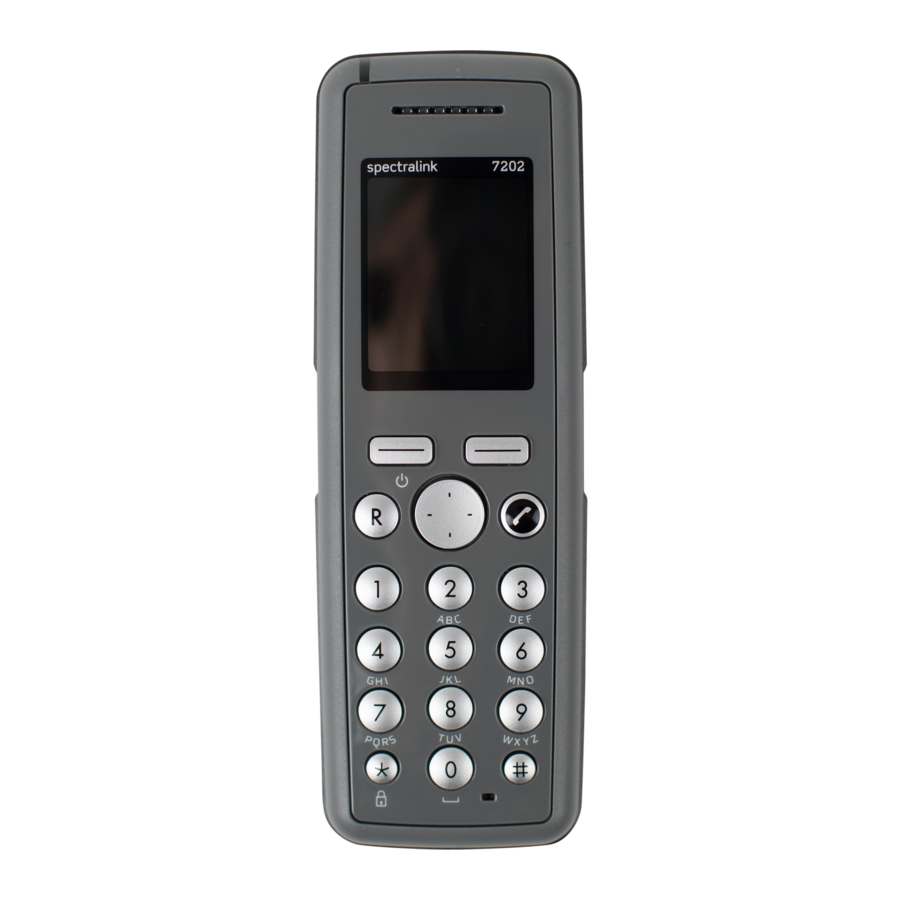

Overview of the device

Charge your handset for 5 hours prior to first use for best performance.

Adjusting Speaker/Headset Volume
- While on call, press the keys placed at the upper right side of the handset for volume control.
Adjusting Ringing Volume

Press Menu to enter main menu.
Scroll to Settings, and press Select.
Scroll to Ringing volume, and press Select.
Press the left or right side of the navigation key to adjust the volume of the ring tone.
Press Set.

Press Menu to enter main menu.
Scroll to Settings, and press Select.
Scroll to Ringing tone, and press Select.
Scroll to the desired ring tone, and press the right side of the navigation key to listen to the ring tone.
Press the left side of the navigation key to listen to the internal calls ring tone.
Scroll to the desired ring tone, and press Change to select the new ring tone.

Speed Dial Calls
- Press and hold a key (0-9) for three seconds, until the call is initiated.
Answering and Ending Calls
- To answer or end a call, press .
Call List Calls

Press Menu to enter main menu.
Scroll to Phone Book, and press Select.
Scroll to Add name/number, and press Select.
Type the name of the contact using the keys 0-9.
Scroll to number, and enter the directory number of the contact (max. 24 digits/64 characters).
Press Save to store name and directory number.

If the display shows Memory full, it is necessary to delete one or more contacts from phone book.

Locking/Unlocking Keypad
- Press left softkey followed by * button to lock or unlock the keypad.
Silent Mode On/Off
- Press Menu, followed by the # button to turn the handset silent mode on/off. In silent mode there is no sound for incoming calls and notifications.
Exit Menus
- Exit menus and return to home screen, press R.
Speakerphone On/Off

While on a call, press Options, scroll to Spkr. on to enable speakerphone.
To disable speakerphone, press Options, scroll to Spkr. off to disable speakerphone.

Capacity Spectralink 7202	Active talking time (Economy mode) up to 22 hours. Standby time up to 141 hours.
Capacity Spectralink 7212	Active talking time (Economy mode) up to 22 hours. Standby time up to 141 hours.
Temperature	Operating temperature: -10° - 55°C/14° - 131°F Charging temperature: 0° - 40°C/32° - 104°F

	Missed call
	Incomming calls
	Battery charging (in charger)
	Battery charging (handset turned on in charger)
	Battery capacity decreasing (handset out of charger)
	Battery capacity low
	Message received
	Keypad locked
	Silent mode
	Appears when loudspeaker is turned on
	Microphone muted
