- Page 1 Spectralink 7480 User Guide 14216000 version 4.0, K002 November, 2013...
- Page 2 The drawings and specifications contained herein are the property of Spectralink and shall be neither reproduced in whole or in part without the prior written approval of Spectralink, nor be implied to grant any license to make, use, or sell equipment manufactured in accordance herewith.
-
Page 3: Table Of Contents
Warnings Conditions of Safe Use for Ex Equipment or Schedule of Limitations for Ex Components: Overview Battery Information ............5 Charging . - Page 4 Spectralink Product Warranty Statement ........23...
- Page 5 Spectralink 7480 User Guide Chapter 1: Warnings The Spectralink 7480 handset is developed for use in potentially explosive working environments, as defined by the local fire protection authorities. The handset complies with the ATEX directive 94/9/EC as well as EN, IEC, UL and CSA standards.

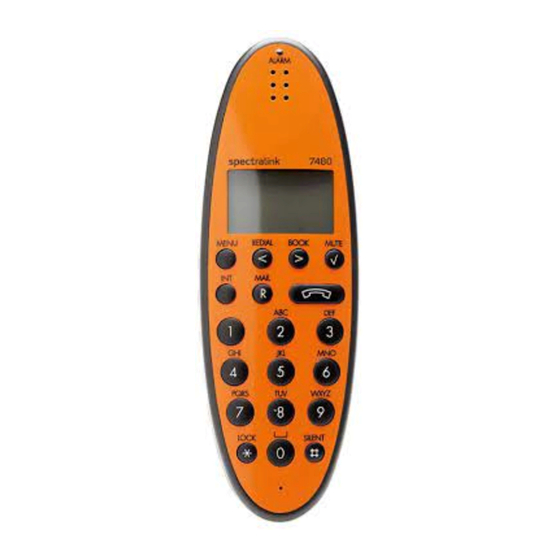

- Page 6 Spectralink 7480 User Guide Chapter 2: Overview Table 2 Handset Elements Alarm Key Display with backlight Volume Up/Down Right Arrow Key • Save number • Telephone book menu from standby text Left Arrow Key • Redial menu from standby text 14216000 Version 8.0...
-
Page 7: Battery Information
Capacity: 550mAh Charging Do not charge the Spectralink 7480 handset in a potentially explosive atmosphere. Use only the dedicated charger 8464 2496 (orange) to charge the handset. It takes approximately 3 1/2 hours to charge the handset from fully discharged to its full capacity. -
Page 8: Key Functions
“ “ - On hook/off hook and turn ON • “Ø“ - Ø(Change from pulse to DTMF on Spectralink CCFP), long = pause (-), extra long: change from pulse to DTMF (a ”T” appears in the display, GAP standard) •... -
Page 9: Basic Operations
Spectralink 7480 User Guide Chapter 3: Basic Operations Turning the Handset ON/OFF • ON: Press key for 1/2 seconds. When the handset is turned on, the symbol is shown in the lower left corner of the display if the handset is subscribed to a system. -
Page 10: Using The Handset In Residential Systems
Spectralink 7480 User Guide Using the handset in residential systems: Internal call post-dial: Press the INT-key, the -icon in the display flashes. Dial the number of another handset on the base station, the -icon flashes until the connection is established. -
Page 11: Using The Phone Book
Spectralink 7480 User Guide Using the Phone Book To store a number (max. 24 digits) in the telephone book: Press the number to be stored (in on hook). Press the “>”- key followed by the “3” key. The book can store up to 200 numbers with name. Typing of the name and a confirmation is required. -
Page 12: Handset Set-Up
Spectralink 7480 User Guide Pressing the 3-key, jumps to a lower level in the menu. When the lowest menu level is reached, the settings are stored and the menu jumps to a higher level. It has to be used if a “YES” is wanted. -
Page 13: Handset Functions
Confirm with 3. When turned on, the telephone automatically goes off hook when ringing. If subscribed to a Spectralink Wireless Server, it automatically goes on hook when calls are terminated. B-answer is inactive when handset is placed in the charger. -
Page 14: Shortcuts
Spectralink 7480 User Guide • Confirm with 3. With the out of range indicator turned on, a beep will appear when the telephone is moving out of range of the base station, and “OUT OF RANGE” will appear in the display. -
Page 15: Date And Time Function
Date and Time Function The Date and Time function requires the use of a Spectralink Wireless Server and special software in the main system. If the Date and Time function is supported, a clock is shown in the 1st line of the display. -
Page 16: Subscription And Login
Spectralink 7480 User Guide Chapter 4: Subscription and Login Creating Subscriptions To make subscriptions, the system must allow subscriptions to be made. Some systems also require an Access Code (AC). If more than one system currently permits subscription, you will need to know the ID of the system to which you wish to subscribe. - Page 17 If one of the systems not chosen is removed, the handset remains connected to the system in use. Change Startup Text The startup text is predefined as e.g. ”Spectralink” as factory default. This can be changed by using the following procedure: Press , BOOK, (3) and give in the new startup text by the keyboard followed by (3).
-
Page 18: Messages
Spectralink 7480 User Guide Chapter 5: Messages Messages are are based on MSF (Message Service Function). The functions requires special software in the main system. Messages Available in systems configured with the possibility of sending text messages. At the reception of a text message the envelope icon appears in the display. - Page 19 Spectralink 7480 User Guide Press the 3-key again and use the < >-keys to find the forward feature. Press the 3-key twice and you are now able to write the number on the receiver. Confirm with the 3-key. To Delete all Messages Open the mail stack by pressing the R-key followed by the 3-key.
-
Page 20: Advanced Settings
LONG KEY: Can be set to “SEND MSF” or “SPEED DIAL” using < and >. Confirm with 3. When choosing “SEND MSF” an MSF is sent to the Spectralink Wireless Server when pressing 0,1,2...9 with a long key press or when pressing the alarm key with a long key press. When choosing “SPEED DIAL”... -
Page 21: Troubleshooting
Spectralink 7480 User Guide Chapter 7: Troubleshooting Common Issues Problem Check The telephone freezes Remove and replace the battery pack. Press to turn on the telephone. The telephone does not ring Check whether the ringer is SILENT or RINGER VOL. is OFF. -
Page 22: Technical Information
Spectralink 7480 User Guide Chapter 8: Technical Information The handset is covered by a normal warranty-solution, except the battery. The lifetime of the battery depends on the general use of the handset. The handset is not covered by a general warranty if: •... -
Page 23: Labels
Spectralink 7480 User Guide EN60079-11:2012 UL913 7th edition UL 60079-0:2005 UL 60079-11:2009 CAN/CSA-C22.2 No. 60079-0:2011 CAN/CSA-C22.2 No. 60079-11:2011 UL 60950-1 / CSA C22.2 No. 60950-1 Labels Limited Warranty This limited, non-transferable warranty is provided to the original purchaser. The product is warranted to be free from defects in materials and workmanship under normal installation, use and 14216000 Version 8.0... - Page 24 Spectralink 7480 User Guide service for a period of one (1) year from the date of purchase as shown on the purchaser's receipt. Our obligation under this warranty is limited to repair or replacement (at our option) of the product or any part(s) which are defective provided that the product is returned to the original place of purchase or an authorized service location during the warranty period.
-
Page 25: Spectralink Product Warranty Statement
Spectralink's expense, not later than thirty (30) days after Spectralink receives the defective product, and Spectralink will retain risk of loss or damage until the item is delivered to Customer. EXCLUSIONS. Spectralink will not be liable under this limited warranty if its testing and... -
Page 26: End-User License Agreement For Spectralink Software
Spectralink, B.V for the SPECTRALINK® SOFTWARE PRODUCT licensed by Spectralink, B.V in Europe, the Middle East, Africa, and Asia Pacific, or the SPECTRALINK SOFTWARE PRODUCT licensed by Spectralink, Inc. in the rest of the world 14216000 Version 8.0... - Page 27 Agreement. GRANT OF LICENSE. Subject to the terms of this Agreement, SPECTRALINK grants to you a non-exclusive license to install and use the SOFTWARE PRODUCT on the SPECTRALINK product with which this SOFTWARE PRODUCT is supplied (the "PRODUCT"). You may use the SOFTWARE PRODUCT only in connection with the use of the PRODUCT.
- Page 28 This Agreement gives you no rights in such content. 2.7Confidentiality. The SOFTWARE PRODUCT contains valuable proprietary information and trade secrets of SPECTRALINK and its suppliers and you shall protect the confidentiality of, and avoid disclosure and unauthorized use of, the SOFTWARE PRODUCT.
- Page 29 PRODUCT will be corrected. SPECTRALINK's sole obligation under this express warranty shall be, at SPECTRALINK's option and expense, to refund the purchase price paid by you for any defective software product which is returned to SPECTRALINK with a copy or your receipt, or to replace any defective media with software which substantially conforms to applicable SPECTRALINK published specifications.
- Page 30 BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THE SOFTWARE PRODUCT OR THE PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES, EVEN IF SPECTRALINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, SPECTRALINK'S ENTIRE LIABILITY SHALL BE LIMITED TO THE GREATER OF THE AMOUNT ACTUALLY PAID BY YOU FOR THE SOFTWARE PRODUCT OR U.S.
- Page 31 Spectralink 7480 User Guide software documentation", respectively, pursuant to DFAR Section 227.7202 and FAR 12.212(b), as applicable. Any use, modification, reproduction, release, performance, display or disclosure of the SOFTWARE PRODUCT programs and/or documentation by the U.S. Government or any of its agencies shall be governed solely by the terms of this Agreement and shall be prohibited except to the extent expressly permitted by the terms of this Agreement.
- Page 32 ©2013 Spectralink Corporation. All rights reserved. Specifications subject to change without notice. Spectralink Corporation 2560 55th Street Boulder CO 80301, USA Spectralink Europe ApS Spectralink Europe ApS Langmarksvej 34 DK-8700 Horsens Tel. +45 7560 2850 infodk@spectralink.com www.spectralink.com...
