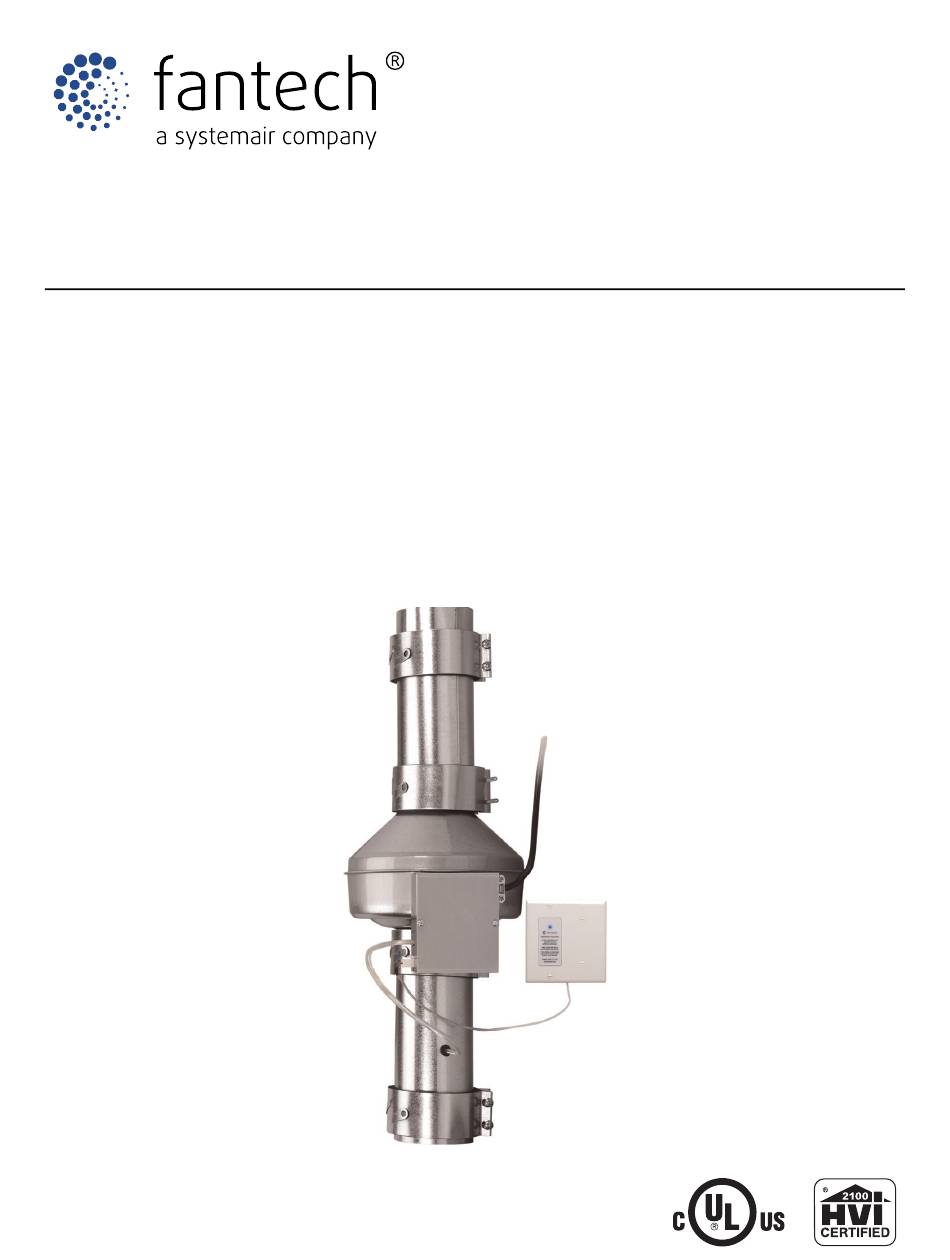

- Page 1 Installation, Operations, and Maintenance instruction DEDPV-705 Dryer Exhaust Duct Power Ventilator...
-
Page 2: Table Of Contents
Table of contents 1 Introduction ............. 1 Product Description ........1 Intended Use..........1 Document Description ........1 Fantech Warranty........... 1 Product Overview ........... 2 Type Designation ........... 2 2 Safety ..............3 Safety definitions..........3 Safety Instructions.......... 3 Personal protective equipment ......3 3 Installation .............. -
Page 3: Introduction
Introduction Fantech Warranty Product Description This product is specifically designed to assist a single residen- tial dryer (gas or electric) in overcoming dryer performance loss caused by long or restrictive duct systems. Dryer Exhaust Duct Power Ventilators (DEDPVs) are different from the term dryer booster because this product has to comply with strict safety requirements. -
Page 4: Product Overview
Product Overview THIS CLOTHES DRYER INSTALLATION INCORPORATES A DRYER EXHAUST SOLUTION Steady blue light when dryer is running indicate proper operation. If light is flashing or not illuminated when dryer is on, see fan owner’s manual or call for assistance. 800.747.1762 fantech.net Fan Inlet, quantity 1... -
Page 5: Safety
• Do not install the product in duct systems where the equiva- Safety lent duct length is less than 35 feet (10.7 meters). • To prevent damage to the dryer or to the product, do not in- Safety definitions stall the DEDPV-705, #499195 within 5 linear feet (1.5 linear meters) or further than 40 linear feet (12 linear meters) from Warnings, cautions and notes are used to point out specially the dryer outlet. -
Page 6: Installation
Installation Caution This is a cord-connected product. Do not To Do Before the Installation try to field wire the product. Tampering with the electrical enclosure voids the UL mark- ing and the manufacturer’s warranty. 3.1.1 To Calculate the Duct Run This product is able to overcome equivalent duct lengths up to 125 feet (38 meters) on duct systems with 4 inch (102mm) diameter galvanized, steel ducts. -
Page 7: To Install The Product
40 feet (12 meters) 5 feet (1.5 meters) 10 feet (3 meters) 25 feet (7.6 meters) Dryer Do not install the product. If product is installed, install a secondary lint trap between the dryer and the product. If product is installed, Fantech recommends to install a secondary lint trap. Do not install the product. -
Page 8: To Mount The Product In A Vertical Or A Horizontal Position
3.2.2 To Mount the Product in a Vertical or a Horizontal Position 3.2.2.1 To Mount the Product in a Vertical Position Note: Vertical mounting is recommended to reduce condensation buildup in the product. Using two (2) 3/4 inch (19mm) wood screws provided, at- tach the mounting bracket to a support beam at the se- lected location. -
Page 9: To Position The Pressure Switch
3.2.4 To Position the Pressure Switch Note: The figure that follows shows how to correctly position the pressure switch on horizontal, angled, or vertical duct work. Horizontal Duct Installation Angled Duct Installation Vertical Duct Installation... -
Page 10: To Install The Grommet And Tubing
3.2.5 To Install the Grommet and Tubing Warning Drilling a metal duct may produce burrs. Be careful not to be cut or pricked by the burrs or the duct. Caution Do not connect tubing in such a manner as to allow condensation from the duct to collect in the tubing. Drill a 5/16 inch (8mm) diameter hole in the duct wall. -
Page 11: To Install The Indicator Panel To The Wall
3.2.7 To Install the Indicator Panel to the Wall Note: The product is equipped with a remote-mounted, low voltage operation indicator panel and a 50–foot cable. We recommend mounting this panel to a wall using applicable fasteners. Note: This wall-mounted indicator panel has a blue LED light that visually alerts the user of any malfunctions. Caution Install the indicator panel near the dryer so it can be clearly seen. -
Page 12: Troubleshooting
Troubleshooting Note: If the panel LED flashes or does not illuminate when the dryer is on, see the below table for error indication and likely sources of the problem. If the product shows an error other than what is listed, or if these help topics do not solve the problem, please contact Fantech technical support for further assistance. -
Page 13: Product Operation Test
Product Operation Test Note: The procedure that follows will make sure that the product works correctly. Use this procedure at setup to check that the system operates correctly or as a system diagnostic when needed. Make sure the product has power. Note: The indicator LED will illuminate only when the product operates. -
Page 14: Maintenance
Maintenance Warning Set the service disconnect switch in the OFF position before you do maintenance unless the instructions tell you differently. Make sure that the switch is not acciden- tally set in the ON position. To Maintain the Product Note: Because the product bearings are sealed and provided with an internal lubricating material, no additional lubrication is necessary. -
Page 15: Technical Data
Technical data Product Dimensions Note: Dimensions are given in inches (mm). 9–11/16 DEDPV-705, 2 (51) 4 (102) 9/16 (14) 10 (254) 4 (102) 1/32 (0.8) (246) #499195... - Page 16 last page Canada Latin America (800) 747 1762 (800) 565 3548 +52 55 1328 7328 support@fantech.net support@fantech.net support@fantech.net © Copyright Fantech All rights reserved Fantech reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications.
