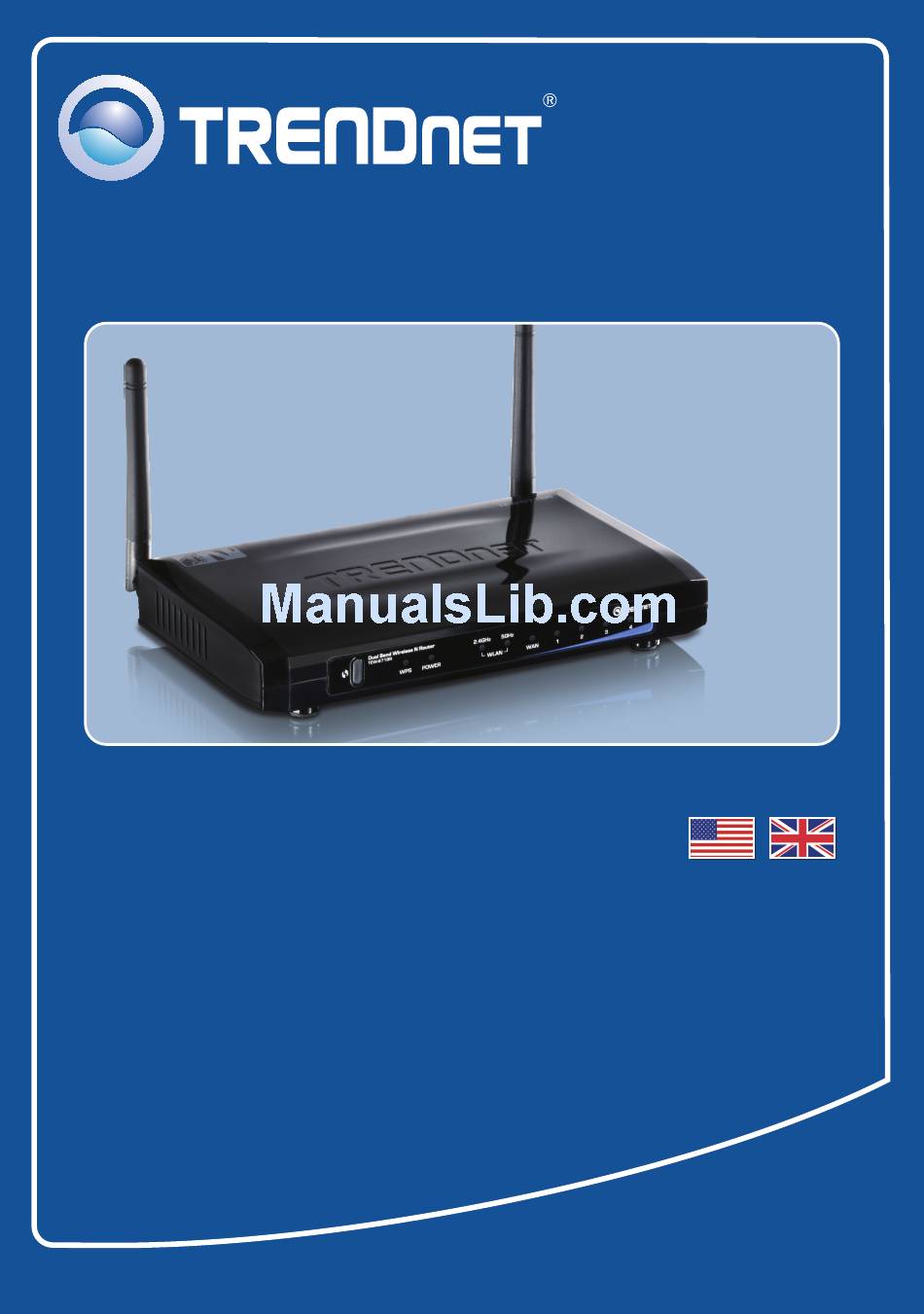

- Page 1 Quick Installation Guide TEW-671BR 1.01...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start 2. Hardware Installation ... Configure the Wireless Router ... Troubleshooting ... Version 06.17.2009... -
Page 3: English
Band Wireless N USB Adapter (TEW-664UB) Workstation with 300Mbps Dual Band Wireless N USB Adapter (TEW-664UB) Wireless n (802.11n) 2.4GHz Package Contents TEW-671BR Multi-Language Quick Installation Guide CD-ROM (User's Guide) Cat.5 Ethernet cable (1m / 3.2ft) Power Adapter (12V, 1A) 300Mbps Dual Band... -
Page 4: Hardware Installation
Connect the other end of the cable to your modem. 3. Connect one end of a RJ-45 cable to one of the TEW-671BR’s LAN ports. Connect the other end of the cable to your computer. 4. Connect the AC Power Adapter to the wireless router and then to a power outlet. -
Page 5: Configure The Wireless Router
3. Configure the Wireless Router Note: It is recommended that you configure the Wireless Router from a wired computer and your PC's IP address is set to receive an IP address automatically (see troubleshooting section). 1. Open your web browser, type http://192.168.10.1 in the... - Page 6 5. Click Next. 6. The TEW-671BR will attempt to auto detect your Internet connection. Follow the wizard instructions and continue on to step 8. 7. This screen will appear if the TEW-671BR is unable to auto detect your Internet connection.
- Page 7 Note: The examples below are for WPA2-PSK security. If you select WPA- PSK or WPA2-PSK, make sure your wireless adapters support WPA or WPA2. If your wireless adapters do not support WPA or WPA2, then select WEP. 9. Use your mouse to select the desired security level (lowest for no encryption, highest for WPA2- PSK).
- Page 8 13. Setup is successful. Click Reboot. Your configuration is now complete. For detailed information regarding the TEW-671BR’s configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...
-
Page 9: Troubleshooting
Troubleshooting I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TEW- 671BR's web configuration page? First, check your hardware settings again by following the instructions in Section 2. - Page 10 Router. What should I do? First, double check that the WLAN (2.4GHz/5GHz) light on the Wireless Router is lit. Second, power cycle the TEW-671BR. Unplug the power to the TEW-671BR. Wait 15 seconds, then plug the power back in to the TEW-671BR.
- Page 12 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
- Page 13 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
- Page 14 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2009. All Rights Reserved. TRENDnet.
