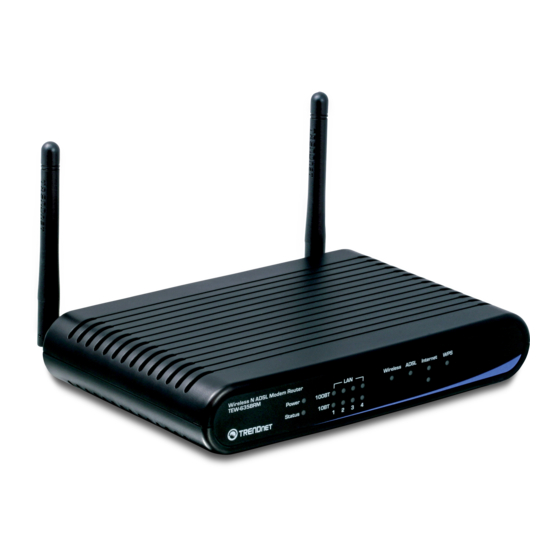

TRENDnet TEW-635BRM - Wireless Router User Manual

User guide
Hide thumbs Also See for TEW-635BRM - Wireless Router:
Table of Contents

Advertisement

Quick Links

Download this manual
i

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TEW-635BRM - Wireless Router

Summary of Contents for TRENDnet TEW-635BRM - Wireless Router

  • Page 2: Table Of Contents

    Table of Contents   CHAPTER 1 INTRODUCTION ..................... 1   Wireless ADSL Modem Router Features ................ 1   Package Contents ......................5   Physical Details ........................6   CHAPTER 2 INSTALLATION ....................8   Requirements ........................8   Procedure ........................... 8  ...
  • Page 3   E-mail ..........................88   Diagnostics ........................90   Remote Administration ....................91   Routing ..........................93   Upgrade Firmware ......................97   CHAPTER 7 MODEM MODE ....................98   Overview .......................... 98   Management Connections ....................98   Modem Mode Main Screen .................... 99  ...

  • Page 4: Chapter 1 Introduction

    Chapter 1 Introduction This Chapter provides an overview of the Wireless ADSL Modem Router's features and capabilities. Congratulations on the purchase of your new Wireless ADSL Modem Router. The Wireless ADSL Modem Router is a multi-function device providing the following services: •...

  • Page 5: Advanced Internet Functions

    • IPoA, PPPoE, PPPoA, Direct Connection Support. The Wireless ADSL Modem Router supports all common connection methods. • Auto-detection of Internet Connection Method. In most situations, the Wireless ADSL Modem Router can test your ADSL and Internet connection to determine the con- nection method used by your ISP.

  • Page 6: Lan Features

    • WPA-PSK support. Like WEP, WPA-PSK encrypts any data before transmission, providing protection against snoopers. The WPA-PSK is a later standard than WEP, and provides both easier configuration and greater security than WEP. • WPA2-PSK support. Support for WPA2 is also included. WPA2 uses the extremely secure AES encryption method.
  • Page 7 • NAT Protection. An intrinsic side effect of NAT (Network Address Translation) tech- nology is that by allowing all LAN users to share a single IP address, the location and even the existence of each computer is hidden. From the external viewpoint, there is no network, only a single device - the Wireless ADSL Modem Router.

  • Page 8: Package Contents

    Package Contents The following items should be included. If any of these items are damaged or missing, please contact your dealer immediately. • TEW-635BRM • Multi-Language Quick Installation Guide • CD-ROM (User’s Guide) • 1 x RJ-45 Ethernet Cable • 1 x RJ-11 Telephone Cable •...

  • Page 9: Physical Details

    Physical Details Front-mounted LEDs Power LED On (Green) - Power on. Off - No power. Flashing (Green) - Device is rebooting. Status On (Orange) - Device error. For each port, there are 2 LEDs. One is 100BaseT, another is 10BaseT. •...

  • Page 10: Rear Panel

    Rear Panel Connects ADSL line here ADSL port LAN 1~4 10/100Mbps LAN port. Power ON/OFF Press this button to power on/off the device Power adapter port Power port Push the WPS button to enable the WPS function. On your other WPS Button wireless device, push the WPS (if available) or type the pin code to establish the secured wireless encryption connection automatically.

  • Page 11: Chapter 2 Installation

    Chapter 2 Installation This Chapter covers the physical installation of the Wireless ADSL Modem Router. Requirements • Network cables. Use standard 10/100BaseT network (UTP) cables with RJ-45 connectors. • TCP/IP protocol must be installed on all PCs. • For Internet Access, an Internet Access account with an ISP, and a DSL connection. •...

  • Page 12: Check The Leds

    Installation 2. Connect LAN Cables Use standard LAN cables to connect computers to the Switching Hub ports on the Wire- less ADSL Modem Router. Both 10BaseT and 100BaseT connections can be used simultaneously. 3. Connect RJ-11 Telephone Cable Connect the provided telephone cable from the ADSL port to the ADSL phone jack which provided by your ADSL phone company.

  • Page 13: Chapter 3 Setup

    Chapter 3 Setup This Chapter provides Setup details of the Wireless ADSL Modem Router. Overview This chapter describes the setup procedure for: • Internet Access • LAN configuration • Wireless setup • Assigning a Password to protect the configuration data. PCs on your local LAN may also require configuration.
  • Page 14 Use any of the following Administration Configuration Chapter 6 settings or features: Advanced Administration • PC Database • Config File • Logs • E-mail • Diagnostics • Remote Admin • Routing • Upgrade Firmware...

  • Page 15: Configuration Program

    Configuration Program The Wireless ADSL Modem Router contains an HTTP server. This enables you to connect to it, and configure it, using your Web Browser. Your Browser must support JavaScript. The configuration program has been tested on the following browsers: •...

  • Page 16: Setup Wizard

    If you can't connect If the Wireless ADSL Modem Router does not respond, check the following: • The Wireless ADSL Modem Router is properly installed, LAN connection is OK, and it is powered ON. You can test the connection by using the "Ping" command: •...
  • Page 17 IPoA Normally, the connection is IP Address allocated to you, and (IP over ATM) "Always on". related information, such as Network Mask, Gateway IP address, and DNS address. The first time you connect to the Wireless ADSL Modem Router, you should run the Setup Wizard to configure the ADSL and Internet Connection.
  • Page 18 3. Select the “Auto-detect” connection method. 4. Configure the setting based on the information your IPS provided. 5. Type in the username & password if applicable 6. Waiting for the Modem Router reboot.
  • Page 19 7. Click OK. 8. Click Finish to diagnostic the setting result 9. Click Close to exit the Setup Wizard 10. If the connection test fails:...
  • Page 20 • Check all connections, and the front panel LEDs. • Check that you have entered all data correctly Manual-Selection 1. Click the Setup Wizard link on the main menu 2. On the first screen, select VC 1 (Router - Primary Internet Connection), then click "Next". If you would like to enable the “Enable MultiPVC”, please select it now.
  • Page 21 4. Type in the VPI and VCI value that provided by your ISP provider, then click "Next". 5. Configure the setting based on the information your IPS provided. 6. Type in the username & password if there is any...
  • Page 22 7. Waiting for the Modem Router reboot. 8. Click OK. 9. Click Finish to diagnostic the setting result...

  • Page 23: Configuring Vcs

    10. Click Close to exit the Setup Wizard 11. If the connection test fails: • Check all connections, and the front panel LEDs. • Check that you have entered all data correctly Configuring VCs The Wireless ADSL Modem Router supports multiple VCs (Virtual Circuits) on the ADSL connection.
  • Page 24 2. Select “Enable MultiPVC”, then select VC2 and click "Next" 3. Configure the VC setup screen following by the screen and information by your ISP pro- vider to finish the VC setup.
  • Page 25 Setup Wizard VC Screen The VC number is displayed To use this VC, you must enable it by checking this checkbox. Enable Enter the VPI value provided by your ISP. Enter the VPI value provided by your ISP. Multiplexing Select the multiplexing value provided by your ISP. Select the multiplexing value provided by your ISP.

  • Page 26: Main Screen

    Main Screen After finishing the Setup Wizard, the browse will back to main screen. Main Menu The main menu, on the left, contains links to the most-commonly used screen. To see the links to the other available screens, click "Advanced" or "Administration". The main menu also contains one (1) button: •...

  • Page 27: Lan Screen

    LAN Screen Use the LAN link on the main menu to reach the LAN screen. An example screen is shown below. LAN Screen TCP/IP IP address for the Wireless ADSL Modem Router, as seen from the IP Address local LAN. Use the default value unless the address is already in use or your LAN is using a different IP address range.
  • Page 28 DHCP What DHCP Does A DHCP (Dynamic Host Configuration Protocol) Server allocates a valid IP address to a DHCP Client (PC or device) upon request. • The client request is made when the client device starts up (boots). • The DHCP Server provides the Gateway and DNS addresses to the client, as well as allocating an IP Address.

  • Page 29: Wireless Screen

    Wireless Screen The Wireless ADSL Modem Router's settings must match the other Wireless stations. Note that the Wireless ADSL Modem Router will automatically accept both 802.11b and 802.11g connections, and no configuration is required for this feature. To change the Wireless ADSL Modem Router's default settings for the Wireless Access Point feature, use the Wireless link on the main menu to reach the Wireless screen.
  • Page 30 Multi SSID With Multiple SSIDs, you can have 2 SSIDs on one AP. For example, SSID a Guest SSID without encryption for visitors to have Internet access only, and a Admin SSID with encryption for private use to secure your company resources.
  • Page 31 Access Point Use this feature to determine which Wireless stations can use the Allow access Access Point. The options are: by … • All Wireless Stations - All wireless stations can use the access point, provided they have the correct SSID and security settings. •...

  • Page 32: Wireless Security

    Wireless Security This screen is accessed by clicking the "Configure SSID" button on the Wireless screen. There are 3 options for Wireless security: • Disabled - no data encryption is used. • WEP - data is encrypted using the WEP standard. •...
  • Page 33 same setting. Encryption • 64 Bit - data is encrypted, using the default key, before being transmitted. You must enter at least the default key. For 64 Bit En- cryption, the key size is 10 chars in HEX (0~9 and A~F). •...
  • Page 34 WPA2-PSK Wireless Security WPA2-PSK Screen This is a further development of WPA-PSK, and offers even greater Authentication security. Enter the PSK (network key). Data is encrypted using a key derived from the network key. Other Wireless Stations must use the same network key.
  • Page 35 Enter the PSK (network key). Data is encrypted using a key derived from the network key. Other Wireless Stations must use the same network key. The PSK must be from 8 to 63 characters in length. The Mixed WPA-PSK/WAP2-PSK standard allows different encryp- Encryption tion methods to be used.

  • Page 36: Trusted Wireless Stations

    Trusted Wireless Stations This feature can be used to prevent unknown Wireless stations from using the Access Point. This list has no effect unless the setting Allow access by trusted stations only is enabled. To change the list of trusted wireless stations, use the Modify List button on the Access Control screen.
  • Page 37 Delete a Trusted Wireless Station from the list (move to the "Other >> Stations" list). • Select an entry (or entries) in the "Trusted Stations" list. • Click the " >> " button. Use this to change an existing entry in the "Trusted Stations" list: Edit 1.

  • Page 38: Password Screen

    Password Screen The password screen allows you to assign a password to the Wireless ADSL Modem Router. Enter the existing password in this field. Old Password Enter the new password here. New password Re-enter the new password here. Verify password After click “Save”...

  • Page 40: Mode Screen

    Mode Screen Use this screen to change the mode between Router mode and Modem (Bridge) mode. The example show below is Router mode. For detail Modem mode, please refer to Chapter 7. Select the desired option, and click "Save". Router Both the ADSL Modem and the Router features are operational.

  • Page 41: Status

    Status Use the Status link on the main menu to view this screen. Status Screen ADSL Modem Status This indicates the status of the ADSL modem component. DownStream Displays the speed for the DownStream Connection. Connection Speed If connected, displays the speed for the Up Stream (upload) UpStream ADSL Connection.
  • Page 42 • Failed - The connection was terminated abnormally. This could be caused by Modem failure, or the loss of the connec- tion to the ISP's server. If there is an error, you can click the "Connection Details" button to find out more information. Internet IP Address This IP Address is allocated by the ISP (Internet Service Provid- er).
  • Page 43 Update the data displayed on screen. Refresh Screen...

  • Page 44: Connection Status - Pppoe & Pppoa

    Connection Status - PPPoE & PPPoA If using PPPoE (PPP over Ethernet) or PPPoA (PPP over ATM), a screen like the following example will be displayed when the "Connection Details" button is clicked. PPPoE/PPPoA Screen This indicates how long the current connection has been estab- Connection Time lished.

  • Page 45: Connection Details - Dynamic Ip Address

    Connection Details - Dynamic IP Address If your access method is "Direct" (no login), with a Dynamic IP address, a screen like the following example will be displayed when the "Connection Details" button is clicked. Dynamic IP address Internet IP Address The current IP Address of this device, as seen by Internet users.

  • Page 46: Connection Details - Fixed Ip Address

    Connection Details - Fixed IP Address If your access method is "Direct" (no login), with a fixed IP address, a screen like the follow- ing example will be displayed when the "Connection Details" button is clicked. Fixed IP address Screen Internet The IP Address of this device, as seen by Internet users.

  • Page 47: Binding Function

    Binding Function The Binding feature is for MultiPVC. If you have enabled multiple PVCs and set the WAN connection methods individually, you can bind the LAN Ports and WLAN Port to them using this page. While binding one port to the selected PVC, this port would connect Internet via this PVC.

  • Page 48: Chapter 4 Computer Configuration

    Chapter 4 Computer Configuration This Chapter details the Computer Configuration required on the local ("In- ternal") LAN. Overview For each PC, the following may need to be configured: • TCP/IP network settings • Internet Access configuration • Wireless configuration Windows Clients This section describes how to configure Windows clients for Internet access via the Wireless ADSL Modem Router.
  • Page 49 Checking TCP/IP Settings - Windows NT4.0 1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as shown below. 2. Click the Properties button to see a screen like the one below.

  • Page 50: Specify An Ip Address

    3. Select the network card for your LAN. 4. Select the appropriate radio button - Obtain an IP address from a DHCP Server or Specify an IP Address, as explained below. Obtain an IP address from a DHCP Server This is the default Windows setting. Using this is recommended. By default, the Wireless ADSL Modem Router will act as a DHCP Server.

  • Page 52: Checking Tcp/Ip Settings - Windows

    Checking TCP/IP Settings - Windows 2000: 1. Select Control Panel - Network and Dial-up Connection. 2. Right - click the Local Area Connection icon and select Properties. You should see a screen like the following: 3. Select the TCP/IP protocol for your network card. 4.
  • Page 53 5. Ensure your TCP/IP settings are correct, as described below. Using DHCP To use DHCP, select the radio button Obtain an IP Address automatically. This is the default Windows setting. Using this is recommended. By default, the Wireless ADSL Modem Router will act as a DHCP Server.

  • Page 54: Checking Tcp/Ip Settings - Windows Xp

    Checking TCP/IP Settings - Windows XP 1. Select Control Panel - Network Connection. 2. Right click the Local Area Connection and choose Properties. You should see a screen like the following: 3. Select the TCP/IP protocol for your network card. 4.
  • Page 55 Using DHCP To use DHCP, select the radio button Obtain an IP Address automatically. This is the default Windows setting. Using this is recommended. By default, the Wireless ADSL Modem Router will act as a DHCP Server. Restart your PC to ensure it obtains an IP Address from the Wireless ADSL Modem Router. Using a fixed IP Address ("Use the following IP Address") If your PC is already configured, check with your network administrator before making the following changes.
  • Page 56 Checking TCP/IP Settings - Windows Vista 6. Select Control Panel - Network Connections. 7. Right click the Local Area Connection Status and choose Properties. Click Continue to the User Account Control dialog box, then you should see a screen like the following: 8.

  • Page 57: Using Dhcp

    11. Ensure your TCP/IP settings are correct. Using DHCP To use DHCP, select the radio button Obtain an IP Address automatically. This is the default Windows setting. To work correctly, you need a DHCP server on your LAN. Using a fixed IP Address ("Use the following IP Address") If your PC is already configured for a fixed (specified) IP address, no changes are required.

  • Page 58: Internet Access

    Internet Access To configure your PCs to use the Wireless ADSL Modem Router for Internet access: • Ensure that the DSL modem, Cable modem, or other permanent connection is functional. • Use the following procedure to configure your Browser to access the Internet via the LAN, rather than by a Dial-up connection.
  • Page 59 • Start the AOL for Windows communication software. Ensure that it is Version 2.5, 3.0 or later. This procedure will not work with earlier versions. • Click the Setup button. • Select Create Location, and change the location name from "New Locality" to "Wireless ADSL Modem Router".

  • Page 60: Macintosh Clients

    Macintosh Clients From your Macintosh, you can access the Internet via the Wireless ADSL Modem Router. The procedure is as follows. 1. Open the TCP/IP Control Panel. 2. Select Ethernet from the Connect via pop-up menu. 3. Select Using DHCP Server from the Configure pop-up menu. The DHCP Client ID field can be left blank.

  • Page 61: Wireless Station Configuration

    Wireless Station Configuration This section applies to all Wireless stations wishing to use the Wireless ADSL Modem Rou- ter's Access Point, regardless of the operating system which is used on the client. To use the Wireless Access Point in the Wireless ADSL Modem Router, each Wireless Station must have compatible settings, as follows: Mode The mode must be set to Infrastructure (rather than Ad-hoc)
  • Page 62 If the "Broadcast SSID" setting on the Wireless ADSL Modem Router has been disabled, its SSID will NOT be listed. See the following section "If the SSID is not listed" for details of dealing with this situation. 4. The next step depends on whether or not Wireless security has been enabled on the Wire- less ADSL Modem Router.
  • Page 63 To connect: • Check the checkbox Allow me to connect to the selected wireless network, even though it is not secure. • The Connect button will then be available. Click the Connect button, and wait a few seconds for the connection to be established. If using WEP Data Encryption If WEP data encryption has been enabled on the Wireless ADSL Modem Router, Windows will detect this, and show a screen like the following.
  • Page 64 • Disable the checkbox Enable IEEE 802.1x authentication for this network. • Click the Connect button. If this fails, click the Advanced button, to see a screen like the following: Select the SSID for the Wireless ADSL Modem Router, and click Configure, to see a screen like the following:...
  • Page 65 Configure this screen as follows: • Set Network Authentication to match the Wireless ADSL Modem Router. (If the setting on the Wireless ADSL Modem Router is "Auto", then either Open or Shared can be used.) • For Data Encryption, select WEP. •...
  • Page 66 Click OK to establish a connection to the Wireless ADSL Modem Router.
  • Page 67 If using WPA-PSK Data Encryption If WPA-PSK data encryption has been enabled on the Wireless ADSL Modem Router, it does not matter which network is selected on the screen below. Just click the Advanced button. You will then see a screen like the example below. Select the SSID for the Wireless ADSL Modem Router, and click Configure, to see a screen like the following:...
  • Page 68 Configure this screen as follows: • Set Network Authentication to WPA-PSK. • For Data Encryption, select TKIP. • For the Network key and Confirm network key, enter the network key (PSK) used on the Wireless ADSL Modem Router. • Ensure the option This is a computer-to-computer (ad hoc) network is unchecked. •...
  • Page 69 Click OK to establish a connection to the Wireless ADSL Modem Router. If the SSID is not listed If the "Broadcast SSID" setting on the Wireless ADSL Modem Router has been disabled, its SSID will NOT be listed on the screen below.
  • Page 70 In this situation, you need to obtain the SSID from your network administrator, then follow this procedure: 1. Click the Advanced button to see a screen like the example below. 2. Click the Add button. You will see a screen like the example below.
  • Page 71 3. Configure this screen as follows: • Enter the correct SSID, as used on the Wireless ADSL Modem Router. Remember the SSID is case-sensitive, so be sure to match the case, not just the spelling. • Set Network Authentication and Data Encryption to match the Wireless ADSL Modem Router.

  • Page 72: Chapter 5 Advanced Features

    Chapter 5 Advanced Features This Chapter explains when and how to use the Wireless ADSL Modem Rou- ter's "Advanced" Features. Overview The following advanced features are provided: • Internet: • • URL filter • Access Control • Dynamic DNS • Options •...

  • Page 73: Url Filter

    • If the DMZ feature is enabled, you must select the PC to be used as the "DMZ PC". The "DMZ PC" is effectively outside the Firewall, mak- ing it more vulnerable to attacks. For this reason, you should only enable the DMZ feature when required. URL Filter If you want to limit access on certain sites on the Internet, you can use this feature.

  • Page 74: Url Filter Screen

    The unauthorized access to the block URL will display the following message. URL Filter Screen Current Filter Strings The list contains the current list of items to block. Current Filter Strings • To add to the list, use the "Add" option below. •...
  • Page 75 Trusted PC Enable this to allow one computer to have unrestricted access to the Allow this PC Internet. For this PC, the URL filter will be ignored. to.. If enabled, you must select the PC to be the trusted PC. Trusted PC Enter the PC to be the Trusted PC.

  • Page 76: Dynamic Dns (Domain Name Server)

    Dynamic DNS (Domain Name Server) This free service is very useful when combined with the Virtual Server feature. It allows Internet users to connect to your Virtual Servers using a URL, rather than an IP Address. This also solves the problem of having a dynamic IP address. With a dynamic IP address, your IP address may change whenever you connect, which makes it difficult to connect to you.
  • Page 77 Enter your Username for the DDNS Service. (TZO.com uses your E- User Name mail address.) Enter your current password for the DDNS Service. (TZO.com calls Password this a key.) • DDNS Status This message is returned by the DDNS Server. •...

  • Page 78: Options

    Options This screen allows advanced users to enter or change a number of settings. For normal opera- tion, there is no need to use this screen or change any settings. An example Options screen is shown below. Options Screen Internet •...

  • Page 79: Schedule

    Schedule This Schedule can be used for the Firewall Rules and the URL filter. Schedule Screen Schedule Each day of the week can be scheduled independently. Session 1 Two (2) separate sessions or periods can be defined. Session 2 can be left blank if not required.

  • Page 80: Port Trigger

    Port Trigger If you use Internet applications which use non-standard connections or port numbers, you may find that they do not function correctly because they are blocked by the Wireless ADSL Modem Router's firewall. In this case, you can define the application as a "Port Trigger". The Port Trigger screen can be reached by clicking the Port Trigger on the screen.
  • Page 81 • Type - Select the protocol (TCP or UDP) used when you Incoming receive data from the special application or service. (Note: Ports Some applications use different protocols for outgoing and in- coming data). • Start - Enter the beginning of the range of port numbers used by the application server, for data you receive.

  • Page 82: Port Forward

    Port Forward This feature allows you to make Servers on your LAN accessible to Internet users. Normally, Internet users would not be able to access a server on your LAN because: • Your Server does not have a valid external IP Address. •...

  • Page 83: Port Range Forward

    Port Range Forward This feature allows you to make Servers on your LAN accessible to Internet users. Normally, Internet users would not be able to access a server on your LAN because: Port Range Forwarding Screen Port Range Forwarding Enter the desired application type. Application Enter the beginning of the range of port numbers used by the Start...

  • Page 84: Qos

    The QoS (Quality of Service) feature allows you specify priorities for different traffic. Lower priority traffic will be slowed down to allow greater throughput or less delay for high priority traffic. An example QoS screen is shown below. QoS Screen QoS Setting QoS Setting To disable QoS (Quality of Service), keep the default setting, Disable.
  • Page 85 • Applications: Category • Add a New Application (Once selected, please complete the following setups.) • Ip/Net: Enter the IP addresses. • Rate: Enter the desired rate value. • Priority: Select the desired option (High, Normal, Low) • Direct: Select Upstream or Downstream as required. •...

  • Page 86: Chapter 6 Advanced Administration

    Chapter 6 Advanced Administration This Chapter explains the settings available via the "Administration" section of the menu. Overview Normally, it is not necessary to use these screens, or change any settings. These screens and settings are provided to deal with non-standard situations, or to provide additional options for advanced users.

  • Page 87: Pc Database

    PC Database The PC Database is used whenever you need to select a PC (e.g. for the "DMZ" PC). • It eliminates the need to enter IP addresses. • Also, you do not need to use fixed IP addresses on your LAN. However, if you do use a fixed IP address on some devices on your LAN, you should enter details of each such device into the PC database, using the PC Database screen.

  • Page 88: Config File

    Config File This feature allows you to download the current settings from the Wireless ADSL Modem Router, and save them to a file on your PC. You can restore a previously-downloaded configuration file to the Wireless ADSL Modem Router, by uploading it to the Wireless ADSL Modem Router. This screen also allows you to set the Wireless ADSL Modem Router back to its factory default configuration.

  • Page 89: Logs

    Logs The Logs record various types of activity on the Wireless ADSL Modem Router. This data is useful for troubleshooting, but enabling all logs will generate a large amount of data and adversely affect performance. Since only a limited amount of log data can be stored in the Wireless ADSL Modem Router, log data can also be E-mailed to your PC.
  • Page 90 Include in Log Use these checkboxes to determine which events are included in Include (Checkboxes) the log. Checking all options will increase the size of the log, so it is good practice to disable any events which are not really re- quired.

  • Page 91: E-Mail

    E-mail This screen allows you to E-mail Logs and Alerts. A sample screen is shown below. E-mail Screen E-Mail Notification Turn E-mail Check this box to enable this feature. If enabled, the E-mail address information (below) must be provided. Notification on Enter the E-mail address the Log is to be sent to.
  • Page 92 E-mail Alerts Send E-mail alerts You can choose to have alerts E-mailed to you, by checking the desired checkboxes. The Broadband ADSL Router can send an immediately immediate alert when it detects a significant security incident such as • A known hacker attack is directed at your IP address •...

  • Page 93: Diagnostics

    Diagnostics This screen allows you to perform a "Ping" or a "DNS lookup". These activities can be useful in solving network problems. An example Network Diagnostics screen is shown below. Network Diagnostics Screen Ping Enter the IP address you wish to ping. The IP address can be on your IP Address LAN, or on the Internet.

  • Page 94: Remote Administration

    Remote Administration If enabled, this feature allows you to manage the Wireless ADSL Modem Router via the Internet. Remote Administration Screen Remote Administration Enable Remote Check to allow administration/management via the Internet. (To connect, see below). Management If Disabled, this device will ignore Administration connection attempts from the Internet.
  • Page 95 To connect from a remote PC via the Internet 1. Ensure your Internet connection is established, and start your Web Browser. 2. In the "Address" bar, enter "HTTP://" followed by the Internet IP Address of the Wireless ADSL Modem Router. If the port number is not 80, the port number is also required. (Af- ter the IP Address, enter ":"...

  • Page 96: Routing

    Routing Overview • If you don't have other Routers or Gateways on your LAN, you can ignore the "Routing" page completely. • If the Wireless ADSL Modem Router is only acting as a Gateway for the local LAN segment, ignore the "Routing" page even if your LAN has other Routers. •...

  • Page 97: Configuring Other Routers On Your Lan

    Routing Screen RIP Direction Select the desired RIP Direction. RIP Version Choose the RIP Version for the Server. Static Routing Static Routing This list shows all entries in the Routing Table. Table Entries • This area shows details of the selected item in the list. •...
  • Page 98 Normally 0.0.0.0, but check your router documentation. Destination IP Address Normally 0.0.0.0, but check your router documentation. Network Mask The IP Address of the Wireless ADSL Modem Router. Gateway IP Address Metric Other Routers on the Local LAN Other routers on the local LAN must use the Wireless ADSL Modem Router's Local Router as the Default Route.
  • Page 99 Metric Entry 2 (Segment 2) Destination IP Address 192.168.30.0 Network Mask 255.255.255.0 (Standard Class C) Gateway IP Address 192.168.10.100 Metric For Router A's Default Route Destination IP Address 0.0.0.0 Network Mask 0.0.0.0 Gateway IP Address 192.168.10.1 (Wireless ADSL Modem Rou- ter's IP Address) For Router B's Default Route Destination IP Address...

  • Page 100: Upgrade Firmware

    Upgrade Firmware The firmware (software) in the Wireless ADSL Modem Router can be upgraded using your Web Browser. You must first download the upgrade file, then select Upgrade Firmware on the Administra- tion menu. You will see a screen like the following. To perform the Firmware Upgrade: 1.

  • Page 101: Chapter 7 Modem Mode

    Chapter 7 Modem Mode This Chapter explains configuration and operation when in Modem Mode (al- so known as Bridge Mode) Overview There are two modes available on the Mode screen. • Router - Both the ADSL Modem and the Router features are operational. In this mode, this device can provide shared Internet Access to all your LAN users.

  • Page 102: Modem Mode Main Screen

    Modem Mode Main Screen In the Device Mode drop down menu, select Modem(Modem only) and click “Save”. The main screen will look like the example below. Note: When choosing Modem Mode, some of the Router options will not available for Modem mode. The detail information as showed below.
  • Page 103 • Wireless – the wireless feature is same as the Router mode. • Password – the password feature is same as Router mode.
  • Page 104 • Mode - this mode feature allows user to changed the mode setting back to Router Mode. Mode Function Device Name This field displays the current name of this device. Select the desired device mode for the router: Device Mode •...
  • Page 105 Status Function ADSL Modem Status This indicates the status of the ADSL modem component. DownStream Displays the speed for the DownStream Connection. Connection Speed UpStream If connected, displays the speed for the Up Stream (upload) ADSL Connection. Connection Speed Click this button to open a sub-window and view the details of ADSL Details each VC (Virtual Circuit).

  • Page 106: Operation

    • Upgrade Firmware - this function is same as Router mode. Operation Operation is automatic and transparent. • Wireless clients can connect to the Access Point if they have the correct SSID and security, but they must obtain an IP address from the DHCP Server on your LAN. •...

  • Page 107: Appendix A Troubleshooting

    Appendix A Troubleshooting This Appendix covers the most likely problems and their solutions. Overview This chapter covers some common problems that may be encountered while using the Wireless ADSL Modem Router and some possible solutions to them. If you follow the suggested steps and the Wireless ADSL Modem Router still does not function properly, contact your dealer for further advice.

  • Page 108: Wireless Access

    LAN and power connections.) • Check the Wireless ADSL Modem Router's status screen to see if it is working correctly. Problem 2: Some applications do not run properly when using the Wireless ADSL Modem Router. The Wireless ADSL Modem Router processes the data passing through it, Solution 2: so it is not transparent.
  • Page 109 marked improvement. • Radio Interference Other devices may be causing interference. You can experiment by switching other devices Off, and see if this helps. Any "noisy" devices should be shielded or relocated. • RF Shielding Your environment may tend to block transmission between the wireless stations.

  • Page 110: Appendix B About Wireless Lans

    Appendix B About Wireless LANs This Appendix provides some background information about using Wireless LANs (WLANs). Modes Wireless LANs can work in either of two (2) modes: • Ad-hoc • Infrastructure Ad-hoc Mode Ad-hoc mode does not require an Access Point or a wired (Ethernet) LAN. Wireless Sta- tions (e.g.

  • Page 111: Channels

    As Wireless Stations are physically moved through the area covered by an ESS, they will automatically change to the Access Point which has the least interference or best performance. This capability is called Roaming. (Access Points do not have or require Roaming capabilities.) Channels The Wireless Channel sets the radio frequency used for communication.

  • Page 112: Wpa2-Psk

    The same encryption method must be used. The most Encryption common encryption method is TKIP. Another widely- supported method is AES. WPA2-PSK This is a later version of WPA (WPA-PSK). The major change is the use of AES (Advanced Encryption System) for protecting data. AES is very secure, considered to be unbreakable. The PSK (Pre-shared Key) must be entered on each Wireless station.

  • Page 113: Appendix C Specifications

    Appendix C Specifications Multi-Function Wireless ADSL Modem Router TEW-635BRM 300Mbps Wireless ADSL2/2+ Modem Router Model ADSL Standard ADSL : ANSI T1.413 and multi-mode, ITU G.992.1 (G.dmt) Annex A, ITU G.992.2 G.lite, ITU G.992.3 Annex A ADSL2, ITU G.992.3 Annex A DELT, ITU G.992.3 Annex L READSL2, ITU G.992.5 Annex A ADSL2+, ITU G.994.1 (G.hs) ver.3 Dimensions 175 x 130 x 30mm...

  • Page 114: Regulatory Approvals

    Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions.

  • Page 115: Limited Warranty

    TEW-635BRM – 3 Years Limited Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
