TRENDnet TEW-672GR Quick Installation Manual
300mbps dual band wireless n broadband router
Hide thumbs
Also See for TEW-672GR:
- Datasheet (3 pages) ,
- User manual (63 pages) ,
- Quick installation manual (10 pages)
Related Manuals for TRENDnet TEW-672GR
Summary of Contents for TRENDnet TEW-672GR

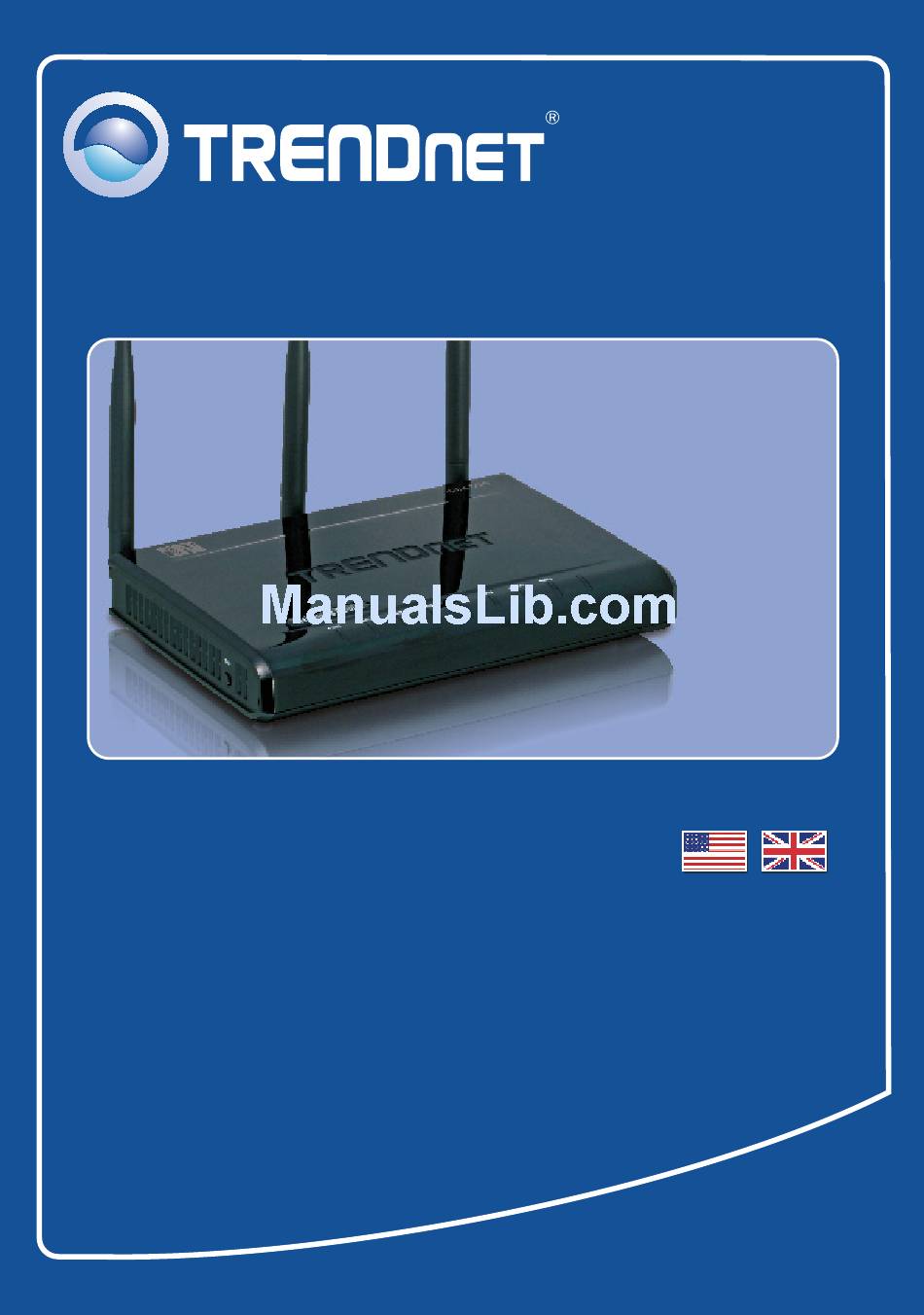

- Page 1 Quick Installation Guide TEW-672GR H/W: V1...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start 2. Hardware Installation ... Configure the Wireless Router ... Troubleshooting ... Version 01.30.2009... -
Page 3: English
300Mbps Dual Band Wireless N Notebook with Wireless a PC Card Streaming Music/Video Wireless Gaming Wireless a (802.11a) 5GHz 54Mbps Package Contents TEW-672GR Multi-Language Quick Installation Guide User's Guide CD-ROM 1 x RJ-45 Ethernet Cable Power Adapter (12V, 1A) Broadband Router (TEW-672GR) Wireless n (802.11n) 2.4GHz 300Mbps... -
Page 4: Hardware Installation
Cable or DSL modem. 2. Connect one end of a RJ-45 cable to one of the TEW-672GR's LAN ports. Connect the other end of the cable to the computer's Ethernet port. 3. Connect one end of a RJ-45 cable to the TEW-672GR’s WAN port. -
Page 5: Configure The Wireless Router
3. Configure the Wireless Router Note: It is recommended that you configure the Wireless Router from a wired computer. 1. Open your web browser, type http://192.168.10.1 in the Address bar, and press Enter. 2. Enter the User Name and Password, and then click OK. User Name: Admin By default, there is no password. - Page 6 For detailed information regarding the advanced settings, please refer to the User's Guide included on the Utility & Driver CD-ROM or TRENDnet's website at www.trendnet.com To ensure the highest level of customer service and support, please take a moment to...
-
Page 7: Troubleshooting
Troubleshooting I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TEW- 672GR's web configuration page? First, check your hardware settings again by following the instructions in Section 2. - Page 8 Second, double check that the WLAN light on the Router is lit. Third, power cycle the TEW-672GR. Unplug the power to the TEW-672GR. Wait 15 seconds, then plug the power back in to the TEW-672GR. Fourth, contact the manufacturer of your wireless network adapter and make sure the wireless network adapter is configured with the proper SSID.
- Page 9 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
- Page 10 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
- Page 11 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2009. All Rights Reserved. TRENDnet.
