5.3

Test Pattern Tab

The second sub-tab, shown in
test patterns intrinsic to the device as described in the three sections of this tab: PSEUDO-RANDOM
BINARY SEQUENCE (PRBS), CUSTOM FRAME CLOCK PATTERN, TEST PATTERN MODES.
The PRBS section shows all its controls to be greyed an unselectable except for PRBS_TP_EN checkbox.
Once this box is checked all the remaining controls are accessible as shown in
provide details on the definition of each control.
SLAU537 – October 2013
Submit Documentation Feedback
Figure 62, is Test Pattern. Within this tab, the user has the control of all the

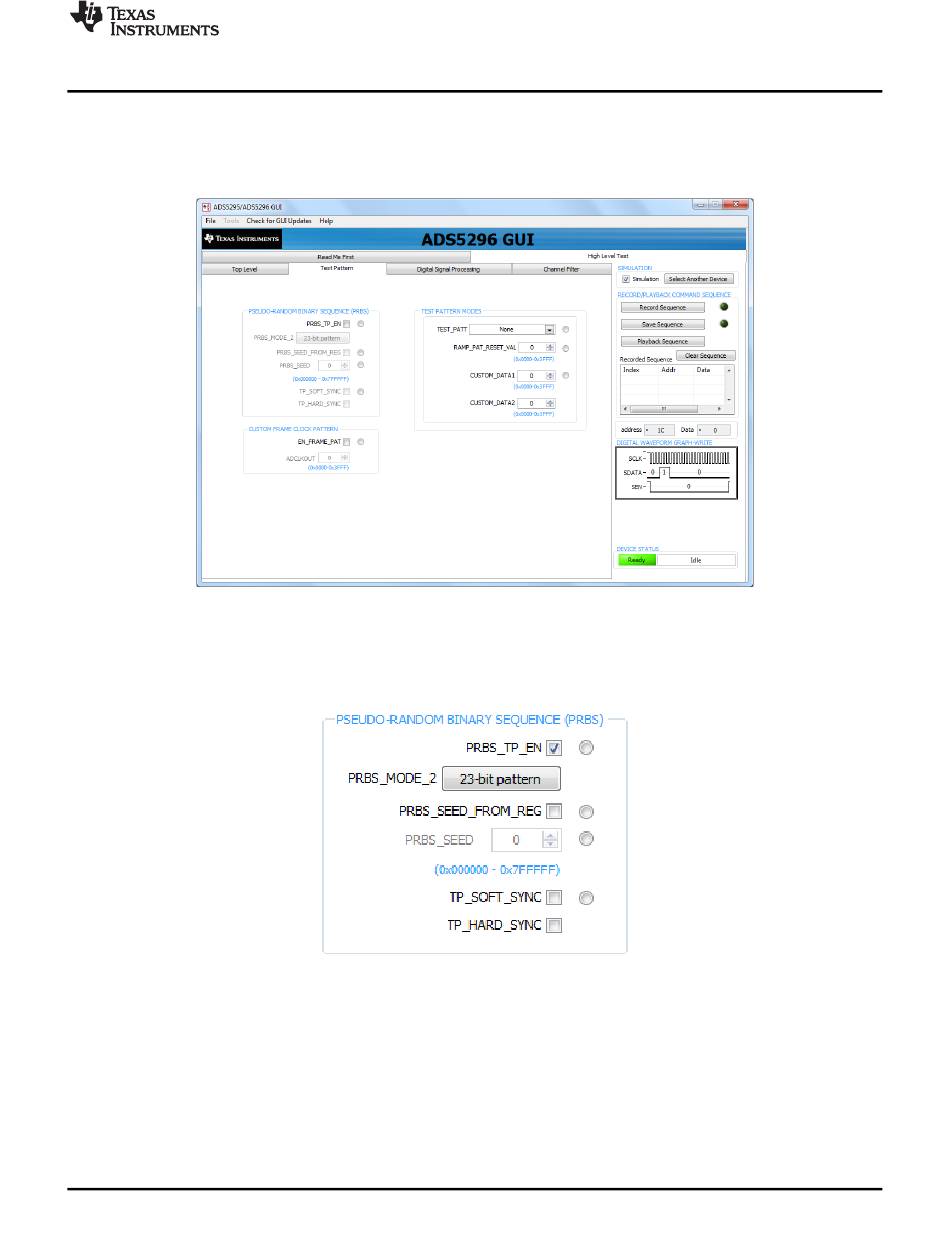

Figure 62. Test Pattern Tab
Figure 63. PRBS Section Enabled
ADS5296A, 4-Channel 200-MSPS, and 8-Channel 80-MSPS, Analog-to-
Copyright © 2013, Texas Instruments Incorporated
ADS5296 GUI in Detail
Figure 63. The info buttons
