Page 1 KVM over IP Matrix Series: KVM over IP Extender & CCKM KE Matrix Manager Software User Manual www.aten.com...
Page 2: Emc Information
KVM over IP Matrix System User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 3: User Information
Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 1-949-428-1111 User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose.
Page 4: About This Manual
Copyright © 2020 ATEN® International Co., Ltd. Manual Date: 2020-08-13 Altusen and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.
Page 5 KVM over IP Matrix System User Manual Chapter 1, Introduction, introduces you to the KVM over IP Matrix System. Its purpose, features and benefits are presented, and its front and back panel components are described. Chapter 2, Hardware Setup, provides step-by-step instructions for setting up your installation, and explains some basic operation procedures.
Page 6 KVM over IP Matrix System User Manual Chapter 13, CLI Commands, provides a complete list of the serial protocol and TCP/IP commands used when utilizing the RS-232 Serial Port or a network connection to configure the KE devices. An Appendix, at the end of the manual provides technical and troubleshooting information.
Page 7: Table Of Contents
KVM over IP Matrix System User Manual Contents EMC Information..........ii RoHS .
Page 8 KVM over IP Matrix System User Manual KE6910T / KE6912T (Transmitter) Rear View ....28 KE6910R / KE6912R (Receiver) Front View ....30 KE6910R / KE6912R (Receiver) Rear View .
Page 9 KVM over IP Matrix System User Manual KE6900 / KE6940 Point-to-Point Installation 1 of 2....86 KE6900 / KE6940 Point-to-Point Installation 2 of 2....87 KE6900A / KE6940A Point-to-Point Installation .
Page 10 KVM over IP Matrix System User Manual KE9950 / KE9952 Network Installation Diagram 1 of 2... 133 KE9950 / KE9952 Network Installation Diagram 2 of 2... 134 Network Configuration.
Page 11 KVM over IP Matrix System User Manual Download - Trial Version ........173 KE Matrix Manager Software Install .
Page 12 KVM over IP Matrix System User Manual Account ..........232 Users .
Page 13 KVM over IP Matrix System User Manual 11.Remote Viewer (AiT Models only) Introduction ..........277 Windows and Java Client Viewer (web access) .
Page 14 KVM over IP Matrix System User Manual Set Command ......... . 330 Appendix Safety Instructions.
Page 15 KVM over IP Matrix System User Manual If X is between 128 ~ 192 ......386 If X is 192 or higher .
Page 16: Package Contents
KVM over IP Matrix System User Manual Package Contents KE6900 / KE6940 Package content of KE6900T / KE6940T DVI Single/Dual Display KVM over IP Extender (Transmitter): 1 Transmitter 1 USB DVI-D KVM Cable 1 DVI-D Cable 1.8 m (for KE6940T) 1 Foot Pad Set 1 Power Adapters 1 Mounting Kit...
Page 17: Ke6900Ait / Ke6940Ait
KVM over IP Matrix System User Manual 1 Receiver 1 Power Adapter & Power Cord 1 User Instructions* KE6900AiT / KE6940AiT Package content of KE6900AiT / KE6940AiT DVI Single/Dual Display KVM over IP Extender (Transmitter) with Internet: 1 Transmitter 1 USB DVI-D KVM Cable 1 DVI-D Cable 1.8 m (for KE6940AiT) 1 Foot Pad Set 1 Power Adapters...
Page 18: Ke6920 / Ke6922
KVM over IP Matrix System User Manual 1 Mounting Kit 1 User Instructions* Package content of KE6910R / KE6912R DVI-D Dual Link KVM over IP Extender (Receiver): 1 Receiver 1 Power Adapter & Power Cord (for KE6910R) 1 User Instructions* KE6920 / KE6922 Package content of KE6920T DVI-D Dual Link KVM over IP Extender with Dual SFP (Transmitter) / KE6922T DVI-D Dual Link KVM over IP Extender...
Page 19: Ke8950 / Ke8952
KVM over IP Matrix System User Manual 1 Mounting Kits 1 HDMI Lockpro 1 User Instructions* Package content of KE8900SR Slim HDMI KVM over IP Extender (Receiver): 1 Receiver 1 Power Adapter 1 Mounting Kits 1 HDMI Lockpro 1 User Instructions* KE8950 / KE8952 Package content of KE8950T / KE8952T 4K HDMI Single Display KVM over IP Extender (Transmitter):...
Page 20: Ke9950 / Ke9952
KVM over IP Matrix System User Manual 1 Transmitter 1 DisplayPort Cable 1 USB 2.0 Type-A to Type-B Cable 1 Power Adapter 1 Mounting Kit 1 User Instructions* KE9950 / KE9952 Package content of KE9950T / KE9952T 4K DisplayPort KVM over IP Extender (Transmitter): 1 Transmitter 1 DisplayPort Cable...
Page 21 KVM over IP Matrix System User Manual KE6920 / KE6922 / KE6940 / KE6940A / KE6940AiT / KE8900S / KE8950 / KE8952 / KE9900ST / KE9950 / KE9952 or to any other devices on the installation.
Page 22: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
Page 23 KVM over IP Matrix System User Manual This Page Intentionally Left Blank xxiii...
Page 24: Introduction
Chapter 1 Introduction Overview The KVM over IP Matrix System is a solution that combines KE Series KVM over IP Extenders (KE6900, KE6900A, KE6900AiT, KE6940, KE6940A, KE6940AiT, KE6900ST, KE6910, KE6912, KE6920, KE6922, KE8900S, KE8950, KE8952, KE9900ST, KE9950, KE9952), with the KE Matrix Manager Software (CCKM) to extend, control and monitor access to computers, across a network, in a multitude of ways.
Page 25 KVM over IP Matrix System User Manual serial terminal for configuration or serial devices such as touchscreens and barcode scanners. The AiT models can connect to an Office LAN to support the Control Center Video Session Recorder (CCVSR) software and Winclient/Javaclient. The CCVSR records all operations made on servers accessed through KVM over IP switches.
Page 26 Note: The SFP module is sold separately. You can choose the 2A-136G, a multi-mode SFP module that provides 1 GbE connectivity up to 550 meters; or the 2A-137G, a single-mode SFP module that provides 1 GbE connectivity up to 10 kilometers. Visit ATEN's website or contact your ATEN dealer for more information.
Page 27: Features
KVM over IP Matrix System User Manual Features  Remote KVM console access of computers over LAN or Ethernet cable connection  Dual console operation – control your system from both the Transmitter and Receiver by USB keyboard, monitor, and mouse ...
Page 28  Instant Link – Switch intuitively and efficiently between transmitter (Tx) on a receiver (Rx) display  Supports recording of remotely-accessed computer operations using ATEN CCVSR Video Session Recording Software  “Push” and “Pull” – shares content instantly to/from a single Rx or video wall by just one click ...
Page 29 3. The KE Matrix Manager web GUI can be updated from the CCKM page on our website (www.aten.com) or via eService website (http:// eservice.aten.com). The free version supports up to 8 KE devices. To obtain a license for the full version of the software, please contact your ATEN dealer.
Page 30: Supported Video Resolutions
Chapter 1. Introduction Supported Video Resolutions KE6900/KE6940 KE6900ST KE6900A/KE6940A KE6910/KE6912 KE8950/KE8952 Resolutions KE8900S KE6900AiT/ KE6920/KE6922 KE9950/KE9952 KE9900ST KE6940AiT 3840 x 2160 @ 24/25/30 Hz ● 3440 x 1440 @ 50 Hz ● 2560 x 2048 @ 50 Hz ● 2560 x 1600 @ 60 Hz ●...
Page 31: Requirements
KVM over IP Matrix System User Manual Requirements Console  (KE6900/KE6900A/KE6900AiT/KE6900ST/KE6910/KE6912/KE6920/ KE6922) One DVI compatible monitor capable of the highest possible resolution  (KE6940/KE6940A/KE6940AiT) Two DVI compatible monitors capable of the highest possible resolution  (KE8900S/KE8950/KE8952) One HDMI compatible monitor capable of the highest possible resolution ...
Page 32 Chapter 1. Introduction  Processor: Pentium 4, 2.60 GHz or above  Memory: 1GB or above  HDD: 500MB or above  Web browser: Internet Explorer 10 (or later), Chrome 70 (or later), Firefox 62 (or later)  Operating System Requirements: ...
Page 33: Components
KVM over IP Matrix System User Manual Components KE6900T (Transmitter) Front View 4 5 6 Component Description Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink). KVM Ports The USB KVM cable supplied with the package that links the Transmitter to the computer plugs into these ports.
Page 34: Ke6900T (Transmitter) Rear View
Chapter 1. Introduction KE6900T (Transmitter) Rear View Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip.  Press and release to reboot the device. ...
Page 35 KVM over IP Matrix System User Manual Component Description RS-232 Port This RS-232 serial port is for connecting to a serial terminal. Console Ports The unit’s USB keyboard and USB mouse plug into these ports. LAN Port The cable that connects the unit to the LAN plugs in here.
Page 36: Ke6900R (Receiver) Front View
Chapter 1. Introduction KE6900R (Receiver) Front View POWER REMOTE LOCAL Graphics Video Component Description Power LED Lights blue to indicate the unit is turned on. LAN LED This LED indicates the network status.  Lights when connected to the LAN and blinks when the Ethernet connection is active: ...
Page 37 KVM over IP Matrix System User Manual Component Description USB Port Use this port for virtual media or a USB peripheral device. Note: 1. When using a USB disk plugged into this port, see USB Mode, page 224. 2. This USB port does not support isochronous endpoints, therefore USB peripherals that stream audio or video data, such as speakers or webcams, will not work.
Page 38: Ke6900R (Receiver) Rear View
Chapter 1. Introduction KE6900R (Receiver) Rear View Component Description Grounding The wire used to ground the unit connects here. Terminal Reset This switch must be pushed with a thin object, such as the end of a paper clip.  Press and release to reboot the device. ...
Page 39 KVM over IP Matrix System User Manual Component Description Console Ports The unit’s USB keyboard and USB mouse plug into these ports. When using a keyboard or mouse with special functions, see USB Mode, page 224. LAN Port The cable that connects the unit to the LAN plugs in here. DVI-I Output The cable from the local DVI monitor plugs in here.
Page 40: Ke6900At (Transmitter) Front View
Chapter 1. Introduction KE6900AT (Transmitter) Front View 4 5 6 Component Description Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink). KVM Ports The USB KVM cable supplied with the package that links the Transmitter to the computer plugs into these ports.
Page 41: Ke6900At (Transmitter) Rear View
KVM over IP Matrix System User Manual KE6900AT (Transmitter) Rear View Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 42 Chapter 1. Introduction Component Description Function Switch Use this slide switch to set the unit’s mode to:  Auto: Shared (simultaneous) KVM control of the computer at the Transmitter and Receiver console.*  RS-232 Config: The device is ready to be configured via serial commands through the RS-232 port.
Page 43: Ke6900Ar (Receiver) Front View
KVM over IP Matrix System User Manual KE6900AR (Receiver) Front View POWER REMOTE LOCAL Graphics Video Component Description Power LED Lights blue to indicate the unit is turned on. LAN LED This LED indicates the network status.  Lights when connected to the LAN and blinks when the Ethernet connection is active: ...
Page 44 Chapter 1. Introduction Component Description USB Port Use this port for virtual media or a USB peripheral device. Note: 1. When using a USB disk plugged into this port, see USB Mode, page 224. 2. This USB port does not support isochronous endpoints, therefore USB peripherals that stream audio or video data, such as speakers or webcams, will not work.
Page 45: Ke6900Ar (Receiver) Rear View
KVM over IP Matrix System User Manual KE6900AR (Receiver) Rear View 9 10 Component Description Grounding The wire used to ground the unit connects here. Terminal Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 46 Chapter 1. Introduction Component Description Function Switch Use this slide switch to set the unit’s mode:  Extension: Sets the device to use the normal TX to RX extension mode.  RS-232 Config: The device is ready to be configured via serial commands through the RS-232 port.
Page 47: Ke6900Ait (Transmitter) Front View
KVM over IP Matrix System User Manual KE6900AiT (Transmitter) Front View 4 5 6 Component Description Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink). KVM Ports The USB KVM cable supplied with the package that links the Transmitter to the computer plugs into these ports.
Page 48: Ke6900Ait (Transmitter) Rear View
Chapter 1. Introduction KE6900AiT (Transmitter) Rear View 9 10 Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 49 KVM over IP Matrix System User Manual Component Description Function Switch Use this slide switch to set the unit’s mode to:  Auto: Shared (simultaneous) KVM control of the computer at the Transmitter and Receiver console.*  RS-232 Config: The device is ready to be configured via serial commands through the RS-232 port.
Page 50: Ke6910T / Ke6912T (Transmitter) Front View
Chapter 1. Introduction KE6910T / KE6912T (Transmitter) Front View Component Description Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink). KVM Ports The USB KVM cable supplied with the package that links the Transmitter to the computer plugs into these ports.
Page 51: Ke6910T / Ke6912T (Transmitter) Rear View
KVM over IP Matrix System User Manual KE6910T / KE6912T (Transmitter) Rear View Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 52 Chapter 1. Introduction Component Description RS-232 Port This RS-232 serial port is for connecting to a serial terminal. Console Ports The unit’s USB keyboard and USB mouse plug into these ports. LAN Port The cable that connects the unit to the LAN plugs in here.
Page 53: Ke6910R / Ke6912R (Receiver) Front View
KVM over IP Matrix System User Manual KE6910R / KE6912R (Receiver) Front View POWER REMOTE LOCAL Graphics Video Component Description Power LED Lights blue to indicate the unit is turned on. LAN LED This LED indicates the network status.  Lights when connected to the LAN and blinks when the Ethernet connection is active: ...
Page 54: Ke6910R / Ke6912R (Receiver) Rear View
Chapter 1. Introduction KE6910R / KE6912R (Receiver) Rear View Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 55 KVM over IP Matrix System User Manual Component Description RS-232 Port This RS-232 serial port is for connecting to a serial terminal. Console Ports The unit’s USB keyboard and USB mouse plug into these ports. LAN Port The cable that connects the unit to the LAN plugs in here.
Page 56: Ke6920T / Ke6922T (Transmitter) Front View
Chapter 1. Introduction KE6920T / KE6922T (Transmitter) Front View Component Description Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink). KVM Ports The USB KVM cable supplied with the package that links the Transmitter to the computer plugs into these ports.
Page 57: Ke6920T / Ke6922T (Transmitter) Rear View
KVM over IP Matrix System User Manual KE6920T / KE6922T (Transmitter) Rear View Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 58 Chapter 1. Introduction Component Description RS-232 Port This RS-232 serial port is for connecting to a serial terminal. Console Ports The unit’s USB keyboard and USB mouse plug into these ports. LAN Port The cable that connects the unit to the LAN plugs in here.
Page 59: Ke6920R / Ke6922R (Receiver) Front View
KVM over IP Matrix System User Manual KE6920R / KE6922R (Receiver) Front View POWER REMOTE LOCAL Graphics Video Component Description Power LED Lights blue to indicate the unit is turned on. LAN LED This LED indicates the network status.  Lights when connected to the LAN and blinks when the Ethernet connection is active: ...
Page 60: Ke6920R / Ke6922R (Receiver) Rear View
Chapter 1. Introduction KE6920R / KE6922R (Receiver) Rear View 9 10 Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 61 KVM over IP Matrix System User Manual Component Description RS-232 Port This RS-232 serial port is for connecting to a serial terminal. Console Ports The unit’s USB keyboard and USB mouse plug into these ports. LAN Port The cable that connects the unit to the LAN plugs in here.
Page 62: Ke6940T (Transmitter) Front View
Chapter 1. Introduction KE6940T (Transmitter) Front View Component Description Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink). KVM Ports The USB KVM cable supplied with the package that links the Transmitter to the computer plugs into these ports.
Page 63: Ke6940T (Transmitter) Rear View
KVM over IP Matrix System User Manual KE6940T (Transmitter) Rear View Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 64 Chapter 1. Introduction Component Description RS-232 Port This RS-232 serial port is for connecting to a serial terminal. Console Ports The unit’s USB keyboard and USB mouse plug into these ports. LAN Port The cable that connects the unit to the LAN plugs in here.
Page 65: Ke6940R (Receiver) Front View
KVM over IP Matrix System User Manual KE6940R (Receiver) Front View POWER REMOTE LOCAL Graphics Video Component Description Power LED Lights blue to indicate the unit is turned on. LAN LED This LED indicates the network status.  Lights when connected to the LAN and blinks when the Ethernet connection is active: ...
Page 66 Chapter 1. Introduction Component Description USB Port Use this port for virtual media or a USB peripheral device. Note: 1. When using a USB disk plugged into this port, see USB Mode, page 224. 2. This USB port does not support isochronous endpoints, therefore USB peripherals that stream audio or video data, such as speakers or webcams, will not work.
Page 67: Ke6940R (Receiver) Rear View
KVM over IP Matrix System User Manual KE6940R (Receiver) Rear View Component Description Grounding The wire used to ground the unit connects here. Terminal Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 68 Chapter 1. Introduction Component Description RS-232 Port This RS-232 serial port is for connecting to a serial terminal. Console Ports The unit’s USB keyboard and USB mouse plug into these ports. LAN Port The cable that connects the unit to the LAN plugs in here. DVI-I Output The cable from the local DVI monitors plug in here.
Page 69: Ke6940At (Transmitter) Front View
KVM over IP Matrix System User Manual KE6940AT (Transmitter) Front View 4 5 6 Component Description Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink). KVM Ports The USB KVM cable and the DVI cable supplied with the package plugs into these ports to link the Transmitter to the computer.
Page 70: Ke6940At (Transmitter) Rear View
Chapter 1. Introduction KE6940AT (Transmitter) Rear View Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip.  Press and release to reboot the device. ...
Page 71 KVM over IP Matrix System User Manual Component Description Function Switch Use this slide switch to set the unit’s mode to:  Auto: Shared (simultaneous) KVM control of the computer at the Transmitter and Receiver console.*  RS-232 Config: The device is ready to be configured via serial commands through the RS-232 port.
Page 72: Ke6940Ar (Receiver) Front View
Chapter 1. Introduction KE6940AR (Receiver) Front View POWER REMOTE LOCAL Graphics Video Component Description Power LED Lights blue to indicate the unit is turned on. LAN LED This LED indicates the network status.  Lights when connected to the LAN and blinks when the Ethernet connection is active: ...
Page 73 KVM over IP Matrix System User Manual Component Description USB Port Use this port for virtual media or a USB peripheral device. Note: 1. When using a USB disk plugged into this port, see USB Mode, page 224. 2. This USB port does not support isochronous endpoints, therefore USB peripherals that stream audio or video data, such as speakers or webcams, will not work.
Page 74: Ke6940Ar (Receiver) Rear View
Chapter 1. Introduction KE6940AR (Receiver) Rear View 9 10 Component Description Grounding The wire used to ground the unit connects here. Terminal Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 75 KVM over IP Matrix System User Manual Component Description Function Switch Use this slide switch to set the unit’s mode:  Extension: Sets the device to use the normal TX to RX extension mode.  RS-232 Config: The device is ready to be configured via serial commands through the RS-232 port.
Page 76: Ke6940Ait (Transmitter) Front View
Chapter 1. Introduction KE6940AiT (Transmitter) Front View 4 5 6 Component Description Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink). KVM Ports The USB KVM cable and the DVI cable supplied with the package plugs into these ports to link the Transmitter to the computer.
Page 77: Ke6940Ait (Transmitter) Rear View
KVM over IP Matrix System User Manual KE6940AiT (Transmitter) Rear View 9 10 Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 78 Chapter 1. Introduction Component Description Function Switch Use this slide switch to set the unit’s mode to:  Auto: Shared (simultaneous) KVM control of the computer at the Transmitter and Receiver console.*  RS-232 Config: The device is ready to be configured via serial commands through the RS-232 port.
Page 79: Ke6900St (Transmitter) Front, Rear And Top View
KVM over IP Matrix System User Manual KE6900ST (Transmitter) Front, Rear and Top View Front View Top View Rear View Component Description Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 80 Chapter 1. Introduction Component Description Power Jack The cable from the DC Power adapter connects here. LAN LED This LED indicates the network status.  Lights when connected to the LAN and blinks when the Ethernet connection is active:  Orange: 10 Mbps ...
Page 81: Ke8950T / Ke8952T (Transmitter) Front View
KVM over IP Matrix System User Manual KE8950T / KE8952T (Transmitter) Front View Component Description Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink). KVM Ports The USB KVM cable supplied with the package that links the Transmitter to the computer plugs into these ports.
Page 82: Ke8950T / Ke8952T (Transmitter) Rear View
Chapter 1. Introduction KE8950T / KE8952T (Transmitter) Rear View Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 83 KVM over IP Matrix System User Manual Component Description RS-232 Port This RS-232 serial port is for connecting to a serial terminal. Console Ports The unit’s USB keyboard and USB mouse plug into these ports. LAN Port The cable that connects the unit to the LAN plugs in here.
Page 84: Ke8950R / Ke8952R (Receiver) Front View
Chapter 1. Introduction KE8950R / KE8952R (Receiver) Front View POWER REMOTE LOCAL Graphics Video Component Description Power LED Lights blue to indicate the unit is turned on. LAN LED This LED indicates the network status.  Lights when connected to the LAN and blinks when the Ethernet connection is active: ...
Page 85 KVM over IP Matrix System User Manual Component Description USB Port Use this port for virtual media or a USB peripheral device. Note: 1. When using a USB disk plugged into this port, see USB Mode, page 224. 2. This USB port does not support isochronous endpoints, therefore USB peripherals that stream audio or video data, such as speakers or webcams, will not work.
Page 86: Ke8950R / Ke8952R (Receiver) Rear View
Chapter 1. Introduction KE8950R / KE8952R (Receiver) Rear View Component Description Grounding The wire used to ground the unit connects here. Terminal Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 87 KVM over IP Matrix System User Manual Component Description Console Ports The unit’s USB keyboard and USB mouse plug into these ports. When using a keyboard or mouse with special functions, see USB Mode, page 224. LAN Port The cable that connects the unit to the LAN plugs in here. This port is PoE enabled* for KE8952 for power redundancy or cable management.
Page 88: Ke8900St (Transmitter) Front, Rear And Side View
Chapter 1. Introduction KE8900ST (Transmitter) Front, Rear and Side View Component Description Reset This switch must be pushed with a thin object, such as the end of a paper clip.  Press and release to reboot the device.  Power off, hold reset then power on the device while pressing reset to recover from a firmware upgrade failure.
Page 89 KVM over IP Matrix System User Manual Component Description LAN LED This LED indicates the network status.  Lights when connected to the LAN and blinks when the Ethernet connection is active:  Orange: 10 Mbps  Orange + Green: 100 Mbps ...
Page 90: Ke8900Sr (Receiver) Front, Rear And Side View
Chapter 1. Introduction KE8900SR (Receiver) Front, Rear and Side View Component Description USB Peripheral Use this port for virtual media or a USB peripheral device. Port Note: 1. When using a USB disk plugged into this port, see USB Mode, page 224. 2.
Page 91 KVM over IP Matrix System User Manual Component Description Reset This switch must be pushed with a thin object, such as the end of a paper clip.  Press and release to reboot the device.  Power off, hold reset then power on the device while pressing reset to recover from a firmware upgrade failure.
Page 92: Ke9900St (Transmitter) Front, Rear And Side View
Chapter 1. Introduction KE9900ST (Transmitter) Front, Rear and Side View Component Description Reset This switch must be pushed with a thin object, such as the end of a paper clip.  Press and release to reboot the device.  Power off, hold reset then power on the device while pressing reset to recover from a firmware upgrade failure.
Page 93 KVM over IP Matrix System User Manual Component Description LAN LED This LED indicates the network status.  Lights when connected to the LAN and blinks when the Ethernet connection is active:  Orange: 10 Mbps  Orange + Green: 100 Mbps ...
Page 94: Ke9950T / Ke9952T (Transmitter) Front View
Chapter 1. Introduction KE9950T / KE9952T (Transmitter) Front View Component Description Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink). KVM Ports The USB KVM cable supplied with the package that links the Transmitter to the computer plugs into these ports.
Page 95: Ke9950T / Ke9952T (Transmitter) Rear View
KVM over IP Matrix System User Manual KE9950T / KE9952T (Transmitter) Rear View Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 96 Chapter 1. Introduction Component Description RS-232 Port This RS-232 serial port is for connecting to a serial terminal. Console Ports The unit’s USB keyboard and USB mouse plug into these ports. LAN Port The cable that connects the unit to the LAN plugs in here.

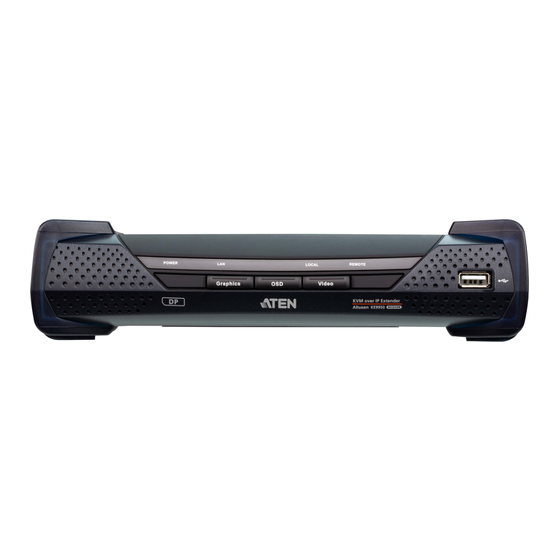

Page 97: Ke9950R / Ke9952R (Receiver) Front View
KVM over IP Matrix System User Manual KE9950R / KE9952R (Receiver) Front View POWER REMOTE LOCAL Graphics Video Component Description Power LED Lights blue to indicate the unit is turned on. LAN LED This LED indicates the network status.  Lights when connected to the LAN and blinks when the Ethernet connection is active: ...
Page 98: Ke9950R / Ke9952R (Receiver) Rear View
Chapter 1. Introduction KE9950R / KE9952R (Receiver) Rear View Component Description Grounding Terminal The wire used to ground the unit connects here. Reset This switch must be pushed with a thin object, such as the end of a paper clip. ...
Page 99: Poe Power Redundancy
KVM over IP Matrix System User Manual Component Description RS-232 Port This RS-232 serial port is for connecting to a serial terminal. Console Ports The unit’s USB keyboard and USB mouse plug into these ports. LAN Port The cable that connects the unit to the LAN plugs in here.
Page 100: Hardware Setup
Chapter 2 Hardware Setup 1. Important safety information regarding the placement of this device is found on page 339. Please review it before proceeding. 2. Make sure that the power to all devices connected to the installation is turned off. You must unplug the power cords of any computers that have the Keyboard Power On function.
Page 101: Attaching The Bracket
KVM over IP Matrix System User Manual Attaching the Bracket Follow the steps below to attach the mounting bracket to the unit: Non-Slim Transmitters Note: Steps for the non-slim transmitters (KE6900, KE6900A, KE6900AiT, KE6910, KE6912, KE6920, KE6922, KE6940, KE6940A, KE6940AiT, KE8950, KE8952, KE9950, and KE9952) are the same and KE6900 will be shown in the steps below.
Page 102: Slim Transmitters - Ke6900St
Chapter 2. Hardware Setup Slim Transmitters - KE6900ST Using the screws provided in the Mounting Kit, screw the mounting bracket into the bottom of the Transmitter as show below: M3 x 5 Slim Transmitters - KE8900ST / KE9900ST KE8900ST is used in the diagrams below. 1.
Page 103 KVM over IP Matrix System User Manual 2. Use the screws from step 1 to screw the mounting bracket to the bottom of the Transmitter as shown below: M3 x 5...
Page 104: Rack Mount
Chapter 2. Hardware Setup Rack Mount Non-Slim Transmitters Note: Steps for the non-slim transmitters (KE6900, KE6900A, KE6900AiT, KE6910, KE6912, KE6920, KE6922, KE6940, KE6940A, KE6940AiT, KE8950, KE8952, KE9950, and KE9952) are the same and KE6900 will be shown in the steps below. Screw the bracket into a convenient location on the rack.
Page 105: Slim Transmitters - Ke6900St
KVM over IP Matrix System User Manual Slim Transmitters - KE6900ST Screw the bracket into a convenient location on the rack. Note: Rack screws are not provided. We recommend that you use M5 x 12 Phillips Type I cross recessed type screws. Slim Transmitters - KE8900ST / KE9900ST Screw the mounting bracket to any convenient location on the rack.
Page 106: Wall Mounting
Chapter 2. Hardware Setup Wall Mounting Non-Slim Transmitters Note: Steps for the non-slim transmitters (KE6900, KE6900A, KE6900AiT, KE6910, KE6912, KE6920, KE6922, KE6940, KE6940A, KE6940AiT, KE8950, KE8952, KE9950, and KE9952) are the same and KE6900 will be shown in the steps below. Use the center hole to screw the bracket to a secure wall surface.
Page 107: Slim Transmitters - Ke6900St
KVM over IP Matrix System User Manual Slim Transmitters - KE6900ST Use the center hole to screw the bracket to a secure wall surface. Slim Transmitters - KE8900ST / KE9900ST Use the mounting bracket’s center screw hole to mount the unit on a wall.
Page 108: Ke6900 / Ke6940 Point-To-Point Installation
Chapter 2. Hardware Setup KE6900 / KE6940 Point-to-Point Installation Setting up the KE6900 / KE6940 system in a point-to-point configuration is simply a matter of plugging in the cables. Note: In a point-to-point configuration, no administrator setup is necessary. Make sure that all the equipment is powered off. Refer to the installation diagrams on the next two pages and do the following: 1.
Page 109: Ke6900 / Ke6940 Point-To-Point Installation 1 Of 2
KVM over IP Matrix System User Manual KE6900 / KE6940 Point-to-Point Installation 1 of 2 Cat 5e/6 cable KE6900T Cat 5e/6 cable KE6900R Note: The diagram above shows the KE6900T and KE6900R. The KE6940 installation is the same except that an additional DVI monitor can be connected at each end for a dual-view display setup.
Page 110: Ke6900 / Ke6940 Point-To-Point Installation 2 Of 2
Chapter 2. Hardware Setup KE6900 / KE6940 Point-to-Point Installation 2 of 2 KE6900T Local PC USB KVM cable Note: The serial port on the Transmitter (shown above) connects to the computer; the serial port on the Receiver (not shown) connects to a serial device (optional).
Page 111: Ke6900A / Ke6940A Point-To-Point Installation
KVM over IP Matrix System User Manual KE6900A / KE6940A Point-to-Point Installation Setting up the KE6900A / KE6940A system in a point-to-point configuration is simply a matter of plugging in the cables. Note: In a point-to-point configuration, no administrator setup is necessary. Make sure that all the equipment is powered off.
Page 112: Ke6900A / Ke6940A Point-To-Point Installation 1 Of 2
2. A keyboard or mouse with special functions may need to use the USB ports for advanced features to work (see USB Mode, page 224). 3. The SFP module 2A-136G / 2A-137G is sold separately. Contact your ATEN dealer for product information. KE6900A / KE6940A Point-to-Point Installation 1 of 2 Optical Fiber Cable...
Page 113: Ke6900A / Ke6940A Point-To-Point Installation 2 Of 2
KVM over IP Matrix System User Manual KE6900A / KE6940A Point-to-Point Installation 2 of 2 KE6900AT (Front) USB DVI-D KVM cable Note: The serial port on the Transmitter (shown above) connects to the computer; the serial port on the Receiver (not shown) connects to a serial device (optional).
Page 114: Ke6900Ait / Ke6940Ait Point-To-Point Installation
Chapter 2. Hardware Setup KE6900AiT / KE6940AiT Point-to-Point Installation Setting up the KE6940AiT system in a point-to-point configuration is simply a matter of plugging in the cables. Since this is a transmitter-receiver setup, we will demonstrate using a KE6940AR. Note: In a point-to-point configuration, no administrator setup is necessary. It is highly recommended that the AiT unit(s) is mounted on a system rack or on a wall and avoid stacked setup to ensure proper ventilation.
Page 115: Ke6940Ait Point-To-Point Installation 1 Of 2
Note: 1. For advanced features when connecting a keyboard or mouse with special functions, see USB Mode, page 224. 2. The SFP module 2A-136G / 2A-137G is sold separately. Contact your ATEN dealer for product information. KE6940AiT Point-to-Point Installation 1 of 2 Optical Fiber Cable...
Page 116: Ke6940Ait Point-To-Point Installation 2 Of 2
Chapter 2. Hardware Setup Note: The diagram above shows the KE6940AiT setup with a KE6940AR. The KE6900AiT installation is the same except with one less DVI monitor setup. KE6940AiT Point-to-Point Installation 2 of 2 KE6940AiT (Front) USB DVI-D KVM cable Note: The serial port on the Transmitter (shown above) connects to the computer;...
Page 117: Ke6910 / Ke6912 Point-To-Point Installation
KVM over IP Matrix System User Manual KE6910 / KE6912 Point-to-Point Installation Setting up the KE6910 / KE6912 system in a point-to-point configuration is simply a matter of plugging in the cables. Note: In a point-to-point configuration, no administrator setup is necessary. Make sure that all the equipment is powered off.
Page 118: Ke6910 / Ke6912 Point-To-Point Installation 1 Of 2
ATEN dealer for product information. 2. Available for KE6910T and KE6910R only. The second power adapter with the power cord is sold separately. Contact your ATEN dealer for product information. Power redundancy for KE6912T and KE6912R can be achieved with the PoE function.
Page 119: Ke6910 / Ke6912 Point-To-Point Installation 2 Of 2
KVM over IP Matrix System User Manual KE6910 / KE6912 Point-to-Point Installation 2 of 2...
Page 120: Ke6920 / Ke6922 Point-To-Point Installation
Chapter 2. Hardware Setup KE6920 / KE6922 Point-to-Point Installation Setting up the KE6920 / KE6922 system in a point-to-point configuration is simply a matter of plugging in the cables. Note: In a point-to-point configuration, no administrator setup is necessary. Make sure that all the equipment is powered off. Refer to the installation diagrams on the next two pages and do the following: 1.
Page 121: Ke6920 / Ke6922 Point-To-Point Installation 1 Of 2
ATEN dealer for product information. 2. Available for KE6920T and KE6920R only. The second power adapter with the power cord is sold separately. Contact your ATEN dealer for product information. Power redundancy for KE6922T and KE6922R can be achieved with the PoE function.
Page 122: Ke6920 / Ke6922 Point-To-Point Installation 2 Of 2
Chapter 2. Hardware Setup KE6920 / KE6922 Point-to-Point Installation 2 of 2 KE6920T (Front) USB DVI-D KVM cable...
Page 123: Ke8950 / Ke8952 Point-To-Point Installation
9. Plug the second power adapter into an AC source; then plug the other end into the KE8950R / KE8952R's power jack.* 10. Power on the computer. Note: Power adapters are not provided with KE8952 units. Please contact your ATEN dealer to purchase additional power adapters.
Page 124: Ke8950 / Ke8952 Point-To-Point Installation 1 Of 2
Optical Fiber Cable KE8950R (Rear) DC 5V Note: Power adapters are not provided with the KE8952. Please contact your ATEN dealer to purchase additional power adapters, or use the Power over Ethernet (PoE) feature to supply power to the KE8952.
Page 125: Ke8950 / Ke8952 Point-To-Point Installation 2 Of 2
KVM over IP Matrix System User Manual KE8950 / KE8952 Point-to-Point Installation 2 of 2 KE8950T (Front) Local PC USB HDMI KVM Cable Note: The serial port on the Transmitter (shown above) connects to the computer; the serial port on the Receiver (not shown) connects to a serial device (optional).
Page 126: Ke6900St Point-To-Point Installation
Chapter 2. Hardware Setup KE6900ST Point-to-Point Installation The KE6900ST DVI KVM over IP Extender Lite is a cost saving alternative for installations with Transmitters that don’t need a local console or audio transmission but want the connectivity features of advanced KE models. Setting up the KE6900ST system in a point-to-point configuration is simply a matter of plugging in the cables.
Page 127 KVM over IP Matrix System User Manual Cat 5e/5 cable KE6900ST (Front) KE6900ST (Rear) Local PC USB KVM cable KE6900R...
Page 128: Ke8900S Point-To-Point Installation
Chapter 2. Hardware Setup KE8900S Point-to-Point Installation The KE8900S Slim HDMI KVM over IP Extender is a cost saving alternative for installations that don’t need a local console or audio transmission but want the connectivity features of advanced KE models. Setting up the KE8900S system in a point-to-point configuration is simply a matter of plugging in the cables.
Page 129 KVM over IP Matrix System User Manual KE8900ST (Rear) DC 5V KE8900SR (Rear) DC 5V KE8900SR (Front)
Page 130: Ke9900St Point-To-Point Installation
Chapter 2. Hardware Setup KE9900ST Point-to-Point Installation The KE9900ST DisplayPort KVM over IP Extender Lite is a cost saving alternative for installations with Transmitters that don’t need a local console or audio transmission but want the connectivity features of advanced KE models. Setting up the KE9900ST system in a point-to-point configuration is simply a matter of plugging in the cables.
Page 131 KVM over IP Matrix System User Manual of directly between two KE Series devices. As an example, please refer to KE6900 / KE6940 LAN Installation. KE9900ST (Rear) DC 5V KE8900SR (Rear) DC 5V KE8900SR (Front)
Page 132: Ke9950 / Ke9952 Point-To-Point Installation
Chapter 2. Hardware Setup KE9950 / KE9952 Point-to-Point Installation Setting up the KE9950 / KE9952 system in a point-to-point configuration is simply a matter of plugging in the cables. Note: In a point-to-point configuration, no administrator setup is necessary. Make sure that all the equipment is powered off. Refer to the installation diagrams on the next two pages and do the following: 1.
Page 133: Ke9950 / Ke9952 Point-To-Point Installation 1 Of 2
ATEN dealer for product information. 2. Available for KE9950T and KE9950R only. The second power adapter with the power cord is sold separately. Contact your ATEN dealer for product information. Power redundancy for KE9952T and KE9952R can be achieved with the PoE function.
Page 134: Ke9950 / Ke9952 Point-To-Point Installation 2 Of 2
Chapter 2. Hardware Setup Note: Power adapters are not provided with the KE9952. Please contact your ATEN dealer to purchase additional power adapters, or use the Power over Ethernet (PoE) feature to supply power to the KE9952. KE9950 / KE9952 Point-to-Point Installation 2 of 2 Note: The serial port on the Transmitter (shown above) connects to the computer;...
Page 135: Ke6900 / Ke6940 Lan Installation
KVM over IP Matrix System User Manual KE6900 / KE6940 LAN Installation Setting up the units on a network allows point-to-point, point-to-multipoint, and multipoint-to-multipoint computer to console operation by connecting multiple KE6900 / KE6900ST / KE6940 devices on the same TCP/IP LAN. Prior to setup we recommended laying out the plans for your KE installation using our performance guide (see Keys to Network Performance, page 387).
Page 136 Chapter 2. Hardware Setup 4. For control of serial devices, connect the RS-232 serial port on the Transmitter to a serial port on the computer. 5. Use a Cat 5e/6 cable to connect the KE6900T / KE6940T’s LAN port to the local area TCP/IP network.
Page 137: Ke6900 / Ke6940 Network Installation Diagram 1 Of 2
KVM over IP Matrix System User Manual KE6900 / KE6940 Network Installation Diagram 1 of 2 Cat 5e/6 cable KE6900T TCP/IP Cat 5e/6 cable KE6900R Note: The diagram above shows the KE6900T and KE6900R. The KE6940 installation is the same except that an additional DVI monitor can be connected at each end for a dual-view display setup.
Page 138: Ke6900 / Ke6940 Network Installation Diagram 2 Of 2
Chapter 2. Hardware Setup KE6900 / KE6940 Network Installation Diagram 2 of 2 KE6900T Local PC USB KVM cable Note: The serial port on the Transmitter (shown above) connects to the computer; the serial port on the Receiver (not shown) connects to a serial device (optional).
Page 139: Ke6900A / Ke6940A Lan Installation
KVM over IP Matrix System User Manual KE6900A / KE6940A LAN Installation Setting up the units on a network allows point-to-point, point-to-multipoint, and multipoint-to-multipoint computer to console operation by connecting multiple extender devices on the same TCP/IP LAN. Prior to setup we recommended laying out the plans for your KE installation using our performance guide (see Keys to Network Performance, page 387).
Page 140: Ke6900A / Ke6940A Network Installation Diagram 1 Of 2
Chapter 2. Hardware Setup the receiver to a local area TCP/IP network. Refer to the diagrams on the following page and connect accordingly. Repeat these steps for each Transmitter and Receiver you wish to install on the network then power on the computer(s). KE6900A / KE6940A Network Installation Diagram 1 of 2 Optical Fiber Cable Cat 5e/6 cable...
Page 141: Ke6900A / Ke6940A Network Installation Diagram 2 Of 2
KVM over IP Matrix System User Manual KE6900A / KE6940A Network Installation Diagram 2 of 2 KE6900AT (Front) USB DVI-D KVM cable...
Page 142: Ke6900Ait / Ke6940Ait Lan Installation
Chapter 2. Hardware Setup KE6900AiT / KE6940AiT LAN Installation Setting up the units on a network allows point-to-point, point-to-multipoint, and multipoint-to-multipoint computer to console operation by connecting multiple extender devices on the same TCP/IP LAN. Prior to setup we recommended laying out the plans for your KE installation using our performance guide (see Keys to Network Performance, page 387).
Page 143: Ke6900Ait / Ke6940Ait Network Installation Diagram 1 Of 2
KVM over IP Matrix System User Manual Repeat these steps for each Transmitter and Receiver you wish to install on the network then power on the computer(s). Note: If you wish to use CCVSR and/or remote access with Winclient/ Javaclient, you will still need to connect the Internet Port of the KE6900AiT / KE6940AiT to an Office LAN.
Page 144: Ke6900Ait / Ke6940Ait Network Installation Diagram 2 Of 2
Chapter 2. Hardware Setup KE6900AiT / KE6940AiT Network Installation Diagram 2 of 2 KE6940AiT (Front) USB DVI-D KVM cable...
Page 145: Ke6910 / Ke6912 Lan Installation
KVM over IP Matrix System User Manual KE6910 / KE6912 LAN Installation Setting up the units on a network allows point-to-point, point-to-multipoint, and multipoint-to-multipoint computer to console operation by connecting multiple KE6910 / KE6912 devices on the same TCP/IP LAN. Prior to setup we recommended laying out the plans for your KE installation using our performance guide (see Keys to Network Performance, page 387).
Page 146: Ke6910 / Ke6912 Network Installation Diagram 1 Of 2
Chapter 2. Hardware Setup KE6910 / KE6912 Network Installation Diagram 1 of 2 Cat 5e/6 cable Optical Fiber Cable KE6910T (Rear) DC 5V TCP/IP Cat 5e/6 cable Optical Fiber Cable KE6910R (Rear) DC 5V...
Page 147: Ke6910 / Ke6912 Network Installation Diagram 2 Of 2
KVM over IP Matrix System User Manual KE6910 / KE6912 Network Installation Diagram 2 of 2 KE6910T (Front)
Page 148: Ke6920 / Ke6922 Lan Installation
Chapter 2. Hardware Setup KE6920 / KE6922 LAN Installation Setting up the units on a network allows point-to-point, point-to-multipoint, and multipoint-to-multipoint computer to console operation by connecting multiple KE6920 / KE6922 devices on the same TCP/IP LAN. Prior to setup we recommended laying out the plans for your KE installation using our performance guide (see Keys to Network Performance, page 387).
Page 149: Ke6920 / Ke6922 Network Installation Diagram 1 Of 2
PoE network switch. 3. Power adapters are not provided with KE6922 units. Please contact your ATEN dealer to purchase additional power adapters, or use the Power over Ethernet (PoE) feature to supply power to KE6922 units. 4. For specifically designed USB keyboards/mouses, see USB Mode, page 224.
Page 150: Ke6920 / Ke6922 Network Installation Diagram 2 Of 2
Chapter 2. Hardware Setup KE6920 / KE6922 Network Installation Diagram 2 of 2 KE6920T (Front) USB DVI-D KVM cable...
Page 151: Ke8950 / Ke8952 Lan Installation
KVM over IP Matrix System User Manual KE8950 / KE8952 LAN Installation Setting up the units on a network allows point-to-point, point-to-multipoint, and multipoint-to-multipoint computer to console operation by connecting multiple KE8950 / KE8952 devices on the same TCP/IP LAN. Prior to setup we recommended laying out the plans for your KE installation using our performance guide (see Keys to Network Performance, page 387).
Page 152 PoE network switch. 3. Power adapters are not provided with KE8952 units. Please contact your ATEN dealer to purchase additional power adapters, or use the Power over Ethernet (PoE) feature to supply power to KE8952 units. 4. For specifically designed USB keyboards/mouses, see USB Mode,...
Page 153: Ke8950 / Ke8952 Network Installation Diagram 1 Of 2
Optical Fiber Cable KE8950R (Rear) DC 5V Note: Power adapters are not provided with KE8952 units. Please contact your ATEN dealer to purchase additional power adapters, or use the Power over Ethernet (PoE) feature to supply power to KE8952 units.
Page 154: Ke8950 / Ke8952 Network Installation Diagram 2 Of 2
Chapter 2. Hardware Setup KE8950 / KE8952 Network Installation Diagram 2 of 2 KE8950T (Front) Local PC USB HDMI KVM Cable Note: The serial port on the Transmitter (shown above) connects to the computer; the serial port on the Receiver (not shown) connects to a serial device (optional).
Page 155: Ke9950 / Ke9952 Lan Installation
KVM over IP Matrix System User Manual KE9950 / KE9952 LAN Installation Setting up the units on a network allows point-to-point, point-to-multipoint, and multipoint-to-multipoint computer to console operation by connecting multiple KE9950 / KE9952 devices on the same TCP/IP LAN. Prior to setup we recommended laying out the plans for your KE installation using our performance guide (see Keys to Network Performance, page 387).
Page 156: Ke9950 / Ke9952 Network Installation Diagram 1 Of 2
Chapter 2. Hardware Setup KE9950 / KE9952 Network Installation Diagram 1 of 2...
Page 157: Ke9950 / Ke9952 Network Installation Diagram 2 Of 2
KVM over IP Matrix System User Manual KE9950 / KE9952 Network Installation Diagram 2 of 2...
Page 158: Network Configuration
Chapter 2. Hardware Setup Network Configuration This section provides instructions to configure the network settings with a fixed IP address, subnet mask, and default gateway. To use the IP Installer to configure the IP address, see IP Installer, page 374. Note: 1.
Page 159: Exit Osd
KVM over IP Matrix System User Manual  IP Address– sets the IP address for the KE device. Key in a valid unique IP address. Note: See Default IP Addresses, page 136, for the preconfigured factory-default settings.  Subnet Mask – sets the subnet mask for the KE device. Key in a valid subnet mask value.
Page 160: Ke I/O Ports
Chapter 2. Hardware Setup KE I/O Ports The following table provides the I/O port use of KE Series devices. Device Port Number KE Matrix Manager (TCP) HTTP 8080 HTTPS 8443 Device TCP 9110 9111 Redundancy 9120 Database Service 1527 KE Matrix Manager (UDP) Port 9110 Broadcast...
Page 161: Led Display
KVM over IP Matrix System User Manual LED Display Both the Transmitter and Receiver have front panel LEDs to indicate their operating and power status, as explained in the table below: Indication This LED indicates the network status.  Lights when connected to the LAN and blinks when the Ethernet connection is active: ...
Page 162: Osd Operation
Chapter 3 OSD Operation Overview This chapter provides instructions to configure and operate KE Series devices using the local On Screen Display (OSD). To configure the network settings with the OSD, see Network Configuration, page 135. Invoking the OSD The On Screen Display (OSD) is a keyboard/mouse-driven application on the receiver used to configure the transmitter and receiver settings.
Page 163: Osd Hotkeys
KVM over IP Matrix System User Manual OSD Hotkeys The OSD hotkeys navigate the Receiver’s OSD screens. The hotkeys work after logging in from the System Login screen (see page 161) but not the OSD Configuration screen. Pressing a hotkey will immediately take you to the corresponding OSD screen.
Page 164: Osd Interface
Chapter 3. OSD Operation OSD Interface After you invoke the OSD, the main page appears: Note: A password is required to enter the OSD. The default password is: password. For security purposes, the system will prompt you to change the password. The OSD components are described in the table below: Item Description...
Page 165: Logging In For The First Time
KVM over IP Matrix System User Manual Logging in for the First Time If you are the administrator, and are logging in for the first time (Receiver or User Preference radio button), use the default password (password). For security purposes, the system will prompt you to change the login password immediately as shown below: Click OK and change the password in the dialog box shown below: Enter the password and confirm it in the next field.
Page 166: Receiver Configuration
Chapter 3. OSD Operation Receiver Configuration When you select the Receiver radio button and click Configure to login, the Network tab appears: Network The Network tab allows you to configure the Receiver’s IP address settings: Item Description IP Installer The IP Installer is an external Windows-based utility for assigning an IP address to the device.
Page 167: Properties
KVM over IP Matrix System User Manual Properties There are two versions of Properties for KE Series, a Regular Version, and a Slim Version. The Properties tab allows you to configure the Receiver’s settings. Note: KE8900ST, KE8900SR, and KE9900ST are Slim Version. Regular Version Item Description...
Page 168 Chapter 3. OSD Operation Item Description RS232 Settings Configure the serial device settings for the Receiver. The default settings are: Baud Rate: 9600 Parity: None Data Bits: 8 bits Stop bits: 1 bit Flow Control: None Enable Media Select which type of media the Receiver can stream from Transmitters: Video, Audio, USB, and RS232.
Page 169 KVM over IP Matrix System User Manual Item Description USB Mode Select the type of USB device you will connect to the USB ports: Virtual Media: Only select this option if you are plugging a USB disk into the USB ports. This will give you the highest data transfer speeds but will not allow other USB devices plugged into the USB ports to work.
Page 170: Slim Version
Chapter 3. OSD Operation Slim Version Item Description Mode Select Extender mode for simple one-to-one (Transmitter to Receiver) setups that are managed with the Receiver’s OSD menu. Select Matrix mode to manage devices and connections from the KE Matrix Manager web GUI. This mode is for advanced administration of Transmitter to Receiver connections (see Browser / Telnet Operation, page 183).
Page 171 KVM over IP Matrix System User Manual Item Description Enable Media Select which type of media the Receiver can stream from Transmitters: Video, Audio, USB, and RS232. For KE8950 Series models, use the radio button to set the source of the audio signal: HDMI, Analog, or Both.
Page 172 Chapter 3. OSD Operation Item Description Video Quality You can select video mode or graphic mode for the video qualtiy, the Slim Version KE Series does not have a phsycial (KE8900ST / pushbutton on the front of the receiver. 8900SR / 9900ST) After entering the information, click Save.
Page 173: System
KVM over IP Matrix System User Manual System The System tab allows you to configure the Receiver’s general settings: Item Description Device Enter the Name, and Description of the Receiver. It also Information displays the IP Address, MAC Address, F/W Version, and Serial Number of the Receiver.
Page 174: Transmitter Configuration
Chapter 3. OSD Operation Transmitter Configuration When you select the Transmitter radio button and click Configure to login, the Network tab appears: Network The Network tab allows you to configure the Transmitter’s IP address settings: Item Description IP Installer The IP Installer is an external Windows-based utility for assigning an IP address to the device.
Page 175: Properties
KVM over IP Matrix System User Manual Properties The Properties tab allows you to configure the Transmitter’s extender settings: Item Description Mode Select Extender mode for simple one-to-one (Transmitter to Receiver) setups that are managed with the Receiver’s OSD menu. Select Matrix mode to manage devices and connections from the KE Matrix Manager web GUI.
Page 176 KE6900 devices to KE8950 devices.  Auto: Checks the EDID of all connected displays and the ATEN default EDID to use the best common resolution for all displays.  Manual: Manually set the EDID configuration from the Connections Page (see page 162).
Page 177 KVM over IP Matrix System User Manual Item Description Transmitter To set the Transmitter’s video settings: Video Attributes Video Type: Select the DVI video connector being used by the display: Digital (DVI-D) or Digital (DVI-I). This option is available for KE6900, KE6940, KE6900A, KE6940A units and will be grayed out for other models.
Page 178: System
Chapter 3. OSD Operation System The System tab allows you to configure the Transmitter’s general settings: Item Description Device Enter the Name and Description of the Transmitter. It also Information displays the IP Address, MAC Address, F/W Version, and Serial Number of the Transmitter.
Page 179: Internet Port (Ait Models Only)
KVM over IP Matrix System User Manual Internet Port (AiT Models only) The Internet Port tab allows you to configure the Transmitter’s Internet Port settings:...
Page 180: Ip Installer
Chapter 3. OSD Operation IP Installer The IP Installer is an external Windows-based utility for assigning IP addresses to the transmitter. Click one of the radio buttons to select Enabled, Disabled, or View Only for the IP Installer utility. See p. 374 for IP Installer details. Note: 1.
Page 181: Ipv6 Settings
KVM over IP Matrix System User Manual  To specify a fixed IP address, select the Manual radio button and fill in the IP address. Note: 1. If you choose DHCP, when the transmitter starts up it waits to get its IP address from the DHCP server.
Page 182: Ccvsr
Chapter 3. OSD Operation CCVSR Important operations occur on the transmitter can be recorded using the CCVSR program. Check Enable to enable the CCVSR function and specify the MAC address and the Service Port of the computer the CCVSR runs on. Note: The valid port range is 1–65535.
Page 183: User Preferences
KVM over IP Matrix System User Manual User Preferences When you select the User Preferences radio button and click Configure to login, the configuration screen appears: Item Description User Password This section allows you to change the OSD password: Change 1.
Page 184: Osd Matrix Mode
Chapter 3. OSD Operation OSD Matrix Mode If you set the system to Matrix mode (in Properties), you will see the System Login screen when you enter the invoke the OSD, which provides access to the Connection Page by entering a username and password: Note: 4.
Page 185: Connections Page
KVM over IP Matrix System User Manual Connections Page List Mode The Connection Page components are described in the table below: Item Description Channel Name Lists the Channel connections available for the Receiver. A Channel is a defined connection to Transmitters, created in the Device Management tab of the KE Matrix Manager (see Browser / Telnet Operation, page 183).
Page 186 Chapter 3. OSD Operation Item Description Connect To connect the Receiver to a Channel, click the access type: Exclusive: The first Receiver to access the Channel has exclusive control over the Channel. No other Receivers can view the Channel. The Timeout function does not apply to this setting.
Page 187 KVM over IP Matrix System User Manual Item Description EDID Mode When a Transmitter's EDID is configured, depending on its setting, different buttons will or won't appear to configure the Receiver's EDID for the connection. The following rules apply to the Receiver’s OSD according to the Transmitter's EDID setting: ...
Page 188: Array Mode
Chapter 3. OSD Operation Array Mode Note that Array Mode is not supported by slim KVM over IP Receivers. In Array Mode the screen is divided into a grid of panels, with each panel showing the video display of a particular Channel. Right-click a panel and select a mode to connect: E: Exclusive, O: Occupy, S: Share, V: View Only, X: Exit.
Page 189 KVM over IP Matrix System User Manual Item Description Favorites Click Favorites to list only the Channels marked as favorites. Click All to list all Channels. To add/remove a Favorite, go to List Mode, select a Channel and then right click with the mouse to select Add to Favorite or Remove from Favorite.
Page 190: Profile Page
Chapter 3. OSD Operation Profile Page Click the Profile Page tab and the following screen appears: The Profile Page components are described in the table below: Item Description Name Lists the Profiles available. Profiles give Receivers access to Channels and allow you to push the connection. Description The field provides a description of the Profile that was entered when it was created.
Page 191: Push Content
KVM over IP Matrix System User Manual Push Content Push Content allows you to push the Receiver’s computer connection to another Receiver’s console, allowing both to access to the computer. Select the Push Content tab and the following screen appears: The Push Content Page components are described in the table, below: Item Description...
Page 192 Chapter 3. OSD Operation Item Description Previous Arrow Use these two buttons to navigate to the previous page or to the beginning of the list if there are more choices available than can be seen on the page. Logout Click this button to log out of the Connection Page. Go to Configuration Click this button to return to the main OSD screen.
Page 193: Pull Content
KVM over IP Matrix System User Manual Pull Content Pull Content allows you to pull a Receiver’s computer connection to the local Receiver’s console, allowing both to access to the computer. Click the Pull Content tab and the following screen appears: The Pull Content Page components are described in the table, below: Item Description...
Page 194 Chapter 3. OSD Operation Item Description Go to Configuration Click this button to return to the main OSD screen. Window...
Page 195 KVM over IP Matrix System User Manual This Page Intentionally Left Blank...
Page 196: Software Installation
Matrix Manager Software for free and manage up to 8 KE devices, or purchase a full version of the KE Matrix Manager Software. To purchase the full version, contact your local authorized ATEN dealer. To download the free KE Matrix Manager Software, use the instructions below.
Page 197 Matrix Manager trial version will never expire. If you would like to purchase the official full version of the KE Matrix Manager software, please contact your ATEN reseller and see page 178. 5. Click the software version you would like to download, then click Save.
Page 198: Ke Matrix Manager Software Install
Chapter 4. Software Installation KE Matrix Manager Software Install The following are instructions to install the full version of the KE Matrix Manager software on a primary or secondary computer. For software requirements, see Minimum Hardware/Software Requirements, page 8. 1. Insert the USB license key into a USB port on your computer. Note: If you have more than 8 KE Series devices in your setup, a second USB license key is required to install KE Matrix Manager on a secondary computer.
Page 199 KVM over IP Matrix System User Manual If you agree with the License Agreement, select I accept the terms of the license agreement, and click Next. 4. The Choose Install Folder screen appears: Select where you would like to install the program, and click Next. 5.
Page 200 Chapter 4. Software Installation 6. The Pre-Installation Summary screen appears: Confirm the settings you’ve selected. If you want to make a change click Previous to go back, or click Install to begin the software installation. 7. When the process is done, the Install Complete screen appears: Click Done.
Page 201: Upgrading Trial Version
KVM over IP Matrix System User Manual Upgrading Trial Version After you purchase a license to upgrade the KE Matrix Manager trial version to the full version of the KE Matrix Manager software, go to the Settings - General tab (see page 247), and at the top page, select Click to Upgrade:...
Page 202: Linux Installation
Chapter 4. Software Installation Linux Installation The following are instructions to install the full version of the KE Matrix Manager software on a Linux server. For software requirements, see Minimum Hardware/Software Requirements, page 8. 1. Download the KE Matrix Manager installation file to the Linux server. 2.
Page 203 KVM over IP Matrix System User Manual If you agree with the License Agreement, select I accept the terms of the license agreement, and click Next. 6. When the Choose Install Folder screen appears, select the location and continue through the installation by clicking Next. 7.
Page 204 Chapter 4. Software Installation 10. To check and start the KE Matrix Manager service, use the following commands: Stop service: cd KeManager sudo ./Query_Service sudo ./Start_service...
Page 205 KVM over IP Matrix System User Manual This Page Intentionally Left Blank...
Page 206: Browser / Telnet Operation
Chapter 5 Browser / Telnet Operation Overview The CCKM KE Matrix Manager Software can be accessed through most standard web browsers and via Telnet. Once users log in and are authenticated, the browser GUI comes up. The first section explains the login procedure and web browser components.
Page 207 KVM over IP Matrix System User Manual Note: Only administrator accounts can be used to login. By default, the username and password are administrator and password, respectively. 4. For security purposes, the system will prompt you to change the password immediately.
Page 208: The Ke Matrix Manager Main Page
Chapter 5. Browser / Telnet Operation The KE Matrix Manager Main Page After you have successfully logged in, the web browser’s main page appears: Web Components The web components are described in the table below: Item Description Install Wizard This icon helps you locate Transmitters/Receivers on the LAN to add them to the KE Matrix Manager (see Installation Wizard, page 187).
Page 209 KVM over IP Matrix System User Manual Interactive Display Panel The functions associated with each of the icons on the main Interactive Display Panel are explained in the table below: Icon Function System Status: System Status provides an overview of the transmitter, receiver, user, profile, and log status.
Page 210: Installation Wizard
Chapter 5. Browser / Telnet Operation Installation Wizard Use the Install Wizard to add Transmitters and Receivers to the CCKM. The wizard locates devices on the network and walks you through adding them. To add devices, do the following: 1. Connect all Transmitters and Receivers to the LAN. 2.
Page 211 KVM over IP Matrix System User Manual 5. Under Assign IP Address select an option to configure the network settings, then click Next. Item Description IP Range Select the IP Range radio button to enter a series of static IP addresses to assign to the Transmitters/ Receivers that you are adding.
Page 212 Chapter 5. Browser / Telnet Operation 7. Confirm each Transmitter’s Name, IP Address, Audio setting and check the boxes to set Permissions*, then click Next and repeat the process for Receivers. Note: See Transmitter Permissions, page 218, and Receiver Permissions, page 231 for information about setting permissions.
Page 213: Instant Link
KVM over IP Matrix System User Manual Instant Link At the bottom of the KE Matrix Manager Main Page is the Instant Link bar. In this section you can quickly connect Receivers to Transmitters. The top panel provides the Receiver List, and the bottom panel provides the Transmitter List.
Page 214 Chapter 5. Browser / Telnet Operation Item Description Click this icon to show only video wall Receivers. Click this icon to show only Receiver Group Receivers. Access Mode Click a device and use the drop-down box to set the access mode: Occupy, View Only, or Exclusive. Auto Apply Checking this box allows you to drag and drop devices and apply the connection immediately without having to...
Page 215: Rs-232 / Telnet
KVM over IP Matrix System User Manual RS-232 / Telnet The KE Series can be operated and configured via a remote terminal session using Telnet. This is a useful means for configuring devices when they are first setup and connected to the network. Telnet To log into the KE Series device by means of a Telnet session, do the following:...
Page 216 Chapter 5. Browser / Telnet Operation RS-232 To log into the KE Series device by means of a RS-232 session, do the following: 1. The controller’s serial port should be configured the same as the Receiver’s default configuration, as shown below: Baud Rate 9600 Data Bits...
Page 217: Configuration Menu
KVM over IP Matrix System User Manual Configuration Menu Once a Telnet connection to the KE device is established, the device’s text- based Configuration Menu comes up, allowing you to select options by entering a number on the following screens: Main Menu +++++++++++++++++++++++++++++++++++++++++++++++ KE6900 Receiver...
Page 218: Network
Chapter 5. Browser / Telnet Operation 1. Network +++++++++++++++++++++++++++++++++++++++++++++++ KE6900 Receiver -- -- -- -- -- -- -- -- -- Network Settings +++++++++++++++++++++++++++++++++++++++++++++++ 1. IP Installer [Enabled] 2. DHCP [Disabled] 3. IP Address [172.17.17.34] 4. Subnet Mask [255.255.255.0] 5. Default Gateway [172.17.17.254] Q.
Page 219: System
KVM over IP Matrix System User Manual 3. System +++++++++++++++++++++++++++++++++++++++++++++++ KE6900 Receiver -- -- -- -- -- -- -- -- -- System Setting +++++++++++++++++++++++++++++++++++++++++++++++ 1. Device Name [KE6900R] 2. Device Description [Receiver1] Device IP Address: 172.17.17.34 Device MAC Address: 00:10:74:A8:01:23 Device FW Version: V1.1.109 Device Serial Number: 3.
Page 220: System Status
Chapter 6. System Status Chapter 6 System Status Overview The System Status panel is found at the top of the KE Matrix Manager Main Page. This section provides status information about Transmitters, Receivers, Users, Profiles and Logs. Click on a selection to open a Settings page, which are discussed in the sections that follow.
Page 221: System Status
KVM over IP Matrix System User Manual System Status The System Status panel has five sections that provide information and a link to each settings page. Each settings page can be accessed by Clicking within the section: Transmitter, Receiver, Users, Profile or Log. Each section is explained in the table below and the Settings on the pages that follow.
Page 222 Chapter 6. System Status Item Description Users This section provides an overview of users with KE Matrix Manager sessions:  On-line: Shows the number of users that are logged into OSD or KE Matrix Manager web sessions.  Idle: Shows the number of users not logged into OSD or KE Matrix Manager web sessions.
Page 223: Transmitter
KVM over IP Matrix System User Manual Transmitter Click Transmitter in the System Status panel to open the settings. On this page you can add, delete and configure Transmitters (physical transmitters), Virtual Transmitters (multi-source) and Transmitter Groups (multi-video source). The KE Matrix Manager automatically adds Transmitters connected to the local area network with a valid IP address.
Page 224 Chapter 6. System Status Select a Location and click this icon to change the name.  Click to delete selected Transmitters.  Click an option to have selected Transmitters:  Copy & Paste: Copy settings from one Transmitter and paste ...
Page 225: Transmitter Configuration
KVM over IP Matrix System User Manual Transmitter Configuration When the KE Matrix Manager discovers Transmitters on the network they appear on the Transmitter settings page. Double-click a Transmitter to configure its settings. Note: For transmitter models with Internet Port (AiT models), the settings page above is under the “Main”...
Page 226 Chapter 6. System Status Item Description Basic Device Name: Enter a name for the Transmitter. Description: Enter a description for the Transmitter. Location: Use the drop-down menu to select a Location for the device. Locations filter the Transmitters seen on the settings page. Mode: Use the radio button to select how the Transmitter will be installed and managed: ...
Page 227 Receiver’s OSD (see EDID Mode, page 164).  Remix: Manually checks the EDID of all connected displays and the ATEN default EDID to use the best common resolution for all displays (see EDID Mode, page 164). Multicast Video: Select Enable to allow a broadcast of the Transmitter’s video signal to be sent to multiple Receivers.
Page 228 Chapter 6. System Status Item Description Video Settings These refer to the Transmitter’s video settings: Video Type: Select the DVI video connector being used by the display: Digital (DVI-D) or Digital (DVI-I). This option is only available for KE6900 units. Color Depth: Select the number of bits to use for the color depth: 24, 16, or 8.
Page 229 KVM over IP Matrix System User Manual Item Description Replace Device Click Replace Device in the top left corner to replace an old Transmitter with a new one.* All settings are copied from the old Transmitter to the new Transmitter. Before using this feature, connect the new Transmitter to the network.
Page 230: Internet Port (Ait Models Only)
Chapter 6. System Status Internet Port (AiT models only) For transmitter models (AiT models) with Internet Port, an “Internet Port tab” is available for configuration.
Page 231: Basic
KVM over IP Matrix System User Manual Basic  IP Installer The IP Installer is an external Windows-based utility for assigning IP addresses to the transmitter. Click one of the radio buttons to select Enabled, Disabled, or View Only for the IP Installer utility. See p. 374 for IP Installer details. Note: 1.
Page 232: Ccvsr
Chapter 6. System Status CCVSR Important operations occur on the transmitter can be recorded using the CCVSR program. Check Enable to enable the CCVSR function and specify the MAC address and the Service Port of the computer the CCVSR runs on. Note: The valid port range is 1–65535.
Page 233: Ipv6 Settings
For enhanced security, the Private Certificate section allows you to use your own private encryption key and signed certificate, rather than the default ATEN certificate. There are two methods for establishing your private certificate: generating a self-signed certificate and importing a third-party certificate authority (CA) signed certificate.
Page 234: Certificate Signing Request
Chapter 6. System Status Generating a Self-Signed Certificate If you wish to create your own self-signed certificate, a free utility – openssl.exe – is available for download over the web. See Self-Signed Private Certificates, page 376 for details about using OpenSSL to generate your own private key and SSL certificate.
Page 235 KVM over IP Matrix System User Manual 2. Fill in the form – with entries that are valid for your site – according to the example information in the following table: Information Example Country (2 letter code) State or Province Taiwan Locality Taipei...
Page 236 Chapter 6. System Status Note: When you upload the file, the transmitter checks the file to make sure the specified information still matches. If it does, the file is accepted; if not, it is rejected. If you want to remove the certificate (to replace it with a new one because of a domain name change, for example), simply click Remove CSR.
Page 237: Copy & Paste
KVM over IP Matrix System User Manual Copy & Paste Copy & Paste allows you to copy settings from one Transmitter and paste them to another. To copy Transmitter settings to another device, do the following: 1. Select a Physical Transmitter. 2.
Page 238: Virtual Transmitter
Chapter 6. System Status Virtual Transmitter Creating a Virtual Transmitter allows you to create one connection that sources media (KVM, audio, USB, serial) from different Transmitters. Virtual Transmitters appear on the Transmitter settings page with Virtual TX in the top right corner. Simply select an online Transmitter for each media source. Dual Display Transmitters can be added as two separate Virtual Transmitters.
Page 239: Intelligent Dual Video Output Management
KVM over IP Matrix System User Manual Intelligent Dual Video Output Management For the A models (KE6900A, KE6940A), the Intelligent Dual Video Output Management feature allows the separation of a Dual Display Transmitter’s (KE6940AT) video outputs (DVI:1 and DVI:2) as two separate Virtual Transmitters.
Page 240: Transmitter Group
Chapter 6. System Status Transmitter Group Creating a Transmitter Group allows you to create a connection that sources the video from multiple Transmitters to view at across multiple Receiver displays. To use this feature, connect a Transmitter Group to a Receiver Group (page 227).
Page 241: Transmitter Permissions
KVM over IP Matrix System User Manual Transmitter Permissions Transmitter Permissions sets the users and groups that can access a Transmitter, Virtual Transmitter, and Transmitter Group. Select a device under Transmitter List, and then next to each user or group click All, View, Occupy, or Exclusive to grant them permission to connect to the Transmitter with this access type.
Page 242 Chapter 6. System Status Item Description Access Type Exclusive: The first user to access the Transmitter has exclusive control over the Transmitter. No other users can view the Transmitter. The Timeout function does not apply when Transmitters are accessed with this setting. Apply Click Apply to save the changes.
Page 243: Receiver
KVM over IP Matrix System User Manual Receiver Click Receiver in the System Status panel to open the settings. The Receiver page allows you to add, delete and configure Receivers (physical receivers), Receiver Groups, and Video Walls. The KE Matrix Manager automatically adds Receivers connected to the local area network with a valid IP address.
Page 244 Chapter 6. System Status Select a Location and click this icon to change the name.  Click to delete selected Receivers.  Click an option to have selected Receivers:  Copy & Paste: Copy settings from one Receiver and paste them ...
Page 245: Receiver Configuration
KVM over IP Matrix System User Manual Receiver Configuration When the KE Matrix Manager discovers Receivers on the network they appear on the Receiver settings page. Double-click a Transmitter to configure its settings.
Page 246 Chapter 6. System Status Item Description Basic Device Name: Enter a name for the Receiver. Description: Enter a description for the Receiver. Location: Use the drop-down menu to select a Location for the device. Locations help organize how you view Receivers on the settings page.
Page 247 KVM over IP Matrix System User Manual Item Description IP Settings For dynamic IP address assignment, select the DHCP radio button. To specify a fixed IP Address, Subnet Mask, and Default Gateway select the Manual radio button and fill in the fields with values appropriate for your network.
Page 248 Chapter 6. System Status Item Description Replace Device Click Replace Device in the top left corner to replace an old Receiver with a new one.* All settings are copied from the old Receiver to the new Receiver. Before using this feature, connect the new Receiver to the network.
Page 249: Copy & Paste
KVM over IP Matrix System User Manual Copy & Paste Copy & Paste allows you to copy settings from one Receiver and paste them to another. To copy Receiver settings to another device, do the following: 1. Select a Physical Receiver. 2.
Page 250: Receiver Group
Chapter 6. System Status Receiver Group Creating a Receiver Group allows you to connect the video from multiple transmitters to multiple Receiver displays. To use this feature, connect a Transmitter Group (page 217) to a Receiver Group (see Instant Link, page 190).
Page 251: Video Wall
KVM over IP Matrix System User Manual Video Wall Creating a Video Wall allows you to create connections that combine Receiver displays to form a large video wall. Use the options to group multiple Receivers in the video wall. A video wall can contain multiple forms of single displays and grouped displays in various layouts.
Page 252 Chapter 6. System Status Item Description Bezel Dimension Use the two boxes to increase/decrease the frame size of each active display. Lock / Unlock Click the monitor to Lock the (2) bezel settings, so that when one size is changed they all change. Click the monitor to Unlock the (2) bezel settings, so that each size can be set independently.
Page 253 KVM over IP Matrix System User Manual Item Description Boundless Switching Enable this feature to allow you to switch KVM control between different receivers by moving the mouse cursor across screen boundaries. This option is disabled by default. When Boundless Switching is enabled, make sure to disable the following settings: ...
Page 254: Receiver Permissions
Chapter 6. System Status Receiver Permissions Receiver Permissions sets which users and groups can access a Receiver. Select a device under the Receiver List, and then click under Operation to grant a user or group permission to access the device. This will allow the user to login to the Receiver’s OSD menu to access the Connections tab.
Page 255: Account
KVM over IP Matrix System User Manual Account Click Users in the System Status panel to open the settings. The Account page allows you to add, delete and configure users and groups. Instructions for adding users and groups is provide on page 233. The Users and Group buttons appear at the top of the page.
Page 256: Users
Chapter 6. System Status Users The KE Matrix Manager supports three types of accounts, shown in the table below: User Type Role Administrator Access, push/pull and management of the KE Matrix Manager, including configuration and setting up of devices. Manage Users, Groups, Transmitters, Receivers, Profiles and Video Walls.
Page 257 KVM over IP Matrix System User Manual Enter the required information in the fields provided. A description of each is given in the table below: Field Description Username From 1 to 32 characters are allowed depending on the Account Policy settings. Local User Check the Local User box if the account is for logging in to the KE Matrix Manager software or a Receiver.
Page 258: Modifying Users
Chapter 6. System Status Field Description OSD Title Bar This function is only supported by KE6910/KE6912. Duration When the accessing a port, the top left-hand corner will show a title bar displaying the access mode and the device name. Select how long you wish the title bar is to be displayed for, or check Disable to not show any title bar.
Page 259: Groups
KVM over IP Matrix System User Manual Groups Groups allow administrators to easily and efficiently manage users and devices. Since device access rights apply to anyone who is a member of the group, administrators need only set them once for the group, instead of having to set them for each user individually.
Page 260: Modifying Groups
Chapter 6. System Status 6. When the Operation Succeeded message appears, click OK. 7. The new group appears in the main panel. The columns show the Group Name, Description and Members that are  in the group. Repeat the above procedure to add additional groups. Modifying Groups To modify a group, do the following: 1.
Page 261: Permissions
KVM over IP Matrix System User Manual Permissions You can assign Transmitter, Receiver and Profile permissions for users and groups from the Account page. Assigning Device Permissions To assign permissions for a user or group from the Account page, do the following: 1.
Page 262 Chapter 6. System Status Item Description Access Type Select the access you want to grant to a user or group by clicking under the heading(s) next to each device. This defines how the device can be accessed by the user or group.
Page 263: Profile
KVM over IP Matrix System User Manual Profile Click Profile in the System Status panel to open the settings. The Profile page allows you to create, run and schedule connection profiles. Profiles channel specific Receiver to Transmitter connections and can be instantly connected from the Profile page at anytime.
Page 264: Adding A Profile
Chapter 6. System Status Adding a Profile Creating a Profile allows you to quickly connect single or multiple Receiver to Transmitter connections. To add a Profile, do the following: 1. On the Profile page click and then select Create Profile. The Create Profile window appears: Item Description...
Page 265 KVM over IP Matrix System User Manual Item Description Access Mode This defines how the Transmitter in a Profile can be accessed by Receivers when multiple users attempt to access it. View Only: Receivers only have view access to the Transmitter’s video display.
Page 266 Chapter 6. System Status 4. To connect Profiles, check the box of the Profile(s) you want to connect, and click 5. To disconnect Profiles, click...
Page 267: Adding A Schedule
KVM over IP Matrix System User Manual Adding a Schedule Creating a Schedule allows you to connect Profiles at specific dates, times and intervals. To add a Schedule, do the following: 1. On the Profile page click 2. Click and then select Create Schedule. The Create Schedule window appears: Item Description...
Page 268: Log
Chapter 6. System Status Click Log in the System Status panel to open the settings. The Log page lists events that take place and provides a breakdown of the time, user, severity, device, and log information. You can change the sort order of the display by clicking on the column headings.
Page 269 KVM over IP Matrix System User Manual This Page Intentionally Left Blank...
Page 270: System Settings
Chapter 7 System Settings Overview The System Settings are accessed by clicking from the System Status page (see System Status, page 197). There are 7 tabs to configure the KE Manager system settings: General, ANMS, FW Upgrade, Redundancy, Backup/Restore, Certificates, and Sessions. General Clicking from the system status page opens the General tab, as shown...
Page 271 KVM over IP Matrix System User Manual Heading Item Description Basic KE Manager Version This provides the version of the KE Manager software. Serial Number This provides the serial number and a link to upgrade the software. KE Manager Name Enter a name for the KE Manager.
Page 272 Chapter 7. System Settings Heading Item Description Fast Switching Select the default resolution to use so that you can switch faster when changing Receiver to Transmitter connections. If the monitor you are using does not support fast switching the video may not display correctly when this setting is enabled.
Page 273: Connection Redundancy (Ke6910 / 6912 Only)
KVM over IP Matrix System User Manual Heading Item Description EDID Mode EDID Mode Use this drop-down menu to set the default EDID mode for all Transmitters. To set a different EDID mode for each Transmitter, use the drop-down menu to select Customized and then click Edit. A Transmitter list will appear with drop-down menus to configure each device’s EDID mode.
Page 274 Chapter 7. System Settings 3. For Alarm Sound, click Enable. 4. To create a new list, click New. A Priority List 1 will be shown. (Click New again to create another list.) 5. Select the transmitters you wish to be in the list from the “Available TX” list and click Add.
Page 275: Login Access Priority (Ait Models Only)
KVM over IP Matrix System User Manual To deselect the transmitter, click to select the transmitter from the “Selected TX” list and click Remove. The transmitter will be shifted back to the “Available TX” list. 6. Select a target receiver by first clicking the drop-down menu “Target RX”, and select a receiver.
Page 276 Chapter 7. System Settings viewer is inactive for longer than the time set in the Transmitter’s Timeout box, control is transferred to the first user to move the mouse or strike the keyboard. View only: User can only view the remote viewer but cannot perform operations on it.
Page 277: Anms
KVM over IP Matrix System User Manual ANMS The ANMS (Advanced Network Management Settings) tab is used to set up login authentication and authorization management from external sources. It is organized with two pages – each with a series of related panels, as described below.
Page 278 Chapter 7. System Settings 3. Key in the email address of where the report is being sent from in the From field. Note: 1. Only one email address is allowed in the From field, and it cannot exceed 64 Bytes. 2.
Page 279: Authentication & Authorization
KVM over IP Matrix System User Manual Authentication & Authorization  RADIUS Settings To allow authentication and authorization through a RADIUS server, do the following: 1. Check Enable. 2. Fill in the IP addresses and service port of the Preferred RADIUS Server and Alternate RADIUS Server.
Page 280 AD server reply before it times out. Admin DN Consult the LDAP / AD administrator to ascertain the appropriate entry for this field. For example, the entry might look like this: ou=kn4132,dc=aten,dc=com Admin Name Key in the LDAP administrator’s username. Password Key in the LDAP administrator’s password.
Page 281 KVM over IP Matrix System User Manual Note: If this method is used, the LDAP schema for MS Active Directory must be extended. Without schema – Only the Usernames used on the KE Manager are matched to the names on the LDAP / AD server. User privileges are the same as the ones configured in the KE Manager.
Page 282: Fw Upgrade
Chapter 7. System Settings FW Upgrade In FW Upgrade all KE devices that are online are listed, allowing you to select which devices get upgraded. New firmware versions can be downloaded from our website as they become available. Check the website regularly to find the latest upgrade packages.
Page 283: Firmware Upgrade Recovery
KVM over IP Matrix System User Manual or higher than the upgrade version, a popup message appears, to inform you of the situation and stops the upgrade procedure.  If you didn't enable Check FW Version, the upgrade file is installed without checking what its level is.
Page 284: Redundancy
Chapter 7. System Settings Redundancy The Redundancy tab allows you to set up a backup computer in case the computer hosting the KE Manager goes offline. If the KE Manager goes offline, the secondary computer will automatically take over operations, allowing all connections to continue without disruption –...
Page 285 KVM over IP Matrix System User Manual 7. On the primary computer, log in to the KE Manager, click and go to the Redundancy tab. 8. Check Enable Redundancy and select the Primary radio button. 9. Use the Secondary Server IP drop-down menu to select the secondary IP address.
Page 286: Backup / Restore
Chapter 7. System Settings Backup / Restore The Backup/Restore tab is divided into three panels: Backup, Restore, and Export Device List: The operations to perform backup/restore procedures are described in the table below and in the section that follows: Procedure Operation Backup Backs up theKE Manager configuration –...
Page 287: Backup
KVM over IP Matrix System User Manual Backup To back up system configuration settings, do the following: 1. (Optional) In the Backup panel, check Add Password, and provide a password for the backup file. Note: Providing a password is a security feature – if you provide a password, you will need to give the same password in order to restore the configuration settings from this file.
Page 288: Certificates
For enhanced security, the Private Certificate section allows you to use your own private encryption key and signed certificate, rather than the default ATEN certificate. There are two methods for establishing your private certificate: generating a self-signed certificate;...
Page 289: Certificate Signing Request
2. Click Browse to the right of Certificate Filename; and browse to where your certificate file is located; and select it. 3. Click Import to complete the procedure. Note: Clicking Restore Defaults returns the device to using the default ATEN certificate. Certificate Signing Request The Certificate Signing Request (CSR) section provides an automated way of obtaining and installing a CA signed SSL server certificate.
Page 290 Chapter 7. System Settings Information Example State or Province Taiwan Locality Taipei Organization Your Company, Ltd. Organization Unit Tech Department Common Name mycompany.com Note: This must be the exact domain name of the site that you want the certificate to be valid for. If the site’s domain name is www.mycompany.com, and you only specify mycompany.com, the certificate will not be valid.
Page 291: Sessions
KVM over IP Matrix System User Manual Sessions The Sessions tab shows all of the users that are logged into KE Manager and OSD sessions and provides information concerning the “who, where and when” of each session. This page also gives the administrator the option of forcing a user logout by selecting the user and clicking Kill Session next to each user.
Page 292: Connections
Chapter 8 Connections Overview The Connections panel is found on the KE Matrix Manager Main Page, just below System Status. Connections provides a diagram of current Transmitter to Receiver connections. Before connections are established the panel appears blank, as shown below. To connect Receivers to Transmitters, use the Instant Link panel (page 190), or create a connection Profile (page 240).
Page 293: Connections
KVM over IP Matrix System User Manual Connections When Receivers connect to Transmitters, they appears in the Connections panel. There are two columns – each lists either Transmitters or Receivers. The columns can be swapped by click the TX-RX or RX-TX button. Devices in the left column can be clicked to display their connection to devices, shown in the right column.
Page 294 Chapter 8. Connections Item Description Click this icon to Refresh the Transmitters and Receivers list in Connections panel. Undo Click this icon to undo the most recent disconnection.
Page 295 KVM over IP Matrix System User Manual This Page Intentionally Left Blank...
Page 296: Scheduled Profile
Chapter 9 Scheduled Profile Overview The Scheduled Profile panel is found on the KE Matrix Manager Main Page, just below Connections. Scheduled Profiles displays connection profiles that have been scheduled. Click Go to Schedule to edit and create profile schedules (page 244).
Page 297 KVM over IP Matrix System User Manual This Page Intentionally Left Blank...
Page 298: Sessions
Chapter 10 Sessions Overview The Sessions panel is found at the bottom of the KE Matrix Manager Main Page, just below Scheduled Profile. Sessions displays information about users logged into devices and the KE Matrix Manager web GUI. Click Go to Sessions to view the settings page (see page 268).
Page 299 KVM over IP Matrix System User Manual This Page Intentionally Left Blank...
Page 300 Chapter 11 Remote Viewer (AiT Models only) Introduction If the video source(s) of your AiT model is connected, the remote viewer can be used to access these video source(s) as if it were your local system. A window will be presented and the remote server is displayed inside this window.
Page 301 KVM over IP Matrix System User Manual Windows and Java Client Viewer (web access) The Windows and Java Client Viewer is accessible via a web browser. At the login screen of the Remote Viewer page, enter the username/password and click Login. You can change the login language by using the language drop-down menu.
Page 302 Chapter 11. Remote Viewer (AiT Models only) The control/access is laid out in the control panel. Refer to The Control Panel on page 283 for access/control information. By default, if you use Internet Explorer as your browser, the Windows Client viewer is used.
Page 303 KVM over IP Matrix System User Manual The Windows/Java Client AP Download To download the stand-alone Windows or Java Client program, go to the browser login page and click the Download Windows Client AP or Download Java Client AP button. Note: Make sure your system has JRE 6 Update 3 or later installed.
Page 304 Chapter 11. Remote Viewer (AiT Models only) Starting Up For the first time running the AP, right-click the Windows/Java Client AP and click “Run as administrator” to start. The Client Connection Screen is shown below and each components are described in the table. Windows Client will be the example shown here. Item Description Server List...
Page 305 KVM over IP Matrix System User Manual 2. Provide a valid Username and Password and click OK to continue. Note: The default Username is administrator and the default Password is password. After you have successfully logged in, the connection screen reappears: At this time there are two active buttons and are described in the table below: Button...
Page 306 Chapter 11. Remote Viewer (AiT Models only) The Control Panel The control panel is hidden at the upper or lower center of the screen (the default is up). It becomes visible when you move the mouse pointer over it: Note: 1. The above image shows the complete Control Panel. The icons that appear can be customized.
Page 307 KVM over IP Matrix System User Manual Control Panel Functions The Control Panel functions are described in the table below. Icon Function This is a toggle. Click to ping the Control Panel to the window where it is always displayed on top of other screen elements. Click again to have it display normally.
Page 308 Chapter 11. Remote Viewer (AiT Models only) Icon Function These icons show the Num Lock, Caps Lock, and Scroll Lock status of the remote computer.  When the lock state is On, the LED is bright orange.  When the lock state is Off, the LED is dull blue. Click on the icon to toggle the status.
Page 309 KVM over IP Matrix System User Manual Macros The Macros icon provides access to three functions found in the Macros dialog box: Hotkeys, User Macros, and System Macros. Each of these functions is described in the following sections. Hotkeys Various actions, corresponding to clicking the Control Panel icons, can be accomplished directly from the keyboard with hotkeys.
Page 310 Chapter 11. Remote Viewer (AiT Models only) To reset all the hotkeys to their default values, click Reset. An explanation of the Hotkey actions is given in the table below: Action Explanation Exit remote location Exits the remote view. This is equivalent to clicking the Exit icon on the Control Panel.
Page 311 KVM over IP Matrix System User Manual Video Settings The Video Settings dialog box allows you to adjust the placement and picture quality of the remote screen display on your monitor. The adjustment options are as follows: Option Usage Click this to control the transparency of the Video Settings dialog box.
Page 312 Chapter 11. Remote Viewer (AiT Models only) Gamma Adjustment For greater control and if it is necessary to correct the gamma level for the remote video display, use the Gamma function of the Advanced Video Settings by clicking the Advanced button. For gamma level, there are ten preset and four user-defined levels to choose from.
Page 313 KVM over IP Matrix System User Manual Option Usage Video Quality Drag the slider bar to adjust the overall video quality. The larger the value, the clearer the picture and the more video data goes through the network. Depending on the network bandwidth, a high value may adversely affect response time.
Page 314 Chapter 11. Remote Viewer (AiT Models only) Virtual Media The Virtual Media feature allows a drive, folder, image file, or removable disk on a local client computer to appear and act as if it were installed on the remote server. Virtual Media also supports a smart card reader function that allows a reader plugged into a local client computer to appear as if it were plugged into the remote server.
Page 315 KVM over IP Matrix System User Manual 2. Click Add and select the media source. Depending on your selection, additional dialog boxes appear enabling you to select the drive, file, folder, or removable disk you desire. See Virtual Media Support, page 395 for details about mounting these media types. 3.
Page 316 Chapter 11. Remote Viewer (AiT Models only) redirected to the remote system, where they show up as drives, files and folders on the remote system’s file system. Once mounted, you can treat the virtual media as if they were really on the remote server –...
Page 317 KVM over IP Matrix System User Manual Smart Card Reader Note: This feature is only available when using the WinClient Viewer or the Windows Client AP. The smart card reader function allows a reader plugged into a local client computer’s USB port to be redirected, and appear as if it were plugged into the remote server.
Page 318 Chapter 11. Remote Viewer (AiT Models only) The On-Screen Keyboard The unit supports an on-screen keyboard, available in multiple languages, with all the standard keys for each supported language. Click this icon to pop up the on-screen keyboard: One of the major advantages of the on-screen keyboard is that if the keyboard languages of the remote and local systems are not the same, you do not have to change the configuration settings for either system.
Page 319 KVM over IP Matrix System User Manual To display/hide the expanded keyboard keys, click the arrow to the right of the language list arrow. Mouse Pointer Type The CN9600 offers a number of mouse pointer options when working in the remote display. Click this icon to select the type that you would like to work with: Note: 1.
Page 320 Chapter 11. Remote Viewer (AiT Models only) Icon Function The red mark on this icon indicates that Mouse DynaSync is available but is not enabled. When Mouse DynaSync is available, clicking the icon toggles between enabled and disabled. If you choose to disable Mouse DynaSync mode, you must use the manual syncing procedures described in the next section.
Page 321 KVM over IP Matrix System User Manual Control Panel Configuration Clicking the Customize Control Panel icon brings up a dialog box that allows you to configure the items that appear on the Control Panel, as well as its graphical settings: The dialog box is organized into five main sections as described in the table below: Item...
Page 322 Chapter 11. Remote Viewer (AiT Models only) Item Description  Screen Options If Full Screen Mode is enabled, the remote display fills the entire screen.  If Full Screen Mode is not enabled, the remote display appears as a window on the client desktop. If the remote screen is larger than what is able to fit in the window, scroll bars will appear.
Page 323 KVM over IP Matrix System User Manual This Page Intentionally Left Blank...
Page 324 Check the web site regularly to find the latest packages and information relating to them: http://www.aten.com For browser based firmware upgrade, please refer to FW Upgrade on page 259. Preparation 1.
Page 325 KVM over IP Matrix System User Manual Starting the Upgrade To upgrade your firmware: 1. Run the downloaded Firmware Upgrade Package file - either by double clicking the file icon, or by opening a command line and entering the full path to it.
Page 326 Chapter 12. Firmware Upgrade Utility 4. The Utility inspects your installation. All the devices capable of being upgraded by the package are listed in the Select Master Device list. 5. After you have made your device selection, Click OK and then Next to begin the upgrade.
Page 327 KVM over IP Matrix System User Manual Upgrade Succeeded After the upgrade has completed, a screen appears to inform you that the procedure was successful:...
Page 328 Chapter 12. Firmware Upgrade Utility Firmware Upgrade Recovery If the Upgrade Succeeded screen doesn't appear or the upgrade procedure is abnormally halted (due to computer crash, power failure, etc.), the device may become inoperable. If you find that the device does not work following a failed or interrupted upgrade, do the following 1.
Page 329 KVM over IP Matrix System User Manual This Page Intentionally Left Blank...
Page 330 Chapter 13 CLI Commands Serial Control Protocol Commands The KE Series’s built-in bi-directional RS-232 serial interface and LAN port connection allows system control via Receivers through a high-end controller or PC. This control feature can also be accessed via TCP/IP through a computer running Telnet.
Page 331 KVM over IP Matrix System User Manual Device/Profile Commands When typing a device or profile into a command string, you can enter the name by: IP address (device only), ID or @ with the List number for the device/ profile in the command line interface. Note: To find out about the List number for a device/profile, execute a List command (page 324).
Page 332 Chapter 13. CLI Commands Switch Port Command The formula for Switch Port commands is as follows: Command + Output + Num1 + Input + Num2 + Mode + Stream + Connect + [Enter] 1. For example, if you want to switch the Receiver’s connection to Transmitter (192.168.0.20), type the following: sw i192.168.0.20 [Enter] 2.
Page 333 KVM over IP Matrix System User Manual The following tables show the possible values for the Switch Port commands: Command Description Switch port command Output Description Output port command (RX) Num1 Description Output port xx: Receiver ID or IP address List # zz: 1~99 To use the 4th Receiver listed in...
Page 334 Chapter 13. CLI Commands Stream Description Sets the USB source stream Sets all source streams Connect Description Connect Disconnect logout Logout OSD The following table lists the available Switch Port commands: Con- Description Command Output Num1 Input Num2 Mode Stream nect exclusive video...
Page 335 KVM over IP Matrix System User Manual Con- Description Command Output Num1 Input Num2 Mode Stream nect Switch Receiver disconnect streams, return to OSD menu. exclusive video Switch Receiver to input @zz with [mode] access share audio to stream source(s). occupy serial zz: Transmitter # by...
Page 336 Chapter 13. CLI Commands Mute Command The Mute command allows you to enable or disable the audio. The formula for the Mute command is as follows: Command + Output + Num1 + Control + [Enter] 1. For example, to turn mute off (audio on) for the Receiver, type the following: mute off [Enter] 2.
Page 337 KVM over IP Matrix System User Manual Command Output Num1 Control Description mute Turn mute on for Receiver mute Turn mute off for Receiver Note: 1. Each command string can be separated with a space. 2. The Control command string can be skipped and off will be used by default.
Page 338 Chapter 13. CLI Commands Profile Command The Profile command allows you to connect profiles and video walls. The formula for Profile commands is as follows: Command + Profile + Num1 + Control + [Enter] 1. For example, to connect profile 8 and lock the OSD menu, type the following: profile f8 [Enter] 2.
Page 339 KVM over IP Matrix System User Manual The following table lists the available Profile commands: Command Profile Num1 Control Description profile lock Connect profile xx, lock OSD access xx:1~99 profile release Connect profile xx, allow OSD access xx:1~99 profile back Disconnect profile xx and return Receiver to OSD menu...
Page 340 Receiver ID or IP address Control Description auto Checks the EDID of all connected displays and the ATEN default EDID to use the best common resolution for all displays. remix Manually checks the EDID of all connected displays and the ATEN default...
Page 341 KVM over IP Matrix System User Manual The following table lists the available EDID commands: Command Address Number Control Enter Description edid auto [Enter] Set EDID of address xx to auto. xx: Device ID or IP Address edid remix [Enter] Set EDID of address xx to remix. xx: Device ID or IP Address edid default...
Page 342 Chapter 13. CLI Commands Reset Command The Reset command allows you to reset a device back to the default factory settings. Reset includes resetting the devices IP address. Note: The Reset command resets everything but the login information to the factory default settings.
Page 343 KVM over IP Matrix System User Manual RS-232 Command The RS-232 command allows you to set the RS-232 settings for a device. The formula for the RS-232 command is as follows: Command + Address + Number + Baud Rate + Parity + Data Bit + Stop Bit + Flow Control [Enter] 1.
Page 344 Chapter 13. CLI Commands Data Bit Description Sets the data bit to 7 Sets the data bit to 8 Stop Bit Description Sets the stop bit to 1 Sets the stop bit to 2 Flow Control Description None Sets flow control to none Hardware Sets flow control to hardware Sets flow control to Xon...
Page 345 KVM over IP Matrix System User Manual Baud Data Stop Flow Address Parity Description mand Rate Control baud 9600 Set local device baud rate to 9600 baud 19200 Set local device baud rate to 19200 baud 38400 Set local device baud rate to 38400 baud...
Page 346 Chapter 13. CLI Commands OSD Command To enable or disable the On-Screen Display (OSD) menu for a Receiver, use the following command: Command + Output + Number + Control + [Enter] 1. For example, to enable the OSD for Receiver 192.168.0.51, type: osd o192.168.0.51 on [Enter] 2.
Page 347 KVM over IP Matrix System User Manual List Command The List command allows you to retrieve information about users, settings and connections. The formula for the List command is as follows: Command + Output + Input + Number + Control [Enter] 1.
Page 348 Chapter 13. CLI Commands Control Description channel Lists information about the available channel(s) profile Lists information about the available profile and TV wall connections Lists information about the Receiver login Lists information about users logged into to the OSD menu connection Lists information about a Transmitters current connections...
Page 349 KVM over IP Matrix System User Manual Read Command The Read command allows you to retrieve the properties of a device. The formula for the Read command is as follows: Command + Output + Input + Number + Control [Enter] 1.
Page 350 Chapter 13. CLI Commands Control Description basic Read basic properties network Read network properties ipsettings Read IP settings rs232 Read RS232 properties properties Read connection properties manager Read KE Matrix Manager software properties streams Read enable media properties Read source stream IP properties (Receiver) usbmode Read USB mode properties...
Page 351 KVM over IP Matrix System User Manual Comman Output Input Number Control Description read rs232 Read output or input xx RS-232 properties xx: Device ID or IP address read properties Read output or input xx connection properties xx: Device ID or IP address read manager...
Page 352 Chapter 13. CLI Commands Comman Output Input Number Control Description read basic Read [control] network properties of local ipsettings Receiver. rs232 properties manager streams usbmode Note: 1. Each command string can be separated with a space. 2. Skip the Output or Input and Number command strings to read the local Receiver properties.
Page 353 KVM over IP Matrix System User Manual Set Command The Set command allows you to configure the properties of a device. Some settings require that both the device and Matrix Manager are online or the command will fail. The formula for the Set command is as follows: Command + Output + Input + Number + Control + Value + [Enter] 1.
Page 354 Chapter 13. CLI Commands Control Description Name Sets the device name Description Sets the device description ipInstallerFlag Sets the IP installer option dhcpFlag Sets the DHCP setting ipAddr Sets the IP address netmask Sets the subnet mask Sets the default gateway modeFlag Sets the device mode BaudRate...
Page 355 KVM over IP Matrix System User Manual Control Description audioMCastEn Sets the enable multicast audio setting Edid Sets the EDID mode selection setting VideoType Sets the video type setting ColorDepth Sets the color depth setting BandwidthLimit Sets the bandwidth limit setting VideoQty Sets the video quality setting BGRefresh...
Page 356 Chapter 13. CLI Commands Comm Output Input Number Control Value Description dhcpFlag Set output or input xx dhcpFlag to yy xx: Device ID or IP address yy: dhcp, static ipAddr Set output or input xx ipAddr to yy xx: Device ID or IP address yy: IP address value netmask...
Page 357 KVM over IP Matrix System User Manual Comm Output Input Number Control Value Description StopBit Set output or input xx StopBit to yy xx: Device ID or IP address yy: 1, 1.5, 2 FlowCtrl Set output or input xx FlowCtrl to yy xx: Device ID or IP address yy: none, hardware,...
Page 358 Chapter 13. CLI Commands Comm Output Input Number Control Value Description USBEnFlag Set output or input xx USBEnFlag to yy xx: Device ID or IP address yy: enable, disable RSEnFlag Set output or input xx RSEnFlag to yy xx: Device ID or IP address yy: enable, disable ManagerIP...
Page 359 KVM over IP Matrix System User Manual Comm Output Input Number Control Value Description OSLanguage Set input xx OSLanguage to yy xx: Device ID or IP address yy: english, japanese, french, german, spanish, korean, chinese(traditional), english(uk), swedish, arabic, belgian, canadian-bilingual, french(canada), czech, danish, finnish, greek, hebrew, hungarian,...
Page 360 Chapter 13. CLI Commands Comm Output Input Number Control Value Description ColorDepth Set input xx ColorDepth to yy xx: Device ID or IP address yy: 8, 16, 24, and 36 (only for KE89 Series) BandwidthLimit Set input xx BandwidthLimit to yy xx: Device ID or IP address yy: unlimited, 100, 200,...
Page 361 KVM over IP Matrix System User Manual Comm Output Input Number Control Value Description Resolution Set input xx Resolution to yy xx: Device ID or IP address yy: 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1280x1024, 1280x960, 1280x720, 1152x864, 1024x768, 800x600, 720x400, 640x480, 2560x1080*, 3840x2160*,...
Page 362 Appendix Safety Instructions General  This product is for indoor use only.  Read all of these instructions. Save them for future reference.  Follow all warnings and instructions marked on the device.  Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
Page 363 UPS User Manual purpose of the grounding-type plug. Always follow your local/national wiring codes.  Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over. ...
Page 364 Appendix Rack Mounting  Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
Page 365 UPS User Manual Technical Support International  For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com  For telephone support, see Telephone Support, page iii. North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates...
Page 366 Appendix Specifications KE6900T / KE6940T Function KE6900T KE6940T Connectors Console Keyboard 1 x USB Type A Female (White) Ports Video 1 x DVI-I Female 2 x DVI-I Female (White) (White) Mouse 1 x USB Type A Female (White) Speaker 1 x Mini Stereo Jack Female (Green) Mic.
Page 367 UPS User Manual Function KE6900T KE6940T Physical Housing Metal Properties Weight 1.14 kg 1.15 kg Dimensions 21.50 x 16.29 x 4.18 cm (L x W x H)
Page 368 Appendix KE6900R / KE6940R Function KE6900R KE6940R Connectors USB Virtual Media 2 x USB Type A Female (White) Console Keyboard 1 x USB Type A Female (White) Ports Video 1 x DVI-I Female 2 x DVI-I Female (White) (White) Mouse 1 x USB Type A Female (White) Speaker 1 x Mini Stereo Jack Female (Green)
Page 369 UPS User Manual KE6900AT / KE6940AT Function KE6900AT KE6940AT Connectors Console Keyboard 1 x USB Type A Female (White) Ports Video 1 x DVI-I Female 2 x DVI-I Female (White) (White) Mouse 1 x USB Type A Female (White) Speaker 1 x Mini Stereo Jack Female (Green) Mic.
Page 370 Appendix Function KE6900AT KE6940AT Physical Housing Metal Properties Weight 1.15 kg (2.53 lb) 1.17 kg (2.58 lb) Dimensions 21.50 x 16.33 x 4.18 cm (L x W x H) (8.46 x 6.43 x 1.65 in.)
Page 371 UPS User Manual KE6900AR / KE6940AR Function KE6900AR KE6940AR Connectors USB Virtual Media 2 x USB Type A Female (White) Console Keyboard 1 x USB Type A Female (White) Ports Video 1 x DVI-I Female 2 x DVI-I Female (White) (White) Mouse 1 x USB Type A Female (White)
Page 372 Appendix KE6900AiT / KE6940AiT Function KE6900AiT KE6940AiT Connectors Console Keyboard 1 x USB Type A Female (White) Ports Video 1 x DVI-I Female 2 x DVI-I Female (White) (White) Mouse 1 x USB Type A Female (White) Speaker 1 x Mini Stereo Jack Female (Green) Mic.
Page 373 UPS User Manual Function KE6900AiT KE6940AiT Physical Housing Metal Properties Weight 1.16 kg (2.56 lb) 1.18 kg (2.60 lb) Dimensions 21.50 x 16.33 x 4.18 cm (L x W x H) (8.46 x 6.43 x 1.65 in.)
Page 374 Appendix KE6900ST Function KE6900ST Connectors KB / Mouse USB Type B Female (White) Ports Video 1 x DVI-D Male (White) RS-232 1 x DB-9 Female (Black) Power 1 x DC Jack (Black) 1 x RJ-45 Female (Black) Switch Reset 1 x Semi-recessed Pushbutton LEDs 1 (Green / Orange) Power...
Page 375 UPS User Manual KE6910 Function KE6910R KE6910T Connectors Virtual Media 2 x USB Type A Female (White) Console Ports 2 x USB Type A Female 2 x USB Type A Female (White) (White) 1 x DVI-D Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack 1 x Mini Stereo Jack (Green)
Page 376 Appendix Function KE6910R KE6910T Power Consumption DC 5V, 9.02 W DC 5V, 10.02 W Video Resolution Up to 2560 x 2048 @ 50 Hz Environment Operating 0–50ºC Temp. Storage -20–60ºC Temp. Humidity 0–95% RH, Non-condensing Physical Housing Metal Properties Weight 1.26 kg 1.13 kg Dimensions...
Page 377 UPS User Manual KE6912 Function KE6912R KE6912T Connectors Virtual Media 2 x USB Type A Female (White) Console Ports 2 x USB Type A Female 2 x USB Type A Female (White) (White) 1 x DVI-D Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack 1 x Mini Stereo Jack (Green)
Page 378 Appendix Function KE6912R KE6912T Power Consumption DC48V / 11.27W (PoE) DC48V / 12.53W (PoE) Video Resolution Up to 2560 x 2048 @ 50 Hz Environment Operating 0–50ºC Temp. Storage -20–60ºC Temp. Humidity 0–95% RH, Non-condensing Physical Housing Metal Properties Weight 1.28 kg 1.17 kg Dimensions...
Page 379 UPS User Manual KE6920 Function KE6920R KE6920T Connectors Virtual Media 2 x USB Type A Female (White) Console Ports 2 x USB Type A Female 2 x USB Type A Female (White) (White) 1 x DVI-D Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack 1 x Mini Stereo Jack (Green)
Page 380 Appendix Function KE6920R KE6920T Power Consumption DC 5V, 8.86 W DC 5V, 10.87 W Video Resolution Up to 2560 x 2048 @ 50 Hz / 2560 x 1600 @ 60 Hz Environment Operating 0–50ºC Temp. Storage -20–60ºC Temp. Humidity 0–95% RH, Non-condensing Physical Housing Metal...
Page 381 UPS User Manual KE6922 Function KE6922R KE6922T Connectors Virtual Media 2 x USB Type A Female (White) Console Ports 2 x USB Type A Female 2 x USB Type A Female (White) (White) 1 x DVI-D Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack 1 x Mini Stereo Jack (Green)
Page 382 Appendix Function KE6922R KE6922T Power Consumption DC48V / 11.54W DC48V / 13.59W Video Resolution Up to 2560 x 2048 @ 50 Hz / 2560 x 1600 @ 60 Hz Environment Operating 0–50ºC Temp. Storage -20–60ºC Temp. Humidity 0–95% RH, Non-condensing Physical Housing Metal...
Page 383 UPS User Manual KE8900S Function KE8900SR KE8900ST Connectors Virtual Media 2 x USB Type A Female (Black) Console Ports 2 x USB Type A Female (Black) 1 x HDMI Female (Black) 1 x DB-9 Male (Black) KVM Ports 1 x USB Type B Female (White) 1 x HDMI Female (Black) 1 x DB-9 Male (Black)
Page 384 Appendix KE8950T / KE8952T Function KE8950T KE8952T Connectors Console Keyboard 1 x USB Type A Female (White) Ports Video 1 x HDMI Female (Silver) Mouse 1 x USB Type A Female (White) Speaker 1 x Mini Stereo Jack Female (Green) Mic.
Page 385 UPS User Manual KE8950R / KE8952R Function KE8950R KE8952R Connectors USB Virtual Media 2 x USB Type A Female (White) Console Keyboard 1 x USB Type A Female (White) Ports Video 1 x HDMI Female (Silver) Mouse 1 x USB Type A Female (White) Speaker 1 x Mini Stereo Jack Female (Green) Mic.
Page 386 Appendix KE9900ST Function KE9900ST Connectors KVM Ports 1 x USB Type B Female (White) 1 x DisplayPort Female (Black) 1 x DB-9 Male (Black) Power 1 x DC Jack (Black) 1 x 3-Pole Terminal Block Connector (Green) 1 x RJ-45 (Black) Switches Reset 1 x Semi-recessed Pushbutton...
Page 387 UPS User Manual KE9950 Function KE9950R KE9950T Connectors Virtual Media 2 x USB Type A Female (White) Console Ports 2 x USB Type A Female (White) 1 x DisplayPort Female (Black) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black) KVM Ports 1 x USB Type B Female...
Page 388 Appendix Function KE9950R KE9950T Environment Operating 0–50ºC Temp. Storage -20–60ºC Temp. Humidity 0–95% RH, Non-condensing Physical Housing Metal Properties Weight 1.24 kg (2.73 lb) 1.12 kg (2.47 lb) Dimensions 22.75 x 17.16 x 5.48 cm 21.50 x 16.29 x 4.18 cm (L x W x H) (8.96 x 6.76 x 2.16 in.) (8.46 x 6.41 x 1.65 in.)
Page 389 UPS User Manual KE9952 Function KE9952R KE9952T Connectors Virtual Media 2 x USB Type A Female (White) Console Ports 2 x USB Type A Female (White) 1 x DisplayPort Female (Black) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black) KVM Ports 1 x USB Type B Female...
Page 390 Appendix Function KE9952R KE9952T Video Resolution Up to 3840 x 2160 @ 30 Hz Environment Operating 0–50ºC Temp. Storage -20–60ºC Temp. Humidity 0–95% RH, Non-condensing Physical Housing Metal Properties Weight 1.27 kg (2.8 lb) 1.15 kg (2.53 lb) Dimensions 22.75 x 17.16 x 5.48 cm 21.50 x 16.29 x 4.18 cm (L x W x H) (8.96 x 6.76 x 2.16 in.)
Page 391 UPS User Manual Optional Rack Mounting For convenience and flexibility, three optional rack mounting kits are available as shown in the following table: Mounting Type Model Dual Rack Mount Kit* 2X-021G Single Rack Mount Kit* 2X-031G Video Extender Rack Mount Kit** VE-RMK 1U (for KE6900ST, KE8900ST, KE8900SR and KE9900ST)
Page 392 Appendix 2. Remove the bottom and side screws from each unit. 3. Use the screws in step 2 to install the left and right mounting brackets. 4. Screw the mounting brackets to the rack.
Page 393 UPS User Manual Receiver Dual Rack Mounting KE8950R is the example used here. 1. Remove the eight screws and plastic guards from the receiver units. 2. Remove four screws from the units and then use the same screws to secure the units together with the link bracket provided with the kit.
Page 394 Appendix 3. Remove the bottom and side screws from each unit. 4. Use the screws in step 3 to install the left and right mounting brackets. 5. Screw the mounting brackets to the rack.
Page 395 UPS User Manual Single Rack Mounting The 2X-031G Single Rack Mounting kit installs one KE6900/KE6940/ KE8950/KE8952 unit in 1U of server rack space. 1. Remove the eight screws and plastic guards from the unit (Receiver units only). 2. Remove the bottom and side screws from the unit.
Page 396 Appendix 3. Use the screws in step 2 to install the right and left mounting brackets. 4. Screw the mounting brackets to the rack.
Page 397 UPS User Manual IP Installer From a client computer running Windows, an IP address for a transmitter or receiver can be assigned with the IP Installer utility. The utility can be obtained from the Download area of our website or from the product page on the Software &...
Page 398 Appendix Trusted Certificates Overview When you try to log in to the device from your browser, a Security Alert message appears to inform you that the device’s certificate is not trusted, and asks if you want to proceed. The certificate can be trusted, but the alert is triggered because the certificate’s name is not found on the Microsoft list of Trusted Authorities.
Page 399 [Enter] until all the parameters have been keyed in). 2. If there are spaces in the input, surround the entry in quotes (e.g., “ATEN International”). To avoid having to input information during key generation the following additional parameters can be used: /C /ST /L /O /OU /CN /emailAddress.
Page 400 Appendix Reset All Information To reset all information (including passwords) to their default settings, follow the steps below: 1. Power off the unit and remove its housing. 2. Use a jumper cap to short the mainboard pins labeled DEFAULT PASSWORD. An example is shown: 3.
Page 401 UPS User Manual Default Password Pins The Default Password pins for different models are shown below.  KE6900ST  KE6900AR  KE6900AT...
Page 402 Appendix  KE6900AiT  KE6940AR  KE6940AT...
Page 403 UPS User Manual  KE6940AiT  KE6910R / KE6912R  KE6910T / KE6912T...
Page 404 Appendix  KE6920R / KE6922R  KE6920T / KE6922T  KE8900SR...
Page 405 UPS User Manual  KE8900ST  KE8950R / KE8952R  KE8950T / KE8952T...
Page 406 Appendix  KE9900ST  KE9950R / KE9952R  KE9950T / KE9952T...
Page 407 UPS User Manual RS-232 Pin Assignments Pin assignments for the Transmitter and Receiver’s rear RS-232 port that is used for connecting to a serial terminal are given in the table, below: Assignment None Receive Data Transmit Data Data Terminal Ready Signal Ground Data Set Ready Request to Sent...
Page 408 Appendix Multicast IP Address Multicasting helps to broadcast audio and video data from a transmitter to multiple Receivers over a network. To setup up Multicasting on a network switch you must know the Audio and Video Multicast IP address which can be found on the KE Transmitter.
Page 409 UPS User Manual If X is between 128 ~ 192 Multicast Multicast Transmitter X - 128 Video Audio Video IP Audio IP A + 128 A + 192 Address Address 172.168.27.14 168 - 128 40 + 128 40 + 192 230.168.27.14 230.232.27.14 = 168...
Page 410  Choose the Right Cable Always use Cat 5/6e Ethernet cable or higher installed by a professional between any two devices you are installing. We recommend using ATEN Brand Ethernet cable to ensure the quality. It’s best when installing KE devices to use brand new Ethernet cabling for each part of the installation to ensure the reliability of the data being transmitted.
Page 411 UPS User Manual  Determine the Distance Distance is an important factor when setting up networks, with a shorter distance and fewer hops through routers, data can be transmitted more efficiently. So whenever possible decrease the distance and direct network traffic effectively between subnets that communicate with each other to increase the data throughput.
Page 412 Appendix Choose a High Performance Switch A high performance network switch is the means of a successful KE setup. When choosing a network switch, first select the type: Layer 2 or Layer 3 Switches You’ll need to determine whether you need a layer 2 or a layer 3 switch for your KE network.
Page 413 UPS User Manual KE devices on a network which makes fine tuning the bandwidth, data throughput and video quality easier. Stackable switches can be configured to direct the KE transmissions between many units more specifically and effectively. Standalone switches provide the same configuration features as Stackable switches but they must be set individually.
Page 414  Check that all KE units have been updated with the latest firmware version Recommended Network Switches Below are the network switches that have passed ATEN's stress tests using the KE Series extenders. Our tests streamed content over a network with a resolution of 1920 x 1200 @60Hz (KE69 Series, KE8900S, KE9900ST);...
Page 415  DLink DGS-1510 Please refer to the FAQ link below on how to select network switches and network switch information collected by ATEN Customer Service Division, where the collected information includes customer's feedback from their actual experience in using and installing the product(s).
Page 416 Appendix Additional Mouse Synchronization Procedures If the mouse synchronization procedures mentioned in the manual fail to resolve mouse pointer problems for particular computers, try the following: Windows: Note: In order for the local and remote mouses to synchronize, you must use the generic mouse driver supplied with the MS operating system.
Page 417 UPS User Manual b) Click the Pointer Options tab c) Bring the mouse speed to the middle position (6 units in from the left) d) Disable Enhance Pointer Precision 3. Windows ME: Set the mouse speed to the middle position; disable mouse acceleration (click Advanced to get the dialog box for this).
Page 418 Appendix Virtual Media Support WinClient ActiveX Viewer / WinClient AP  IDE CDROM/DVD-ROM Drives – Read Only  IDE Hard Drives – Read Only  USB CDROM/DVD-ROM Drives – Read Only  USB Hard Drives – Read/Write*  USB Flash Drives – Read/Write* ...
Page 419 UPS User Manual Setup CCKM Server IP address on Windows 1. Select Network and Sharing Center and click Change adapter settings. 2. Right-click Local Area Connection and select Properties. 3. In the Local Area Connection Properties window, highlight Internet Protocol Version 4 (TCP/IPv4) then click Properties. 4.
Page 420 What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
