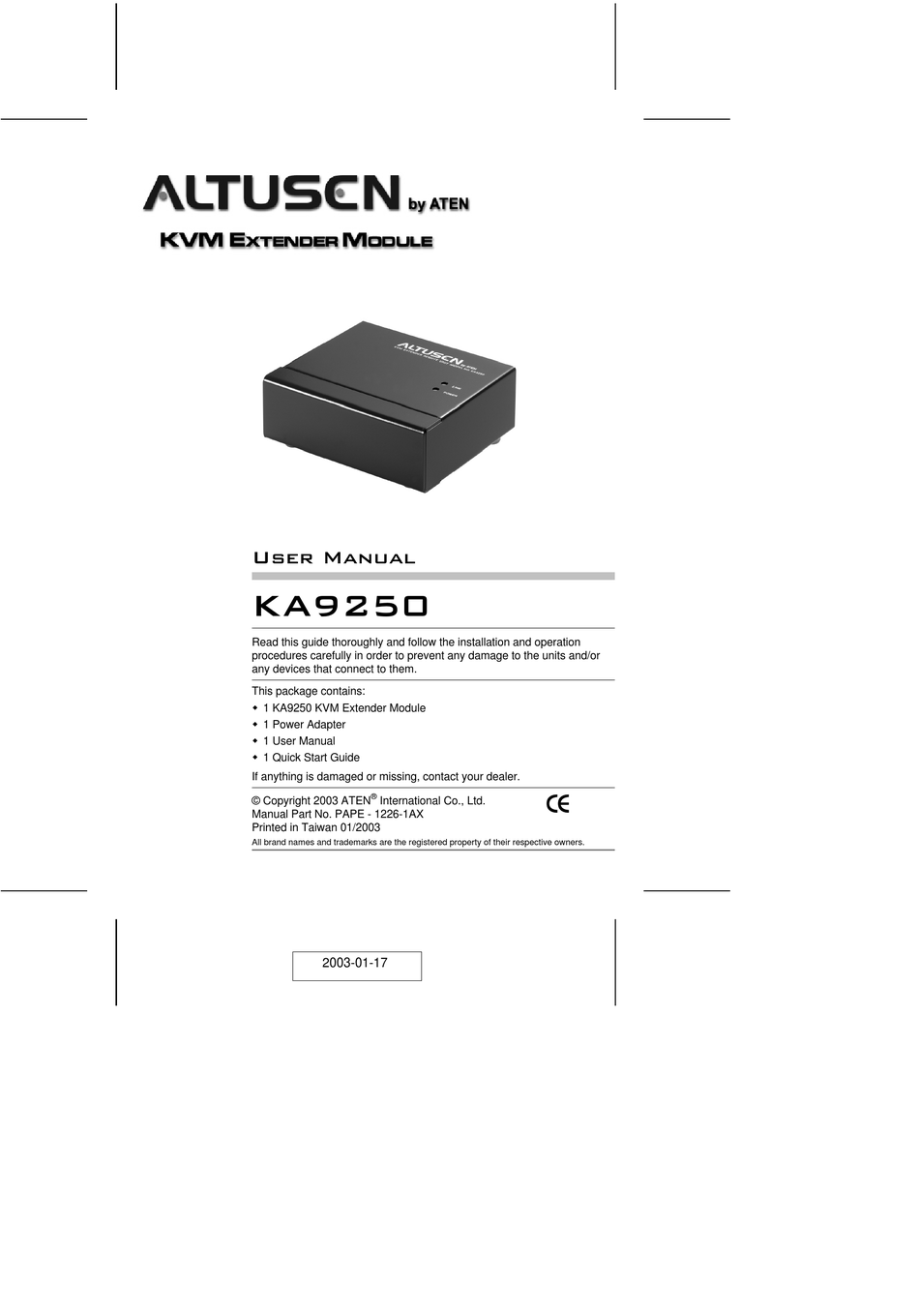

User Manual
User Manual
KA9250
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the units and/or
any devices that connect to them.
This package contains:
M 1 KA9250 KVM Extender Module
M 1 Power Adapter
M 1 User Manual
M 1 Quick Start Guide
If anything is damaged or missing, contact your dealer.
®
© Copyright 2003 ATEN
International Co., Ltd.
Manual Part No. PAPE - 1226-1AX
Printed in Taiwan 01/2003
All brand names and trademarks are the registered property of their respective owners.
2003-01-17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATEN Altusen KA9250
Summary of Contents for ATEN Altusen KA9250
-
Page 1: User Manual
M 1 User Manual M 1 Quick Start Guide If anything is damaged or missing, contact your dealer. ® © Copyright 2003 ATEN International Co., Ltd. Manual Part No. PAPE - 1226-1AX Printed in Taiwan 01/2003 All brand names and trademarks are the registered property of their respective owners. - Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio communications.
- Page 3 Overview The KA9250 KVM Extender Module allows the KH0116 and KL0116 16 Port High Density KVM Switches to be operated from a remote console up to 150m away. The KA9250 module connects to the KH0116 or KL0116’s RJ-45 Remote Console port via industry standard Category 5 cable for a neat and reliable installation.
-
Page 4: Installation Requirements
Installation Requirements Remote Console M A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation M A PS/2 style keyboard M A PS/2 style mouse Note: 1. If you connect a DDC type monitor to the Local unit, the monitor that connects to the Remote unit must be able to support the highest video resolution that the DDC monitor can provide. -
Page 5: Rear View
Rear View 1. LEDs The KA9250 has two LEDs (Power and Link) to indicate the operating status of the Local and Remote units (see p. 7, for details). 2. Mouse Port The remote PS/2 mouse plugs into this connector. 3. Keyboard Port The remote PS/2 keyboard plugs into this connector. -
Page 6: Installation
Installation All installation involves is plugging cables into their appropriate ports. Refer to the diagrams on the next page as you perform the following steps: 1. Plug the keyboard, monitor, and mouse cables for the remote console devices into their ports on the Console side of the KA9250. 2. - Page 7 KH0116 KL0116 - 5 - 2003-01-17...
-
Page 8: Operation
Operation The default operating environment is for both the Local and Remote consoles to be active. For security and privacy purposes, however, the Remote console can be disabled so that it cannot have access to the KH0116 / KL0116 or any of the equipment attached to it. -
Page 9: Specifications
KA9250 (Remote Console): Indication Power 1. Lights steadily to indicate that the connection to the Local Unit is ok. 2. Flashes when there is a problem with the connection to the Local Unit. Link 1. Lights when the remote console is active. 2. -
Page 10: Troubleshooting
Troubleshooting Symptom No Video Make sure that all cables are securely plugged into their sockets. Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION.
