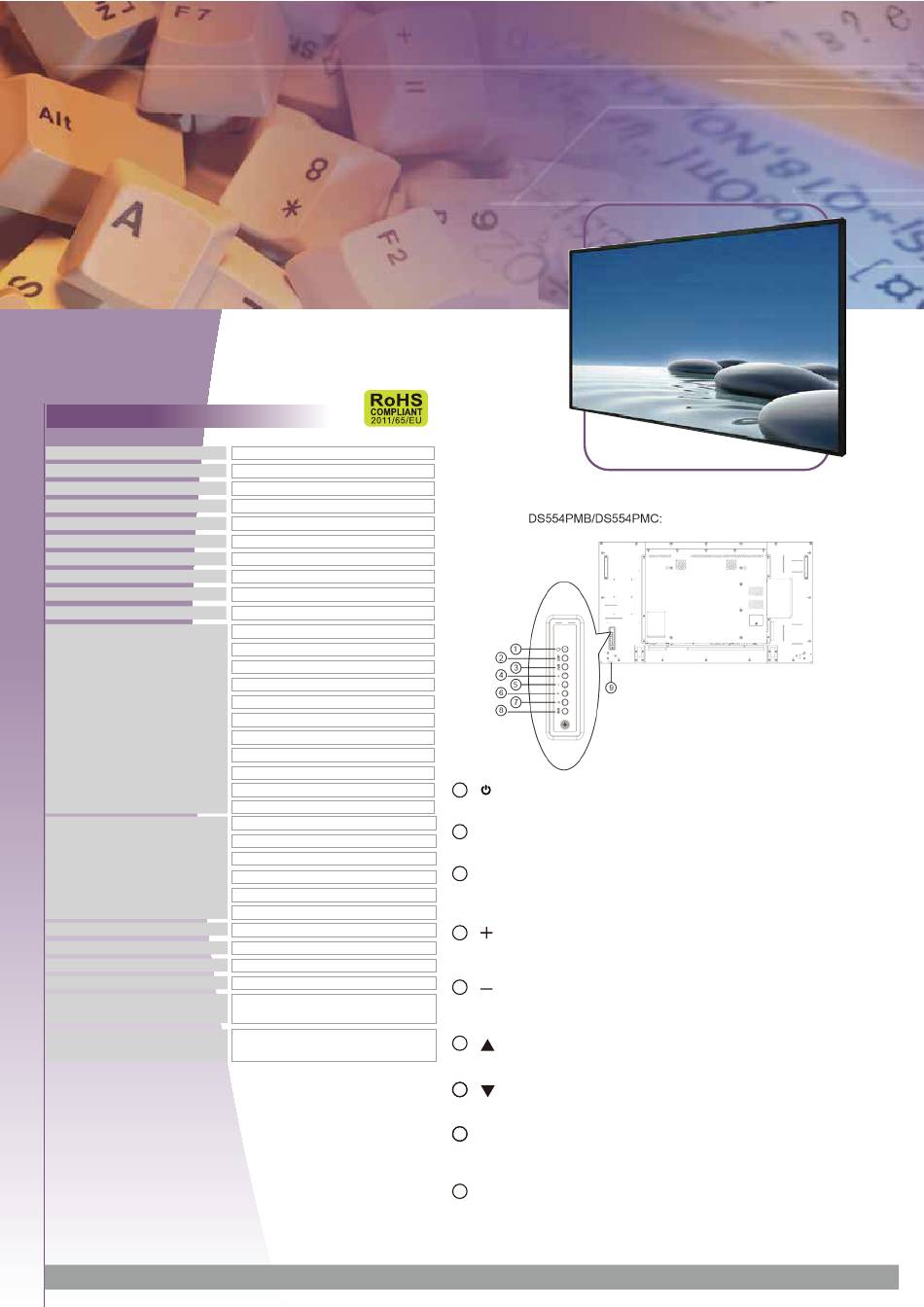

Winmate W55L100-OML2 Instructions

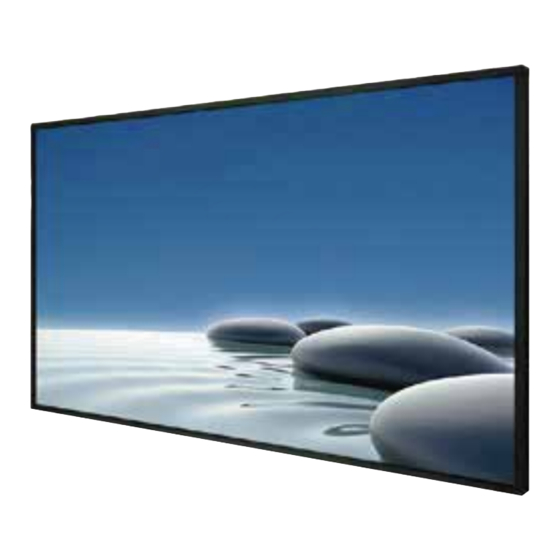

Industrial Grade Chassis Monitor
55"(16:9)
S S pecifications
Model Name
Viewable Size Image
Active Display Area(mm)
Pixel Pitch(mm)
Number of Pixels
Contrast Ratio
Display Color
Brightness(cd/m )
Viewing Angle(CR>=10)
Recommended Resolution
Input Signal
Output Signal
Internal Speaker
Power Source
Operating Temperature
Operating Humidity
Dimension(mm)
VESA compatible arm
mounting interface
Note: All Specifications are subject to change without prior notice!
W55L100-OML2
55" (16:9)
1209.6 (H) x 680.4 (V)
0.630 x 0.630
1920 x 1080
1300:1(typ.)
1073M
500(typ.)
-89~89(H);-89~89(V)
1920 x 1080 @ 60Hz
1 x DVI
2 x HDMI
1 x Display Port
1 x VGA
1 x Component (YPbPr)
1 x Audio in
1 x Line in
1 x USB
1 x IR in
1 x LAN
1 x RS232
1 x DVI
1 x Display Port
1 x Line out
1 x speaker out
1 x IR out
1 x RS232
10W + 10W
AC100~240V, Universal, 10%
5~40 deg.C
20~80% (without condensation)
1228.1(W) x 698.9(H) x 71.1(D)
(without handle)
400 x 400 mm
Industrial Grade Chassis
1 [ ] Power Button
Use this button to turn the display in or put the display to standby
2 [MUTE] MUTE Button
Switch the audio mute ON/OFF
3 [INPUT] Input Button
• Use this button to select the input source.
• When the On Screen Display menu is active, this is also used as the [SET] button.
4 [ ] Button
Increase the adjustment while OSD menu is on, or increase the audio output
level while OSD menu is off.
5 [ ] Button
Decrease the adjustment while OSD menu is on, or decrease the audio output
level while OSD menu is off.
6 [ ] Button
Move the highlight bar up to adjust the selected item while OSD menu is on.
7 [ ] Button
Move the highlight bar down to adjust the selected item while OSD menu is on.
8 [MENU] MENU Button
Return to previous menu while OSD menu is on, or to activate the OSD menu
when OSD menu is off.
9 Remote control sensor and power status indicator
• Receives command signals from the remote control.
• Indicates the operating status of the display
Monitor
Revised date: 07-Apr-2017 V1.0
