This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

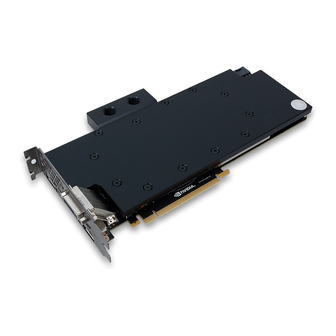

STEP 1: GENERAL INFORMATION. Sample picture of Gigabyte GeForce GTX 1080 Ti Aorus graphics card.
STEP 2: PREPARING YOUR GRAPHICS CARD
EK-FC1080 GTX Ti Aorus Backplate is very easy to install. First install EK-FC1080 GTX Ti Aorus series water block according to its installation manual. If you
have it already installed, please check the picture below to see which mounting screws are to be left in their position and which are to be removed. Please
remove the six (6) M2.5x4 AX1 screws and their PVC washers as well (marked with arrow).
STEP 3: APPLYING THE THERMAL PADS
EK-FC1080 GTX Ti Aorus Backplate features passive cooling of the printed circuit board and its components therefore it is mandatory to install the
enclosed thermal pad. Please install enclosed 1mm thick thermal pad (Thermal Pad F – 1,0mm (120x16) as shown on the picture below. You may
need to trim the excess thermal pad.
All disclosures, notices and warranty conditions are being written on the back of the box.
Installation and mounting manual for EK-FC1080 GTX Ti Aorus
1
Thermal PAD F - 1mm (120x16mm)
Backplate
EK-FC1080 GTX Ti Aorus Backplate
2
1
www.ekwb.com
2
th
Revision 1.0. Released on 10
of May, 2017.
for updates. Before
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ekwb GTX 1080 Ti Aorus Backplate
Summary of Contents for ekwb GTX 1080 Ti Aorus Backplate
- Page 1 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
- Page 2 EK blocks are sealed with warranty void circular label, which proves that the block has withstood a pressure leak test. Removing it will void leak-free guarantee and not the guarantee on the product itself. Any other RMA issues can be reported to EK Support at http://www.ekwb.com/support for further analysis.
