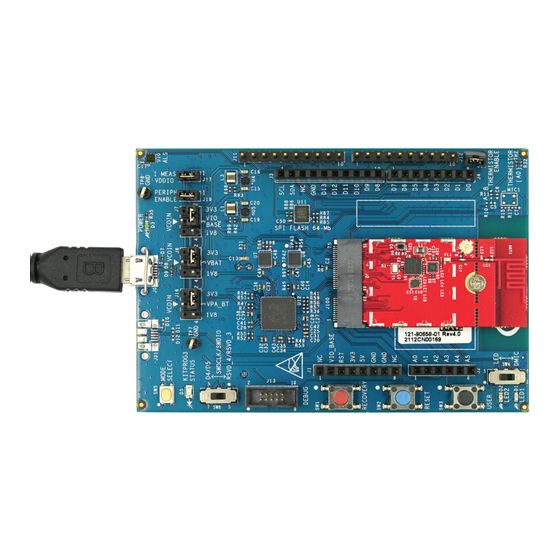

Quick start guide AIROC™ CYW20721 Bluetooth® and Bluetooth® LE system on chip evaluation kit CYW920721M2EVB-03 Kit contents 1. CYW9BTM2BASE1 baseboard 2. CYW920721M2EPA3 Bluetooth® radio card (connected to the baseboard using the M.2 connector) 3. USB standard-A to Micro-B cable 4. Quick start guide (this document) www.cypress.com/cyw920721m2evb-03...
Page 2
Quick start guide Before you start 1. Register on the Developer Community and then download and install ModusToolbox™ software v2.4 (or later) with the Bluetooth® SDK at https://www.cypress.com/products/ modustoolbox. 2. Do the following to download and install the ‘HelloSensor’ code example. This step will also install the ‘HelloClient’...
Page 3
Quick start guide AIROC™ CYW20721 evaluation kit details 16 17 17. User button (SW3) 1. VDDIO current measurement 18. User LEDs (D1, D2) jumper (J17) 19. User LED/DMIC switch (SW4) 2. Peripheral enable jumper (J19) 20. Digital mic sound port (J16) 3.
