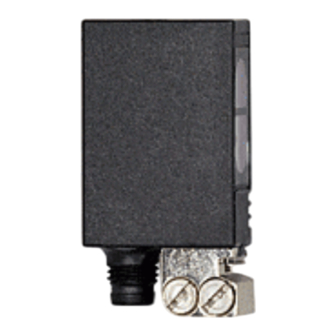

Diffuse reflection sensor with background suppression

Advertisement

Quick Links

Operating instructions
Diffuse reflection sensor with
background suppression
UK
OJ50xx laser

Advertisement

loading

Summary of Contents for IFM Electronic efector200 OJ50 laser

  • Page 1 Operating instructions Diffuse reflection sensor with background suppression OJ50xx laser...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note3 11 Symbols used 3 2 Safety instructions 3 3 Functions and features 4 4 Installation 4 41 Mounting positions 5 42 Installation of the supplied mounting fixture 6 5 Electrical connection6 6 Settings7 61 Setting of the sensitivity with stationary objects* 7 62 Setting of the maximum sensitivity* 8 63 Electronic lock 8 64 Programming the output function* 8...
  • Page 3: Preliminary Note3

    1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result → Cross-reference Important note: Non-compliance can result in malfunctions or interference Information Supplementary note 2 Safety instructions According to the cULus approval Caution - Use of controls or adjustments or procedures other than those specified herein may result in hazardous radiation exposure Visible laser light;...
  • Page 4: Functions And Features 4

    3 Functions and features The diffuse reflection sensor detects objects and materials without contact and indicates their presence by a switching signal Range: → type label (value referred to white paper 200 mm x 200 mm). 4 Installation Side lens* Front lens* pushbutton * In the following sections installation and setup are described using the example of the type...
  • Page 5 The objects to be detected are to move transversally to the lens of the sensor ► In case of other directions of movement it should be tested before whether safe switching is guaranteed 4.1 Mounting positions For demanding applications (small distance between the object and the back- ground) we recommend the following mounting positions: Reflective background ►...
  • Page 6: Electrical Connection6

    4.2 Installation of the supplied mounting fixture ► Secure the mounting fixture with the screws supplied, then slide the unit into the slot of the fixture until the spring clicks home ► To remove the unit press the spring down with a screwdriver and slide the unit out 5 Electrical connection The unit must be connected by a qualified electrician ►...
  • Page 7 6 Settings 6.1 Setting of the sensitivity with stationary objects* Go into the programming mode of the unit ► Press for about 2 s until the red LED flashes > The red LED goes out; the yellow and green LEDs flash alternately >...
  • Page 8 If the setting of the sensitivity is not possible (e.g. object signal and back- ground signal are about the same), the red LED flashes after step 3 for ap- prox 2 s The unit then passes into the operating mode with the sensitivity being unchanged If the setting button is not activated for 15 minutes during the programming process, the unit passes automatically into the operating mode with the...
  • Page 9: Operation 9

    7 Operation ► Check whether the unit operates correctly > Display by LEDs Green LED on Unit is ready for operation Yellow LED on Output is switched Flash alternately, 2 Hz: output short-circuited. LEDs yellow + red Flash alternately, 1 Hz: internal fault. (output is not switched).
