Diffuse reflection sensor

Advertisement

Operating instructions
Diffuse reflection sensor
UK
O6T3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the efector200 O6T3 and is the answer not in the manual?

Questions and answers

Summary of Contents for IFM Electronic efector200 O6T3

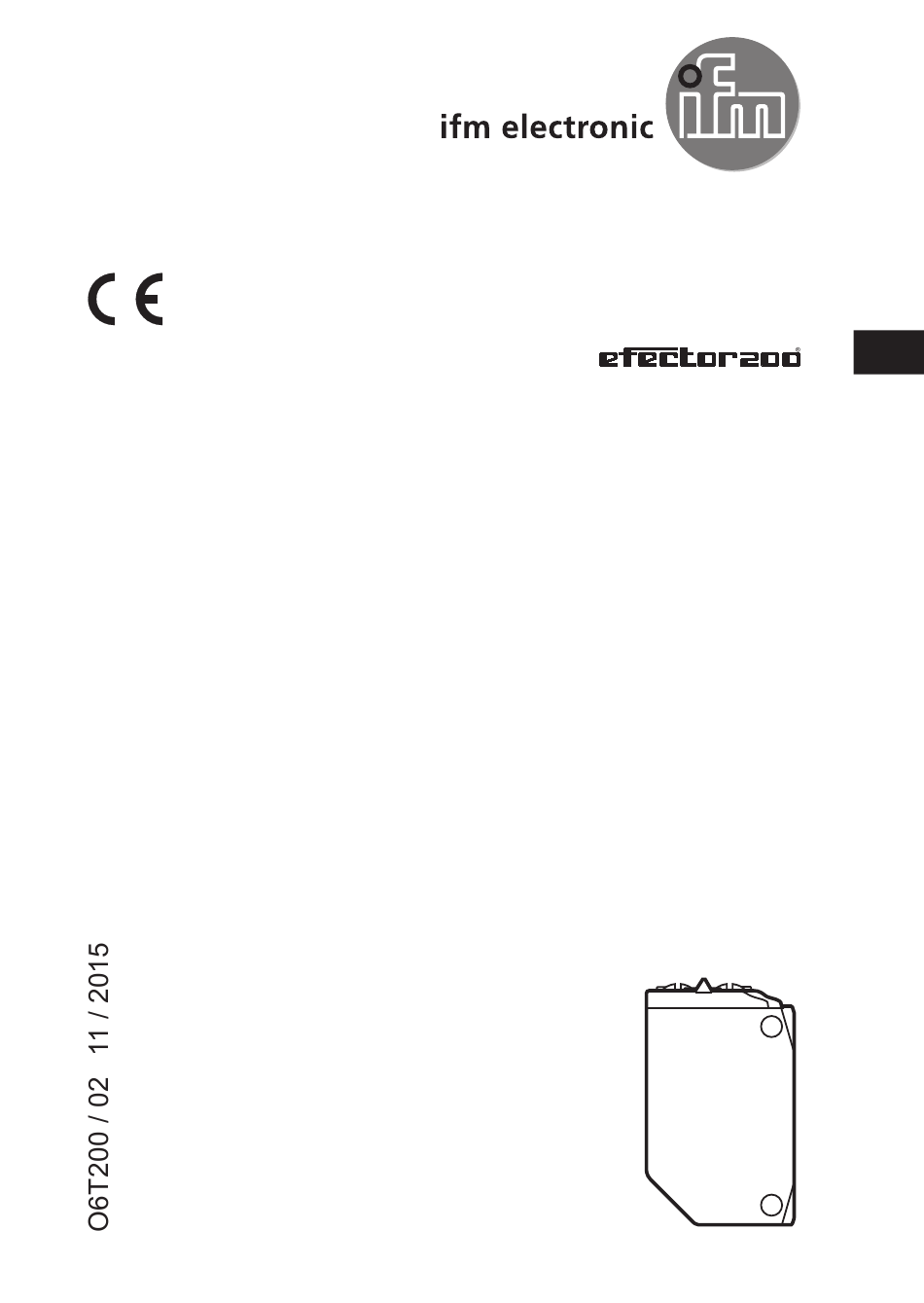

  • Page 1 Operating instructions Diffuse reflection sensor O6T3...
  • Page 2 1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference. 2 Functions and features The diffuse reflection sensor detects objects and materials without contact and indicates their presence by a switching signal.
  • Page 3 4 Operating and display elements 1: LED yellow - switching output active 2: Setting potentiometer „sensitivity“ 3: LED green - operation 4: Selector „output function“ 4.1 Stability indication The green LED is lit when the supply voltage is applied and the sensor signal is stable.
  • Page 4 5.1 PNP Connector M12 pigtail Cable * Connector M8 3-pin Connector M8 4-pin * Core colours: BN = brown, BU = blue, BK = black 5.2 NPN Connector M12 pigtail Cable * Connector M8 3-pin Connector M8 4-pin * Core colours: BN = brown, BU = blue, BK = black 6 Settings 6.1 Set the output function ►...
  • Page 5 6.2 Set the sensitivity ► Increase sensitivity: turn the setting screw of the potentiometer clockwise. ► Decrease sensitivity: turn the setting screw of the potentiometer anti-clockwise. 7 Operation ► Check whether the unit operates correctly. > The green LED is lit when the sensor is ready for operation. >...
