Summary of Contents for IFM Electronic efector200 O1D106

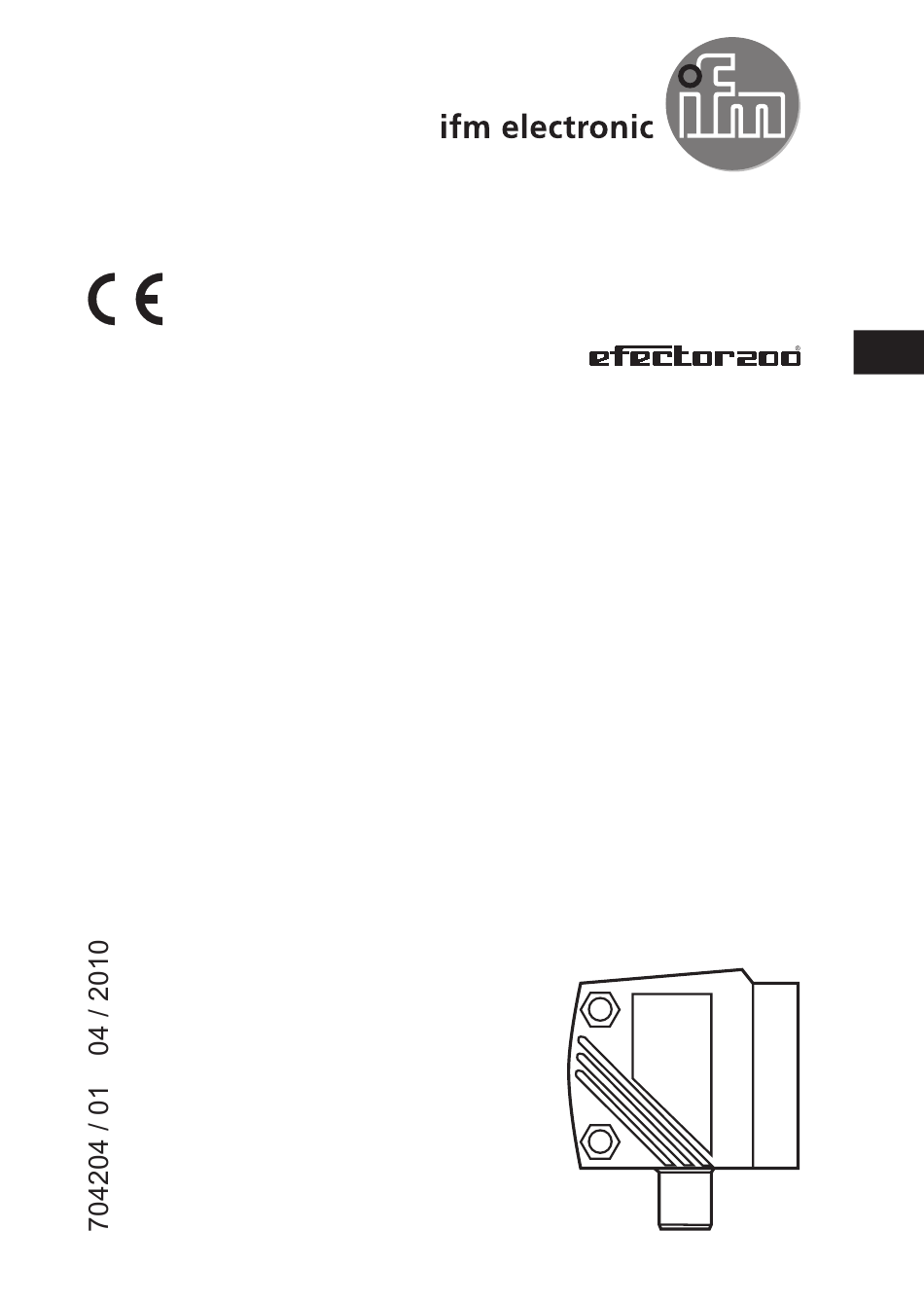

  • Page 1 大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Operating instructions Optical distance sensor O1D106 QQ:785087035 43796301 http://www.db-sh.com...
  • Page 2: Table Of Contents

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������4 1�1 Symbols used ������������������������������������������������������������������������������������������������4 1�2 Warning signs used ���������������������������������������������������������������������������������������4 2 Safety instructions �����������������������������������������������������������������������������������������������4 3 Functions and features ����������������������������������������������������������������������������������������6 3�1 Applications ���������������������������������������������������������������������������������������������������6 4 Functions �������������������������������������������������������������������������������������������������������������6 4�1 Output function hysteresis �����������������������������������������������������������������������������6 4�2 Output function window ���������������������������������������������������������������������������������6 4�3 Output function analogue ������������������������������������������������������������������������������6 5 Installation������������������������������������������������������������������������������������������������������������7...
  • Page 3 大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 9�2�9 Setting of the switch point for hysteresis function OUT2 ��������������������18 9�2�10 Setting of the switch points for window function OUT2 ��������������������18 9�2�11 Scaling of the measuring range (analogue output) ���������������������������18 9�3 Teach mode �������������������������������������������������������������������������������������������������20 9�3�1 Setting of the sampling rate ����������������������������������������������������������������20 9�3�2 Setting of the repeatability ������������������������������������������������������������������20 9�3�3 Table repeatability and accuracy ��������������������������������������������������������20...
  • Page 4: Preliminary Note

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Preliminary note Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunction or interference� Information Supplementary note� Warning signs used WARNING Warning of serious personal injury�...
  • Page 5 大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 WARNING Visible laser light; laser protection class 2� Use of controls or adjustments other than those specified herein may result in hazardous radiation exposure� Damage to the retina is possible� ► Do not stare into the laser beam! ►...
  • Page 6: Functions And Features

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Functions and features The unit is used as an optical distance sensor� Applications • The optical distance sensor measures distances of 1���75 m on the reflector� • The measured value is shown in a 10-segment display� •...
  • Page 7: Installation

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Installation Installation conditions ► Install the unit so that the reflector to be detected is within a measuring range of 1���75 m� The unambiguity range of the sensor is fixed to 150 m� Reflections within a range >...
  • Page 8: Electrical Connection

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Electrical connection The unit must be connected by a qualified electrician� ► The national and international regulations for the installation of electrical equipment must be adhered to� ► Ensure voltage supply to EN 50178, SELV, PELV� ►...
  • Page 9: Menu

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Menu Menu structure ��� = [MODE / ENTER] = [SET] QQ:785087035 43796301 http://www.db-sh.com...
  • Page 10: 8�2 Explanation Of The Menu

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Explanation of the menu For the factory settings please refer to the end of these instructions (→ 13 Factory setting)� Configuration for output 1 4 switching functions can be selected: [Hno], [Hnc], [Fno], [Fnc] → 9.2.3 Configure OUT1 Switch point for hysteresis function OUT1 Limit value at which the output with selected hysteresis function changes its switching state (object nearer / farther than distance set)�...
  • Page 11: Extended Functions

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Analogue end point Measured value at which 20 mA / 10 V are provided� [AEP] is only active if [OU2] = [I] or [U]� → 9.2.11 Scaling of the measuring range (analogue output) Teach mode Selection "sampling rate" or "repeatability" → 9.3 Teach mode Extended functions Press [SET] to open the submenu "Extended functions"...
  • Page 12: Parameter Setting

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Parameter setting During parameter setting the unit remains internally in the operating mode� It continues its monitoring function with the existing parameters until the change has been completed� General parameter setting 9.1.1 Setting a parameter value Set the display unit [Uni] before the values for the parameters are defined�...
  • Page 13: 9�1�2 Change From Menu Level 1 To Menu Level 2

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 9.1.2 Change from menu level 1 to menu level 2 ► Press [MODE/ENTER] until [EF] is dis- played. ���� ��� ����� ► Press [SET] briefly� > The first parameter of the submenu is displayed (here: [dr1])� ����...
  • Page 14: 9�2 Configuration Of The Basic Settings

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Configuration of the basic settings 9.2.1 Selection of the display unit Set [Uni] before the values for the parameters [SPx], [nSPx], [FSPx], [ASP], [AEP] are defined� In case of subsequent changes of the display unit rounding errors during internal conversion to other units may falsify the set values�...
  • Page 15: 9�2�4 Hysteresis Function

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 9.2.4 Hysteresis function The hysteresis keeps the switching state of the output stable if the measured value varies about the sensing range� In both cases the set and reset points are symmetrically arranged about the selected switch point [SPx]� The hysteresis is the distance between set and reset points;...
  • Page 16: 9�2�5 Setting Of The Switch Point For Hysteresis Function Out1

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Switching state of the outputs Output function Object distance (D) Output status [Hno] D < [SPx] closed D > [SPx] open [Hnc] D < [SPx] open D > [SPx] closed Example of output function [Hno] Sampling rate 33 Hz, distance to the object 2 m: Hysteresis = ± 15 mm (repeatability → 9.3.3 Table) x factor 1.5 = 22.5 mm Reset point 2 m + (22�5 mm) = 2�02 m...
  • Page 17: 9�2�7 Setting Of The Switch Points For Window Function Out1

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Switches off when the object is detected ������ ������ ����� �� [nSPx] = switch point "near"; [FSPx] = switch point "far"; FE = window If the measured value is between the switch point "near" [nSPx] and the switch point "far"...
  • Page 18: 9�2�8 Configure Out2

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 9.2.8 Configure OUT2 ► Select [OU2]� ► Set switching functions or analogue signals: • [Hno] = hysteresis function / normally open • [Hnc] = hysteresis function / normally closed • [Fno] = window function / normally open •...
  • Page 19 大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Current output 4...20 mA Factory setting Measuring range scaled ������ ������ �� �� � � � � � ��� ��� ��� ������ ������� MEW = final value of the measuring range In the set measuring range the output signal is between 4 and 20 mA� Faults are also displayed: Too much light or object too near: 3�5 mA for a rising edge ([ASP] <...
  • Page 20: 9�3 Teach Mode

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Teach mode 9.3.1 Setting of the sampling rate The sampling rate indicates the maximum time after which a new result of measurement is provided and the outputs are updated� The switching frequency is typ� approx� 1/3 of the sampling rate� ►...
  • Page 21: 9�4 Extended Functions

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Values for sampling rate 1 Hz on reflector Distance in [m] Repeatability Accuracy 1���75 ± 15 mm ± 35 mm The values apply at: • constant ambient conditions (23° C / 960 hPa) • extraneous light of max�...
  • Page 22: 9�4�4 Display Of The Software Version Number

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 9.4.4 Display of the software version number ► Select [EF]� ► Press [SET] to change to the menu [EF]� ► Select [SW], then press [SET]� > The software version number is displayed� ► Press [MODE/ENTER] to return to the menu [EF]� Operation 10.1 Set-up...
  • Page 23: 10�2 Operating Modes

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 unchanged [SC2] or [SC] only active, if output 2 is configured as switching output� 10.2 Operating modes 10.2.1 Run mode The run mode is the normal operating mode� After power on the unit is in the Run mode� It carries out its monitoring function and generates output signals according to the set parameters�...
  • Page 24: Scale Drawing

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Scale drawing �� �� � � ����� Dimensions in mm 4-digit alphanumeric display / LED function displays programming buttons QQ:785087035 43796301 http://www.db-sh.com...
  • Page 25: Factory Setting

    大柏集团-13916183699 QQ:785087035 43796301 http://www.db-sh.com 021-60510862 33732662 Factory setting Parameter Setting range Factory setting Own setting m, feet Hno, Hnc, Fno, Fnc 1�00���75�00 10�00 nSP1 1�00���75�00 8�00 FSP1 1�00���75�00 12�00 Hno, Hnc, Fno, Fnc, I, U 1�00���75�00 20�00 nSP2 1�00���75�00 18�00 FSP2 1�00���75�00 22�00...
