DR970X LTE
DR900S-2CH
Quick Start Guide
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR970X LTE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BlackVue DR970X LTE

Summary of Contents for BlackVue DR970X LTE

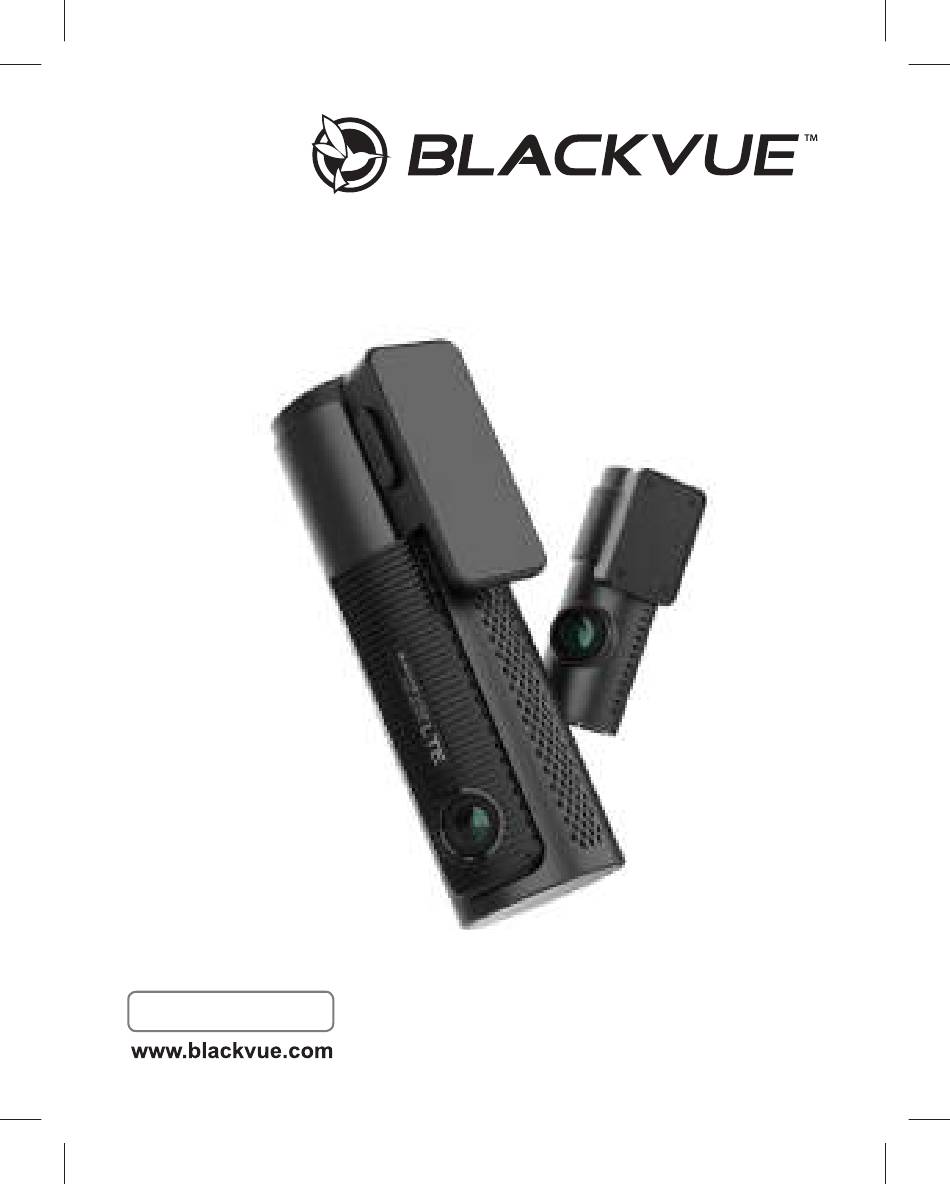

  • Page 1 DR970X LTE DR900S-2CH Quick Start Guide ENGLISH...
  • Page 2 BLACKVUE DR970X LTE For manuals, customer support and FAQs go to www.blackvue.com...

  • Page 3: Important Safety Information

    If the product is damaged or the power supply is cut due to an accident, video may not be recorded. y Do not remove the microSD card while the microSD card is saving or reading data. The data can be damaged or malfunctions may occur. DR970X LTE...

  • Page 4: Fcc Compliance Information

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of this device. FCC ID: YCK-DR970XLTE BLACKVUE...
  • Page 5 Contact local authorities to learn about disposal and recycling options available in your area. 2. The correct disposal of your BlackVue dashcam will help prevent potential negative consequences for the environment and human health.
  • Page 6 L’exploitation est autoriséee aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l ’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’encompromettre le fonctionnement. BLACKVUE...

  • Page 7: Need Help

    In the box Check the box for each of the following items before installing the BlackVue dashcam. Rear camera Front camera connection cable Rear camera Power cord Quick start guide Pry tool Double-sided tape for the Mounting Cable clips (8 EA)

  • Page 8: Front Camera

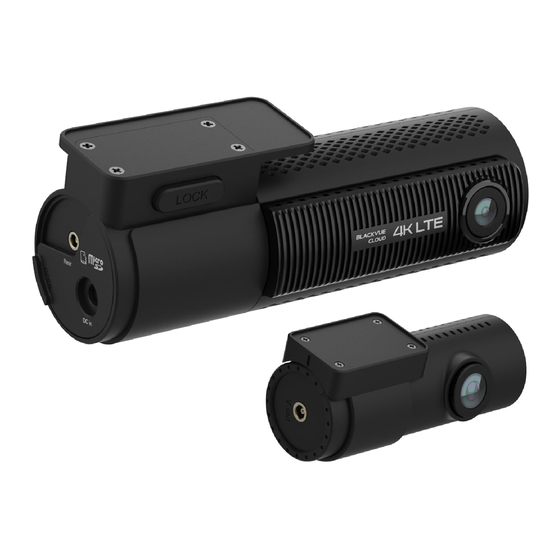

    At a glance The following diagrams explain each part of the BlackVue dashcam. Front camera Lock button Camera lens 137.6 mm Mounting bracket Front security LED : Lights on during (i) normal mode, (ii) an event is being recorded (impact detected), (iii) manual recording has started, or (iv) motion is detected in parking mode.
  • Page 9 : Lights blue when GPS is on. REC LED : Lights orange in normal mode. : Lights red when (i) an event is being recorded (impact detected), or (ii) manual recording has started. : Lights green in parking mode when motion is detected. DR970X LTE...
  • Page 10 : On when proximity sensor is triggered. Touch or wave a finger within 20mm of the sensor to trigger a customizable function. Available options are: - Turn on/off audio recording (default) - Manual recording trigger - Off 10 BLACKVUE SIM 카드...
  • Page 11 - Press and hold for 5 seconds and once voice instructions start, release the button. Then press and hold for 5 seconds again to format the microSD card. DC in (power connector) Cover Rear camera connection port microSD card Wi-Fi button: - Press once to turn on/off Wi-Fi. DR970X LTE 11...

  • Page 12: Rear Camera

    Rear camera Mounting bracket Camera lens 67.4 mm Rear security LED V out (Front camera : Stays on in all recording connection port) modes but can be turned off from firmware settings. 12 BLACKVUE...
  • Page 13 To insert the SIM card, remove the bracket from front camera. Then open SIM slot by using SIM eject tool. SIM 카드 Note y DR970X LTE is only compatible with 4G LTE network. DR970X LTE 13...
  • Page 14 Note y For detailed information about activation of SIM card, please check "SIM activation guide" in the packaging box or visit BlackVue Help Center: https://helpcenter.blackvue.com -> SIM Activation Guide (LTE Series). Peel off the protective film from the double-sided tape and attach the front camera to the windshield behind the rear-view mirror.
  • Page 15 Plug the power cord into the cigarette lighter socket and the front camera. Use the pry tool to lift the edges of the windshield trim/molding and tuck in the power cord. Power cord Rear camera connection cable DR970X LTE 15...
  • Page 16 Turn on the engine. The BlackVue dashcam will power up and start recording. Video files are stored on the microSD card. Turn off the engine. The dashcam will automatically stop recording and power down. To record in parking mode while the engine is off please install a parking mode kit/ battery from the BlackVue Power Magic range of accessories (sold separately).
  • Page 17 Playback STEP 2 Playing video files on your smartphone (Android/iOS) Search for the BlackVue app in the Google Play Store or Apple App Store and install it on your smartphone. Create an account (i) Select Login if you have an account, otherwise tap Get started to create an account.
  • Page 18 Add BlackVue dashcam to camera list via Seamless pairing (i) Select Connect to camera in the main page. (ii) Make sure smartphone's Bluetooth is turned on and press +. (iii) Select Seamless pairing support model. 18 BLACKVUE...
  • Page 19 If you want to add BlackVue dashcam to camera list manaully using credentials, please skip to Note y Bluetooth lets you connect your smartphone to your dashcam within a range of 10m. y You can find your BlackVue dashcam's SSID in product label or in the packing box. DR970X LTE 19...
  • Page 20 (vi) Customize your camera name and press OK. (vii) BlackVue dashcam is now added to the camera list. 20 BLACKVUE...
  • Page 21 Add BlackVue dashcam to camera list manually. (i) If you want to connect to camera manually, press connect to camera manually in the searching for camera page. (ii) Enter credentials (You can find it in product label or in the packing box).
  • Page 22 Connect to BlackVue dashcam using Wi-Fi (i) Click your camera name to connect your camera and smartphone using Wi-Fi. (ii) Select the video that you want to play from the video list. 22 BLACKVUE...
  • Page 23 Remove the microSD card from the dashcam. Open side cover To remove Insert the card into the microSD card reader and connect it to a computer. Download BlackVue Viewer program from www.blackvue.com > Support > Downloads and install it on your computer. DR970X LTE 23...
  • Page 24 Run BlackVue Viewer. To play, select a video and click on the play button or double click the selected video. Windows/macOS Viewer Note y All images shown are for illustration purpose only. Actual program may differ from images shown. 24 BLACKVUE...
  • Page 25 The dashcam's time zone is initially set to (GMT-11). To display the correct time please select your time zone. Using your smartphone (Android/iOS) “Pair” your smartphone with the BlackVue dashcam (for details see STEP 2 'Playing video files on your smartphone').
  • Page 26 (km/h, MPH, off ), LEDs on/off, voice guidance volume, Cloud settings etc. For more information about changing the settings in BlackVue Viewer, please download the manual from www.blackvue.com > Support > Manuals. 26 BLACKVUE...
  • Page 27 Connect to BlackVue Cloud STEP 4 Log in to your account (i) In the launch page, select Login and enter your e-mail and password. If you do not have an account, refer to Playback to create an account. STEP 2 Add your dashcam to your account (i) Go to Connect to Cloud >...
  • Page 28 (ii) After your camera is added, the app will give you the option to choose a cloud connection method. (iii) Select BlackVue SIM card. (iv) Input ICCID number (14 digits on your BlackVue SIM card) and press Next. 28 BLACKVUE...
  • Page 29 (v) Check your free trial Information and precautions, press Next. (vi) Input billing information and press Try 1 month free. (vii) BlackVue SIM card subscription is done. Check your data plan and billing date and press OK. Once SIM card is inserted in the camera, SIM card will be activated automatically.
  • Page 30 Go to BlackVue SIM card in the main home to manage your BlackVue SIM card. 30 BLACKVUE...
  • Page 31 Cloud menu to use the Cloud features. Note y To use the BlackVue Cloud Service, SIM card must be properly activated for Internet access via LTE network. y When the dashcam is connected to internet, you can use BlackVue Cloud features such as remote Live View and Video playback, Real-time location, push notification, Auto-upload, remote Firmware update etc.
  • Page 32 Up to 3 Wi-Fi hotspot SSIDs can be saved (e.g. home, portable hotspot and work). y The BlackVue DR970X LTE dashcam is not compatible with 5GHz wireless networks. y To add or make changes to your cloud connection methods, go to Connect...

  • Page 33: Tips For Optimal Performance

    Download BlackVue Mac Viewer from www.blackvue.com > Support > Downloads and install it on your computer. Insert the microSD card into the microSD card reader and connect the reader to your computer. Launch the copy of BlackVue Viewer that is installed on your computer. Click the Format button and select the microSD card from the list of drives in the left frame.

  • Page 34: Customer Support

    Regularly upgrade the firmware for performance improvements and updated features. Firmware updates will be made available for download at www.blackvue.com > Support > Downloads. Customer Support For customer support, manuals and firmware updates please visit www.blackvue.com You can also email a Customer Support expert at cs@pittasoft.com...

  • Page 35: Product Specifications

    Full HD (1920x1080) @60fps - Full HD (1920x1080) @30fps Frame Rate * Frame rate may vary during Wi-Fi streaming. Image Quality Highest(Extreme)/Highest/High/Normal Video Compression Mode Wi-Fi Built-in (802.11a/b/g/n/ac (2.4 – 2.4835 GHz)(5.150 - 5.850GHz) Bluetooth BT2.1+BT4.0 LE/BR/EDR+BT4.2 Built-in DR970X LTE 35...

  • Page 36: Power Consumption

    * Actual power consumption may vary depending on use Consumption conditions and environment. * Model DR970X LTE should be used only in circuits that satisfy Limited Power Source. (Maximum power consumption is to be less than 100 VA or 8 A).
  • Page 37 Software * Windows 7 or higher and Mac OS X Sierra (v10.12) or higher Application BlackVue Application (Android 5.0 or higher, iOS 11 or higher) Others Adaptive Format Free File Management System * STARVIS is a trademark of Sony Corporation.
  • Page 38 Notes...

  • Page 39: Product Warranty

    Product Warranty The term of this product warranty is 1 year from the purchase date. (Accessories such as an External Battery/ microSD Card: 6 Months) We, PittaSoft Co., Ltd., provide the product warranty according to the Consumer Dispute Settlement Regulations (drawn up by the Fair Trade Commission).
  • Page 40 FCC ID: YCK-DR970XLTE / HVIN: DR970X LTE / IC: 23402-DR970XLTE Contains FCC ID: XMR201605EC25A / Contains IC: 10224A-201611EC25A Product | Car Dashcam Model Name | DR970X LTE Manufacturer | Pittasoft Co., Ltd. Address | 4F ABN Tower, 331, Pangyo-ro, Bundang-gu, Seongnam-si,...
