2S-4S LiPo/LiFe Balancing Charger

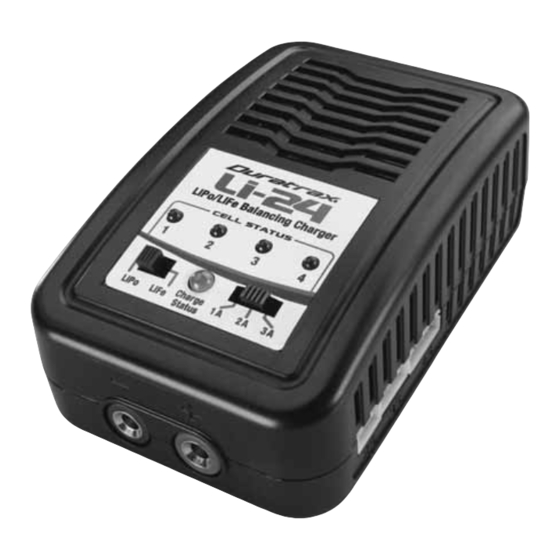

The Li-24 LiPo/LiFe balancing charger is the perfect entry-level charger for modelers using up to 4S LiPo batteries.
Inexpensive and very easy to operate, the Li-24 utilizes the CC/CV charge method, with voltages customized for LiPo/
LiFe batteries. Capable of operating from 100-240V AC or input sources, this tiny, lightweight charger is perfect for use
at home or in the fi eld. Selectable charge currents range from 1A to 3A and a built-in balancing function ensures all cells
are charged to optimum voltage every time.
It is strongly recommended to read this manual completely before use! Damage resulting
from misuse or modifi cation will void your warranty.
WARNING!! Charging lithium-based rechargeable batteries poses a risk of FIRE! NEVER
treat lithium-based batteries in the same manner as other battery types. NEVER leave
lithium batteries unattended while being charged! ALWAYS charge lithium-based batteries
in a fi reproof location! Failure to follow all care and handling instructions contained in
this manual could result in quick, severe, permanent damage to the batteries and all
surroundings!! Follow all safety precautions when using such batteries, as listed on
page 3 of this manual!
SPECIFICATIONS
AC Input:
Output Power:
Battery Types:
Fast Charge Start:
Fast Charge Current:
Controls:
SPECIAL FEATURES
Built-in balancing for 2-4S LiPo.
1A, 2A, 3A selectable charge rates.
Select between LiPo and LiFe battery type.
Built in balancing connector for 2S, 3S and 4S.
100-240V AC 60Hz, U.S. plug
20W
2-4S LiPo/LiFe
Auto start at hook up
1A, 2A, 3A*
Auto-start, switchable current
selector
*Note: Maximum charge current for a 4S pack will be ~1.4A.
Output Connections:
Display Type:
Balancing Connector:
Dimensions:
Weight:
Includes Star Plug,
and 18AWG charging cable with 4mm banana plugs.
Built in 4mm banana battery sockets.
Reverse voltage protection.
Traxxas is a registered trademark of Traxxas Corporation.
INSTRUCTION
MANUAL
4mm banana sockets
4 red cell LEDs and
1 multi-colored status LED
®
ElectriFly
style 2-4S
4.4 x 2.7 x 1.6 in.
(111 x 69 x 41mm)
6.2 oz (176 g)
™
Traxxas
®
, or XT-90 connector*
DTXP4620
DTXP4621
DTXP4622
®
1
Advertisement
Table of Contents
Related Manuals for Duratrax DTXP4620
Summary of Contents for Duratrax DTXP4620
- Page 1 DTXP4620 DTXP4621 DTXP4622 2S-4S LiPo/LiFe Balancing Charger INSTRUCTION MANUAL ® The Li-24 LiPo/LiFe balancing charger is the perfect entry-level charger for modelers using up to 4S LiPo batteries. Inexpensive and very easy to operate, the Li-24 utilizes the CC/CV charge method, with voltages customized for LiPo/ LiFe batteries.
- Page 2 IMPORTANT PRECAUTIONS Do not leave the charger unattended while in use. Disconnect the battery and remove input power from the charger immediately if the charger or battery becomes hot!! Disconnect the battery if it begins to swell while being charged! Do not attempt to charge any battery types other than LiPo and LiFe as permanent damage to the battery and charger could result.
- Page 3 CARE AND HANDLING OF LiPo/LiFe BATTERIES WARNING!! DO NOT try to charge lithium-polymer (LiPo) or lithium-ferrite (LiFe) cells in the same way as other battery types! Always read the instructions that are included with your lithium batteries carefully before use. Failure to follow these care and handling instructions can quickly result in severe, permanent damage to the batteries and their surroundings and even start a FIRE! ALWAYS charge lithium batteries in a fi reproof location, which could be a container made of metal or ceramic tile.
- Page 4 If there is damage stemming from these causes within the stated warranty period, Duratrax will, at its option, repair or replace it for a service charge not greater than 50% of its then current retail list price.
