KD-CATHD150
HDMI/DVI via Dual CAT5e/6 Baluns (Tx/Rx),
supports up to 150 ft. on 1080p/60
with IR, RS-232, Audio Return, Ethernet
Operating Instructions

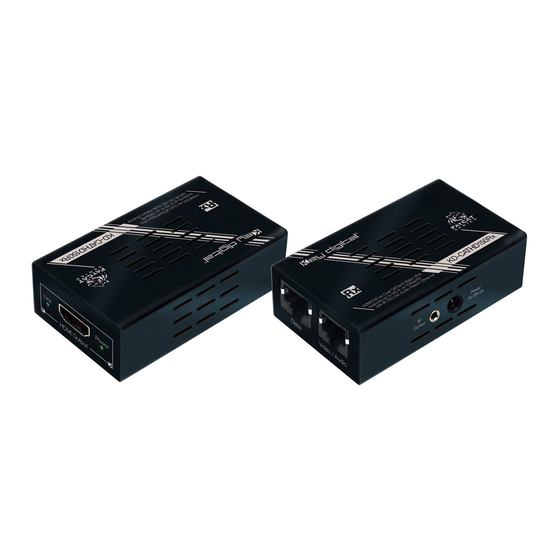

KD-CATHD150 is a master box that includes one (1) KD-CATHD150Tx Transmitter
Balun and one (1) KD-CATHD150Rx Receiver Balun. KD-CATHD150 is capable of
sending 1080P/60 to distances of up to 150 ft., and lower resolutions up to 300 ft.*
with Bi-directional IR/Uni-Directional RS-232. Supports advanced HDMI
3D Ready, 4K Resolution Support, Audio Return Channel, HDMI Ethernet Channel.
* Must use CAT5e/6 cables approved by Key Digital.
® features:
