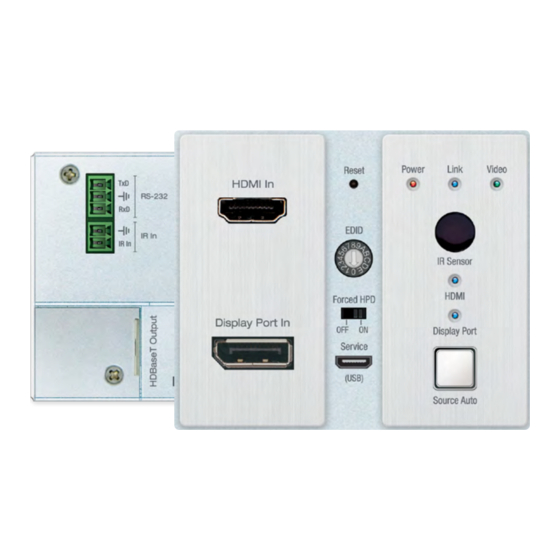

KD-X2x1WDTx
2x1 4K/18G 40m HDBT PoH Wall Plate Switcher
with HDMI & DisplayPort, IR, RS-232 (Transmitter Only)
KD-X2x1WVTx
2x1 4K/18G 40m HDBT PoH Wall Plate Switcher with HDMI
& VGA with Analog Audio, IR, RS-232 (Transmitter Only)
Operating Instructions
KD-X2x1WDTx
KD-X2x1WVTx
The Experts in Digital Video Technology and Solutions
™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Key Digital KD-X2x1WDTx
Summary of Contents for Key Digital KD-X2x1WDTx
- Page 1 KD-X2x1WDTx 2x1 4K/18G 40m HDBT PoH Wall Plate Switcher with HDMI & DisplayPort, IR, RS-232 (Transmitter Only) KD-X2x1WVTx 2x1 4K/18G 40m HDBT PoH Wall Plate Switcher with HDMI & VGA with Analog Audio, IR, RS-232 (Transmitter Only) Operating Instructions KD-X2x1WDTx...
-
Page 2: Table Of Contents
Contacting Key Digital ........ - Page 3 Key Features Presentation Switching: 1 HDMI and 1 Display Port / VGA with Analog Audio source selected by › push button Rx Options: Native integration with KD-X40MRx black box HDBaseT Rx and KD-PS42 Presentation › Switcher. Other Rx options available. Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to ›...
-
Page 4: Quick Setup Guide
6. BEFORE connecting power supply to power outlet, secure power into screw connector on Rx unit / presentation switch 7. AFTER all connections are made, plug-in power supply to power outlet 8. Power on input/output devices Application Examples KD-X2x1WDTx: Podium Laptop Presentation Switcher KD-PS42 with KD-AMP220 DisplayPort KD-X2x1WDTx... - Page 5 KD-X2x1WDTx: Podium Laptop Presentation Switcher KD-PS42 with KD-AMP220 KD-X2x1WVTx Audio WiFi Router WiFi Table Laptop HDMI K E Y D I G I TA L APP READY AppleTV KD-PS42 HDMI HDMI HDBT KD-X40MRx HDMI Video Conferencing KD-AMP220 Line Bass Treble...
-
Page 6: Introduction
Display Port Input (KD-X2x1WDTx only): › Using a Display Port cable, connect your source. Supports up to UHD/4K @ 50/60 fps [4:4:4], » 18Gbps Supports HDR » Supports Display Port version 1.3 and previous » Compliant with HDCP 2.2 and previous »... - Page 7 Signal is output on Rx unit / presentation switch’s IR Out port » simultaneously as any IR input collected by the IR Sensor KD-X2x1WDTx / KD-X2x1WVTx is NOT controllable via IR » IR and RS-232 extension not supported simultaneously »...
- Page 8 EDID Handshaking Rotary: › EDID authentication is provided from the unit to the connected HDMI and Display Port inputs/ sources. Note: VGA EDID is set via front USB from KDMS Pro software or by command terminal. » The EDID file (AKA “handshake”) is selected using the EDID rotary on the unit and provides a list »...
- Page 9 Used for configuration and control from PC via » KDMS Pro, KDMS, or third-party control terminal Used for firmware updates (consult with Key Digital tech support before updating firmware) » Supports USB driver for Windows 10, 7, XP, Mac, Linux »...
-
Page 10: Use With Third-Party Hdbaset Tx Or Rx
Use with third-party HDBaseT Tx or Rx KD-X2x1WDTx and KD-X2x1WVTx are compatible with third-party HDBaseT or other Key Digital HDBaseT products, because of their unique PoH (Power over HDBaseT) feature Unit Configuration with KDMS ™ KD-X2x1WVTX’s video scaling features are most easily configured using Key Digital Management ®... - Page 11 5. Use the Video Settings window to apply color and sizing adjustments to the VGA source (fig. 2a). Press the Apply button to apply settings. 6. Additional settings may be adjusted in the KDMS software. Full access to all settings/commands is ™...
-
Page 12: Usb (Rs-232) Commands
USB (RS-232) Commands KD-X2x1WDTx / KD-X2x1WVTx allows control over USB for bi-directional communication. Connection Protocol: Baud Rate = 57,600 bits per second » Data Bits = 8 » Stop Bits = 1 » Parity = Non » Flow Control = None »... - Page 13 : Set Auto Sense Mode x = [0:OFF,1=AUTO,2=FORCED ON] -- SPC FB E/D : Enable/Disable Front Panel Buttons -- SPC DF : Reset to Factory Defaults ------------------------------------------------------------------------- KD-X2x1WDTx Help Command (H). Returns entire API in readable format: KD-X2x1WDTx> H ------------------------------------------------------------------------- Key Digital Systems HELP ------------------------------------------------------------------------- KD-X2x1WDTx F/W Version : 1.00...
- Page 14 KD-X2x1WDTx Status Command (STA). Returns unit status and settings in readable format: KD-X2x1WDTx> STA ------------------------------------------------------------------------- Key Digital Systems STATUS ------------------------------------------------------------------------- KD-X2x1WDTx F/W Version : 1.00 -- Front Panel Button : Enabled -- Auto Sensing Mode : OFF -- RS232 : Baud Rate=57600bps, Data=8bit, Parity=None, Stop=1bit...
-
Page 15: Specifications
Specifications Technical: KD-X2x1WDTx Inputs: 1 HDMI, 1 Display Port, 1 IR Sensor, 1 Serial IR » KD-X2x1WVTx Inputs: 1 HDMI, 1 DB15, 1 3.5mm Stereo Audio, 1 IR Sensor, 1 Serial IR » Outputs: 1 CAT5e/6 UTP/STP, 1 Bi-Directional RS-232 »... -
Page 16: Important Product Warnings & Safety Instructions
Damage to the power supply or power plug » Exposure to rain or moisture » Power Supply Use: You MUST use the Power Supply PROVIDED with your unit or you VOID the Key Digital Warranty ® and risk damage to your unit and associated equipment. -
Page 17: Contacting Key Digital
Phone: 914-667-9700 › E-mail: rma@keydigital.com › Warranty Information All Key Digital products are built to high manufacturing standards and should provide years of trouble-free ® operation. They are backed by a Key Digital Limited 3 Year Product Warranty Policy. http://www.keydigital.com/warranty.htm... - Page 20 , led by digital video pioneer Mike Tsinberg, ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high-end video and control are important. Key Digital ® is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers.
