MODELS:
HDG15002, HDG15004, HDG15006, HDG15008,
HDG15010, HDG15012
HDG20002, HDG20004, HDG20006, HDG20008, HDG20012
E-mail: sales@bvahydraulics.com
Maximum Operating Pressure 10,000 PSI
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419

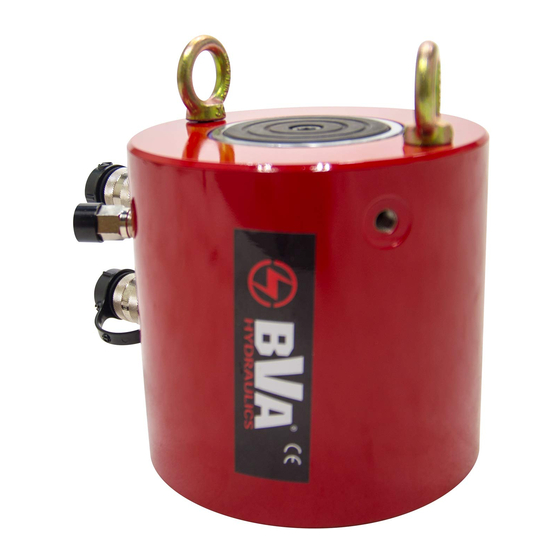

High Tonnage Double
Acting Cylinders
Instruction Manual
*
Fax: 816-448-2142
Website: www.bvahydraulics.com
HDG15002-M0_092015
- 150 Ton Capacity
- 200 Ton Capacity
Printed in Taiwan
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BVA Hydraulics HDG15002
Summary of Contents for BVA Hydraulics HDG15002

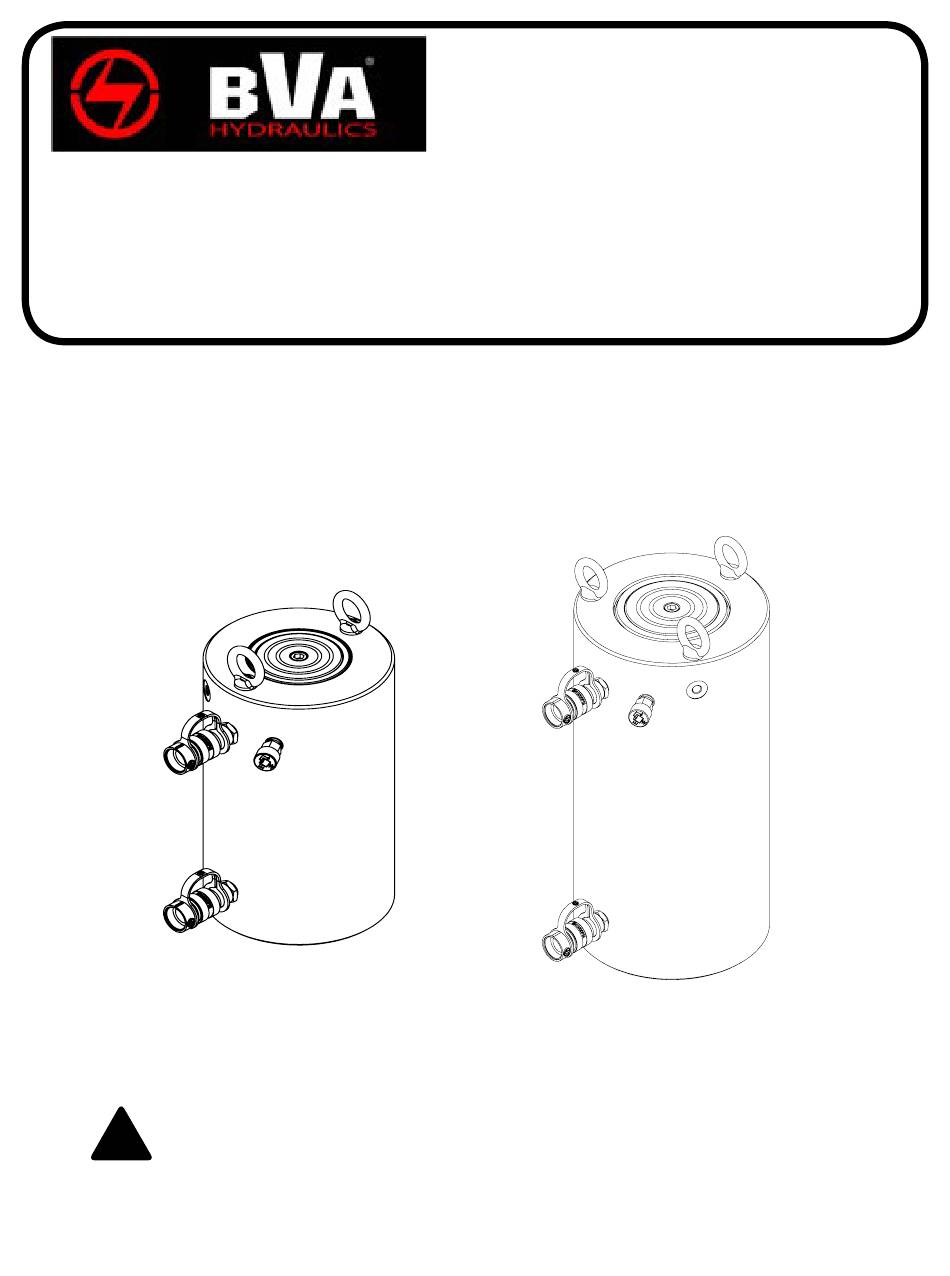

- Page 1 HDG15002-M0_092015 High Tonnage Double Acting Cylinders Instruction Manual MODELS: HDG15002, HDG15004, HDG15006, HDG15008, - 150 Ton Capacity HDG15010, HDG15012 HDG20002, HDG20004, HDG20006, HDG20008, HDG20012 - 200 Ton Capacity SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com...
-
