This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Maximum Operating Pressure 10,000 PSI
• Leer, comprender, y seguir las instrucciónes antes de utilizar el aparato.
• El manual de instrucciónes y la información de seguridad deben estar comunicado en lengua del operador
antes del uso.
• No seguir estas indicaciónes puede causar daños personales o materiales.

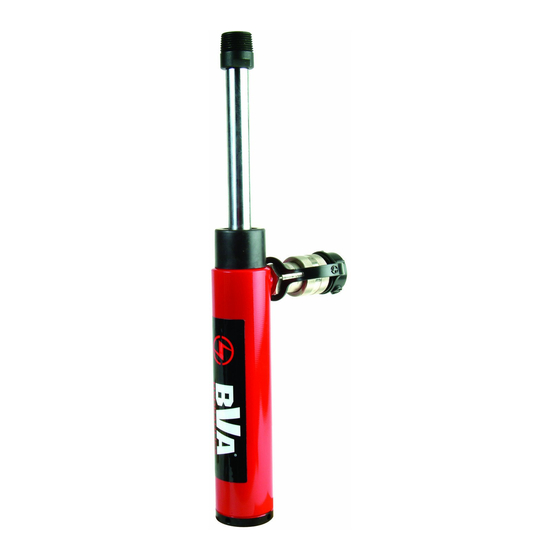

MODELS:
HP0205, HP0505 & HP1006
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419
ADVERTENCIA
!
Single Acting,
Pull Cylinders
Instruction Manual
*
Fax: 816-891-6599
Website: www.bvahydraulics.com
HP0205-M0 rev 12/07
Printed in Taiwan
Advertisement
Table of Contents
Related Manuals for BVA Hydraulics HP0205
Summary of Contents for BVA Hydraulics HP0205
- Page 1 HP0205-M0 rev 12/07 Single Acting, Pull Cylinders Instruction Manual MODELS: HP0205, HP0505 & HP1006 SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-891-6599 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
-
Page 2: Safety And General Information
(a load dropped suddenly, unexpectedly upon NEVER use hydraulic cylinder as a support device! it), discontinue use until checked out by a BVA Hydraulics authorized service center. Owners and operators of this Always check connections before using. Alteration equipment shall be aware that the use and subsequent of these products is strictly prohibited. -
Page 3: Installation
10,000 psi. refer repairs to qualified, authorized personal. • Do not connect a cylinder to a pump with higher Contact BVA Hydraulics tech service for authorized pressure rating. service center. • Do not subject cylinder to a shock loads, a load... -
Page 4: Before Use
2. If a cylinder or ram has been exposed to rain, snow, 2. Verify that the product and the application are compatible. sand, airborne abrasive, or any corrosive environment, it If in doubt, call BVA Hydraulics Technical Service (888) must be cleaned, lubricated, and protected immediately 332-6419. -
Page 5: Troubleshooting Guide
TROUBLESHOOTING GUIDE The following information is intended as an aid in determining if problem exists. Cylinders should be repaired only by authorized BVA Service Center. For repair service, contact service center in your area. Symptom Possible Causes Corrective Action Erratic action •... - Page 6 Single Acting, Pull Cylinders Service Parts MODELS: HP0205, HP0505 & HP1006 SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-891-6599 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the cylinder are replacement items, but are illustrated as a HP0205-M0 convenient reference of location and position in the assembly sequence.
- Page 7 Single Acting, Pull Cylinders Service Parts MODELS: HP0205, HP0505 & HP1006 SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-891-6599 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the cylinder are replacement items, but are illustrated as a HP0205-M0 convenient reference of location and position in the assembly sequence.
-
Page 8: Limited Lifetime Warranty
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not provide any warranty credit for such damaged components.
