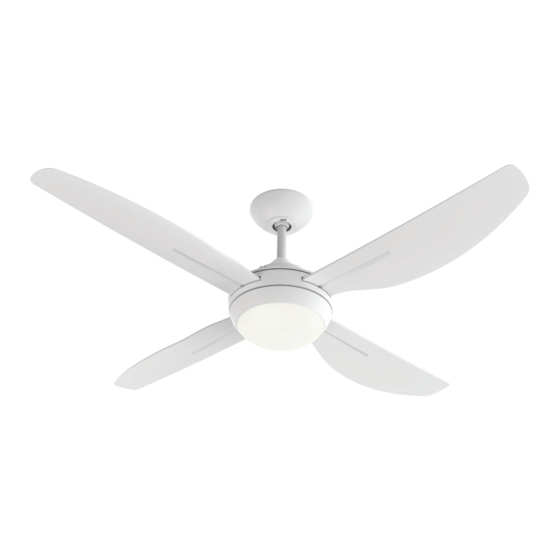

- Page 1 SERENE AC CEILING FANS WITH TRI-COLOUR LIGHT Instruction Manual...
-
Page 2: Important Considerations
If unusual oscillating movement is observed, stop using the ceiling fan immediately and contact Legrand Australia, its service agent or a suitably qualified person. 8. Fan has “Light Colour Switch” which is marked WW - Warm White, CW - Cool White (Factory set), NW - Natural White. This colour selection is done once the fan is installed by the electrician. -
Page 3: Rotary Switch
FIXING THE MOUNTING BRACKET TO CEILING Select a suitable location for the fan. Use the 2 coach screws provided (or similar) to make an attachment to a solid structural member. Ensure the mounting method is capable of supporting a hanging weight of 30kg. Fix mounting bracket (supplied) firmly to timber or concrete. -
Page 4: Supply Wiring
POWER SUPPLY CONNECTION TO TERMINAL BLOCK A. Connect supply wiring to the terminal block provided in hangsure bracket. Max. Torque:0.5 Nm SUPPLY WIRING BRACKET 230-240V ~ HANGING THE FAN ON THE BRACKET • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan by joining the male and female connector plugs (See Fig.1). -
Page 5: Accessories (Sold Separately)
The ceiling fan comes with a Legrand Excel life rotary 3-speed control. Fan wall control with light switch (supplied) Note: Legrand Excel Life rotary 3 speed fan control with light switch (Cat. No:ED3FCSERLWE) is available as spare part. ACCESSORIES (SOLD SEPARATELY) - Page 6 SUMMER AND WINTER SWITCH Summer and Winter switch Summer Mode Winter Mode Fan operates by rotating anti-clockwise to push cool air down Fan operates in reverse by rotating clockwise to pull cool and pull warm air up, creating a wind chill effect of the air air up and push warm air down, allowing for warm air to moving around you.
- Page 7 10 DOWNROD INSTALLATION REMOVING THE ROD Warning: Ceiling fan must be mounted so that blades are 2.1m from the floor and 300mm from the wall and other obstructions to the blade tip (Refer to Section 2. Fixing the mounting bracket to ceiling on page 2). Make sure the power is switched OFF during installation.
-
Page 8: Product Notes
■ Legrand offers this product with a 6 year (2 year + 4 year) express warranty. The first 2 years are in-home whereas the following 4 years are parts only. To access this warranty please contact Legrand. The following conditions apply to this express warranty: ●...
