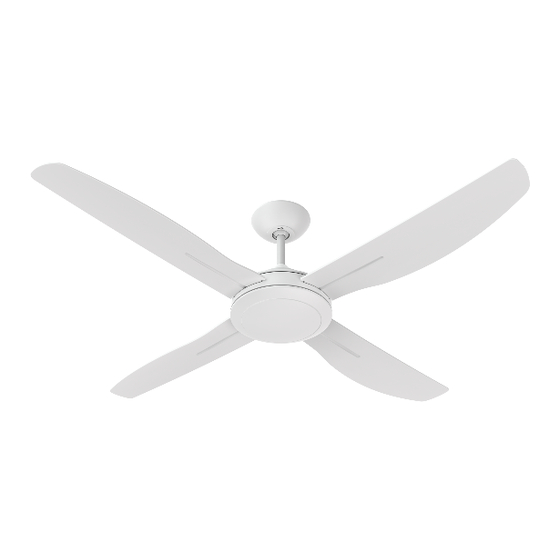

- Page 1 SERENE DC CEILING FANS 4 BLADES Instruction Manual...
-
Page 2: Important Considerations
5. Blades provided are paired for individual fan and must not be mixed with blades from other fans. This may affect performance and cause vibration/wobble. If unusual oscillating movement is observed, stop using the ceiling fan immediately and contact Legrand Australia, its service agent or a suitably qualified person. QUICK-FIT BLADE INSTALLATION C. - Page 3 FIXING THE MOUNTING BRACKET TO CEILING Select a suitable location for the fan. Use the 2 coach screws provided (or similar) to make an attachment to a solid structural member. Ensure the mounting method is capable of supporting a hanging weight of 30 kg. Fix mounting bracket (supplied) firmly to timber or concrete.
- Page 4 POWER SUPPLY CONNECTION TO THE TERMINAL BLOCK A. Connect supply wiring to the terminal block provided in hangsure bracket. Max. Torque:0.4 Nm SUPPLY WIRING BRACKET 230-240 V ~ HANGING THE FAN ON THE BRACKET • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan by joining the male and female connector plugs.
-
Page 5: Remote Control
REMOTE CONTROL a. Fan OFF button • Press the button to turn the fan OFF. • Press and hold the button for 5 seconds within 30 seconds of switching the power to the receiver for pairing the transmitter and receiver. b. -
Page 6: Accessories (Sold Separately)
ACCESSORIES (SOLD SEPARATELY) Downrods Serene Ceiling Fan Extension Downrod 750 mm x 21.5 mm-White (CFSERDR750WE) Serene Ceiling Fan Extension Downrod 1500 mm x 21.5 mm-White (CFSERDR1500WE) DOWNROD INSTALLATION REMOVING THE ROD Warning: Ceiling fan must be mounted so that blades are 2.1m from the floor and 300mm from the wall and other obstructions to the blade tip (Refer to Section 2. -
Page 7: Product Notes
9. Only those accessories as supplied by Legrand are designed for operation with the fan. 10. Extended exposure to UV rays (such as exposure to direct sunlight) may cause discolouration of this product. - Page 8 ■ Legrand offers this product with a 6 year (2 year + 4 year) express warranty. . 6 year warranty doesn’t apply to the remote control unit. The first 2 years are in-home whereas the following 4 years are parts only. To access this warranty please contact Legrand.
