Mounting Instructions and Manual
S2910MY
EA‐Nr.:5017830496595 – S2910MY
EA‐Nr.:5017830496601 – S2911MY
soap dispensers
1. Important Notes
.
Before installation, the instructions have to be read and understood.
.
Installation, commissioning and maintenance are to be performed only by a
qualified technician according to the instructions provided and in accordance with
legal requirements and acknowledged rules of technology.
B1682 ‐ S2910MY/S2911MY/21.04.2015
S2911MY
(1000x561x1205mm)
(1000x561x1304mm) with
2. Scope of supply
Qty
1

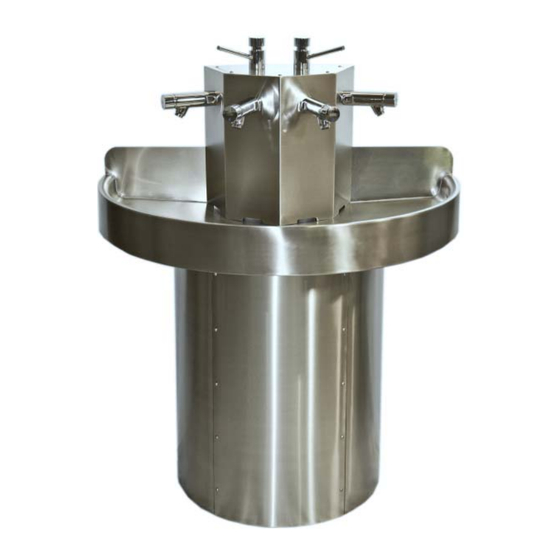

S2910MY ‐ 4 person circular washtrough with manual Taps
1
S2911MY ‐ 4 person circular washtrough with manual taps and soap dispensers
1
4
1
2

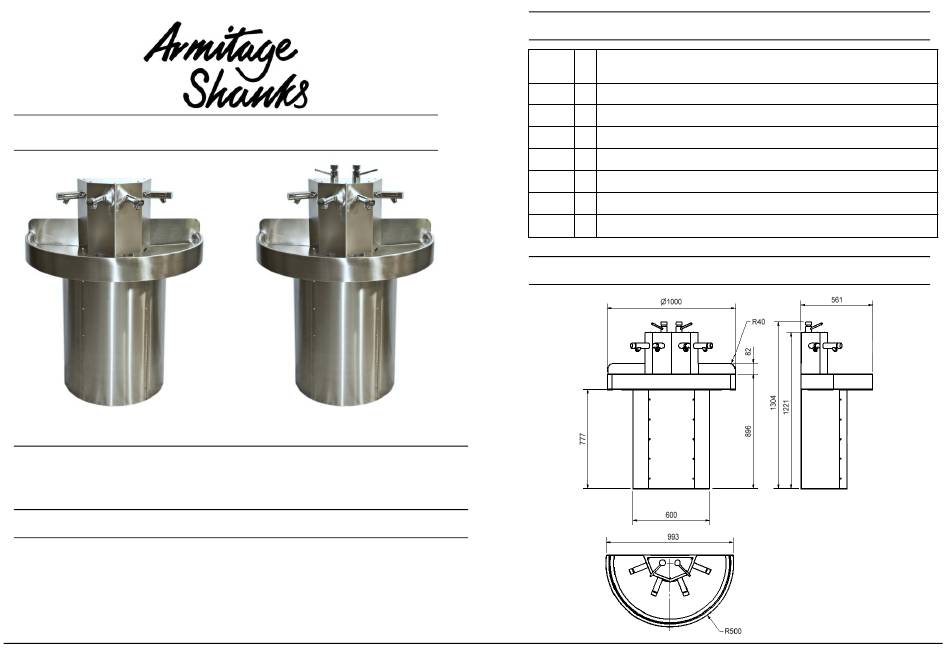

3. Dimensions
Designation
1 ½" S tubular trap
self closing manual taps
M5 allen key security pin
Soap dispensers (S2911MY)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Armitage Shanks S2910MY
Summary of Contents for Armitage Shanks S2910MY
- Page 1 2. Scope of supply Designation S2910MY ‐ 4 person circular washtrough with manual Taps S2911MY ‐ 4 person circular washtrough with manual taps and soap dispensers Mounting Instructions and Manual 1 ½” S tubular trap self closing manual taps M5 allen key security pin Soap dispensers (S2911MY) 3. Dimensions S2910MY S2911MY EA‐Nr.:5017830496595 – S2910MY (1000x561x1205mm) EA‐Nr.:5017830496601 – S2911MY (1000x561x1304mm) with soap dispensers 1. Important Notes . Before installation, the instructions have to be read and understood. . Installation, commissioning and maintenance are to be performed only by a qualified technician according to the instructions provided and in accordance with legal requirements and acknowledged rules of technology. B1682 ‐ S2910MY/S2911MY/21.04.2015 1 ...
- Page 2 Soap: This dispenser is suitable for standard liquid hand (1) The lower larger access panel can cleaners and cream soaps. be removed by using the allen key Preferably use mild, biodegradable synthetic provided on the 10 security agents. headed bolts. Do not use cleaners with abrasive or disinfectant. Warning: (2) On the removal of this panel you Industrial hand cleaner, natural (organic) fluid will have access to the internal soaps and cleaners with a high amount of copper pipework and manifold, as concentrated components can cause a rapid well and the waste and trap, abrasion of the pump mechanism. whereby you can service or change either the hoses or trap when required. Global guidelines for fluid soaps: pH: 6 ‐ 7,5 (3) The manifold has a 22mm push fit Perfume: < 1% (EDTA, NTA) <‐ connector as its base to enable the Herbal Oils: < 1% Optimal installer to connect their pipework Animal Fat: < 1% Viscosity: 1.000 ± 1000mPa.s For repair/maintenance please refer to soap dispenser service manual (Included) B1682 ‐ S2910MY/S2911MY/21.04.2015 ...
- Page 3 5. Tap Instructions 6. Securing washtrough to the floor Please note that the base of the unit has 6, 10mm Dia holes that are positioned around Important ! its base section. These should be used to secure the unit to the floor. Use fixings which Before installing, flush the pipes in are appropriate to the type of flooring you are securing the unit to. (Note: Floor fixings compliance with DIN 1988 are not supplied) To connect pre mixed water supply. Insert a length of 22mm copper tube into the push fit connector at the base of the manifold assembly . (Copper tube not supplied). (TMV3 Valve not supplied as standard). To adjust the flow time of the Taps: Please see tap manual (included) For further repair/maintenance, please refer to the taps service manual (Included) The premixed water supply should be a minimum 22mm Dia when entering the pedestal. It is recommended to connect a thermostatic mixing valve before connecting to the units manifold framework. For satisfactory operation, a supply pressure of between 3 – 7 bar is required for entering the wash fountain pedestal. With recommended flow rate of 36 l/min For pressures in excess of 7 bar, a flow control or pressure reducing valve should be fitted (Not supplied) 7. Hotline B1682 ‐ S2910MY/S2911MY/21.04.2015 ...
