Gima S.p.A. – Via Marconi, 1 - 20060 Gessate (MI) Italy
Italia: tel 199 400 401 – fax 199 400 403 – gima@gimaitaly.com
Export: phone + 39 02 953854209/221/225 – fax + 39 02 95380056 - export@gimaitaly.com
–
www.gimaitaly.com
Code 29612

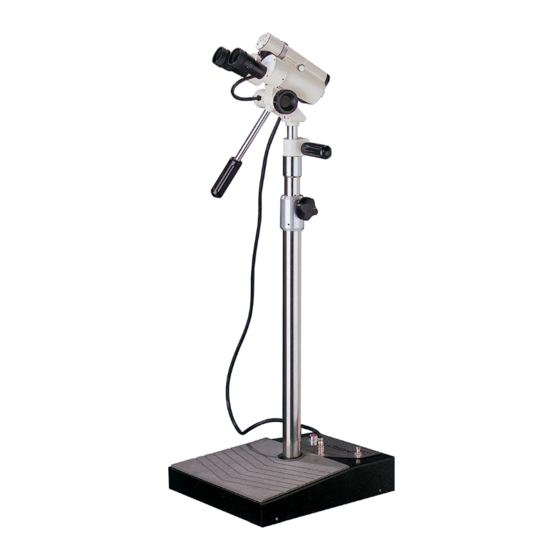

LED COLPOSCOPE - 9X
User Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Gima 9X
Summary of Contents for Gima 9X

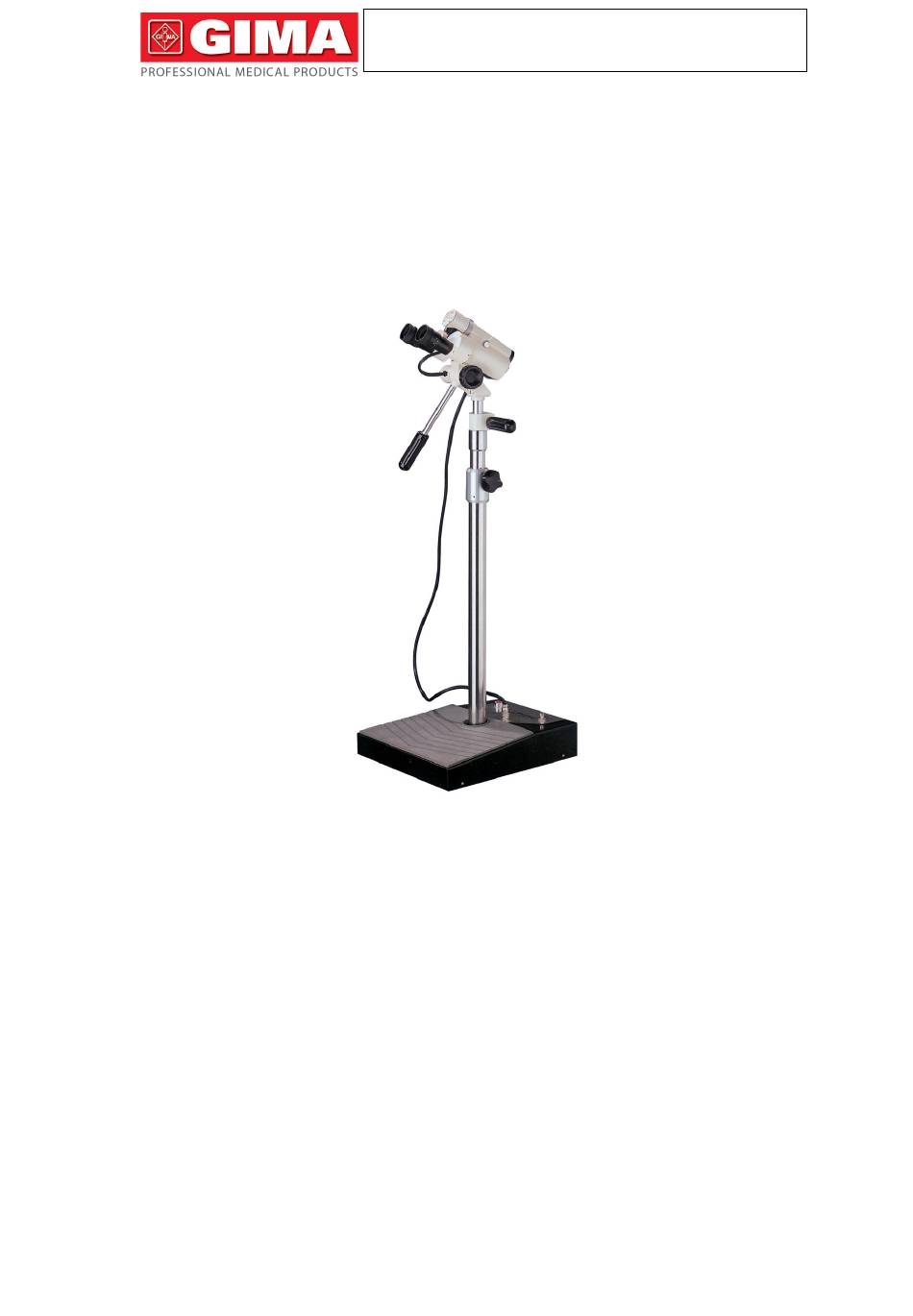

- Page 1 Gima S.p.A. – Via Marconi, 1 - 20060 Gessate (MI) Italy Italia: tel 199 400 401 – fax 199 400 403 – gima@gimaitaly.com Export: phone + 39 02 953854209/221/225 – fax + 39 02 95380056 - export@gimaitaly.com – www.gimaitaly.com Code 29612...
- Page 2 LED Bulb Cover Green Filter Knob Head Inclination Adjusting Knob Rheostat Knob Diopter Knobs Fine Height Adjustment Handle Fine Focus Handle Gross Height Adjustment and Locking Knob Fuse Seat Power Plug...
-
Page 3: Indications For Use
Clear, bright, long-lasting LED light source • Light intensity: 10,000 LUX • One piece shipping that puts you in operation with minutes of opening • the box (no salesperson necessary) Overall magnification 9X • 2. Contents of Box 1 Colposcope • 1 Power Cord •... - Page 4 4. Setting Up the Colposcope A. Remove the power cord from the shipping box. B. Insert the power cord into the plug located at the back end of the base. C. Insert the other end of the power cord into the wall socket. Note: It must be a 3 hole wall socket, in order to ensure proper grounding of the instrument.
- Page 5 6. Adjustment of the Eyepieces The interpupillary distance (IPD) is the distance in the spacing between a person’s eyes. To Adjust the IPD A. Turn on power by pressing the foot-switch on the base. On/off indica- tion light will come on. B.
- Page 6 Since most offices have multiple people using the Colposcope, the eyepiec- Measurement at Tissue Site 9X es will be different when someone else wants to use it. By remember- ing your diopter settings, clarity can Lens 7.6mm Line...
- Page 7 8. Colposcope Instructions for Use The following briefly describes using the Colposcope with a patient. It is recommended that you practice using the Colposcope to familiarize your- self with all of the features it has to offer. A. With patient in lithotomy position, your Colposcope should be placed so that the head of the scope is 320mm from the area you wish to view, with the post to as near vertical as possible.
- Page 8 Move Head Up & Down If patient is not centered, you can move the Colposcope head in multiple directions to change your field of vision. See photos D–H. Move Head Left Move Head Right Fine Focus Handle Fine Height Adjustment Handle Twist the adjustment handle to Push the Fine Height Adjustment...
- Page 9 I. Adjust the Fine Focus Controls to provide clear, magnified views of the area to be examined. Rotate your left hand on the Fine Focus Handle which will finely move the optics towards or away from the object that you wish to view. Also, rotate your right hand which is on the Fine Height Adjustment Handle up or down to raise or lower the optics.
-
Page 10: Troubleshooting
Congratulations for purchasing a GIMA product. This product meets high qualitative standards both as regards the material and the production. The warranty is valid for 12 months from the date of supply of GIMA. During the period of validity of the warranty, GIMA will repair and/or replace free of charge all the defected parts due to production reasons. Labor costs and personnel traveling expenses and packaging not included.
