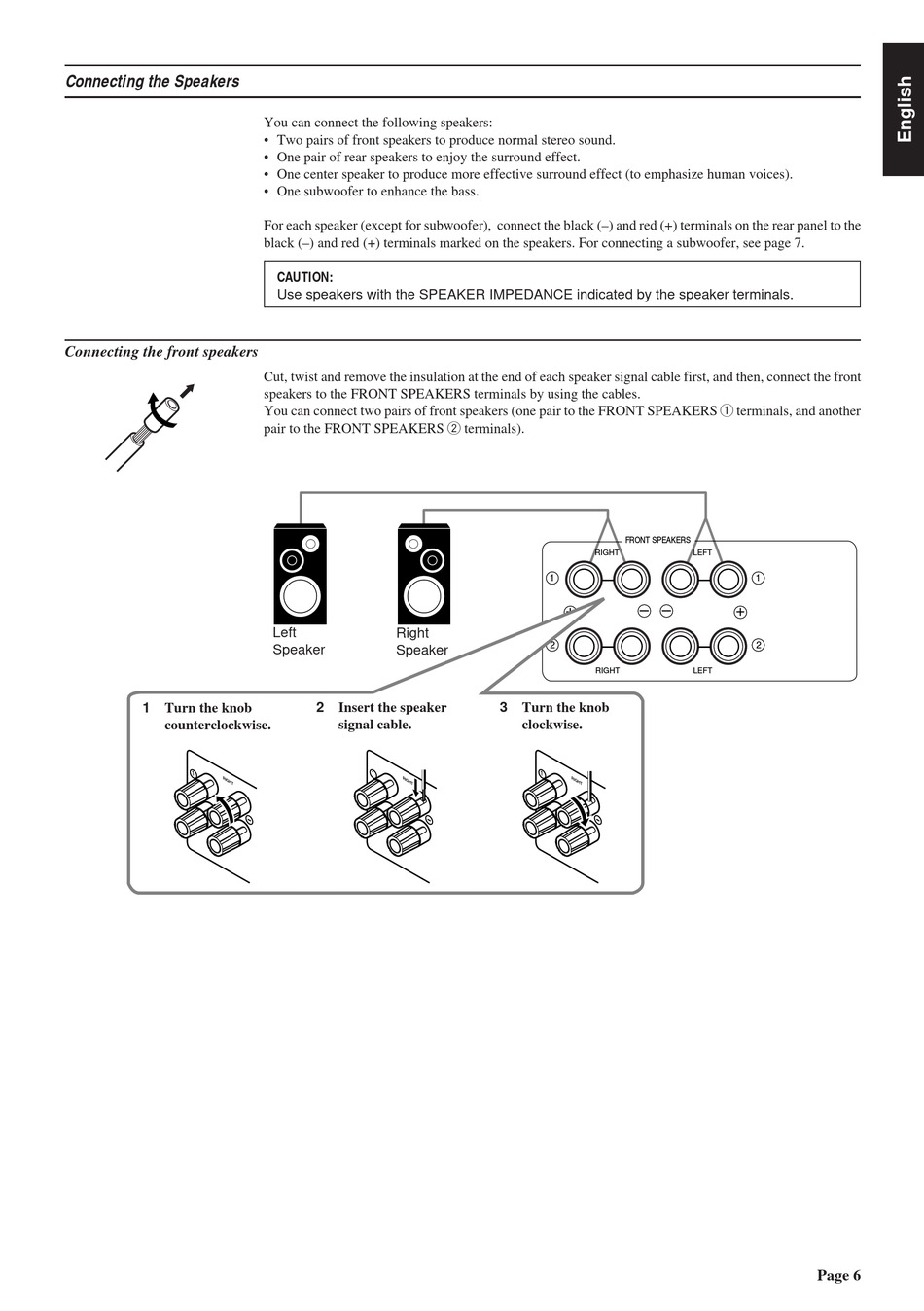

Connecting the Speakers

Connecting the front speakers
1 Turn the knob
counterclockwise.
1
R I G
H T
You can connect the following speakers:
• Two pairs of front speakers to produce normal stereo sound.
• One pair of rear speakers to enjoy the surround effect.
• One center speaker to produce more effective surround effect (to emphasize human voices).
• One subwoofer to enhance the bass.
For each speaker (except for subwoofer), connect the black (–) and red (+) terminals on the rear panel to the
black (–) and red (+) terminals marked on the speakers. For connecting a subwoofer, see page 7.
CAUTION:
Use speakers with the SPEAKER IMPEDANCE indicated by the speaker terminals.
Cut, twist and remove the insulation at the end of each speaker signal cable first, and then, connect the front
speakers to the FRONT SPEAKERS terminals by using the cables.
You can connect two pairs of front speakers (one pair to the FRONT SPEAKERS 1 terminals, and another
pair to the FRONT SPEAKERS 2 terminals).
Left
Right
Speaker Speaker
2 Insert the speaker
signal cable.
1
R I G
H T
FRONT SPEAKERS
RIGHT
1
+ – –
2
RIGHT
3 Turn the knob
clockwise.
1
R I G
H T
LEFT
1
+
2
LEFT
Page 6
