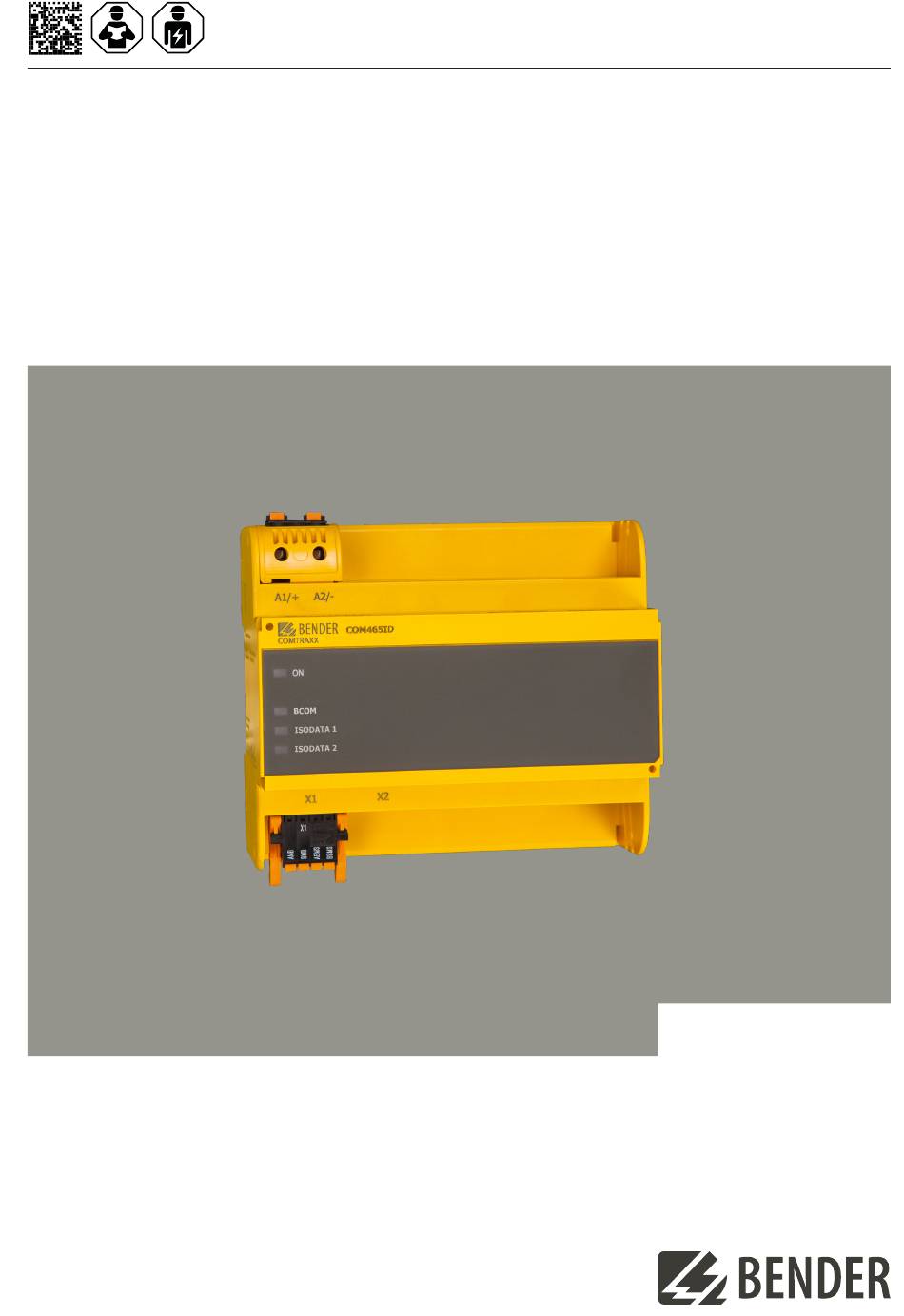

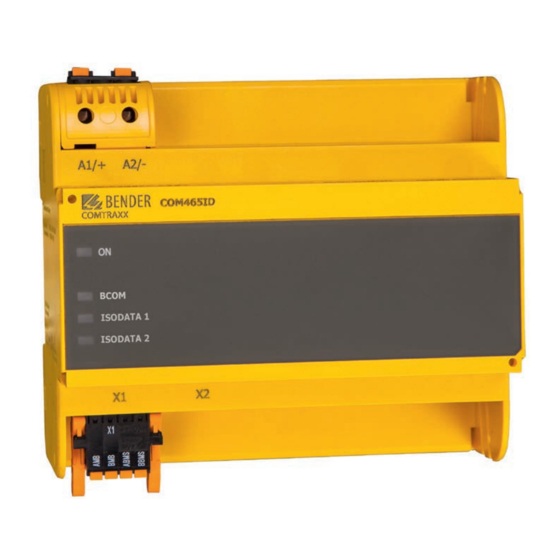

- Page 1 Manual EN COMTRAXX® COM465ID Condition Monitor with integrated gateway for the connection of Bender isoData devices with Ethernet TCP/IP networks Software version V4.7.x COM465ID_D00368_02_M_XXEN/09.2023...
- Page 2 COM465ID_D00368_02_M_XXEN/09.2023...
-
Page 3: Table Of Contents
Signs and symbols............................5 Service and Support............................5 Training courses and seminars........................6 Delivery conditions............................6 Inspection, transport and storage......................6 Warranty and liability.............................6 Disposal of Bender devices..........................7 1.10 Safety..................................7 Intended use....................... 8 Product description.................... 9 Scope of delivery............................. 9 Device features..............................9 Scope of functions............................ - Page 4 Table of contents Web user interface................... 19 Functions of the web user interface......................19 Software products used..........................19 Browser configuration..........................20 Home page COMTRAXX® user interface....................20 5.4.1 Headline................................20 5.4.2 Path display (breadcrumb navigation)....................21 5.4.3 Navigation................................ 21 5.4.4 Subnavigation..............................21 5.4.5 Content area..............................22 5.4.6 Overview of pending alarms........................
-
Page 5: General Information
Protect from dust Temperature range Recycling RoHS directives Service and Support Information and contact details about customer service, repair service or field service for Bender devices are available on the following website: Fast assistance | Bender GmbH & Co. KG. COM465ID_D00368_02_M_XXEN/09.2023... -
Page 6: Training Courses And Seminars
Regular face-to-face or online seminars for customers and other interested parties: www.bender.de > know-how > seminars. Delivery conditions The conditions of sale and delivery set out by Bender GmbH & Co. KG apply. These can be obtained in printed or electronic format. The following applies to software products: ‘Software clause in respect of the licensing of standard software as part of deliveries,... -
Page 7: Disposal Of Bender Devices
COMTRAXX® COM465ID Disposal of Bender devices Abide by the national regulations and laws governing the disposal of this device. For more information on the disposal of Bender devices, refer to www.bender.de > service & support. 1.10 Safety If the device is used outside the Federal Republic of Germany, the applicable local standards and regulations must be complied with. -
Page 8: Intended Use
The gateway connects the following devices to Ethernet TCP/IP networks: • Bender devices with isoData or BCOM interface • Bender PEM… universal measuring devices which feature a Modbus TCP interface The COM465ID converts alarms, measured values and states of the devices to the protocols Modbus TCP as well as HTTP and OPC-UA. -
Page 9: Product Description
• Support of devices that are connected via isoData, BCOM or Modbus TCP Scope of functions Basic device (without function modules) • Condition monitor with a web interface for use with Bender isoData and BCOM devices as well as universal measuring devices • Support of devices –... -
Page 10: Function Module A
Product description Subsequent installation of function modules Download the licence files from the Bender homepage. https://www.bender.de/en/service-support/licences/ Then activate the function modules in the COMTRAXX® web view. Tools > Service > Function modules Below the overview you will find the button for importing the licence files (.blf). -
Page 11: Applications
The COM465ID gateways are integrated into the existing EDP structure like PCs. After connecting to the network and compatible Bender products, all system devices can be accessed from any PC using a web browser. In this way, all important system information is directly available. -
Page 12: Mounting, Connection And Commissioning
Mounting, connection and commissioning Mounting, connection and commissioning The COM465ID is normally integrated into existing LAN structures, but can also be operated via a single PC on the Ethernet side. CAUTION If you are familiar with the configuration of computer networks, you can carry out the connection of the COM465ID yourself. -
Page 13: Mounting The Device
COMTRAXX® COM465ID 4.2.1 Mounting the device The device is suitable for the following types of installation: • Snap-on mounting on a DIN rail according to IEC 60715 or • Screw mounting using 3 x M4 Snap-on mounting on a DIN Screw mounting using 3 x M4 rail according to IEC 60715 Dimension diagram (mm) -
Page 14: Connecting The Device
Mounting, connection and commissioning 4.2.2 Connecting the device Element Explanation A1/+; A2/- Power supply 1st isoData interface: Terminals AID1 und BID1 Plug X1 2nd isoData interface: Terminals AID2 und BID2 Plug X2 Ethernet connection (RJ45) for the connection to the PC network as well as to BCOM isoData channel 1 terminating resistor switch isoData channel 2 terminating resistor switch Make the connection as follows:... - Page 15 COMTRAXX® COM465ID COM465ID with IRDH265 COM465ID with isoDB685... COM465ID_D00368_02_M_XXEN/09.2023...
-
Page 16: Display And Control Elements
Mounting, connection and commissioning X1 connector pin assignment COM465ID and isoDB685… Termination of the isoData interface For an error-free data transmission from the isoData device to the COM465ID, a terminating resistor of 120 to be connected to both ends of the bus cable for each channel. This terminating resistor is either switched on or connected externally. -
Page 17: Commissioning The Device
Risk of duplicate addresses if BCOM system name is not changed. The factory setting for the system name on all Bender BCOM devices is "SYSTEM". If several systems are established in the same network, there is a risk that addresses will be assigned more than once. -
Page 18: Factory Settings For Addresses
Mounting, connection and commissioning Check connection Connect the COM46… to the network again. Start the web user interface. All other settings (individual texts, e-mail notifications, …) can now be made. Factory settings for addresses Parameter Factory setting IP address 192.168.0.254 Connection can always be made using the pre-defined IP address (e.g. -
Page 19: Web User Interface
– Displaying an overview page; jumping to another view page and back to the overview page is possible • Graphical display with scaling of the time axis for the data loggers of the gateway and compatible Bender devices. -
Page 20: Browser Configuration
Web user interface Browser configuration As browser, the latest version of Google Chrome, Microsoft Edge and Mozilla Firefox are recommended. To use the functions of the web user interface, JavaScript has to be activated. The pop-up blocker should be deactivated for the IP address of the COMTRAXX® device. For Windows©... -
Page 21: Path Display (Breadcrumb Navigation)
COMTRAXX® COM465ID 5.4.2 Path display (breadcrumb navigation) 1= Device The path display shows at any time on which device and in which bus you are currently located in the content window. 5.4.3 Navigation Menu Description Start Display of information about the device and the software. Please have this information to hand if you need to contact us for assistance by telephone. -
Page 22: Content Area
Web user interface - Select display by subsystems or by interfaces. The interface display is only available for COMTRAXX® V4.xx and higher. - Configure the line height of the entries. The number in brackets (here: 25) indicates the set bus address. The display by subsystem or interface is possible independently of the configured Modbus image V1 or V2. - Page 23 COMTRAXX® COM465ID Protection User Password Password for Note Ex factory Access via User user default web browser Access via Administrator admin default web browser COM465ID_D00368_02_M_XXEN/09.2023...
-
Page 24: Troubleshooting
Document the new settings as a PDF file. Use the backup function to save all settings of the device (see Chapter: “Device features”, Page 9). Frequently asked questions on the Internet FAQs on many Bender devices can be found at: Fast assistance | Bender GmbH & Co. KG Device operation, maintenance, cleaning Maintenance The device does not contain any parts that require maintenance. -
Page 25: Technical Data
COMTRAXX® COM465ID Technical data Tabular data ( )* = Factory setting Insulation coordination in acc. with IEC 60664-1/IEC 60664-3 Rated voltage AC 250 V Rated impulse withstand voltage/overvoltage category 4 kV / III Pollution degree Protective separation (reinforced insulation) between (A1/+, A2/-) - [(AID1, BID1), (AID2, BID2), (X2)] Supply voltage Supply voltage U... - Page 26 BCOM device address 0…255 (0)* Modbus TCP Interface/protocol Ethernet/Modbus TCP Operating mode client for Bender devices and ‘third-party devices’ assigned Operating mode server for access to process image and for Modbus control commands Parallel data access from different clients max. 25...
- Page 27 COMTRAXX® COM465ID isoData Interface/protocol RS-485/isoData Operating mode Master Baud rate 9.6…115.2 kBit/s Cable length ≤ 1200 m Cable shielded, one end of shield connected to PE Cable recommended CAT6/CAT7 min. AWG23 Cable alternatively twisted pair, J-Y (St) Y min. 2x0.8 Connection X1 (AID1, BID1, AID2, BID2) Connection type...
- Page 28 Technical data Mechanical conditions acc. to IEC 60721 Stationary use (IEC 60721-3-3) 3M11 Transport (IEC 60721-3-2) Long-term storage (IEC 60721-3-1) 1M12 Connection Connection type pluggable push-wire terminals Push-wire terminals Conductor sizes AWG 24-12 Stripping length 10 mm rigid/flexible 0.2…2.5 mm² flexible with ferrule with/without plastic sleeve 0.25…2.5 mm²...
-
Page 29: Standards, Approvals And Certifications
COMTRAXX® COM465ID Software D0472 Weight ≤ 240 g ( )* = Factory setting Standards, approvals and certifications Ordering information Device Supply voltage/ Power Type Application Art. No. frequency range U consumption Condition Monitor an AC/DC 24…240 V COM465ID ≤ 6,5 VA / ≤ 4 W B95061070 integrated gateway 50…60 Hz... - Page 30 COM465ID_D00368_02_M_XXEN/09.2023...
- Page 31 COMTRAXX® COM465ID COM465ID_D00368_02_M_XXEN/09.2023...
- Page 32 Alle Rechte vorbehalten. 35305 Grünberg Nachdruck und Vervielfältigung nur mit Germany Genehmigung des Herausgebers. © Bender GmbH & Co. KG, Germany Subject to change! The specified Tel.: +49 6401 807-0 All rights reserved. standards take into account the edition info@bender.de Reprinting and duplicating only with valid until 09.2023 unless otherwise...
